Motobatt 12V AGM Battery - MB9U

Motobatt 12V AGM Battery - MB9U

Motobatt Quadflex offers the best balance between AH (ampere hours) and CCA (Cold Cranking Amps -18C). Achieving this by increasing the size of the internal plates, by utilizing the unused space found in other batteries.

This is made possible through our world wide patented innovated cell connection system. Additionally, we enhance the thickness of the grid, the density of the paste, and the weight (content) of the active material to maximize the capacity allowed by its size. Revolutionary to the Battery Market.

Features:

• Power Experience up to 30% more capacity and power with the same size as competitor batteries, thanks to its exclusive design

• Safe No need to add acid and risk any accidental spillages

• Durable Thanks to its technology and high quality AGM it is extremely resistant to vibrations or weld breakages

• Maintenance Free Fully sealed and factory activated, it requires no maintenance other than keeping it charged in storage

• Ready to go With a voltage of over 12.5V the battery is ready to use right away

• New improved solid mounted terminals with threaded inserts


Replaces:

• Yuasa YB9A, YB9AA, YB9A2, YB9LA2, YB9B, YB9LB, YB9B2, YB9LB2, YB7A, YB7AA, YB7LA, YB7LB, 12N73A, 12N73B, 12N7D3B, 12N74A, 12N74B, 12N93A, 12N93A1, 12N93B, 12N94B1

• WPS 491-1015

Installation Instructions:

• Motobatt spec-MB9U.pdf


Specifications:

Battery Type	MB9U
Voltage	12
CCA	140
MCA	201A
PHCA	385A
Capacity (10HR)	11Ah
Weight	3.40kg / 7.48Ibs

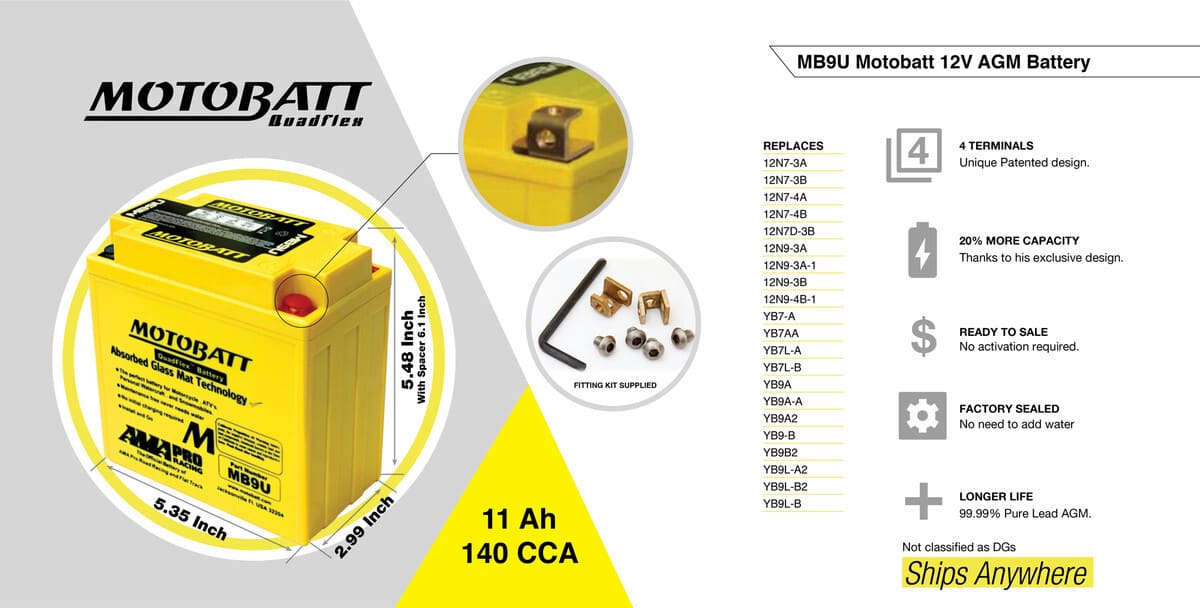

Dimensions (in / mm)	L: 5.35(136) W: 2.99(76) H: 5.24(133) TH1: 5.48(139) TH2: 6.1(154)
Assembly Figure Terminal Locations	4
Terminals	2, M6x2.5 (Part#MPT2)
Screws	4, M6X7 (Part#2xMPS2)
Allen Wrench	1, 4x4 (Part#MPAK2)
Terminal Caps	4, 12x5.5 (Part#2xMPC2)
Spacer	2, Bottom (Part# MPBS2) Spacer 1 = 6mm, Spacer 2 =15mm, Total = 21mm
