Morimoto 4 Banger LED Pods - HXB Spot Beam
SKU: dpo

Morimoto 4 Banger LED Pods - HXB Spot Beam

SKU: dpo
$0.00

Morimoto 4 Banger LED Pods - HXB Spot Beam

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the red bull intake, and now it’s time for the old competition to rethink their strategy. The brand new, patent-pending line of 4 Banger HXB off-road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

HXB Spot Beam: Illuminates far into the distance unlike anything Else on the market. The HXB spot comes standard with the most powerful osram LEDs, which in combination with the HXB LED optics produces a Beam pattern capable of penetrating up to 800 meters into your future. No matter the speed, you’ll never outrun your ability to see with the 4 Banger HXB spots.

Form Meets Function: The overall footprint of the 4 Banger HXB is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto ’s fog light or a-pillar mounting kits, which are available for today’s most Popular trucks. Don’t be that Guy with LED pods bulging out of your bumper.

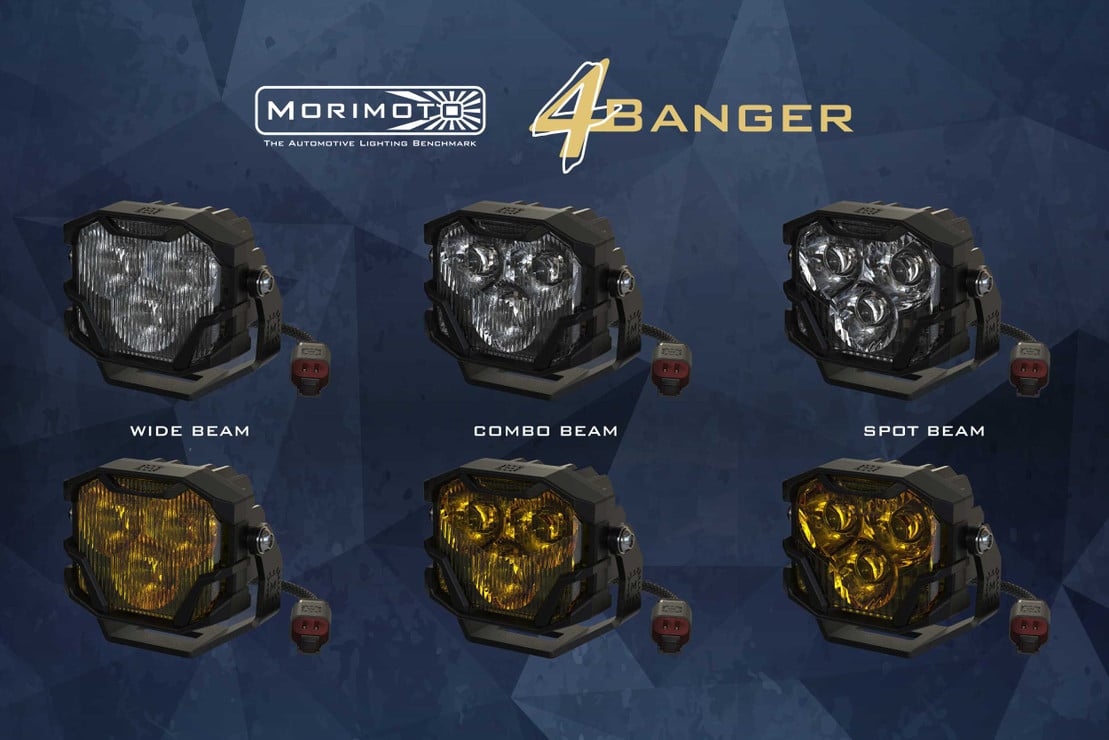

Performance: There are no “off the shelf” guts inside of a fancy housing here. Every element of the 4 Banger HXB is proprietary. Lucid shape was used to optimize performance around the most modern, lumen-dense LEDs from osram. Thermal dynamics have been optimized using solid works. The 4 Banger HXB is available with three industry-leading Beam patterns to suit every need. Wide/Fog, spot, and combo. Patent pending design.

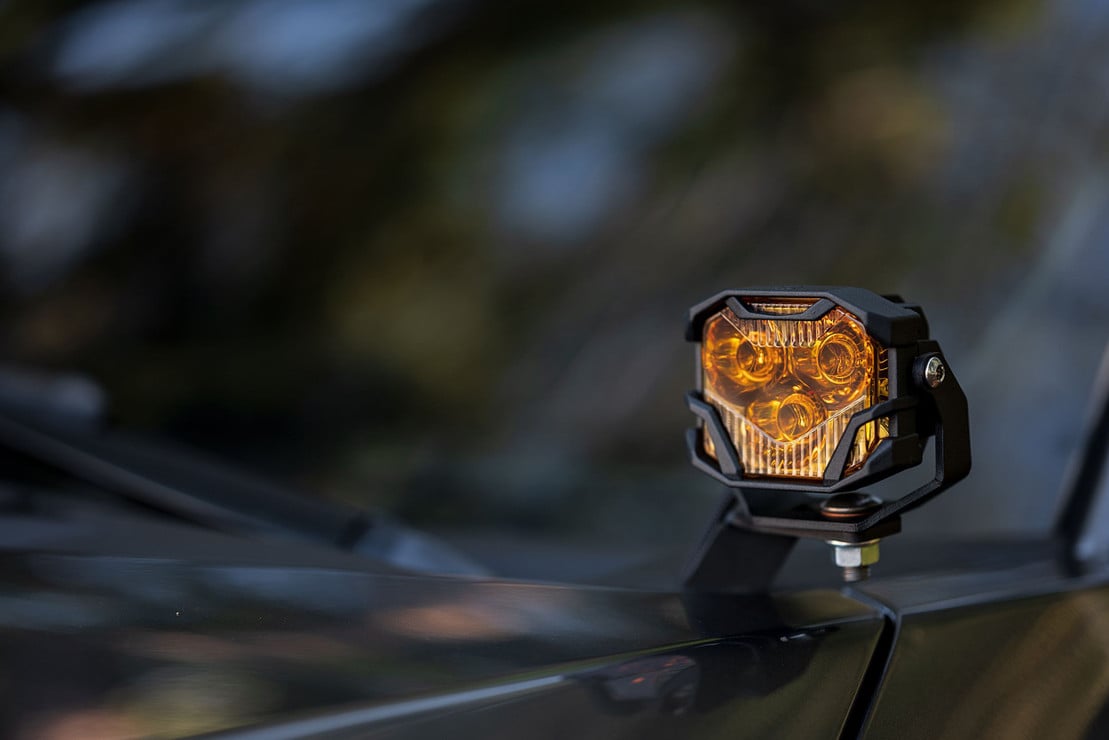

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the yellow-output version Will slay in shady weather. Morimoto has opted for LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

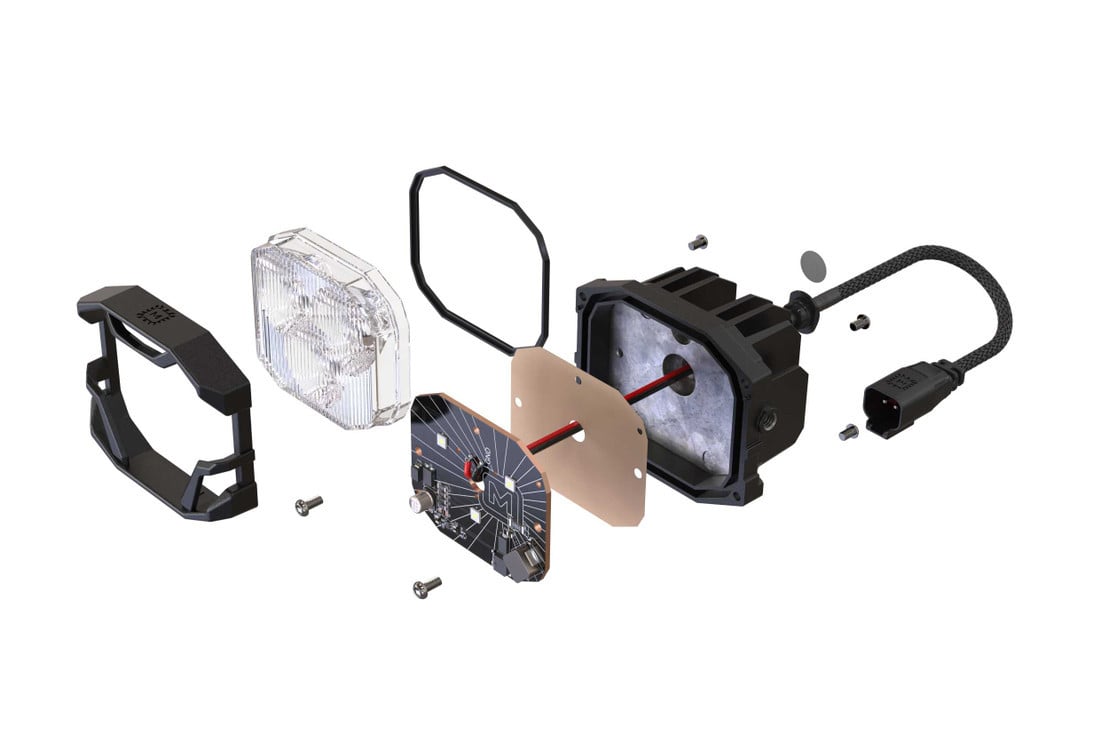

Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4 Banger features a copper DTP (Direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to ip69K standards for full weather resistance.

Bolt-on: Each set of Morimoto 4 Banger LED pods include a set of pedestal mounts for a Universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for fog lights and a-pillars that make them bolt-on for Many of today’s most Popular trucks. Check out the full lineup for details on what’s available for your application.

Street Legality: When aimed properly, the spot and combo beams comply with SAE J581 standards for an for auxiliary high Beam. If you’re looking for a high-performance street-legal LED pod to use as a fog light, both the NCS and HXB wide Beam models are SAE J583 compliant for use as a street legal fog light. (See full test report here) . Some localities require auxiliary lights to be covered for everyday driving. To comply, the optional blackout covers are designed to fit all Morimoto 4 Banger LED pods, and are a friction + clip fit that installs with ease, and can be removed in seconds.

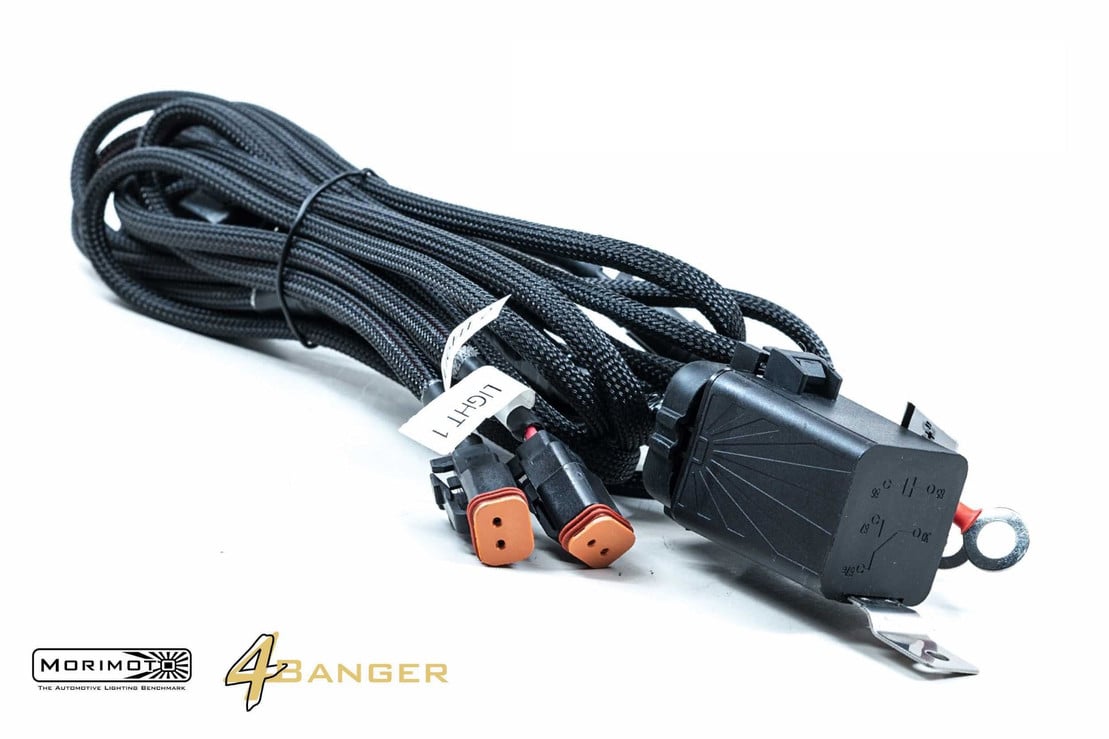

Power Up: The Morimoto 4 Banger LED pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with Hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2s female outputs with dual seals. Stainless steel power and ground terminals. Proprietary m-spec push button switch with yellow-LED backlight.

Benchmark: Morimoto. The automotive lighting benchmark. We are globally recognized as the brand to beat when it comes to aftermarket lighting upgrades for the automotive aftermarket. No other brand blends performance, quality, and style quite like we do. Our vast product line covers today’s most Popular trucks and cars. If you Don’t see it, trust that we can make it. Whether you’re interested in something off the shelf or a brand new product designed exclusively for you: Connect with Morimoto today!

What’s Included:
LED Pods 2X (One pair) Morimoto 4 banger HXB spot (White or yellow)
Brackets 2X (One pair) Universal u-shape mounts
Hardware Complete pack (Stainless steel)
Optional Wiring 1X Morimoto 4 banger switched relay harness or DT connectors
Compatibility:
Universal With included u brackets

Tech Specs:
Intensity (White) 170,000 CD (@20 Min / 21C Ambient) (1,700LUX @ 10M)
Intensity (Yellow) 119,000 CD (@20 Min / 21C Ambient) (1190LUX @ 10M)
Input Proprietary over molded Deutsch DT 2-pin w/ Pigtail
Input Voltage 9-18V DC
Power (Stabilized) 42W
Current 3.2A @ 13.2V DC
Peak Luminosity (LM)(Raw) 3,000LM
Dimensions 82MM w, 67MM h, 60MM d
Hardware M6 x 1.0 x 8MM (4 banger to u-bracket), M10 x 1.5 x 20MM (U-bracket base)
Light Source 3X Osram HX boost (5700K)
Material Makrolon led PC (Lens), powder coated die cast aluminum (Housing)
IP Rating Ip69K (Dust / High pressure water resistant)
Instructions:

https://youtu.be/kIaEiZW_DeU
