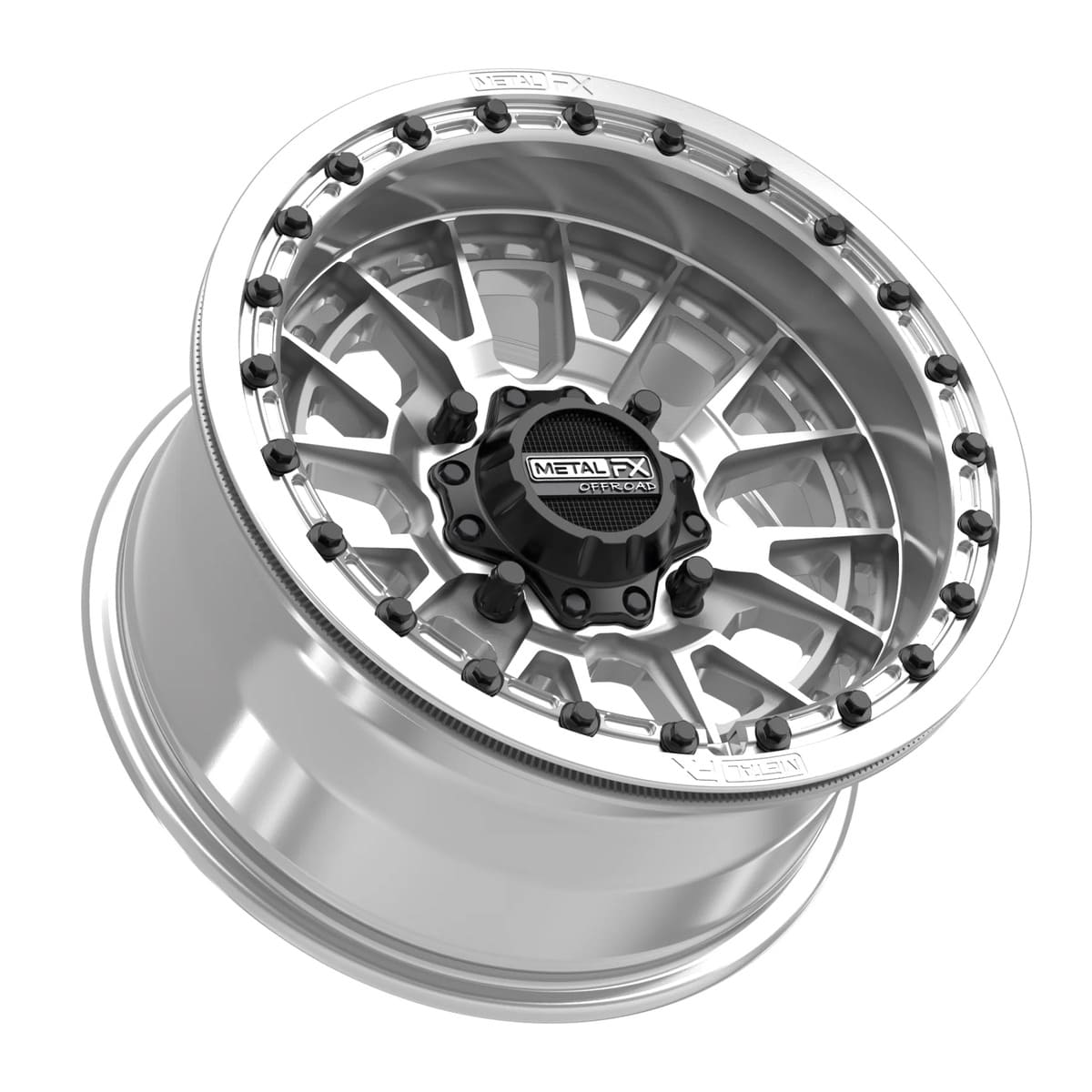

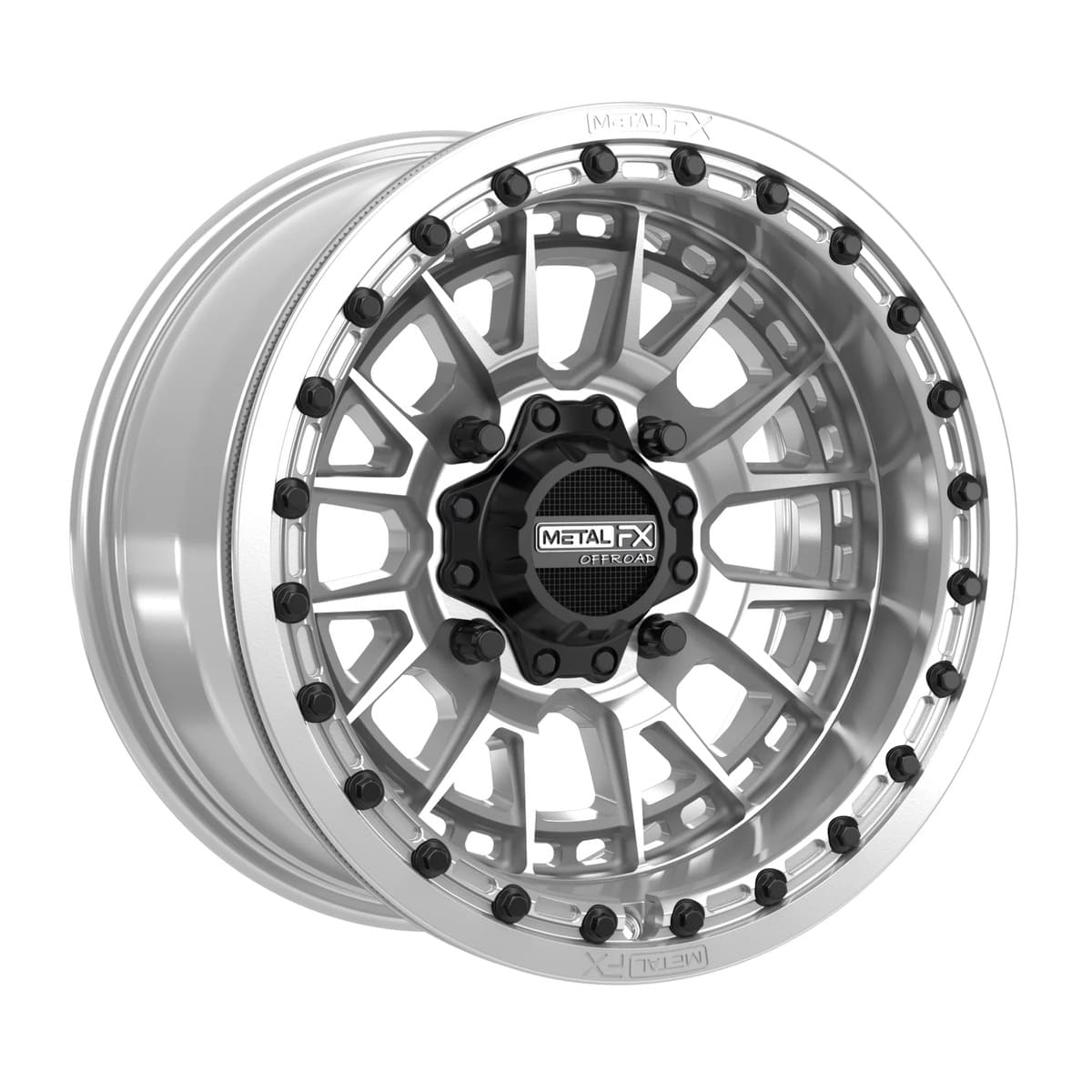

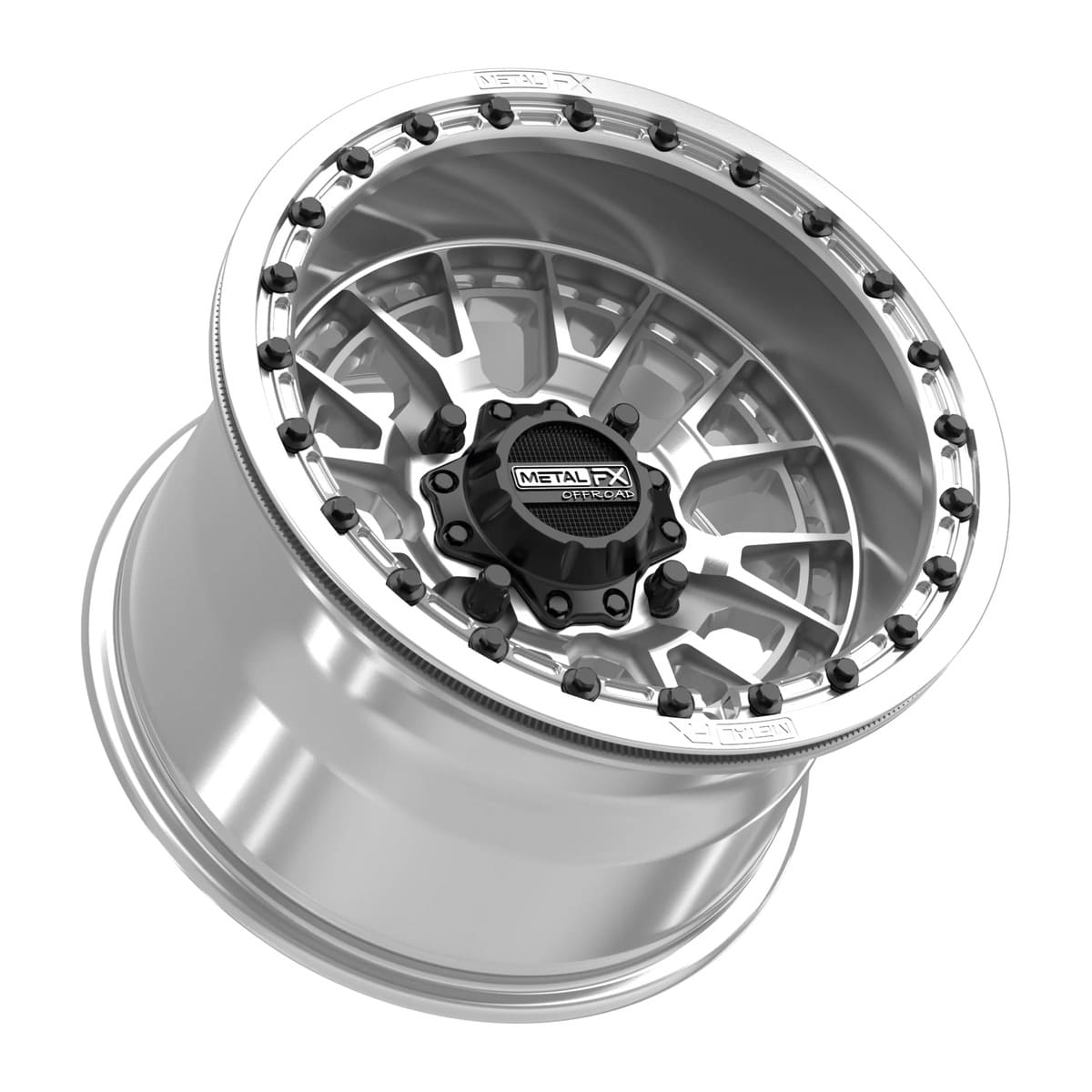

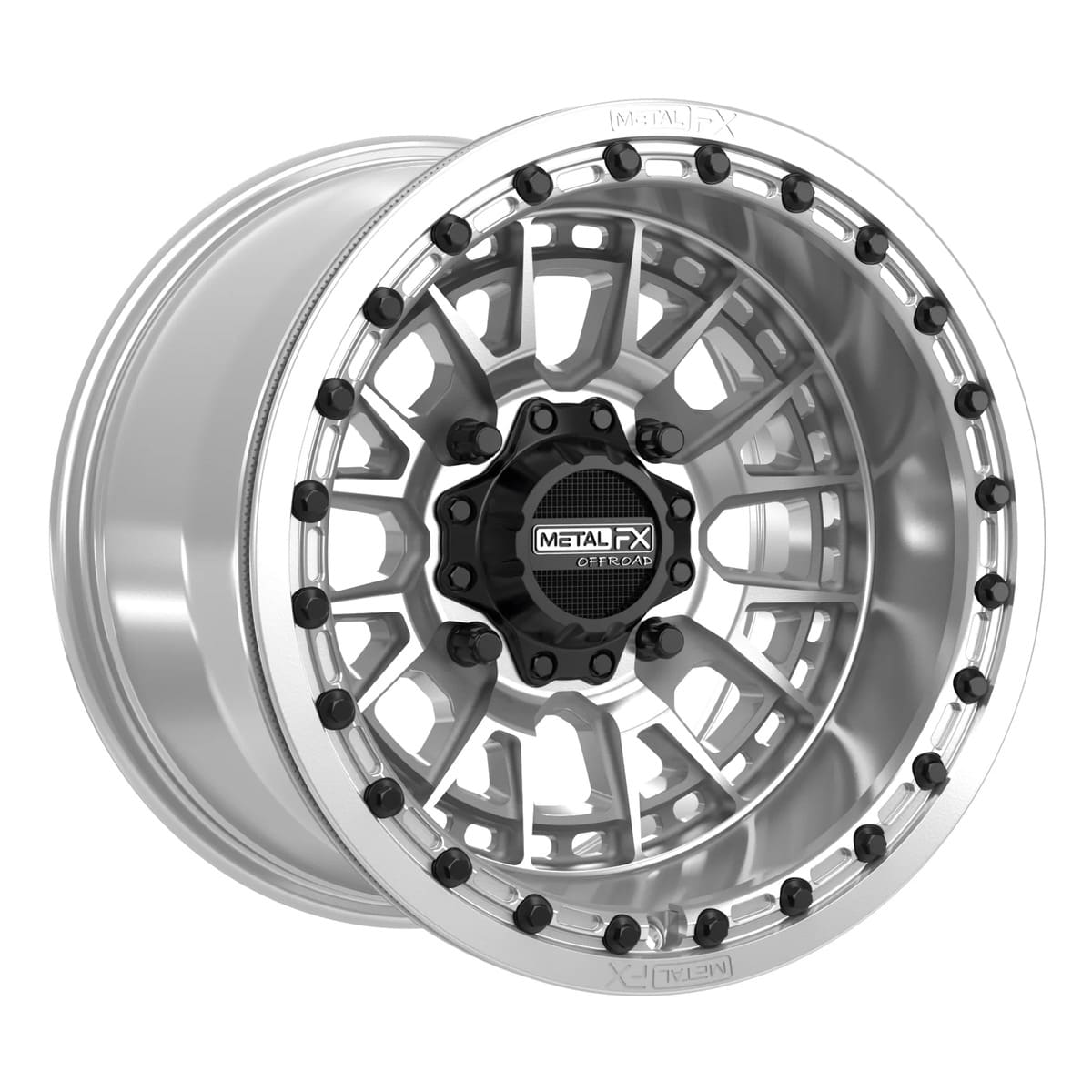

Metal FX Slayer Beadlock - Raw
The Metal FX Offroad Slayer UTV Wheel combines our technical expertise with uncompromised attention to detail creating the ultimate in style and performance. The design of the Slayer includes a unique concave center and a 6061-T6 Billet Beadlock for enhanced strength and durability.
Features:
- Super strong 6061-T6 Aluminum Beadlock Ring
- Lightweight 19lbs - 15x8 / 20lbs - 15x10
- Solid A356 Aluminum with T6 heat treatment construction
- Bolt on cap with embossed METAL FX Logo
- Hub centric fitments for common applications, clears Speed UTV Hubs
Specifications:
| Model | Slayer Beadlock | Slayer Beadlock | Slayer Beadlock | Slayer Beadlock | Slayer R Beadlock | Slayer R Beadlock | Slayer 6R Beadlock | Slayer 6R Beadlock |
|---|---|---|---|---|---|---|---|---|
| Finish | Raw | Raw | Raw | Raw | Raw | Raw | Raw | Raw |
| Wheel Size | 15x8 | 15x10 | 15x8 | 15x10 | 15x8 | 15x10 | 15x8 | 15x10 |
| Bolt Pattern | 4x136/4x137 | 4x136/4x137 | 4x156 | 4x156 | 5x114.3 (5x4.5) | 5x114.3 (5x4.5) | 6x139.7 (6x5.5) | 6x139.7 (6x5.5) |
| Backspace (in) | 4.5 | 4.5 | 5.5 | 5.5 | 4.4 | 5.4 | 5.4 | 6.4 |
| Offset (mm) | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm | 25mm | 25mm |
| Offset (in) | 4+4 | 4+4 | 5+5 | 5+5 | 4+4 | 5+5 | 5+3 | 6+4 |
| Center Bore | 110.2 | 110.2 | 132 | 132 | 66.1 | 66.1 | 78.1 | 78.1 |
| Weight (lbs) | 19 | 20 | 19 | 20 | 20.1 | 21.7 | 20.7 | 22.1 |
| Load Rating | 1260 | 1260 | 1260 | 1260 | 1260 | 1260 | 1400 | 1400 |
| Lip Size | 2.47 | 3.49 | 2.47 | 3.49 | 2.47 | 3.48 | 1.35 | 2.37 |
Fitment:
4x136/4x137:
- Artic Cat Stampede
- CanAm Commander
- CanAm Defender
- CanAm Maverick
- CanAm Maverick X3
- Honda Pioneer 1000
- Honda Talon 1000
4x156:
- Arctic Cat Wildcat XX
- Kawasaki Mule PRO
- Kawasaki RIDGE
- Kawasaki Teryx KRX 1000
- Polaris ACE
- Polaris General
- Polaris Ranger
- Polaris RZR
- Speed UTV El Jefe
- Speed UTV Baja Bandit
- Yamaha Wolverine RMAX
- Yamaha YXZ 1000R (2019+)
