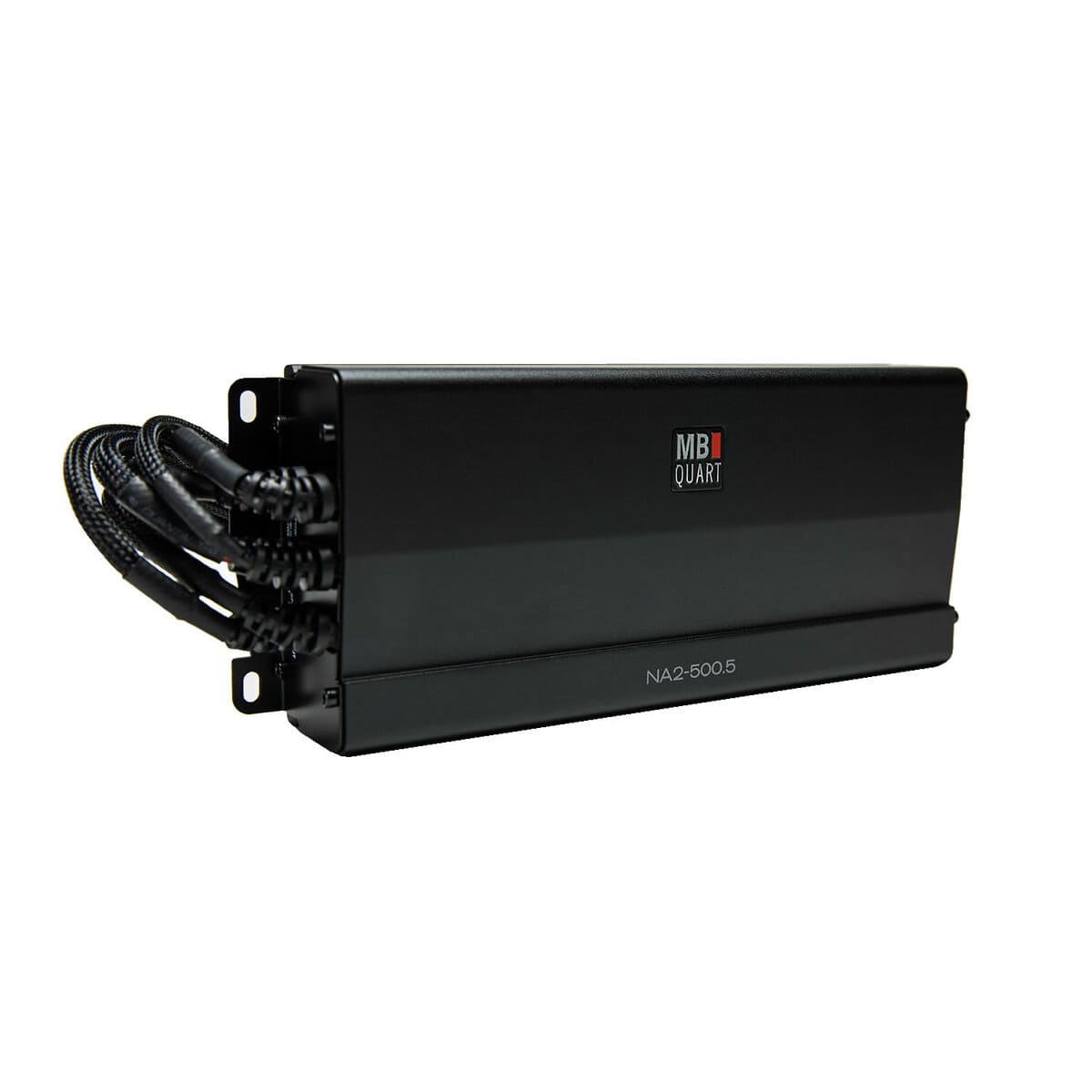

MB Quart NA2-500.5 Nautic 500 Watt Amplifier
SKU: MBQ-806576227366
1 3

MB Quart NA2-500.5 Nautic 500 Watt Amplifier

SKU: MBQ-806576227366
$299.24 $314.99
Custom Icon
Earn $5 Fueled Cash
This item ships FREE

MB Quart NA2-500.5 Nautic 500 Watt Amplifier

MB Quart compact Five Channel, 500 watt Powersports amplifier with on-board equalization and simple instalation with quick release connectors. Base remote included.

Features:
Marine Grade Protection / IPX Rating Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture. IPX5
Low Noise Preamplifier Circuit Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality.
RCA Inputs 2 Pair, RCA (Front/Rear), 1 Pair RCA (Subwoofer) Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
Operation Mode Four channel and with dedicated subwoofer channel: Unique design allows this amplifier to power full range speakers with a dedicated channel for a subwoofer.

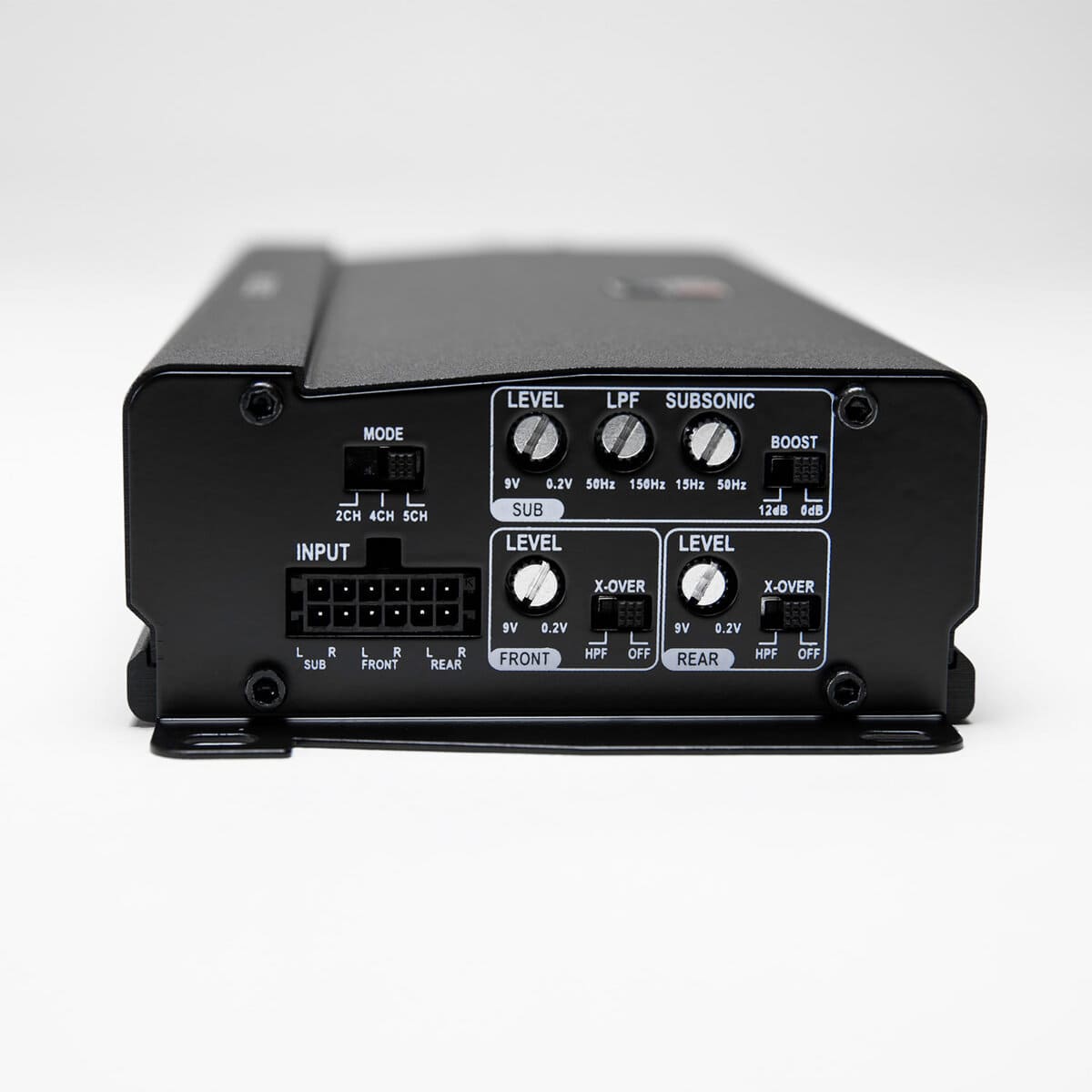

Crossover Type Switched FULL / LPF / HPF: Complete control of amplifier signal, essential when using two or more amplifiers.
Class / Topology Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
Output Device Technology PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
Heat Sink Aluminum: Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration.
Power Supply Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

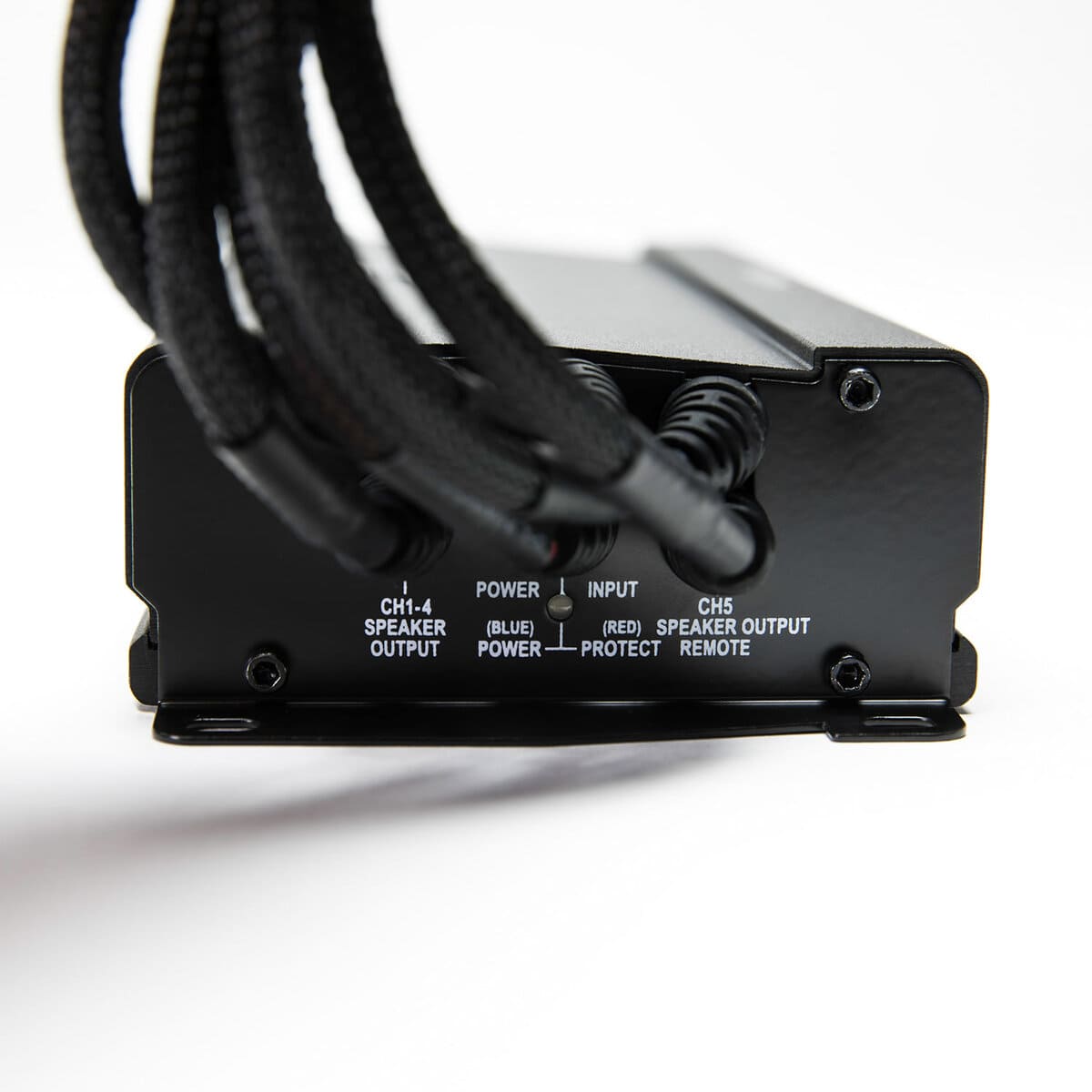

Output Connections Quick Dissconect Wires, RCA Connections: Quickly remove amplifer when you are putting machine up for the winter of as a security precaution.
Connection Type Nickel-plated connections: Nickel plated corrosion resistant connections.
LED System Protection Circuitry Diagnostics Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
Bass Remote Included Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.

Specifications:
Weight 3.35 lbs
Dimensions 9.85 × 3.93 × 1.77 in
Type Amplifier
Brand MB Quart
Series Nautic
Category Marine, Powersports
Condition New
Color Black
Warranty 1 Year
Amp Class Full Range Class D
Amp Total Channels 5
Amp Max Power (watts) 500
Amp Power @ 2 Ohms (ch x watts) 4 x 80 + 1 x 200
Amp Power @ 4 Ohms (ch x watts) 4 x 40 + 1 x 100
Amp Variable High Pass Crossover 12dB per Octave CH1 & CH2: Switched Full/HPF, CH3 & CH4: Switched Full/HPF
Amp Variable Low Pass Crossover 12dB per Octave CH5: LPF 50Hz-150Hz
Amp Bass Boost 0-12dB @ 45Hz
Amp Subsonic Filter 60Hz
Amp Variable Voltage 0.2-9V
Amp Signal to Noise > 90dB
Amp Frequency Response 20Hz-20kHz
Amp Speaker Level Audio Inputs RCA
Amp Power Terminal 12v/GND Molex 10 GA
Amp Speaker Terminal Wire Gauge Molex Plug Connector
Amp Fusing 40A x 1
Proposition 65 Notice ​WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Instructions:
View/Download MB Quart Nautic Amplifiers (NA2) Quick Start Guide (Rev3)
