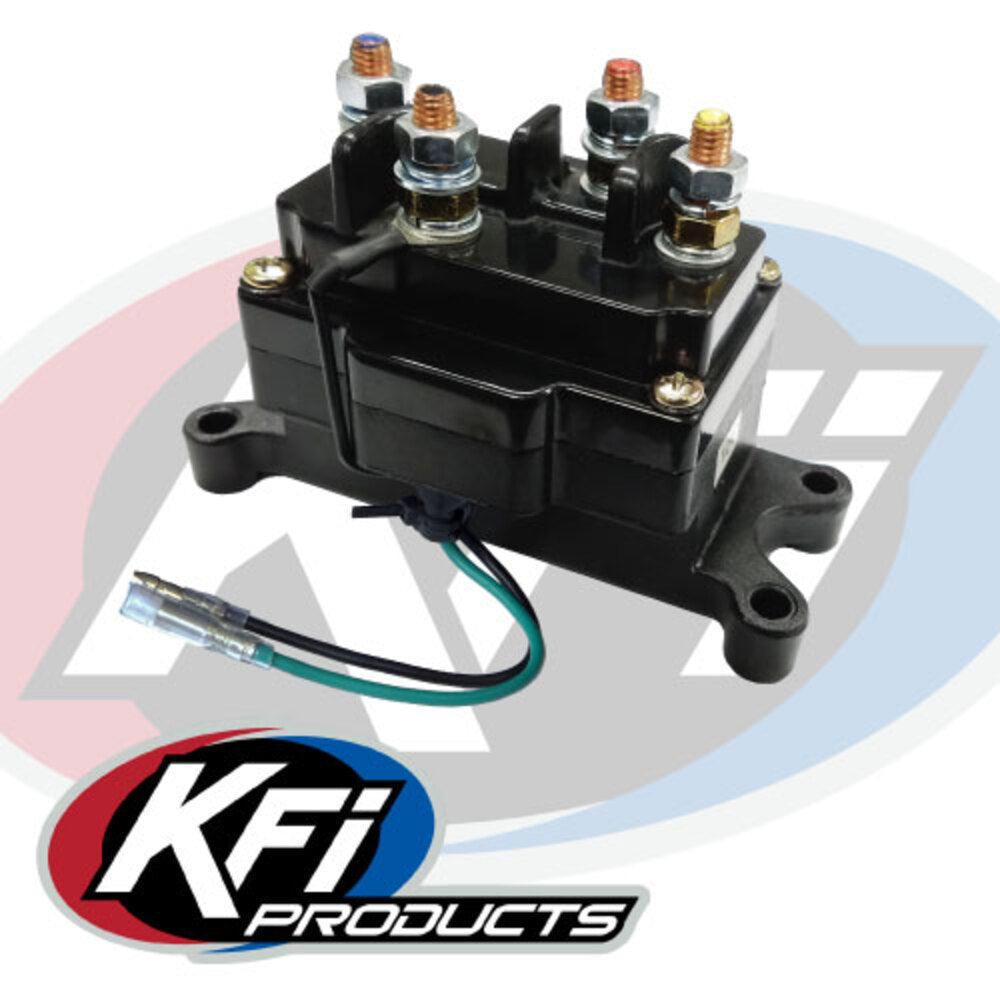

KFI Winch Replacement Contactor

KFI Winch Replacement Contactor

Requires correct switch to operate contactor. Requires switch with four wires, two wires to the contactor and one to keyed power, and one to a ground. See chart below.

Specifications:

Replacement Contactor will Also work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• WARN: Vantage 4000lbs / Provantage 4500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND: 2000lb #68146
• BADLAND: 3000lb #68145 / 5000lb #68144
• CHAMPION: C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 13501 / 14061
• CHAMPION: 14501 / 14551 / 14552 / 40252
• CHAMPION: 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145
• CHAMPION: 14001 and 14061
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000
• SMITTYBILT: XRC 2.0
• SMITTYBILT: XRC 3.0
• XGEAR: X3000 / X4000
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
• Possibly many others ATV / UTV Winches, call to confirm.

Note:

• The wiring and connections may be a little different between brands.

Installation Instructions:

• KFI CONTACTOR TROUBLESHOOT.pdf
