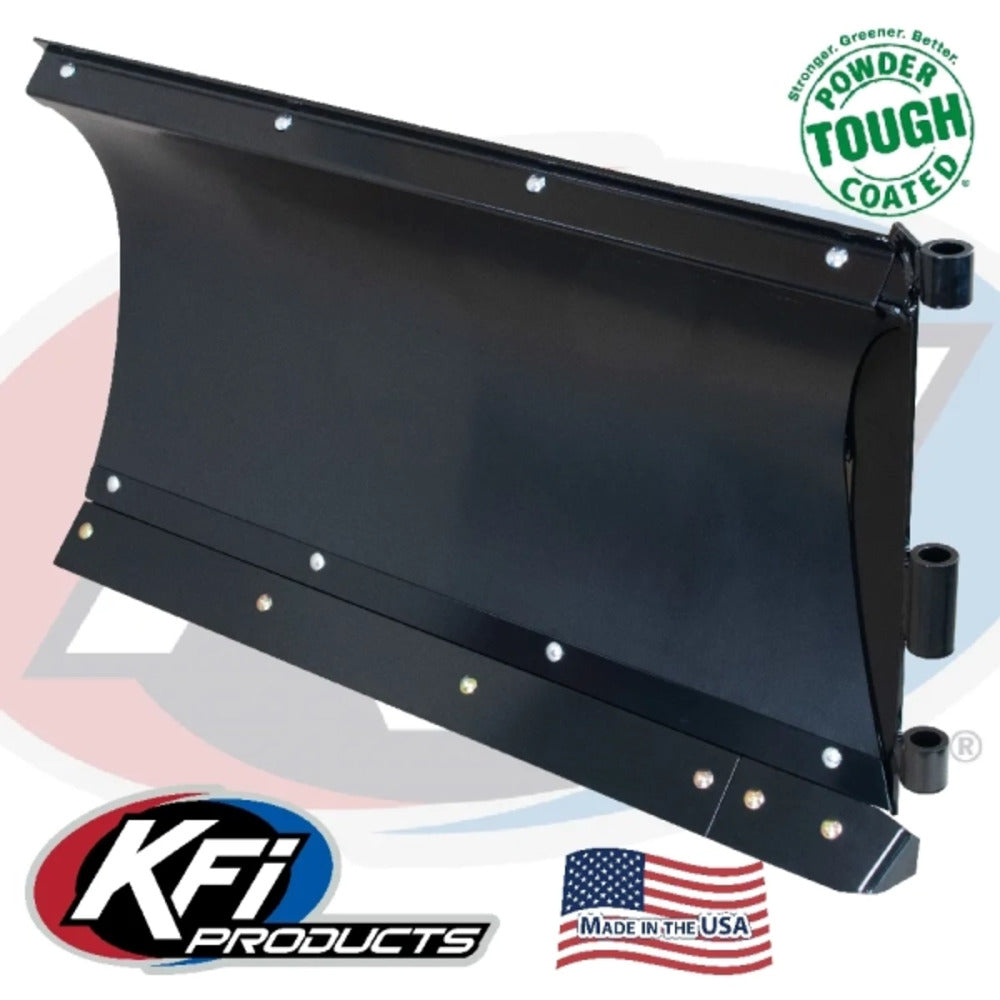

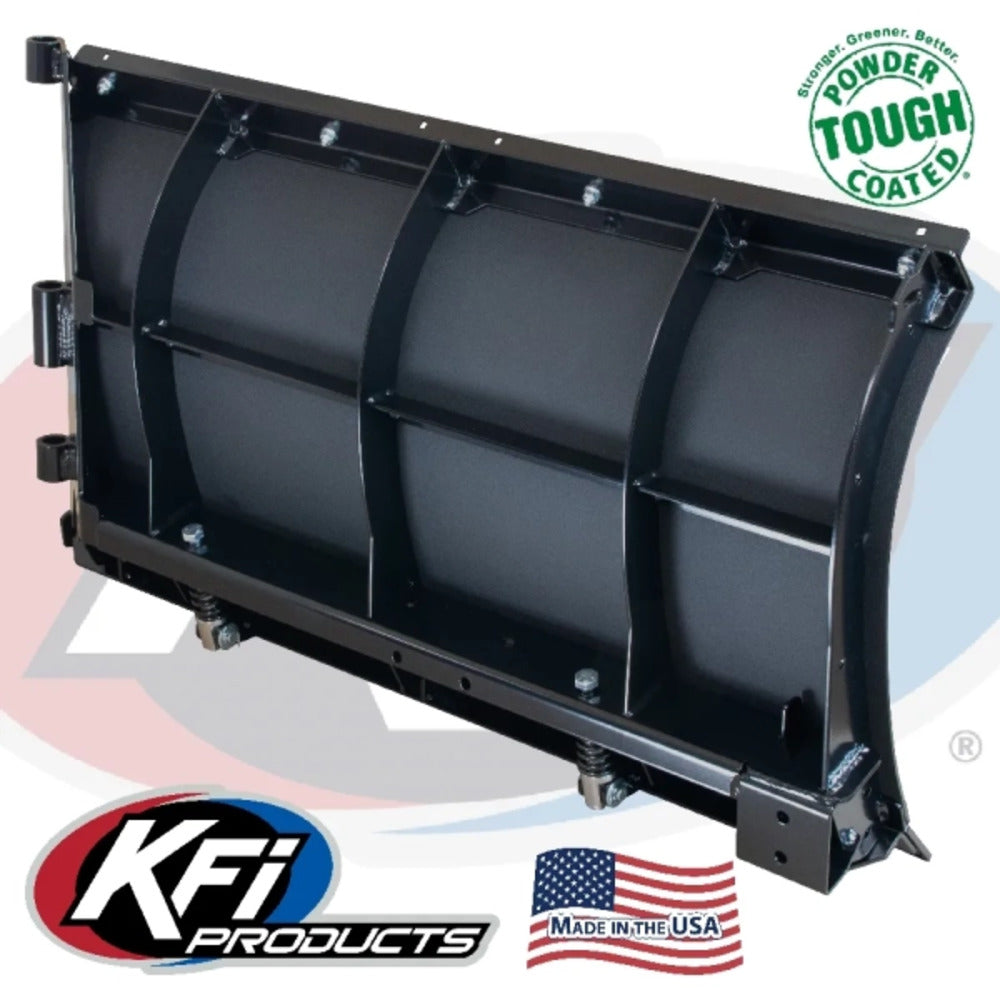

KFI V-Plow Box 2 Passenger Side Wing

KFI V-Plow Box 2 Passenger Side Wing

The KFI Pro V-Plow System is a versatile four-part plow system designed to meet various operational needs. It consists of four major components, with a specific machine model mount and winch system required (but not included) for operation. The system includes:

1. Driver's Side Wing Blade
2. Passenger's Side Wing Blade
3. V-Plow Center Pivot Kit
4. Options:
   • Option #1: Includes a Hand Held All-Control KFI remote, two Electric Hydraulic Actuators, and the necessary electrical wiring.
   • Option #2: Includes two Dash-Mounted LED-lit Rocker Switches, two Electric Hydraulic Actuators, and the necessary electrical wiring.
   • Option #3: A Manual Operation system that uses tubes and pins, allowing manual adjustment of the wings independently in three positions: In, Out, and Straight.

All three Box #4 options also include essential components like the welded push frame, push tube mounting ears, and a single plow foot kit for the center of the V-Plow system.

Features:

• The Passenger Side Wing for the KFI Pro-V Plow System (106180)
• Constructed of Heavy Duty Grade 50 Steel
• Overall Length of 40”
• 20.5" Tall (Without Plow Flap *Not Included in Package)
• Shot Blasted Before Powder Coating Black
• Replaceable Front Poly Face
• Tripping Wear Bar
• Comes Assembled

Installation Instructions:

• M106180_small.pdf
