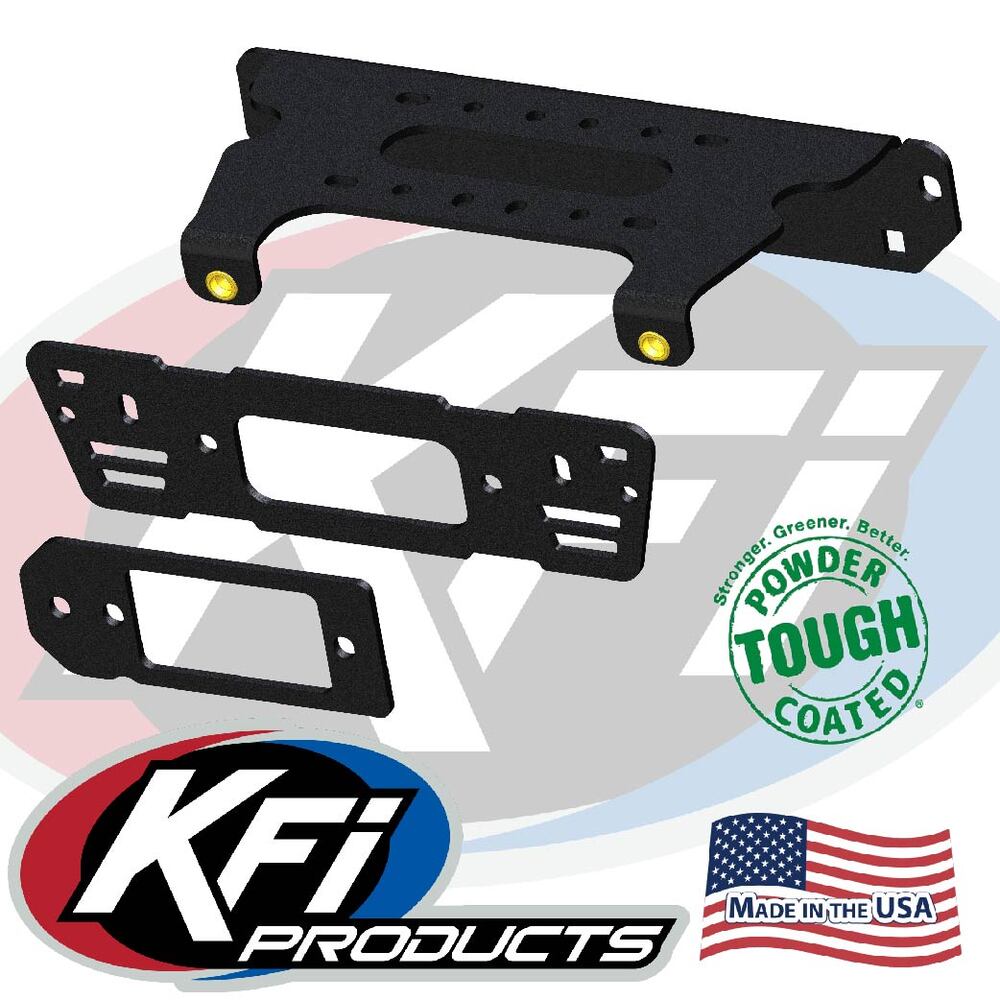

KFI Polaris Ranger & Gravely Winch Mount

KFI Polaris Ranger & Gravely Winch Mount

Features:

• 100% Made In USA.
• Constructed of 3/16" Grade 50 steel
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep
• Powder coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• Mounts winch tucked back behind front bumper
• Roller fairlead and winch not included



Specifications:

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50x / AS-50wx
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40
• WARN: Vantage 2000-4000lb
• WARN: ProVantage 2500-4500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• Mile Marker: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
• Badland: 2-Hole Winches
• Badland: Standard Winches
• Badland: WIDE Winches
• Badland: APEX 5500 Wide
• Champion: 2-Hole Winches
• Champion: ATV 4-Hole Winches
• Champion: UTV 4-Hole Winches
• Champion: WIDE Winches
• Keeper Corp. Trakker: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• Keeper Corp. Trakker: KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• Smittybilt:  XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• Smittybilt:  XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up
  • All with 3.00" x 6.600" bolt pattern mount-up
• Traveller: 1078311
• Traveller: 1078088 / 1087302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35



Installation Instructions:

• Winch Mount



Fitment:

Gravely	Year
ATLAS JSV	ALL



Polaris Full-Size Ranger	Year
Ranger 570 (900 Body Style / Pro-Fit Frame)	2015
Ranger Brutus (Base*CAB)	2013-2018
Ranger Crew 570 (900 Body Style / Pro-Fit Frame)	2015-2016
Ranger Crew 900	2014-2019
Ranger Crew Diesel (1000)	2015-2018
Ranger Crew Pro XD (Gas / Diesel)	2019-2025
Ranger Crew XP 1000	2017-2018
Ranger Crew XP 1000 Northstar Edition	2017-2018
Ranger Diesel (1000)	2015-2018
Ranger Diesel HST / Deluxe	2014-2017
Ranger Pro XD (Gas / Diesel)	2019-2025
Ranger XP 570 (900 Body Style / Pro-Fit Frame)	2016
Ranger XP 900	2013-2019
Ranger XP 1000	2017
Ranger XP 1000 Northstar Edition	2017
