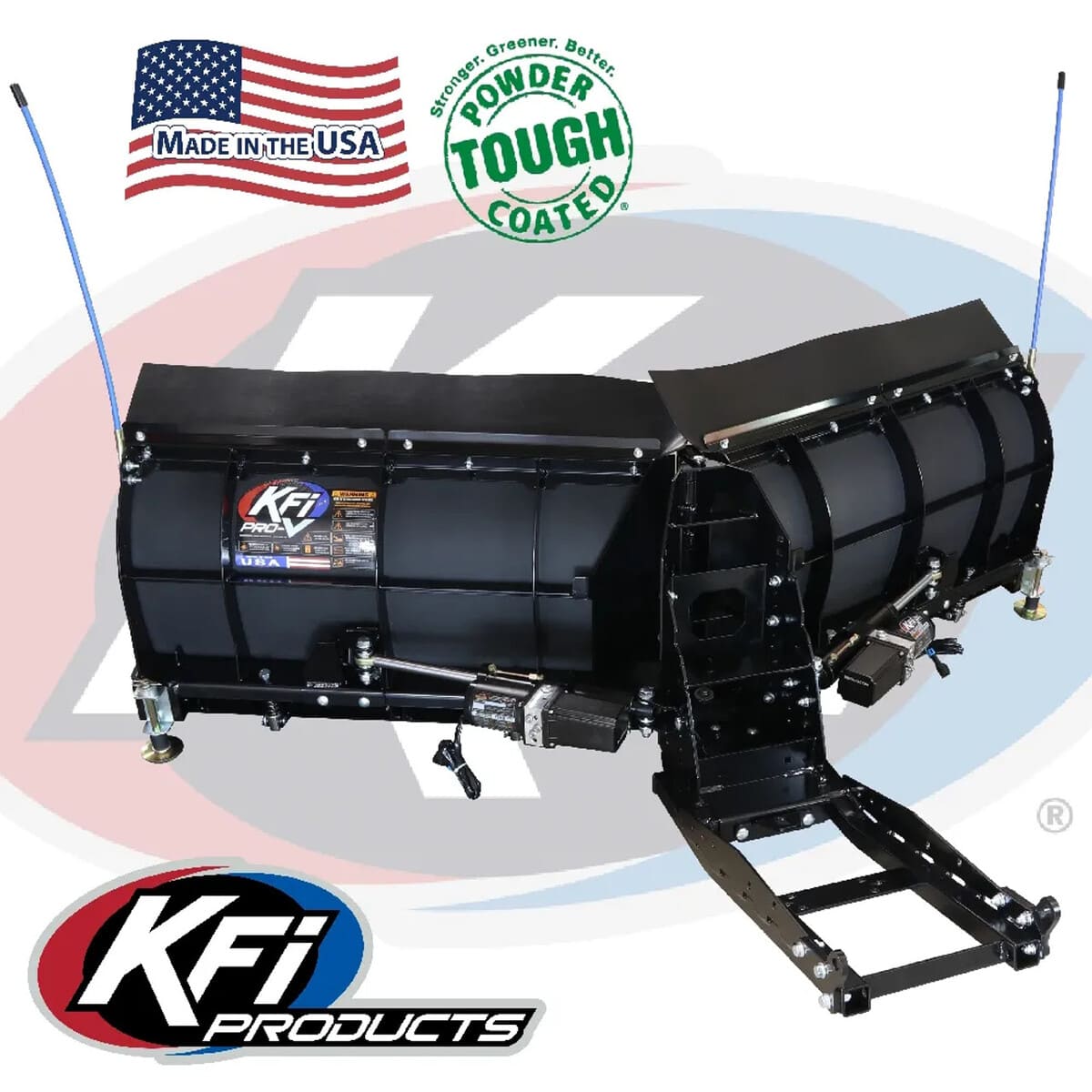

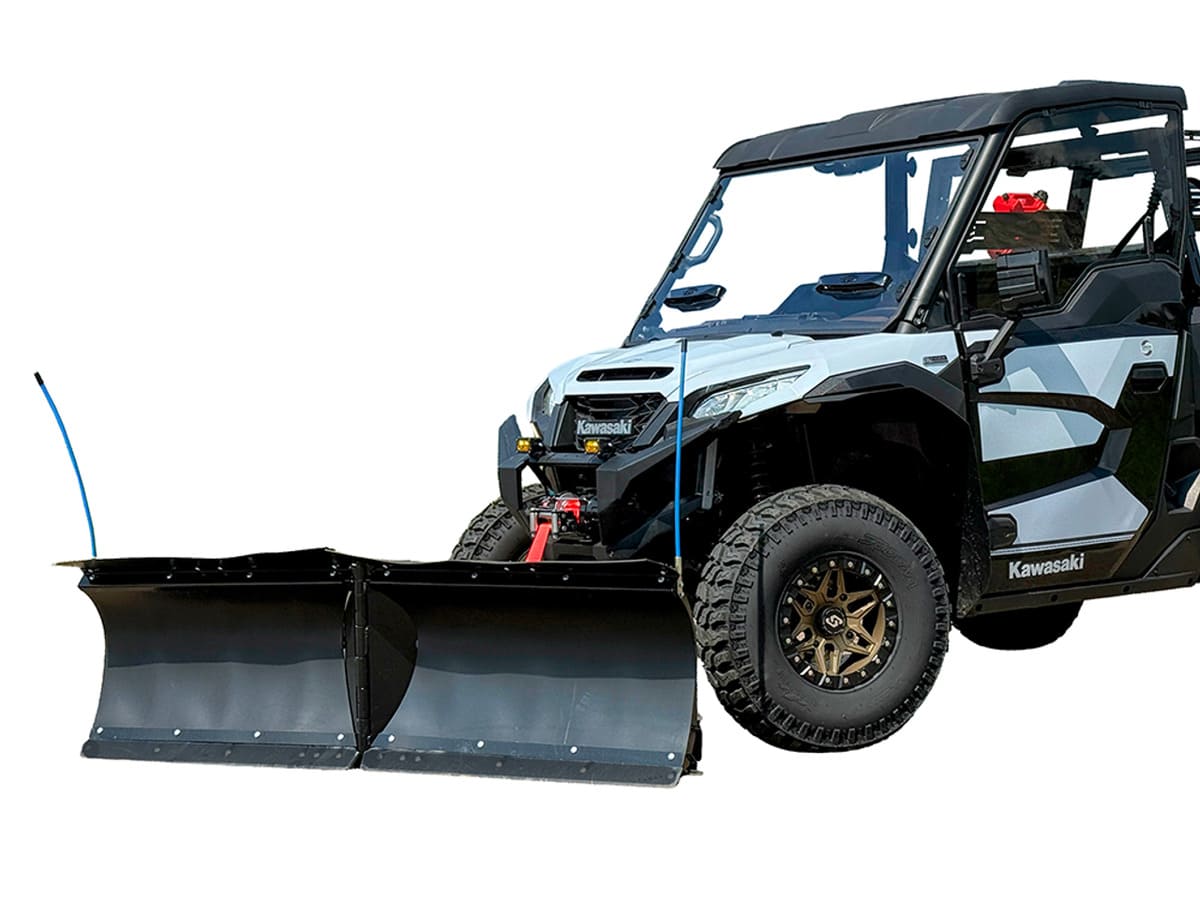

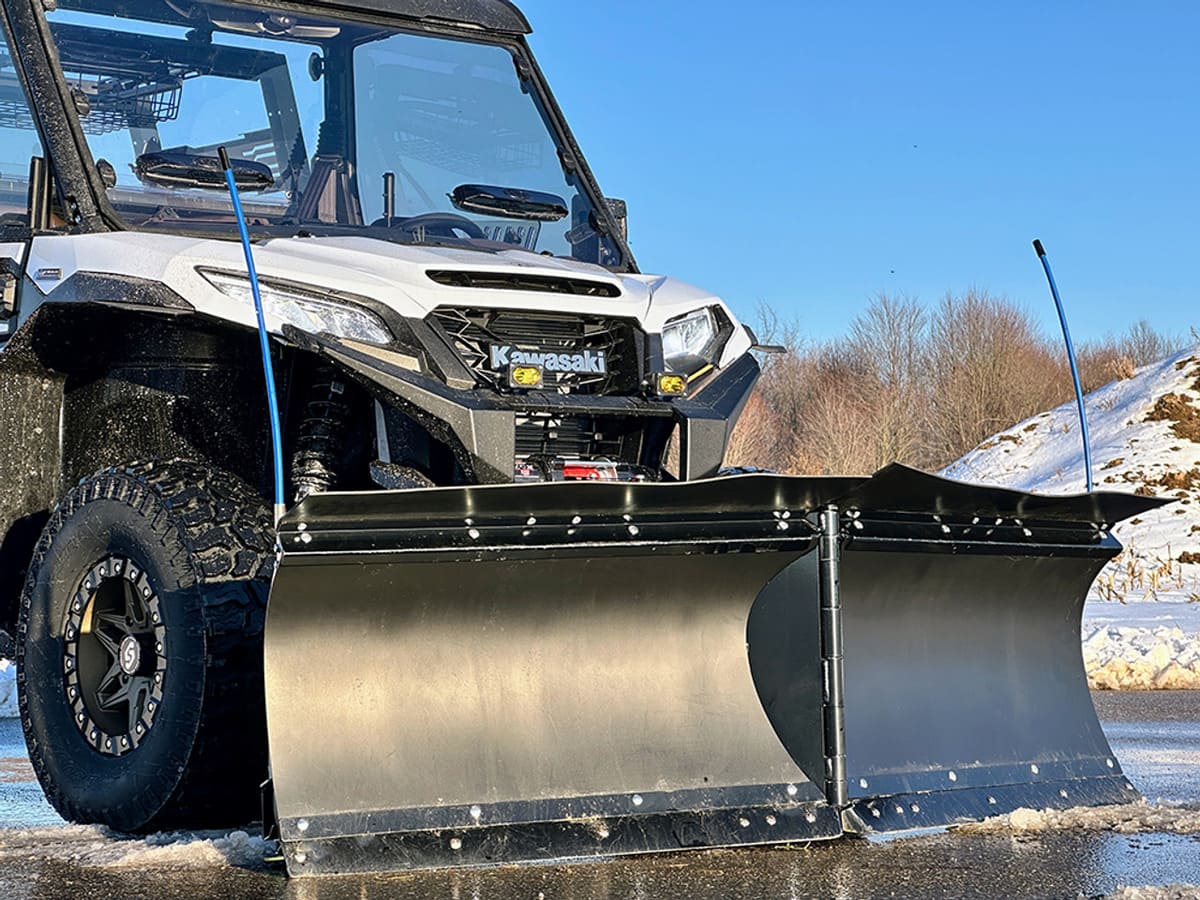

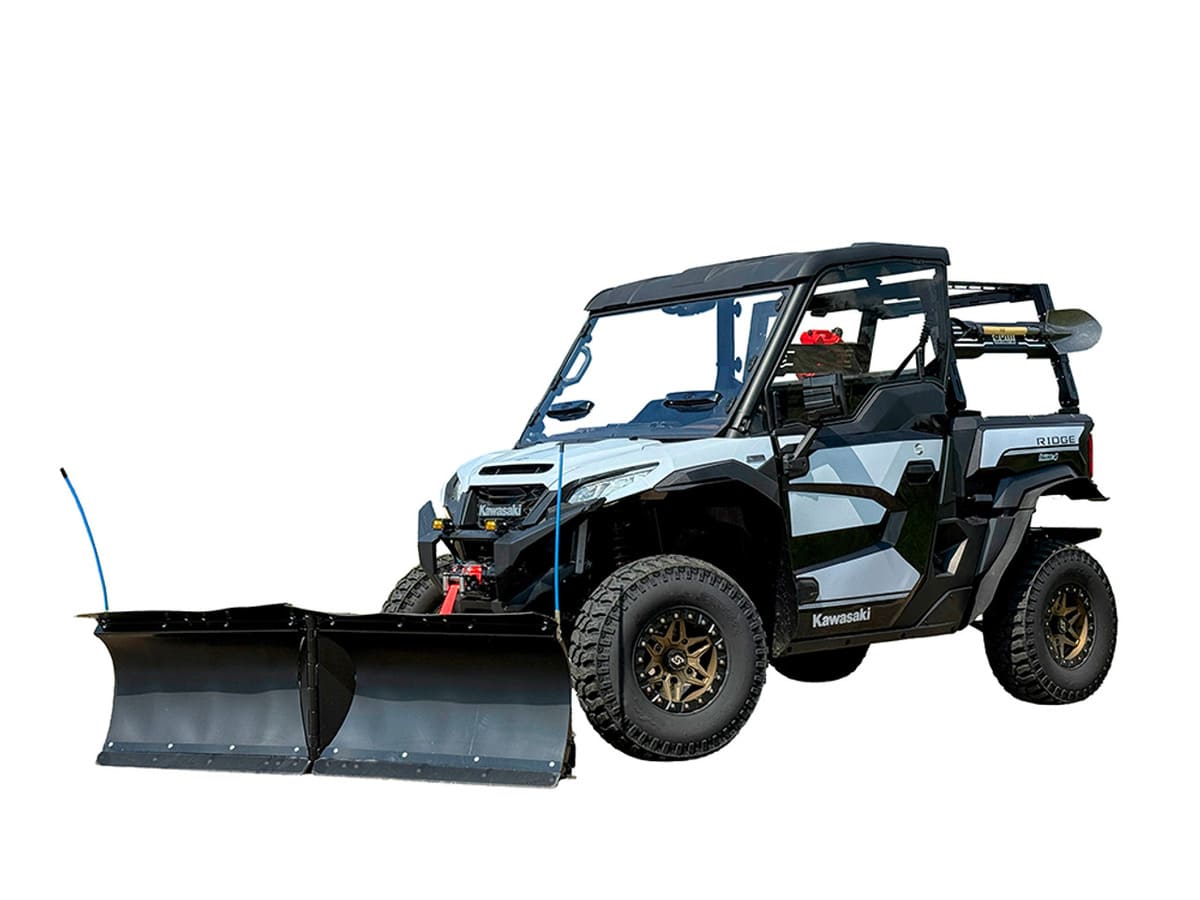

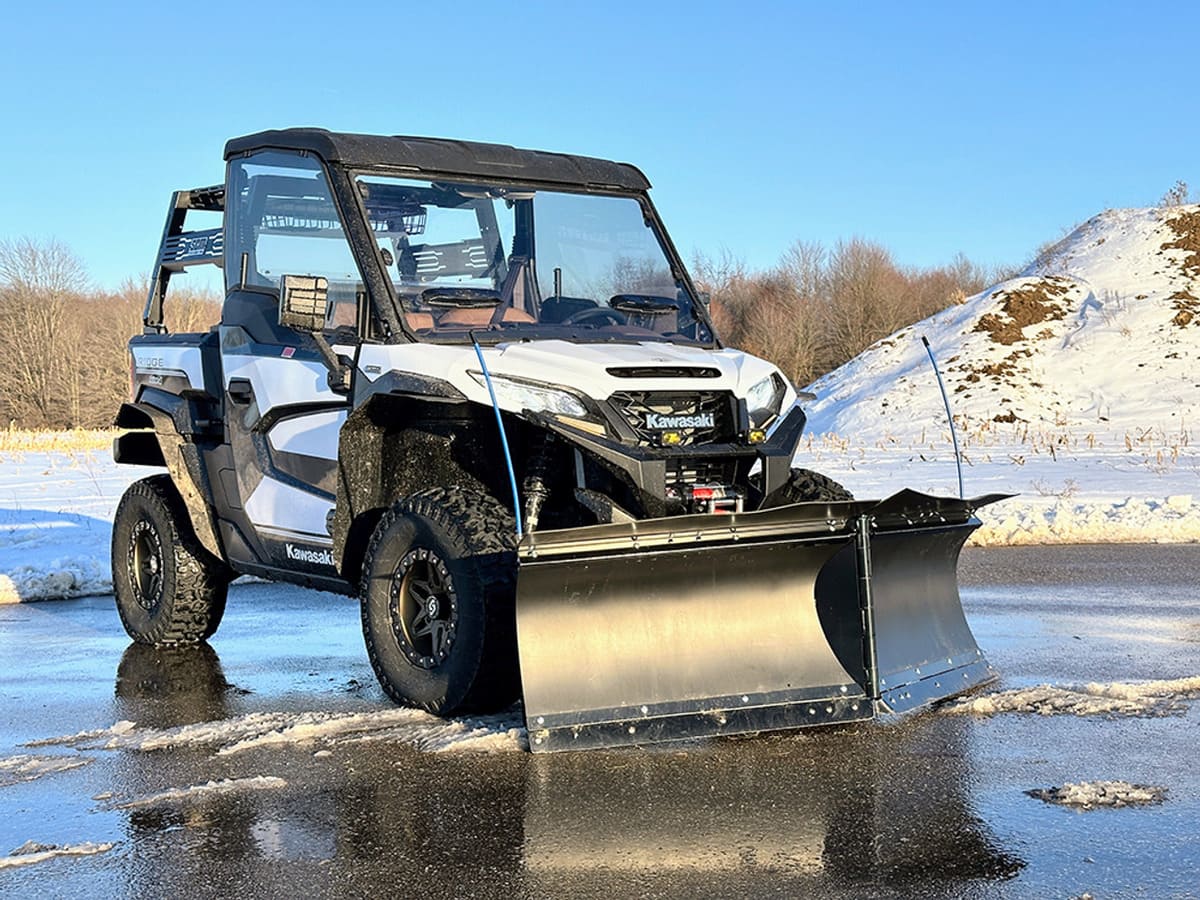

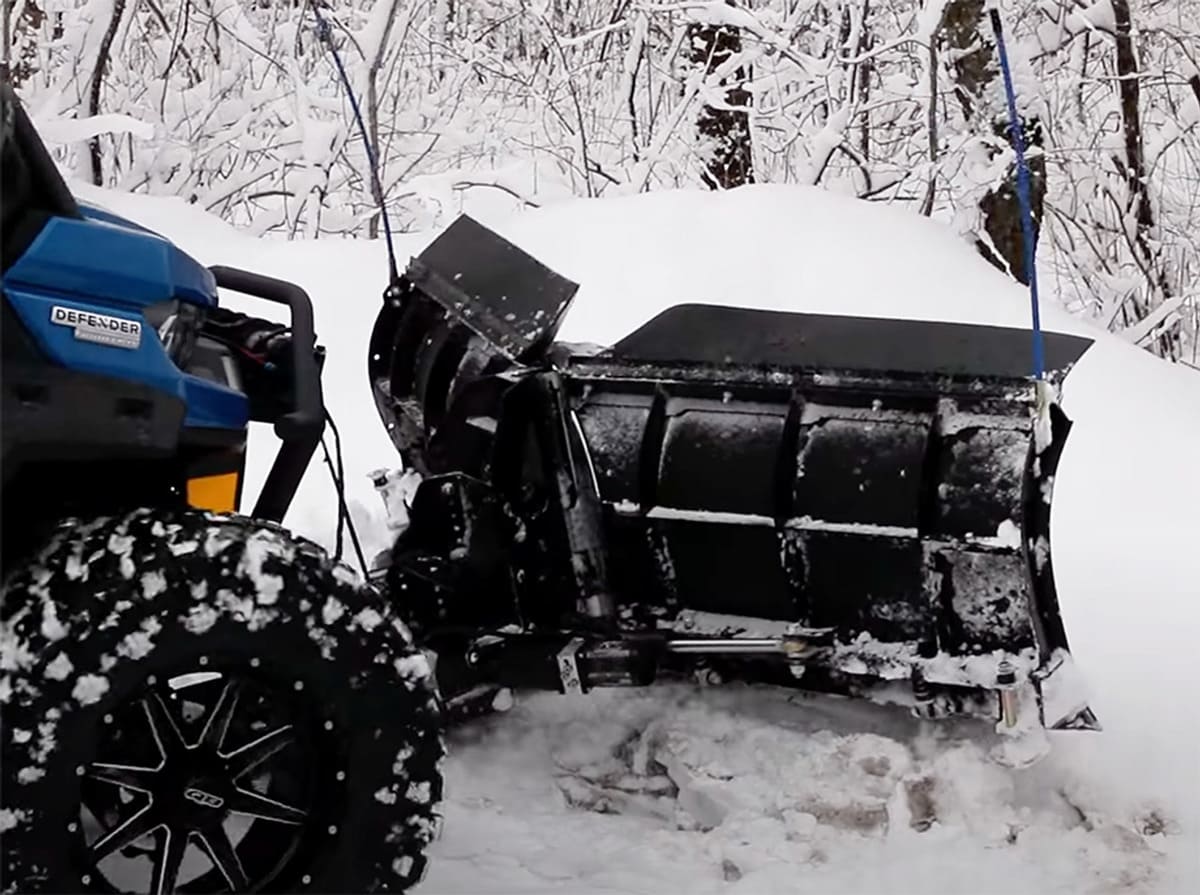

KFI 80" Pro-V Snow Plow System

KFI 80" Pro-V Snow Plow System

Features:

Snow Plow System:

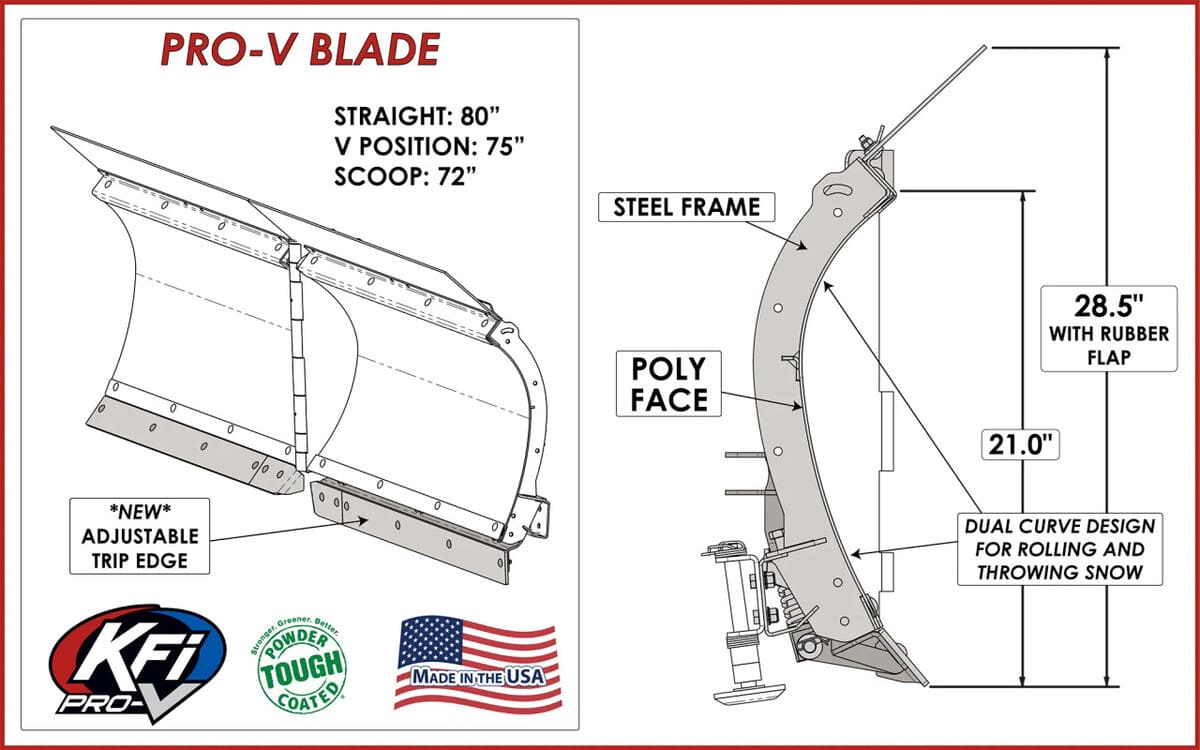

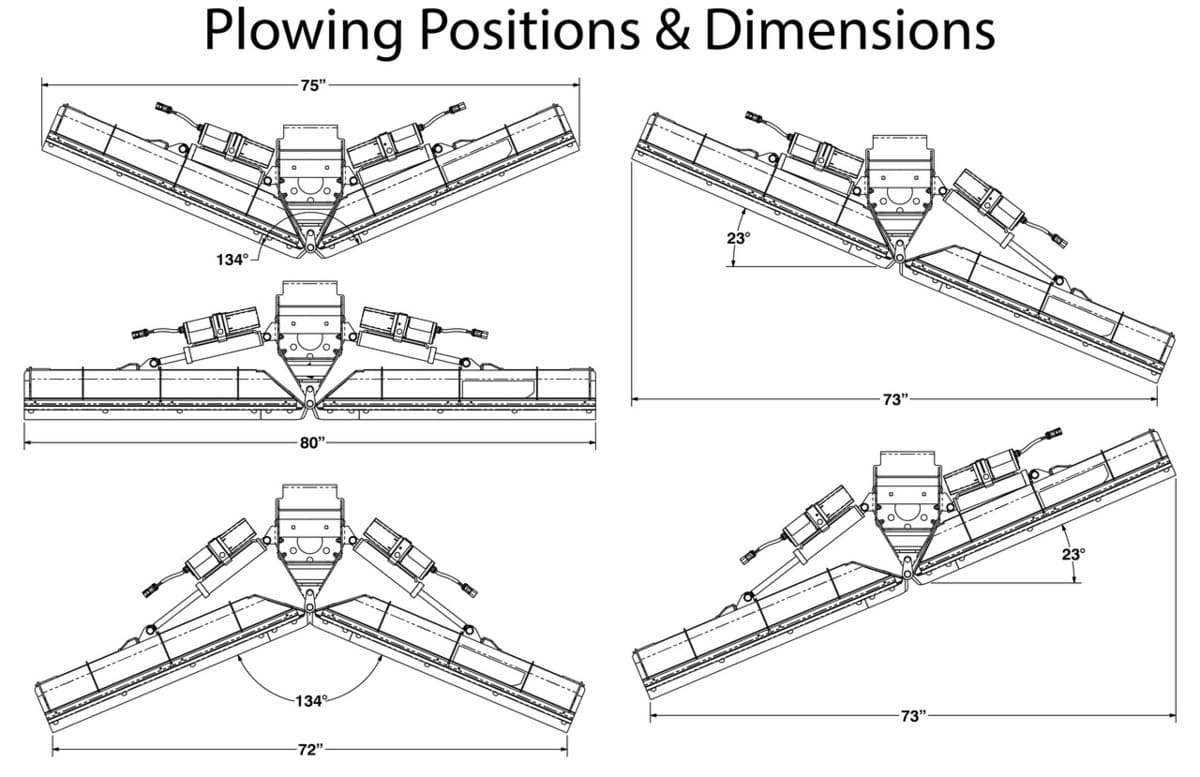

• 80" Wide when straight

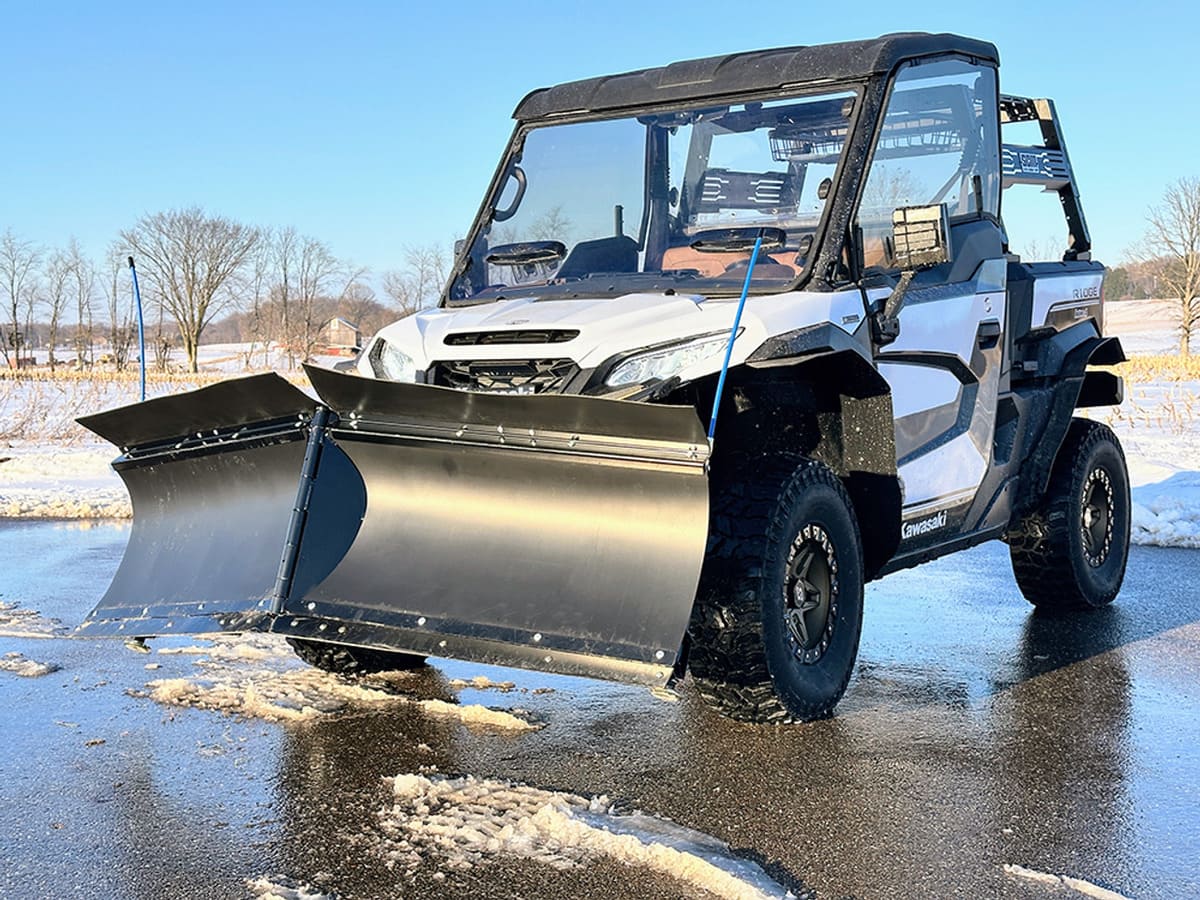

• 75" wide in v-shape
• 72" wide in scoop
• 21" vertical blade face height with an approximate 28" height with snow flap
• 4" integrated height adjustment (=1" to +3" in 1" increments)

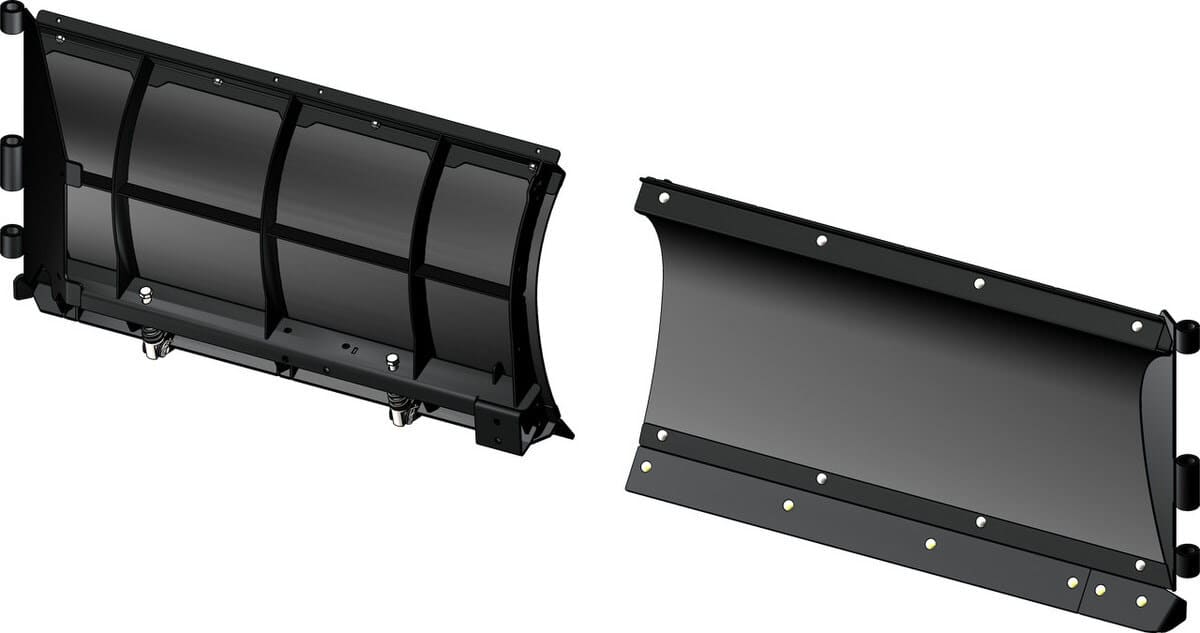

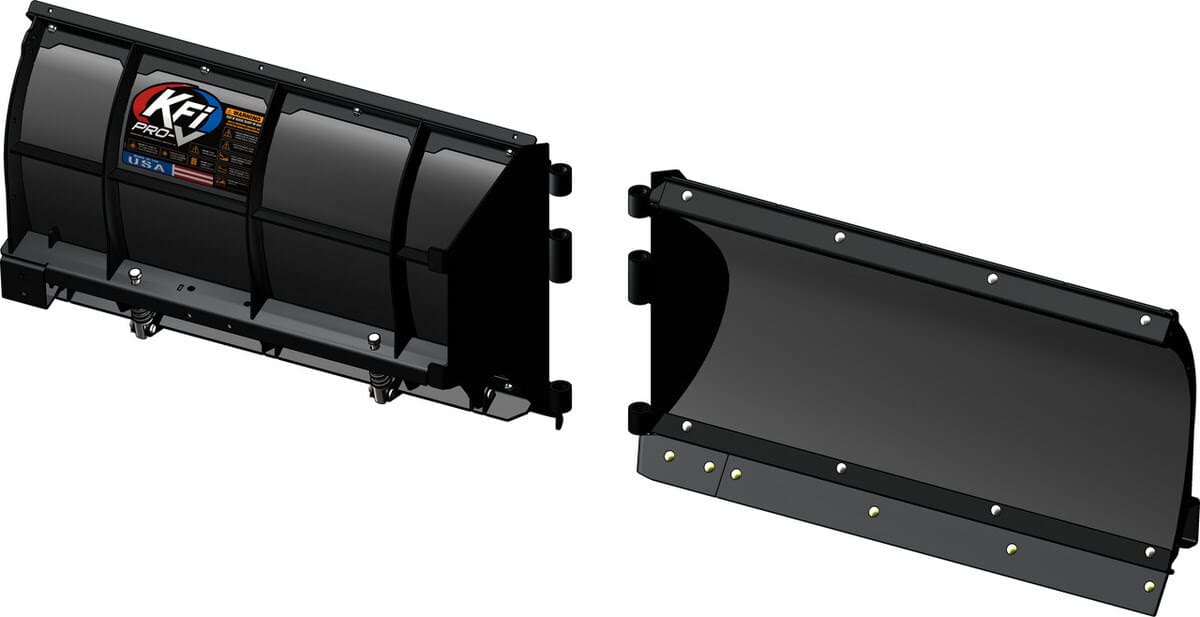

• Steel frame design with replaceable poly face
• Dual curvature face for supreme snow moving
• Heavy duty 3" diameter, Grade-50 steel skid plates with bolt-on brackets

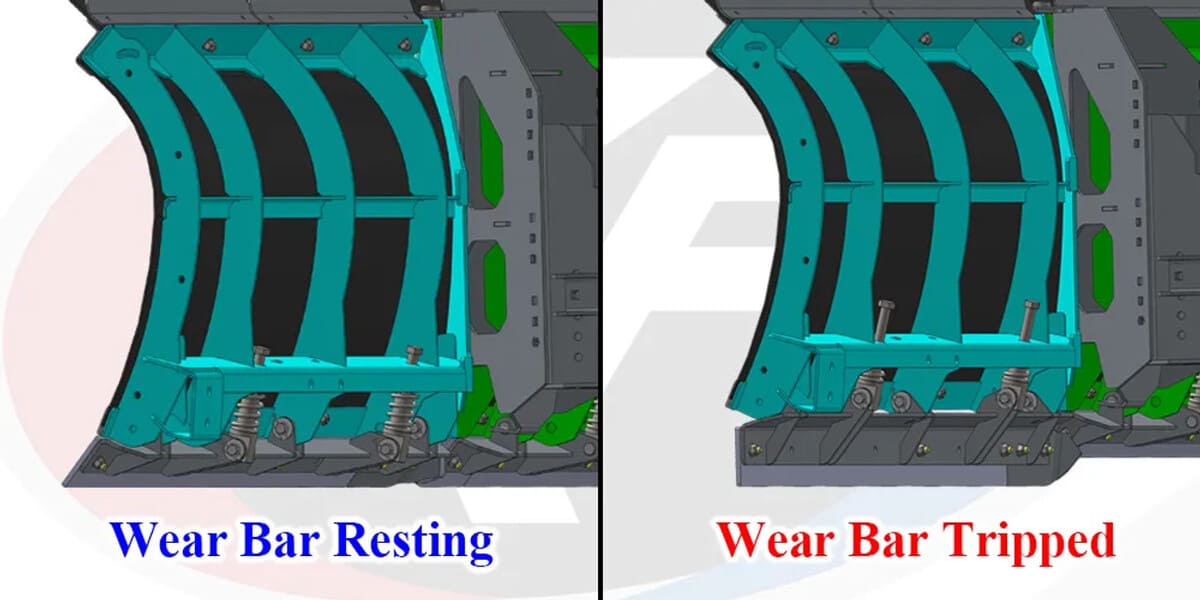

• Tripping wear bar
• Metal bead blasted, then powder coated black for supreme durability
• Weighs approximately 260 lbs (100-200 lbs than the competition)
• Made in the USA
• Complete installation instructions included
• All mounting hardware included
• Powdercoated for maximum durability
• Unlike all other Plow competitors, our components are metal bead blasted before they are powder coated for the best possible finish prep.
• 100% Made in the USA

2.0 UTV Push Tube:

• Improved Manufacturing
• Easier Install for All Plow Accessories
• Added 2.5" Of Overall Length
• Works With All KFI Plows
• Front Mount Design with 30"+ of lift height
• Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
• 6" Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five-degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees

Plow Mount:

• Front-Mount System
• Plate constructed from 3/16" Grade 50 Steel
• All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding
• Actual Plow Mount may look different than reference photo shown

Leveling Kit Option:

• Stock machines will not require a leveling kit even on models such as KRX 1000, RMAX or RZR Pro XP.
• Machines with High Arch A-Arms, Large Tires, Lift Kits or Tracks will most likely require a leveling kit. The optimal pin height is 10 7/8" from the ground to the center of the plow mount pin hole. The Pro-V Snow Plow System can be adjusted between -1" and +3" in 1" increments without a leveling kit. A leveling kit can be used to bring the plow system closer to its stock height if desired.
• Optimal pin height is 10 7/8" from the ground of the plow mount pin hole

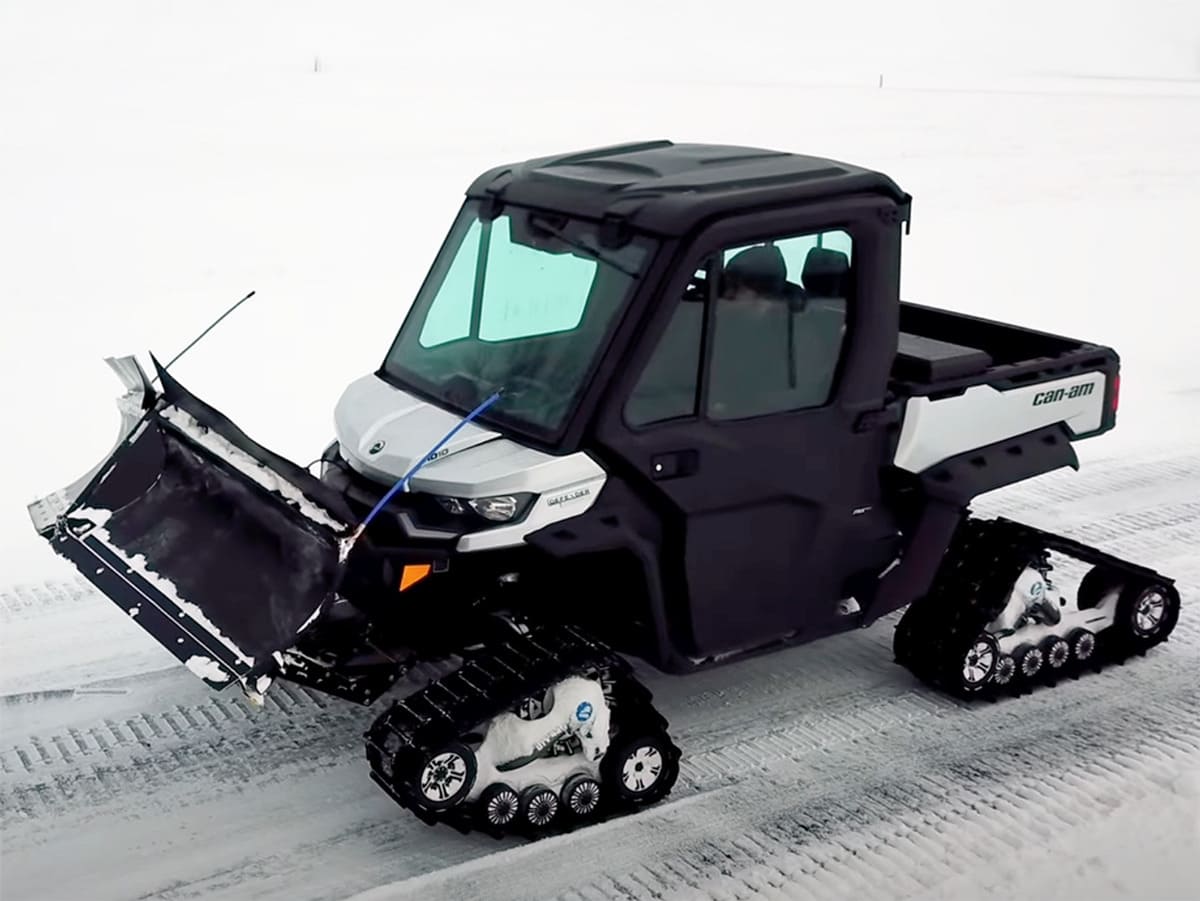

• Machines with tracks put on them require a Pro-V Track Extension (106280) to push the blade further forward. If Hydraulic Actuators are used, 2 Actuator Harness Extensions are required (ACT-EXT x2)

Kit Includes:

• (1) Drivers Side Blade
• (1) Passengers Side Blade
• (1) Center Pivot Bulkhead
• (1) UTV Pro 2.0 Push Tube
• (1) Vehicle Specific Mount (make sure to select your correct vehicle above)

Kit 1: Pro-V Snow Plow System w/ Manual Angle Adjustment:

• Components Include Drivers side and passengers side wings
• Center pivot bulkhead
• UTV Pro 2.0 Push Tube

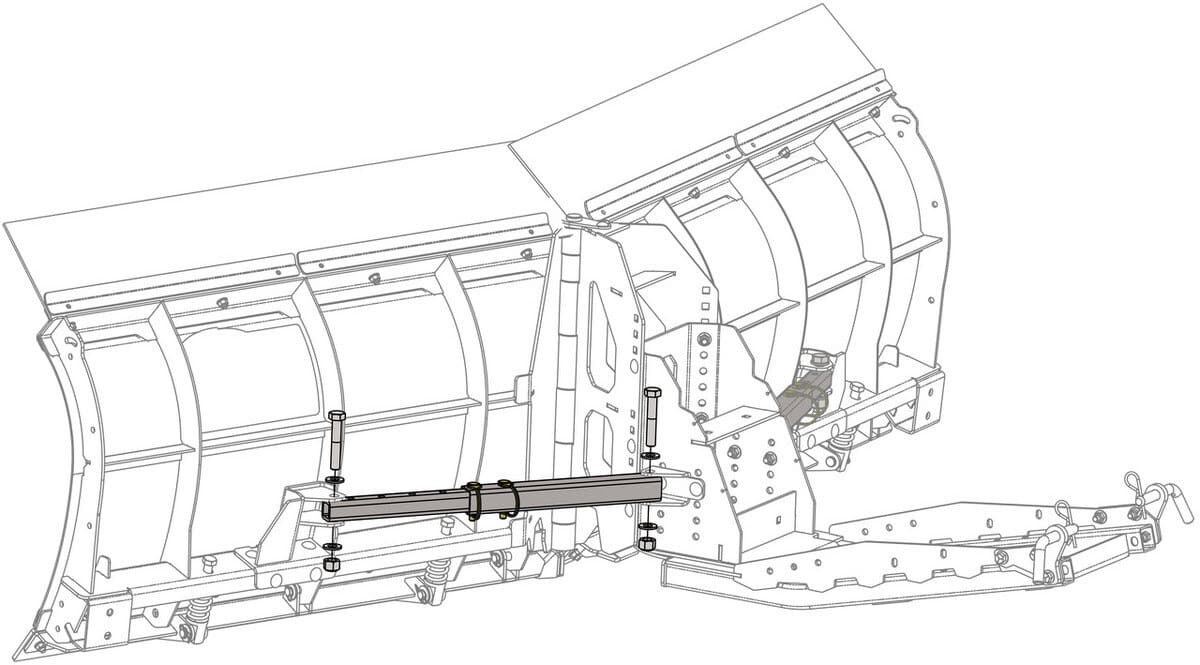

• Manual Angle Kit
• Includes Standard Mounting Ears
• Includes Premium Plow Markers
• Includes Top Flap Kit

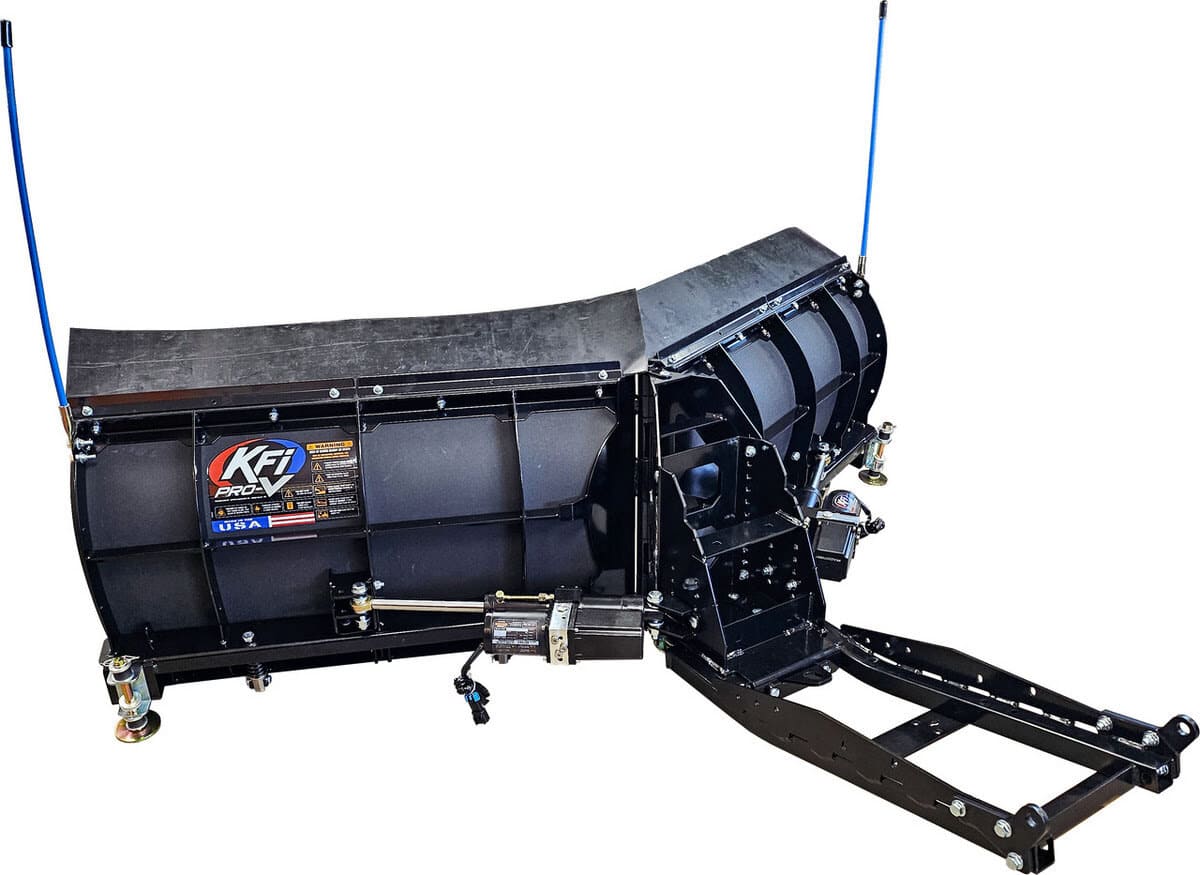

Kit 2: Pro-V Snow Plow System w/ Hydraulic Actuators and Dash Rocker Switch Kit:

• Components Includes Drivers side and passengers side wings
• Center pivot bulkhead
• UTV Pro 2.0 Push Tube

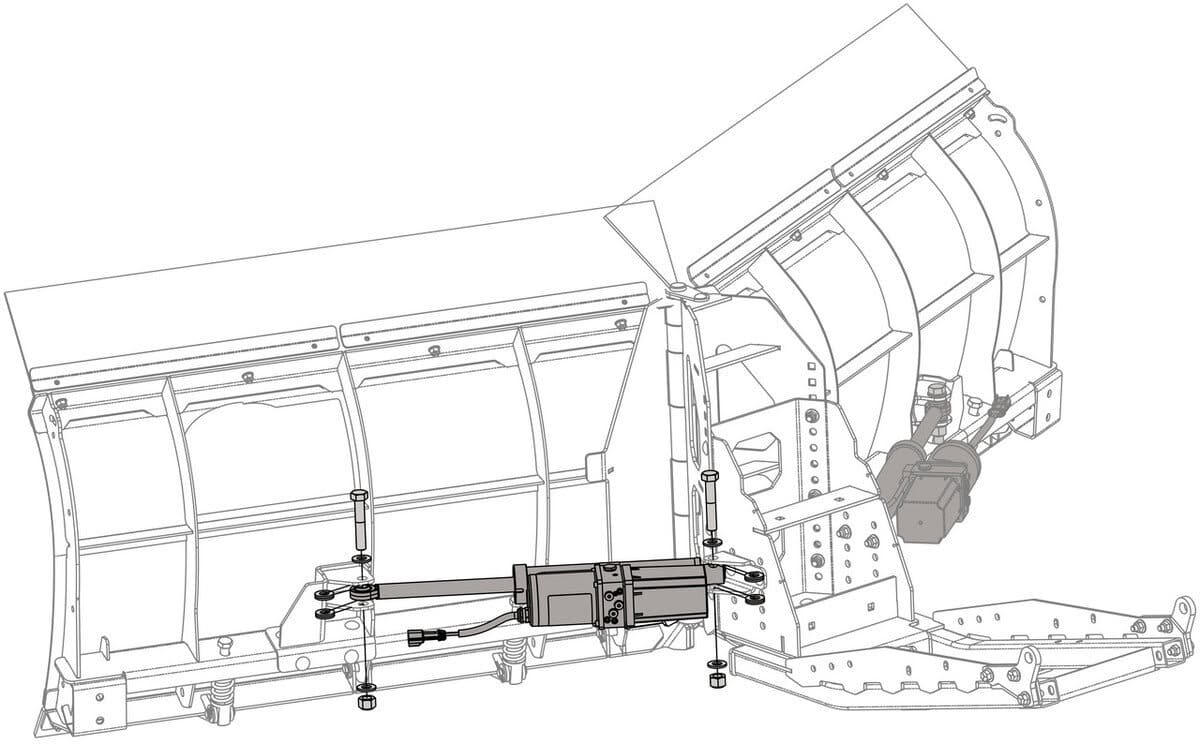

• (2x) Hydraulic Actuators (ACT-203)
• (2x) Actuator Harness Kits with Dash Rocker Switch
• Includes Standard Mounting Ears
• Includes Premium Plow Markers
• Includes Top Flap Kit

Kit 3: Pro-V Snow Plow System w/ Hydraulic Actuators and Hand Remote Kit:

• Components Includes Drivers side and passengers side wings
• Center pivot bulkhead
• UTV Pro 2.0 Push Tube
• (2x) Hydraulic Actuators (ACT-203)

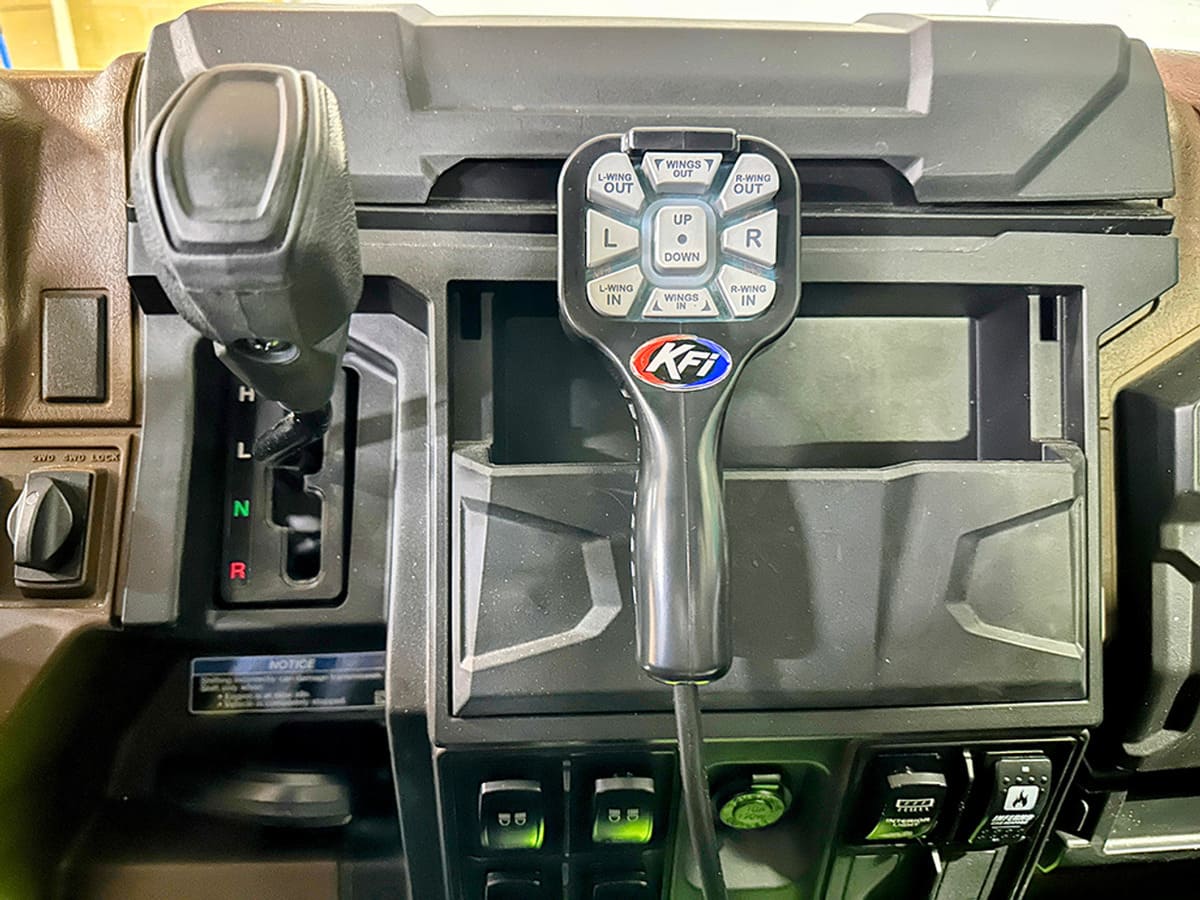

• Actuator Harness Kit with Hand Remote (Operates Actuator and also Winch)
• Includes Standard Mounting Ears
• Includes Premium Plow Markers
• Includes Top Flap Kit
