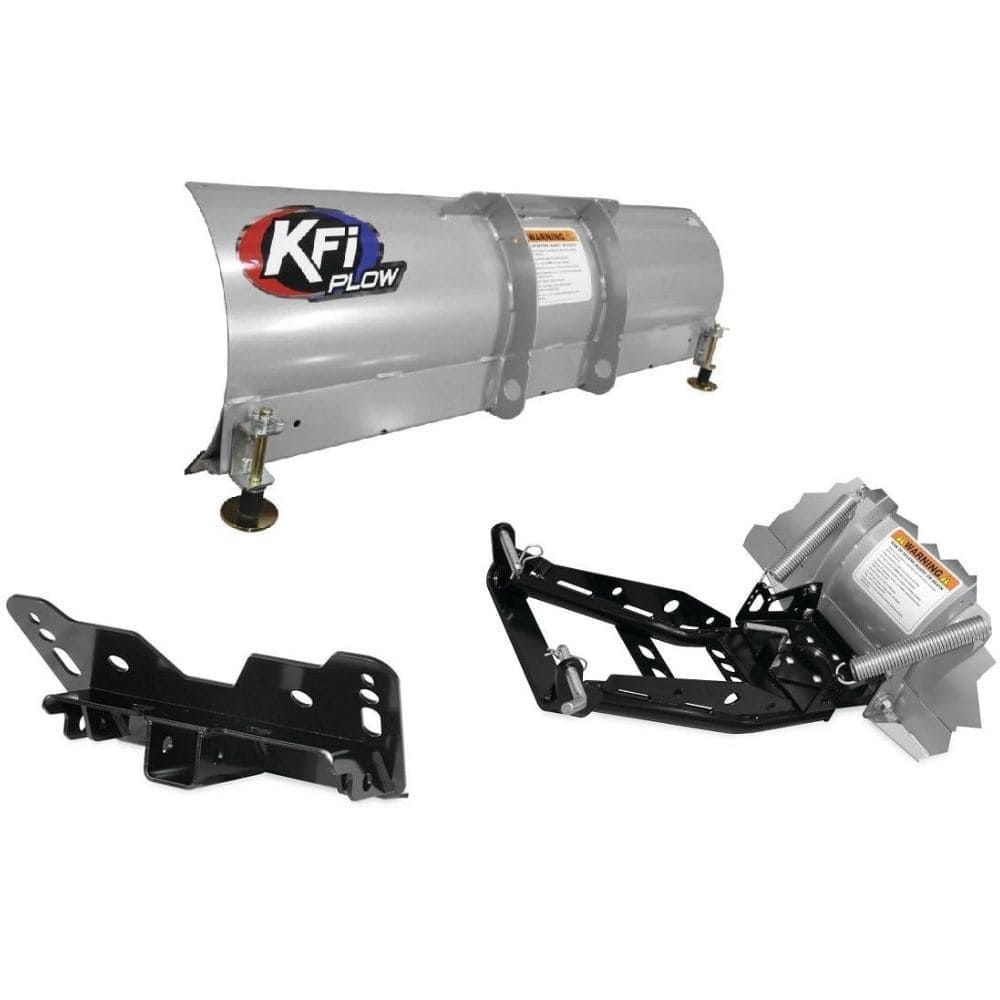

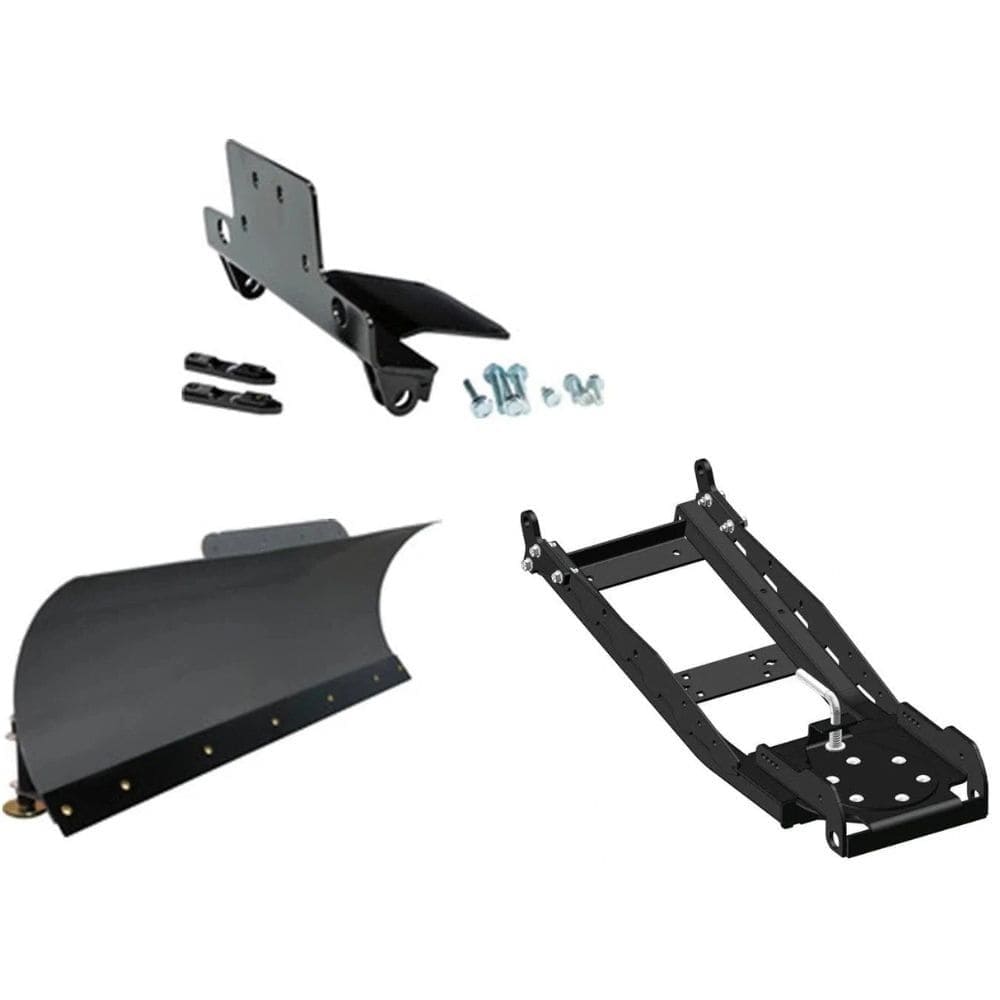

KFI 72" Straight Blade UTV Snow Plow Kit

KFI 72" Straight Blade UTV Snow Plow Kit

Put your machine to work in the winter with the KFI Snow Plow Kit. KFI Snow Plow Kits are made in the USA engineered to withstand the varying harsh conditions of winter.

Mounting options are available for many ATV's and UTV's including: Arctic Cat, Can-Am, Honda, John Deere, Kawasaki, Kubota, Polaris, Suzuki, Yamaha and many more...

Features:

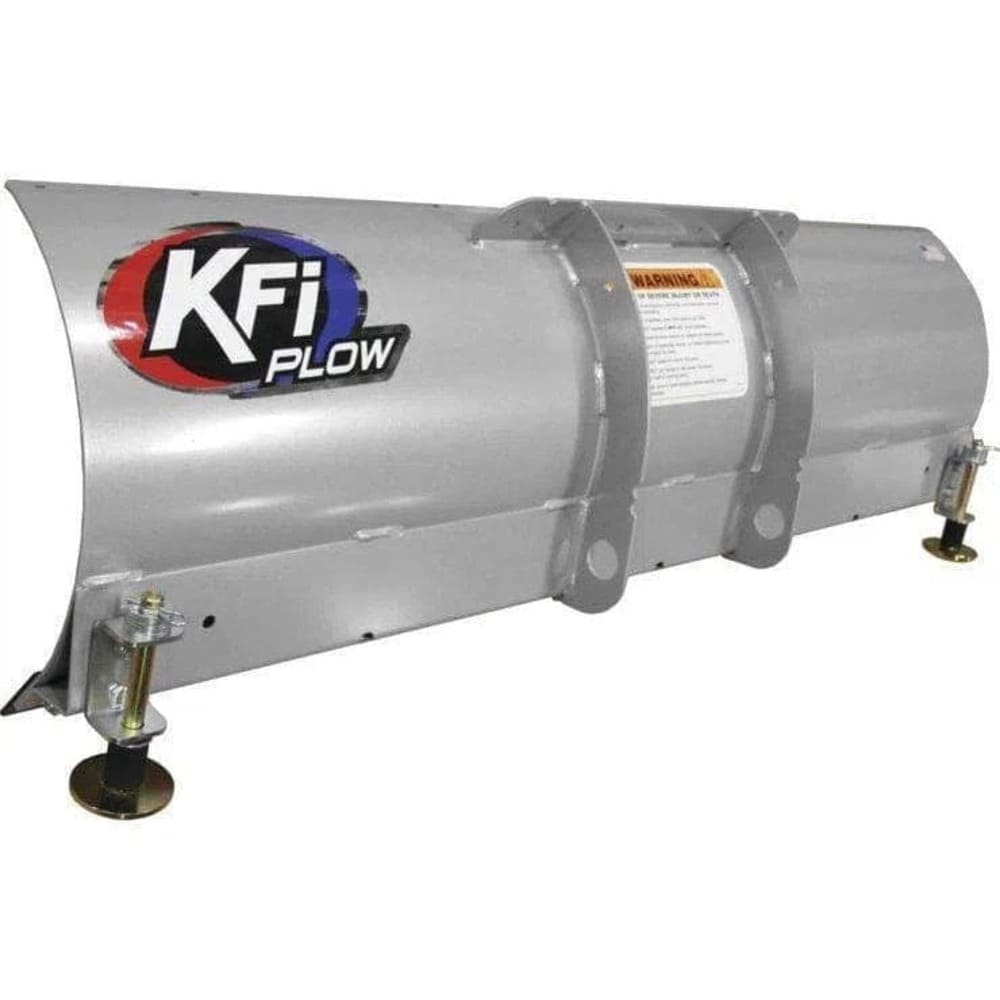

72" UTV Straight Plow Blade:

• 100% MADE IN USA
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width and heavier UTV
• Measures 16" tall with an approximate 21" height with snow flap
• Includes a 7" high 2-ply top rubber flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated
• Metallic Silver for supreme durability

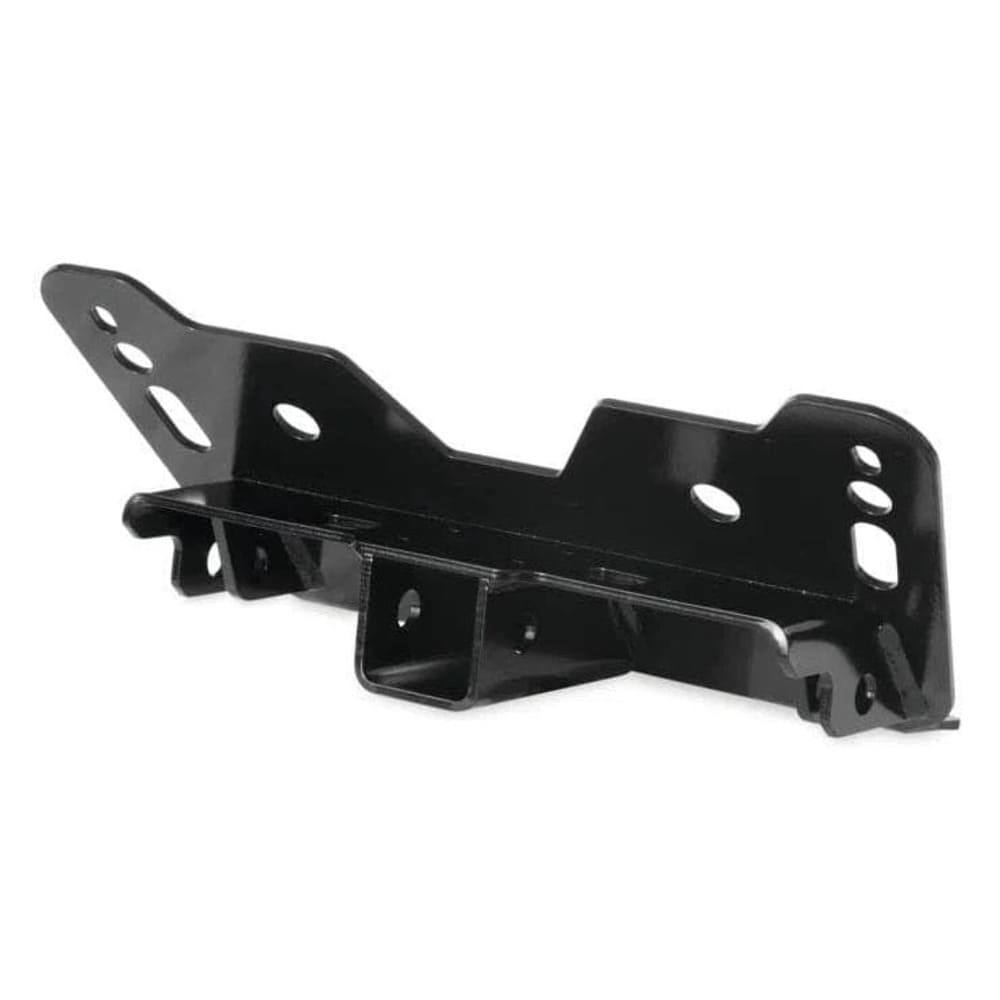

UTV Plow Mount:

• Front-Mount System
• 100% MADE IN USA
• Plate constructed from 3/16" Grade 50 Steel
• All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding
• Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included

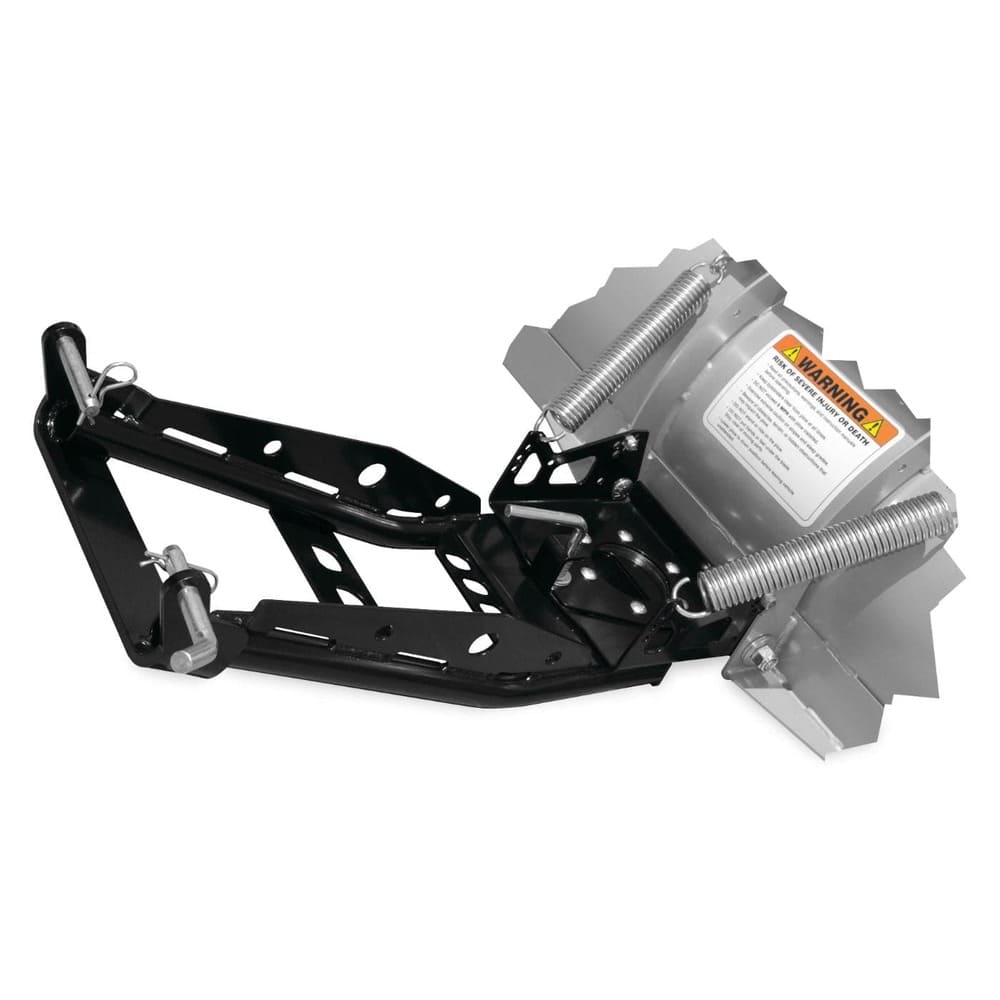

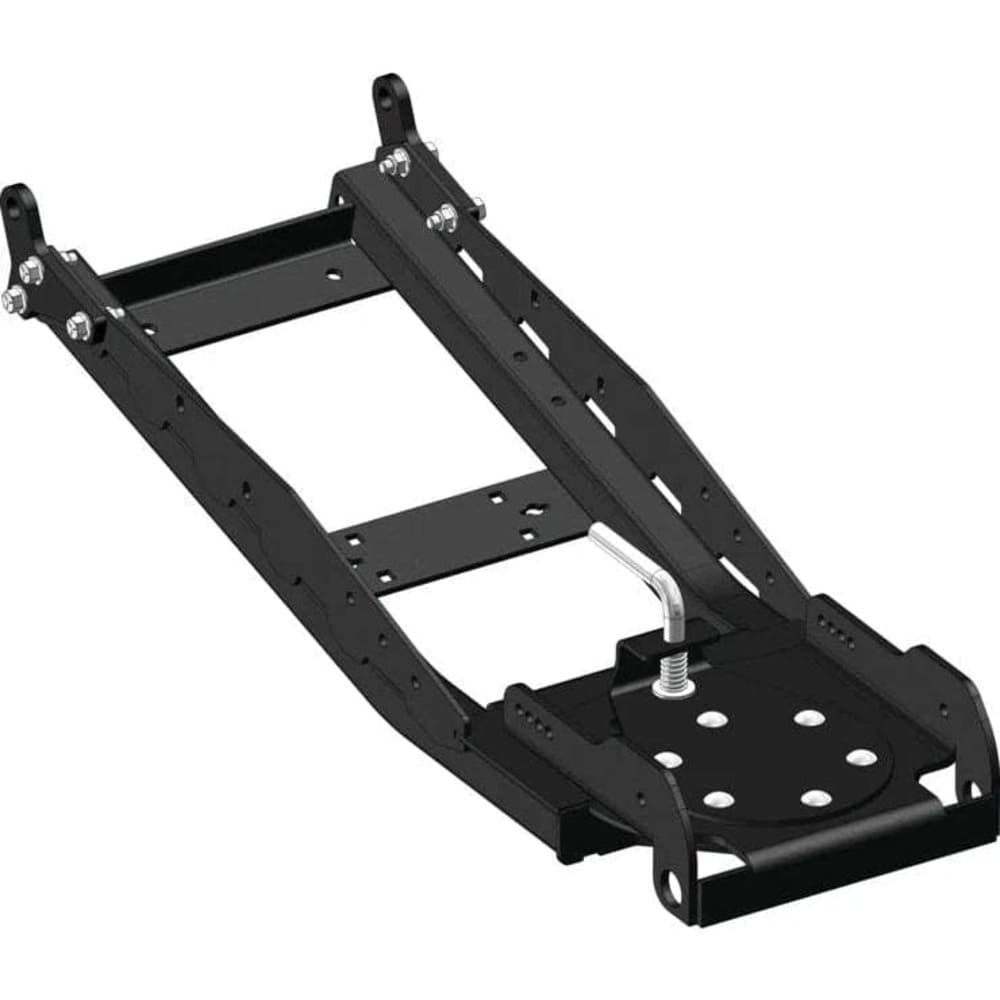

NEW UTV Pushtube 2.0:

• Shot-blasted before powder coating in black.
• Six blade pitch adjustment in 5° increments.
• Heavy-duty 1/4" grade 50 x 1-1/2" diameter pivot bushing.
• Uses two 5/8" pins to mount.
• 3/8" grade 50 attachment brackets.
• 30" (or greater) lift height.
• Three position blade, up to 25° to either side.
• Made in USA.

Fitment:

• 2015-2019 Honda 500 Pioneer
  • Requires Drilling
• 2009-2013 Honda 700 MUV Big Red 4x4
  • Plow mount includes a lower 2” Receiver Hitch (built -in)
  • Requires Drilling
• 2014-2019 Honda 700 Pioneer
  2011-2019 Honda 700-4 Pioneer
  • Requires Drilling
• 2015-2016 Polaris ETX Ranger 4x4

• 2010-2019 Polaris EV Ranger 4x4

• 2010-2014 Polaris 400 Ranger 4x4

• 2011-2013 Polaris 500 Ranger 4x4

• 2017-2019 Polaris 500 Ranger 4x4

• 2011-2013 Polaris 500 Ranger 4x4 Crew

• 2014-2019 Polaris 570 Ranger 4x4

• 2014-2019 Polaris 570 Ranger 4x4 Crew

• 2013-2014 Polaris 800 Ranger 4x4

• 2012-2014 Polaris Diesel Ranger 900 4x4

• 2013-2014 Polaris Diesel Ranger 900 4x4 Crew

• 2014-2017 Polaris Diesel Ranger HST/Deluxe 4x4

• 2015-2018 Polaris Diesel Ranger 1000 4x4

• 2015-2018 Polaris Diesel Ranger 1000 4x4 Crew
  • Requires Stock Front Bumper
  • Plow mount includes a lower 2” Receiver Hitch (built -in)
• 2004-2006 Polaris TM Ranger 2x4
  • Requires Stock Front Bumper
  • Requires Drilling
  • Plow mount includes a lower 2” Receiver Hitch (built -in)
• 2001-2004 Polaris 425 Ranger 2x4
• 2001-2008 Polaris 500 Ranger 2x4
• 2003-2008 Polaris 500 Ranger 4x4
• 2009-2010 Polaris 500 Ranger 4x4
• 2002-2005 Polaris 500 Ranger 6x6

• 2015 Polaris 570 Ranger 4x4
• 2016-2019 Polaris 570 Ranger 4x4 (800 body style)
• 2016 Polaris 570 Ranger XP 4x4 (900 body style)
• 2016-2019 Polaris 570 Ranger 4x4 Crew (800 body style)
• 2015-2016 Polaris 570 Ranger 4x4 Crew (900 body style)
• 2005-2008 Polaris 700 Ranger 4x4
• 2009 Polaris 700 Ranger 4x4
• 2008-2009 Polaris 700 Ranger 4x4 Crew
• 2006-2009 Polaris 700 Ranger 6x6
• 2010-2014 Polaris 800 Ranger 4x4
• 2010-2014 Polaris 800 Ranger 4x4 Crew
• 2010-2016 Polaris 800 Ranger 6x6
• 2013-2019 Polaris 900 Ranger 4x4
• 2014-2019 Polaris 900 Ranger 4x4 Crew
• 2017 Polaris 1000 Ranger 4x4
• 2017-2018 Polaris 1000 Ranger 4x4 Crew

  • Requires Stock Front Bumper
  • Plow mount includes a lower 2” Receiver Hitch (built -in)
• 2015-2019 Polaris 1000 RZR XP Highlifter (Rear Trailing Arm)
  • Requires KFI 2" Lift Kit #105700
• 2012-2019 Polaris 570 RZR (Front Mount Option)
  • Requires KFI Winch Mount #100660 or Polaris OEM Winch Mount
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever is using SYNTHETIC cabled winches.
• 2012-2019 Polaris 570 RZR (Mid Mount Option)
  • We also recommend the HD Kit #105955
• 2017 Polaris 570 RZR S (Front Mount Option)
  • Requires KFI Winch Mount #100660 or Polaris OEM Winch Mount
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever is using SYNTHETIC cabled winches.
• 2017 Polaris 570 RZR S (Mid Mount Option)
  • We also recommend the HD Kit #105955
• 2008-2014 Polaris 800 RZR (Front Mount Option)
  • Requires KFI Winch Mount #100660 or Polaris OEM Winch Mount
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever is using SYNTHETIC cabled winches.
• 2008-2014 Polaris 800 RZR (Mid Mount Option)
  • We also recommend the HD Kit #105955
• 2010-2014 Polaris 800 RZR 4 (Front Mount Option)
  • Requires KFI Winch Mount #100660 or Polaris OEM Winch Mount
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever is using SYNTHETIC cabled winches.
• 2010-2014 Polaris 800 RZR 4 (Mid-Mount Option)
  • We also recommend the HD Kit #105955
• 2009-2014 Polaris 800 RZR S (Front Mount Option)
  • Requires KFI Winch Mount #100660 or Polaris OEM Winch Mount
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever is using SYNTHETIC cabled winches.
• 2009-2014 Polaris 800 RZR S (Mid Mount Option)
  • We also recommend the HD Kit #105955
• 2011-2014 Polaris 900 RZR XP (Front Mount Option)
  • Requires KFI Winch Mount #100765
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever is using SYNTHETIC cabled winches.
• 2011-2014 Polaris 900 RZR XP (Mid Mount Option)
  • We also recommend the HD Kit #105955
• 2012-2014 Polaris 900 RZR XP 4 (Front Mount Option)
  • Requires KFI Winch Mount #100765
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever is using SYNTHETIC cabled winches.
• 2012-2014 Polaris 900 RZR XP 4 (Mid Mount Option)
  • We also recommend the HD Kit #105955
• 2006-2011 Yamaha 450 Rhino 4x4
• 2003-2007 Yamaha 660 Rhino 4x4
• 2008-2013 Yamaha 700 Rhino 4x4
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever is using SYNTHETIC cabled winches.
• 2014-2019 Yamaha Viking 4x4
• 2015-2019 Yamaha Viking VI 4x4
• 2016-2018 Yamaha Wolverine / R-Spec / SE
• 2019 Yamaha Wolverine X2 / R-Spec / SE
• 2018-2019 Yamaha Wolverine X4 / SE
  • Requires KFI Winch Mount #101515
  • Plow mount includes a lower 2” Receiver Hitch (built -in)
