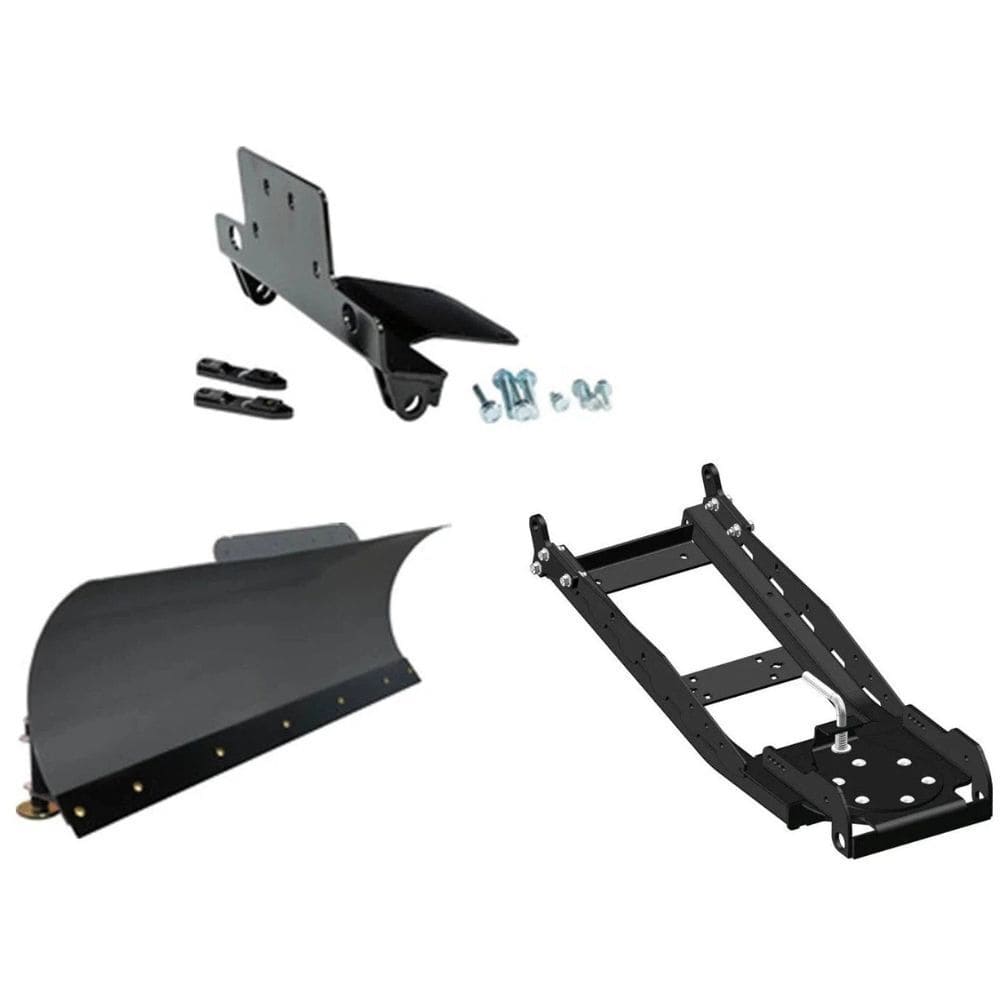

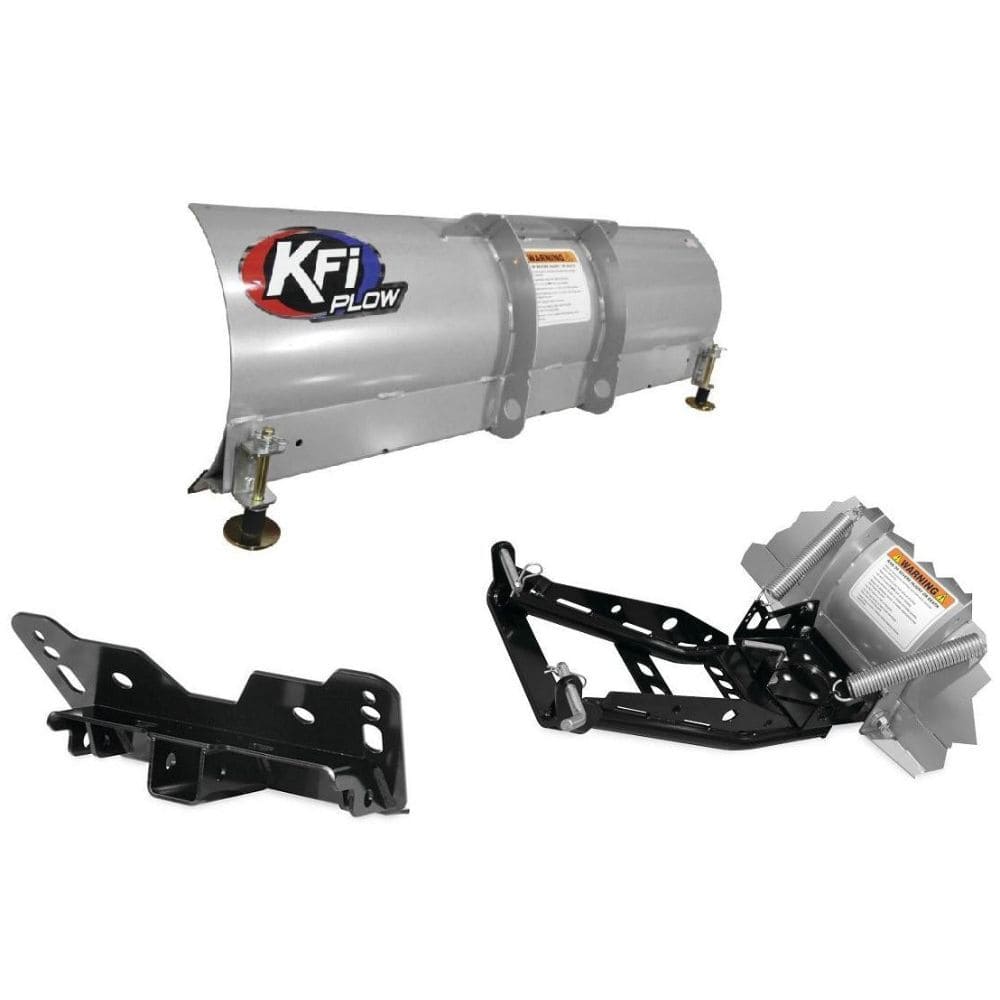

KFI 66" UTV Pro S Straight Blade Snow Plow Kit

KFI 66" UTV Pro S Straight Blade Snow Plow Kit

Put your machine to work in the winter with the KFI Snow Plow Kit. KFI Snow Plow Kits are made in the USA engineered to withstand the varying harsh conditions of winter. Mounting options are available for many ATV's and UTV's including: Arctic Cat, Can-Am, Honda, John Deere, Kawasaki, Kubota, Polaris, Suzuki, Yamaha and many more...

Features:

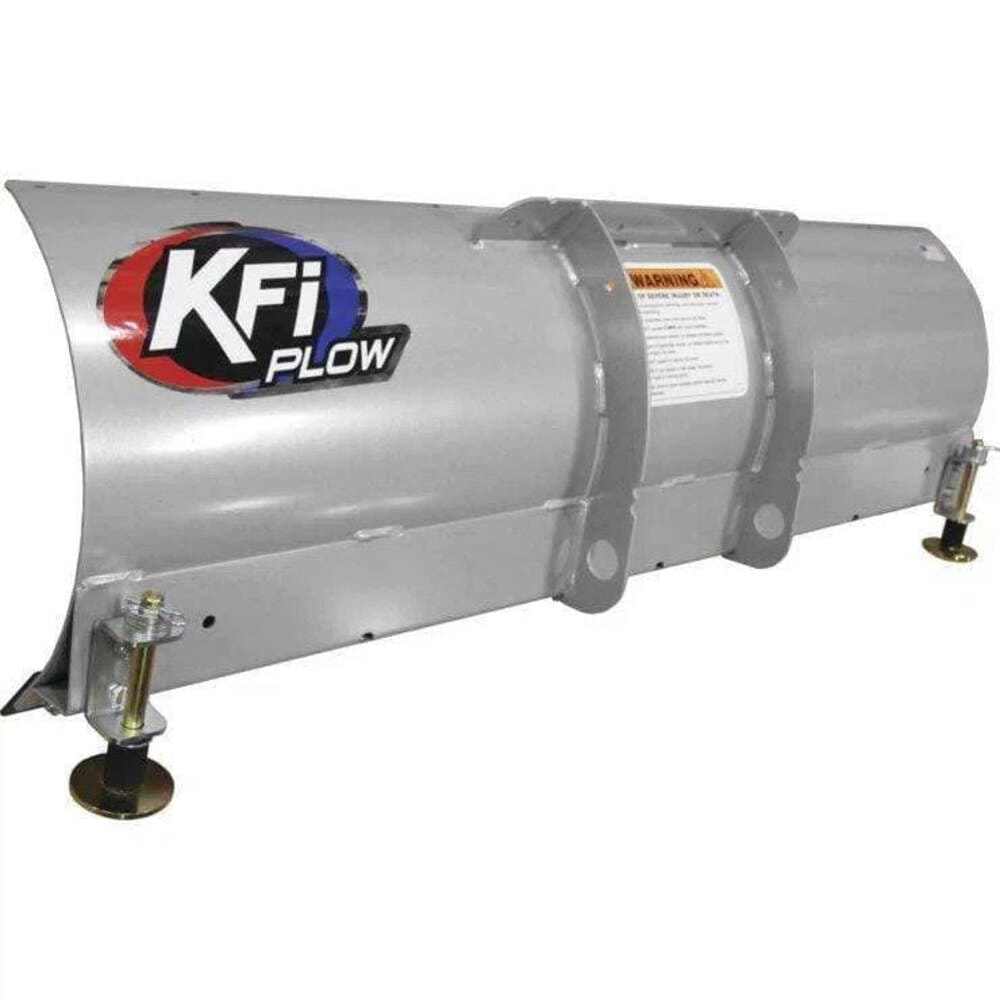

66" UTV Straight Plow Blade:

• 100% MADE IN USA
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width and heavier UTV
• Measures 16" tall with an approximate 21" height with snow flap
• Includes a 7" high 2-ply top rubber flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated
• Metallic Silver for supreme durability

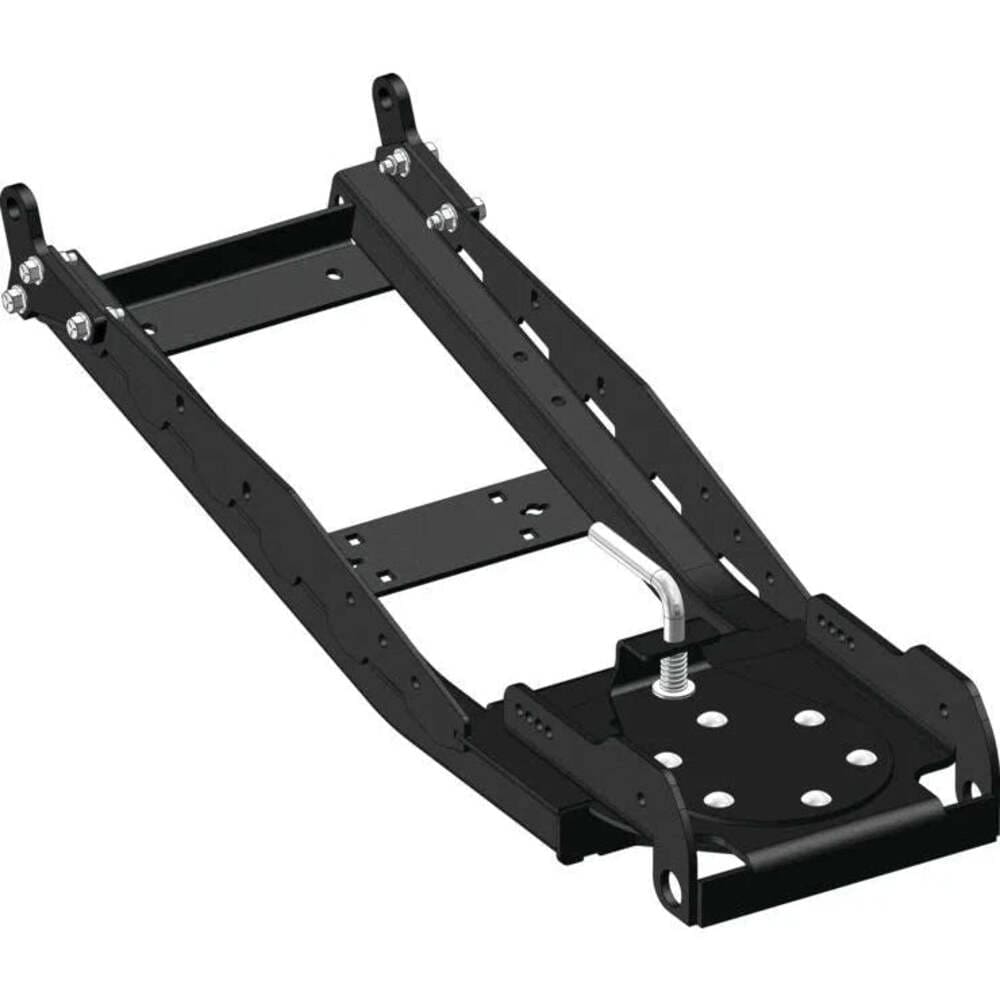

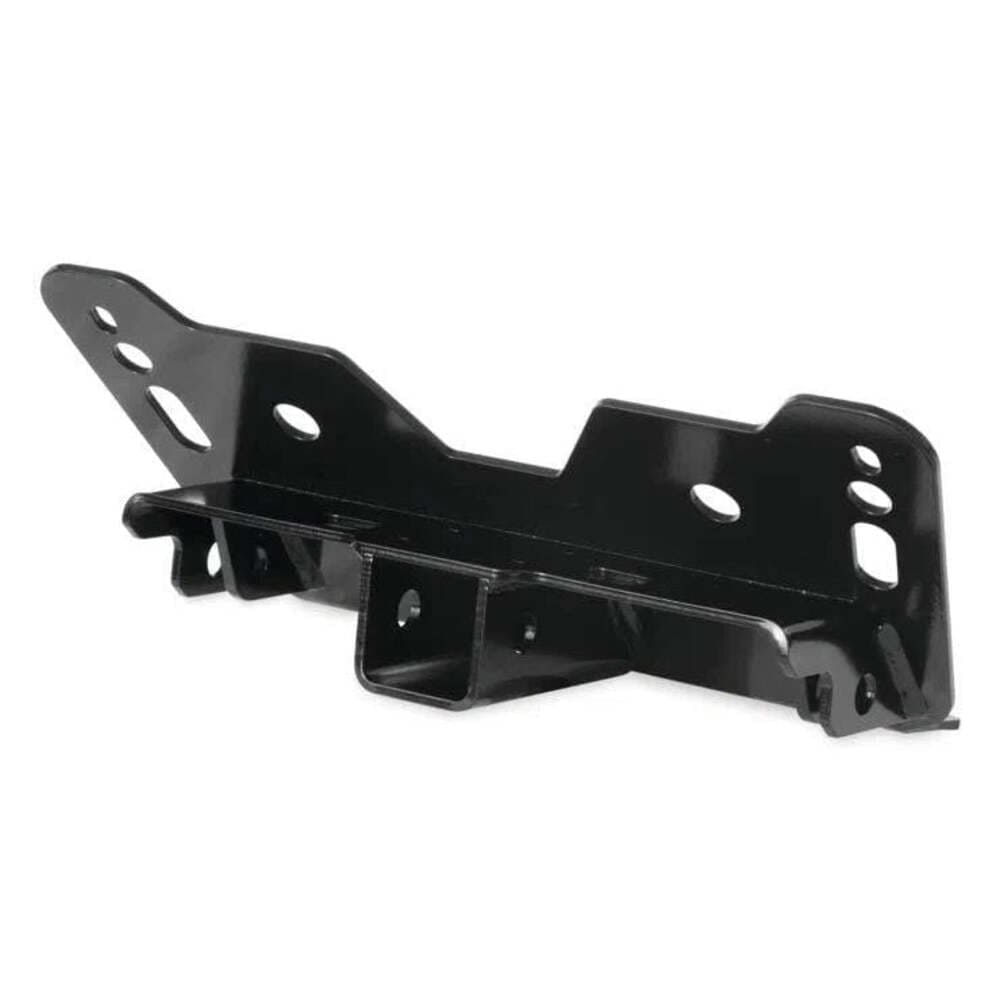

UTV Plow Mount:

• Front-Mount System
• 100% MADE IN USA
• Plate constructed from 3/16" Grade 50 Steel
• All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding
• Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included

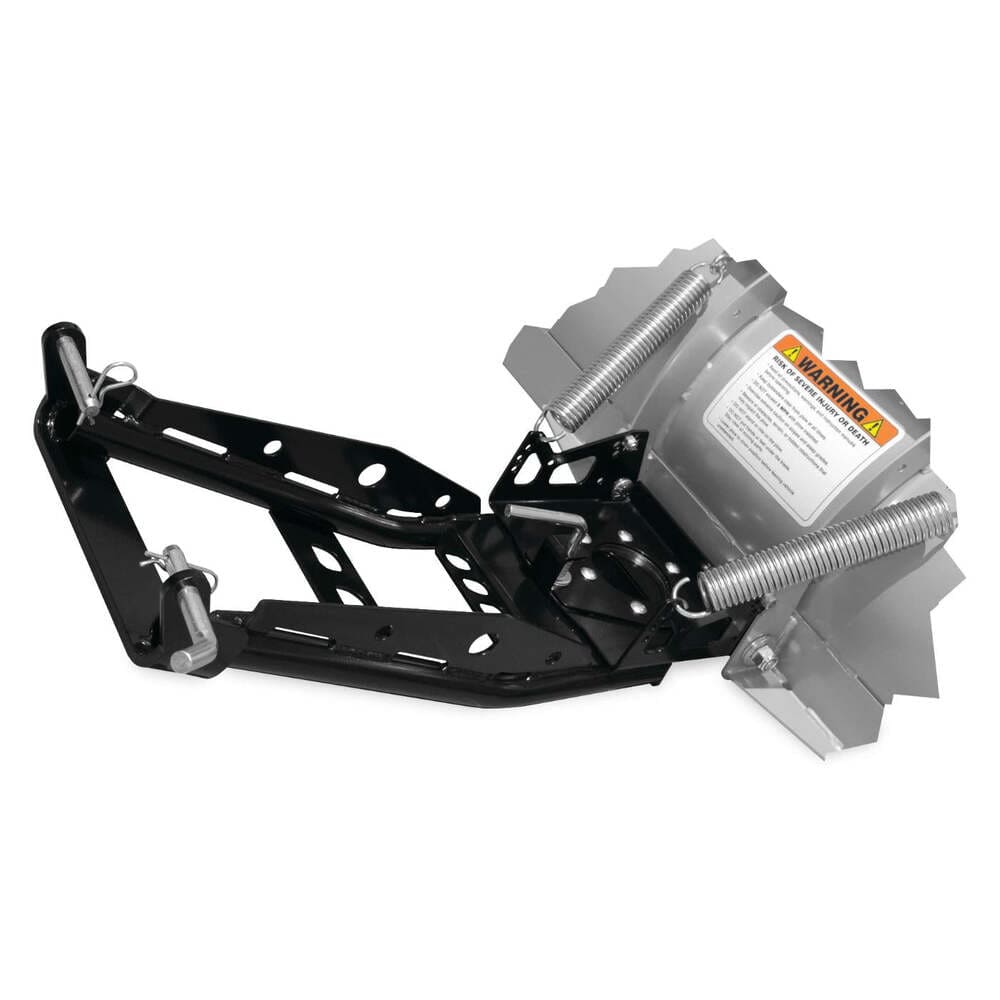

New UTV Pushtube 2.0:

• Shot-blasted before powder coating in black.
• Six blade pitch adjustment in 5° increments.
• Heavy-duty 1/4" grade 50 x 1-1/2" diameter pivot bushing.
• Uses two 5/8" pins to mount.
• 3/8" grade 50 attachment brackets.
• 30" (or greater) lift height.
• Three position blade, up to 25° to either side.
• Made in USA.

Fitment:

• 2017 Arctic Cat 500 Prowler:
  • Requires KFI Winch Mount #101370
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever if using SYNTHETIC cabled winches.
• 2014-2017 Arctic Cat Wildcat Trail

• 2012-2017 Arctic Cat Wildcat (1000)
  • We also recommend the HD Kit #105955
• 2018-2019 Can-Am Maverick Trail 800 / 1000

• 2018-2019 Can-Am Maverick Sport 1000
  • Plow mount includes a lower 2” Receiver Hitch (built -in)
  • Requires KFI Winch Mount #101500 or Can-Am OEM Winch Mount
• 2017-2019 Can-Am Maverick X3
  • Requires KFI Winch Mount #101520
• 2005-2016 Kawasaki 600 Mule

• 2005-2016 Kawasaki 610 Mule
  • Requires KFI Winch Mount #100575
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever if using SYNTHETIC cabled winches.
• 2019 Kawasaki 700 Mule PRO-MX
  • Plow mount includes a lower 2” Receiver Hitch (built -in)
• 2008-2013 Kawasaki 750 Teryx

• 2012-2013 Kawasaki 750 Teryx4

• 2014-2019 Kawasaki 800 Teryx

• 2014-2019 Kawasaki 800 Teryx4
  • Recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106045 Lift Lever if using SYNTHETIC cabled winches.
• 2015-2019 Kawasaki 820 Mule PRO-FXT/FX

• 2018-2019 Kawasaki 820 Mule PRO-FXR

• 2016-2018 Kawasaki 1000 Mule PRO-DXT/DX Diesel

  • Requires Drilling
