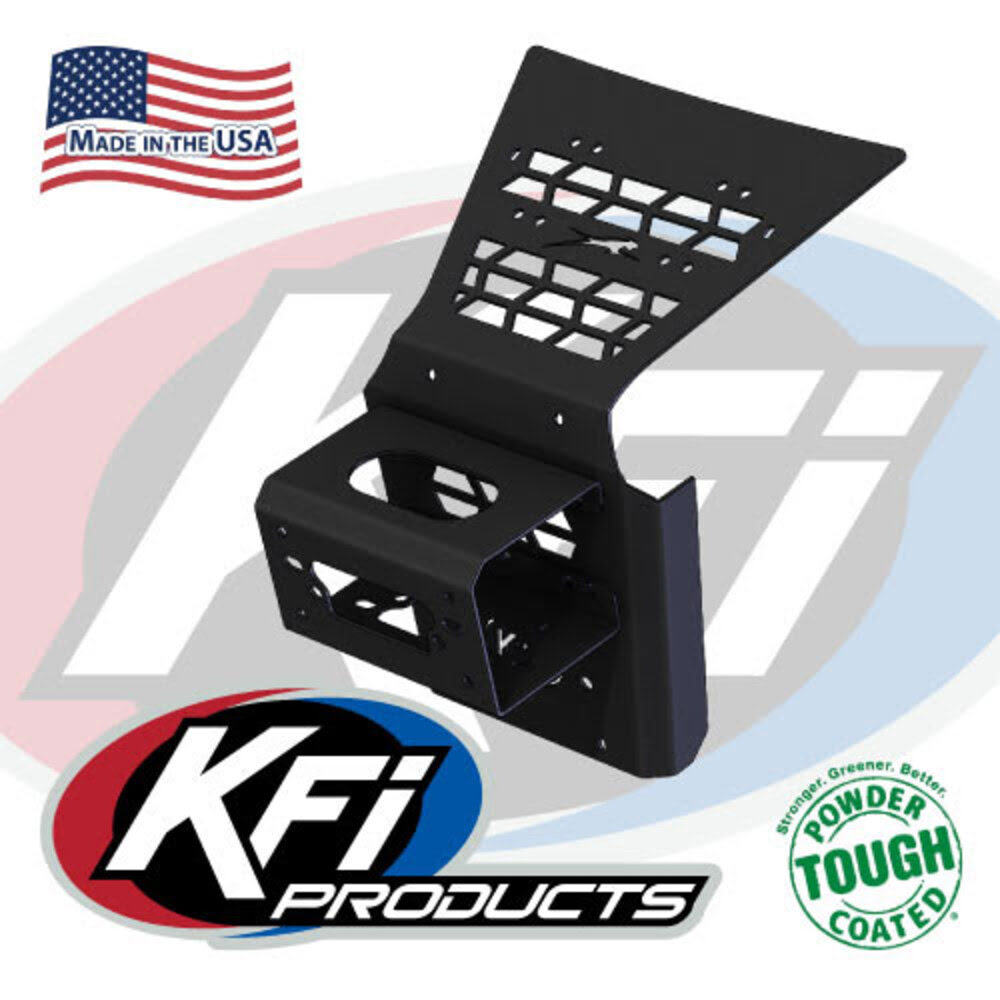

KFI '13-'19 Arctic Cat Wildcat 1000 / 4 1000 Winch Mount Combo Kit

KFI '13-'19 Arctic Cat Wildcat 1000 / 4 1000 Winch Mount Combo Kit

Features:

• 100% Made In USA.
• Comes with #101000 Modular Grill and #101015 Modular Winch Mount.
• Able to be mount to the front face and also the Top Surface as an option.
• Replaces stock plastic grill.
• Constructed of 3/16" steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Easy to install.
• Complete installation instructions included.
• Roller fairlead and winch not included



Specifications:

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50x / AS-50wx
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40
• WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
• WARN: Vantage 4000lbs / ProVantage 4500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
• BADLAND: 2-Hole Winches
• BADLAND: Standard Winches
• BADLAND: WIDE Winches
• CHAMPION: 2-Hole Winches
• CHAMPION: Standard Winches
• CHAMPION: WIDE Winches
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

• SMITTYBILT: XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up.
  • All with 3.00" x 6.600" bolt pattern mount-up.
• Traveller: 1078311
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35



Kit Includes:

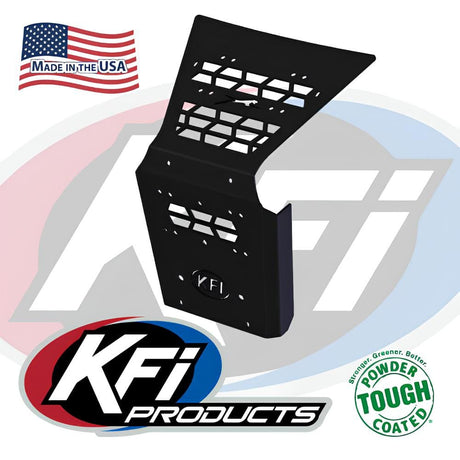

• Modular Grill #101000 (INCLUDED)



• Modular Winch Mount Bracket #101015 (INCLUDED)

• Optional Bumper #101010 (NOT INCLUDED)

• Mounted with all Options Winch Mount Kit #101030 and (Optional Bumper #101010 NOT INCLUDED)



Note:

• Will Not work with X or Limited Model without removing the front bumper



Fitment:

• 2012-2019 Wildcat 1000
• 2013-2019 Wildcat 4 1000
