KC HiLiTES SlimLite 6” Master Kit Single LED Light
SKU: KC-1106
1 16

KC HiLiTES SlimLite 6” Master Kit Single LED Light

SKU: KC-1106
$189.00
Custom Icon
Earn $3 Fueled Cash

KC HiLiTES SlimLite 6” Master Kit Single LED Light



The next-generation SlimLite 6” LED lights deliver improved brightness and increased durability with MoistureBlock Technology. Now featuring increased brightness along with dual-mode functionality, it offers a full-power mode for maximum visibility and a dimmed mode for low-beam use, providing versatile lighting for any situation, from the street to the trail.

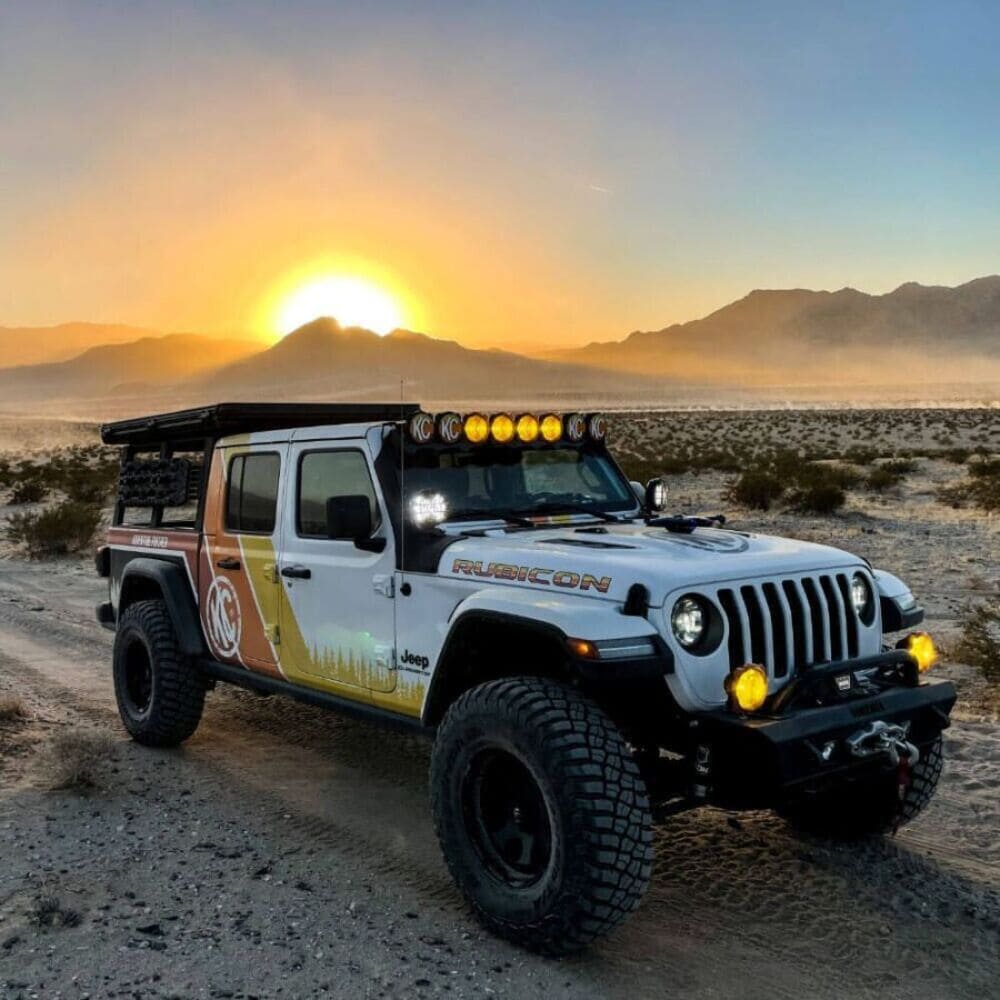

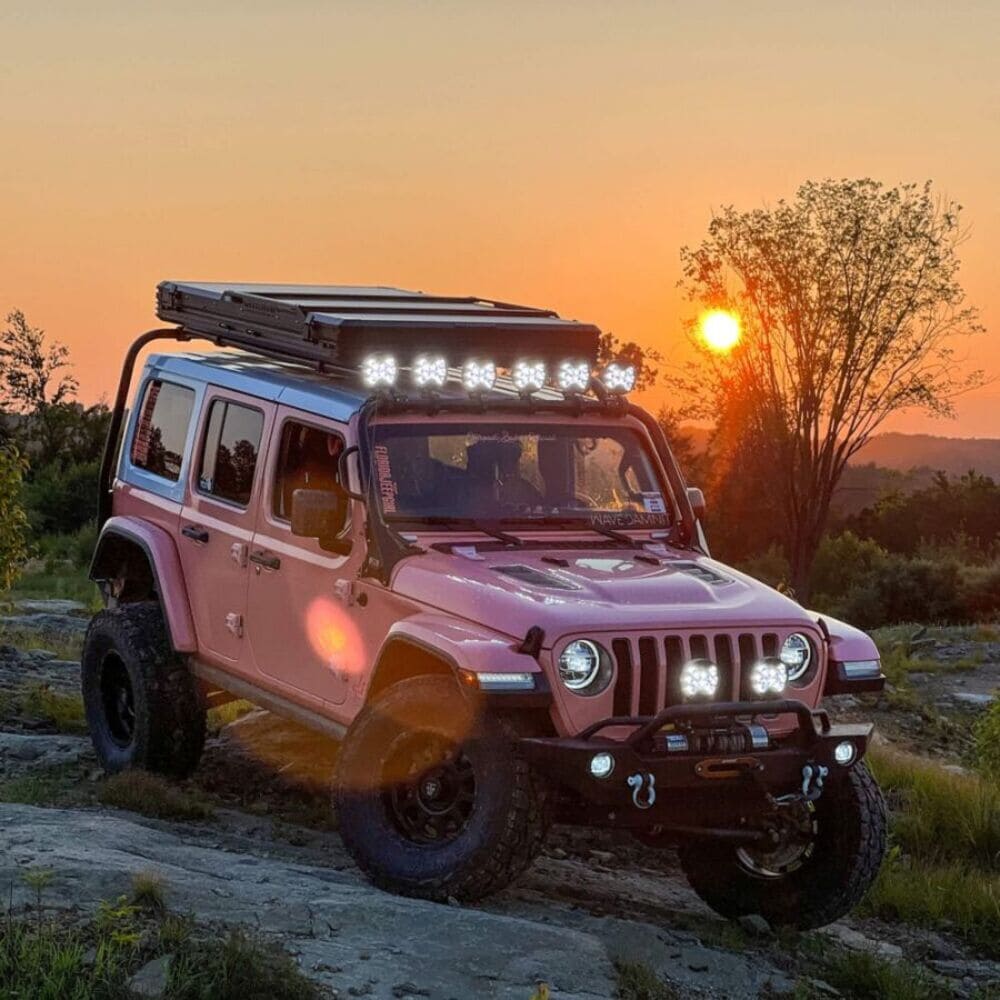

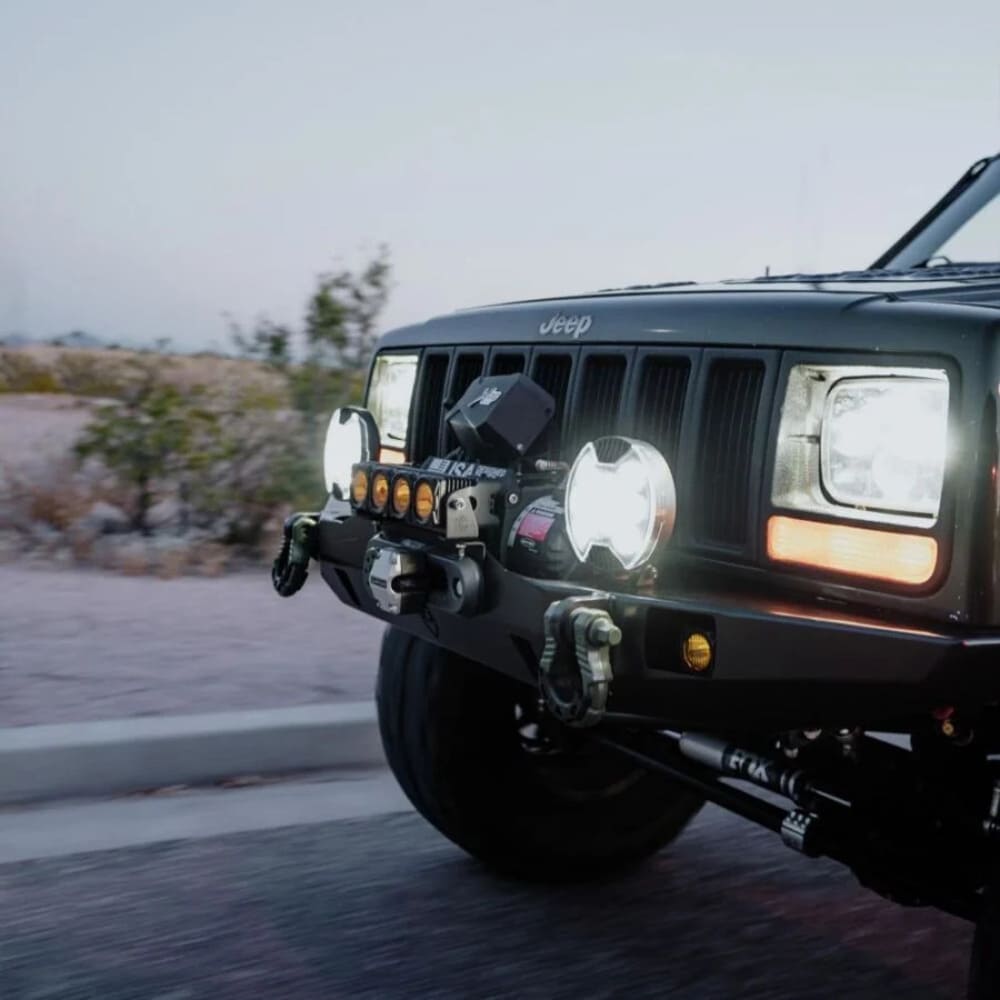

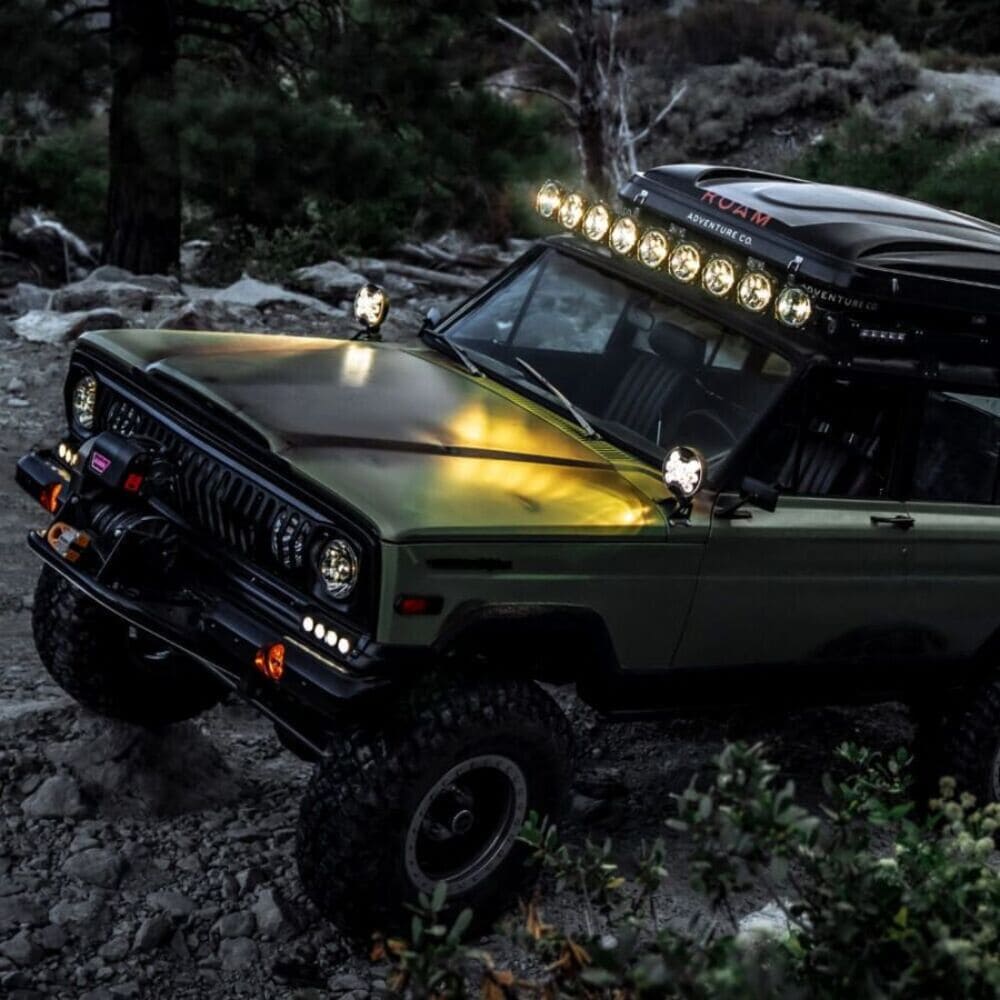

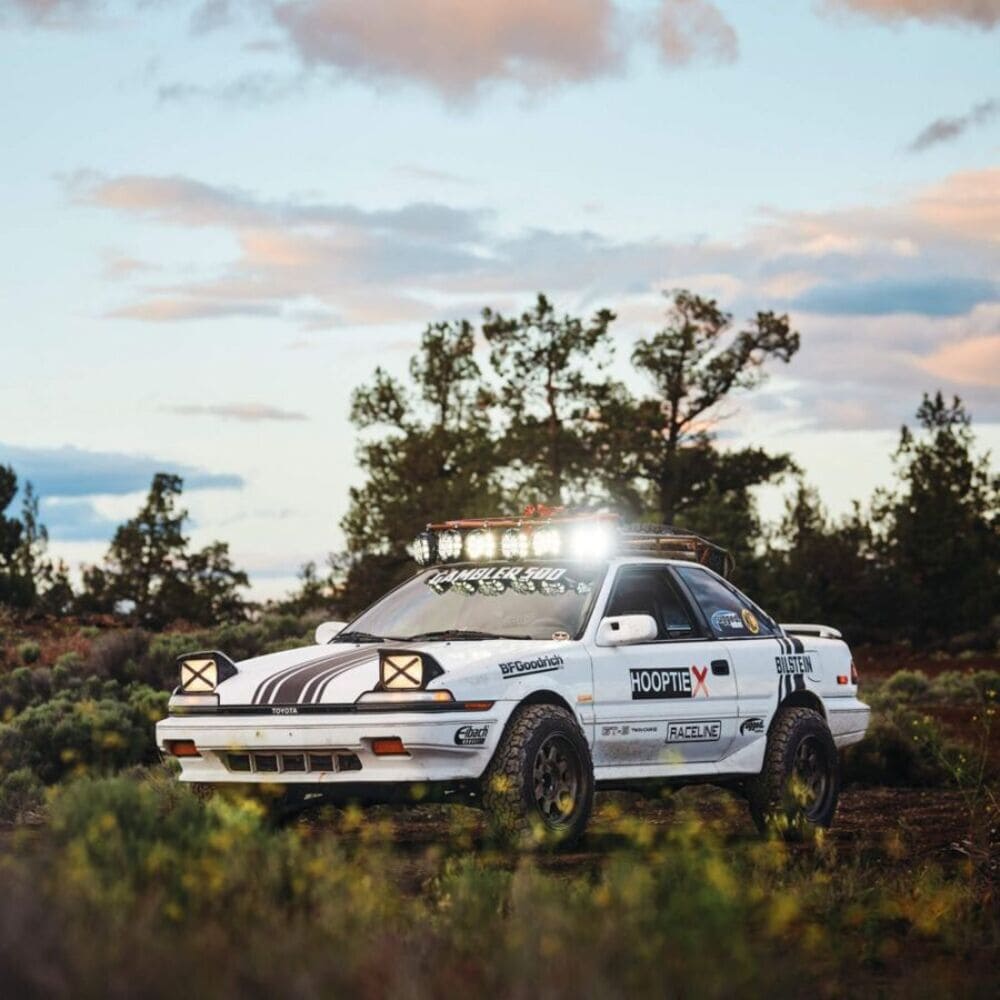

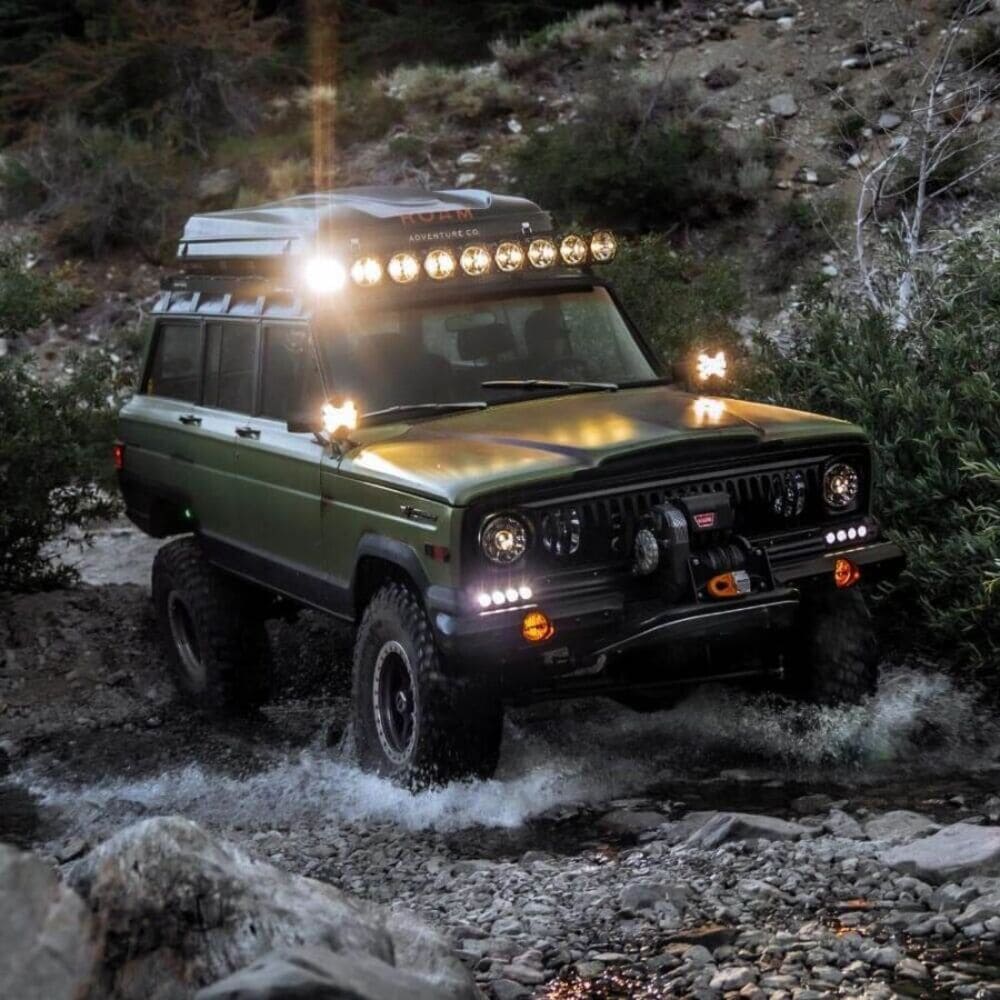

Upgrade your lighting with the SlimLite 6” engineered for easy installation. Now delivering up to 40% more brightness and over 50% greater beam distance. Their signature style is the go-to choice for a-pillar and bumper installations on Jeeps, Broncos, trucks, and SUVs. Elevate your lighting game with the iconic SlimLite 6”, built for durability and versatility.



Features:

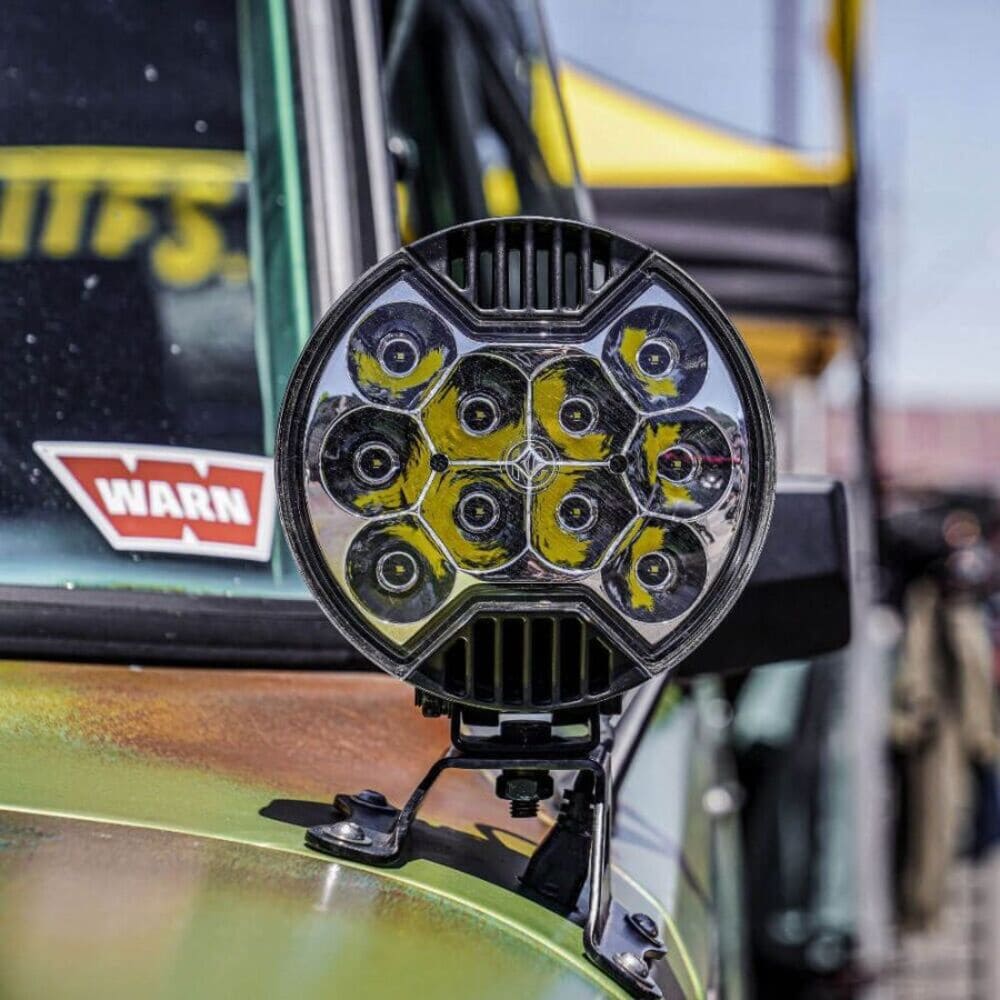

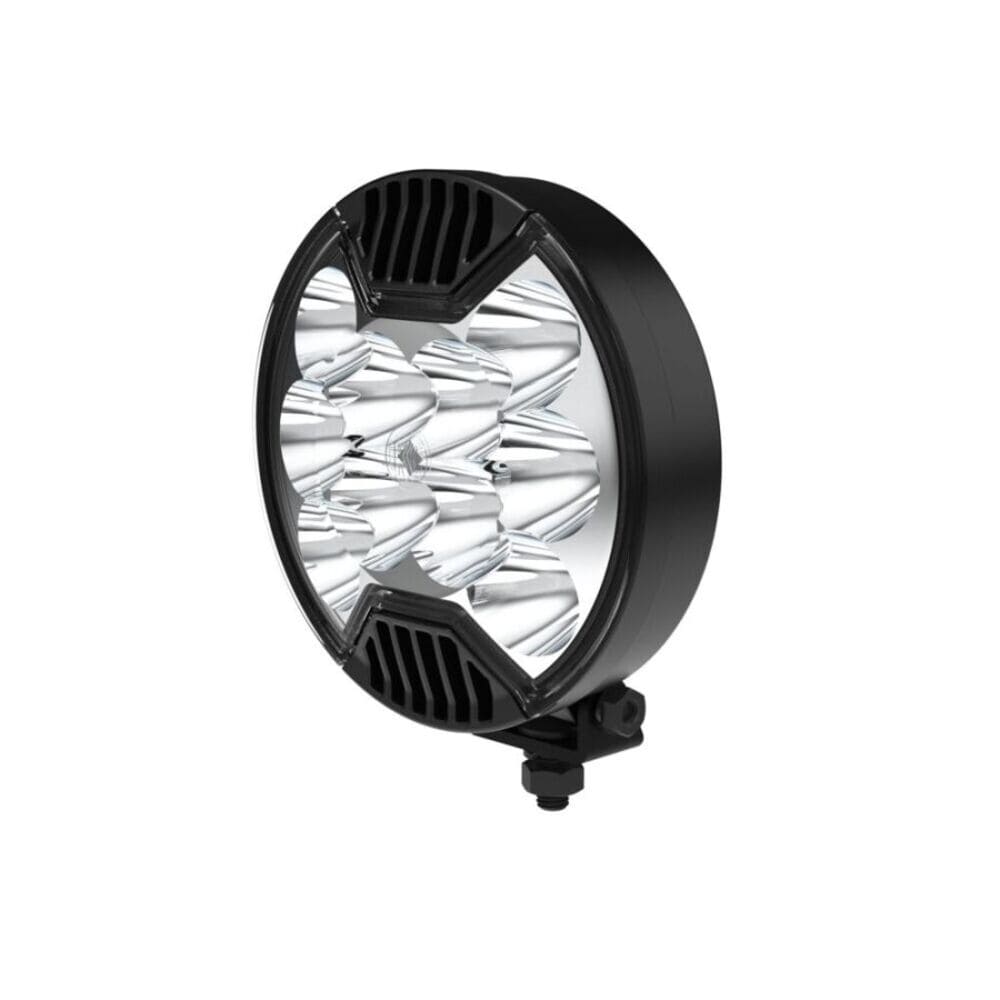

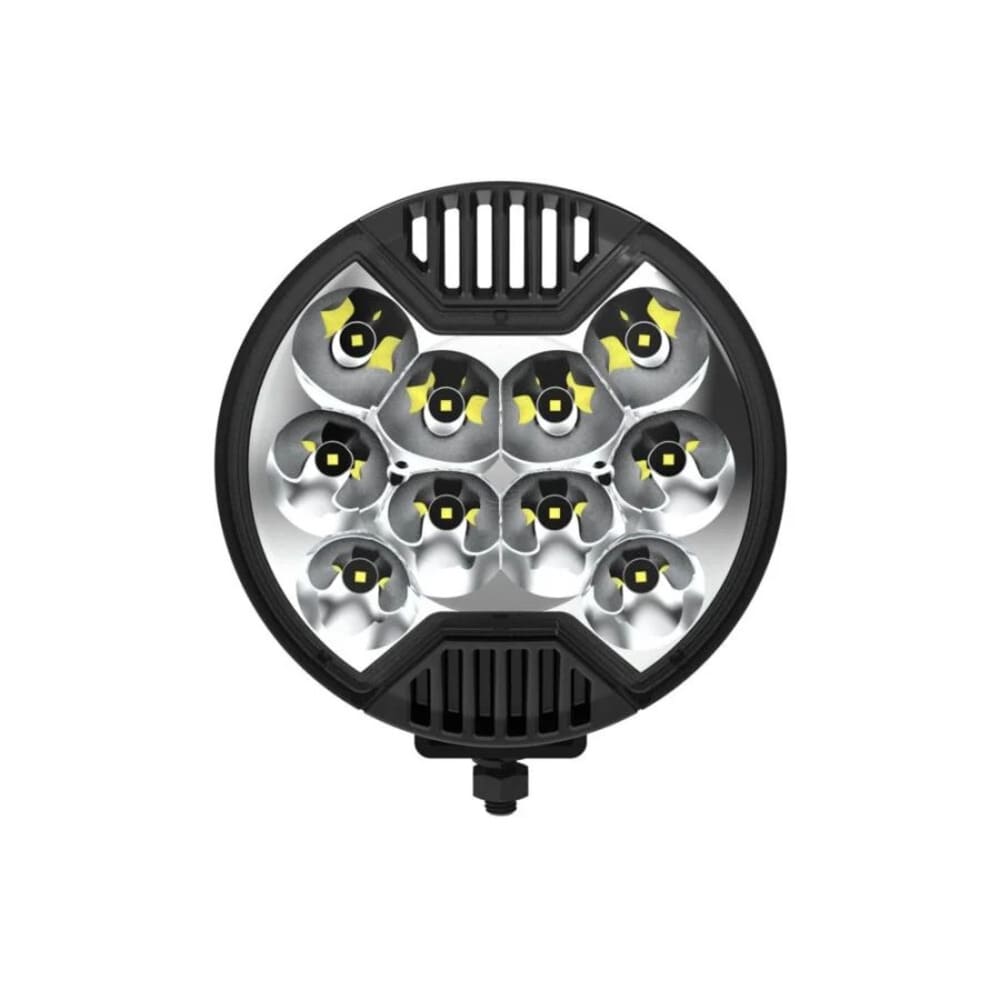

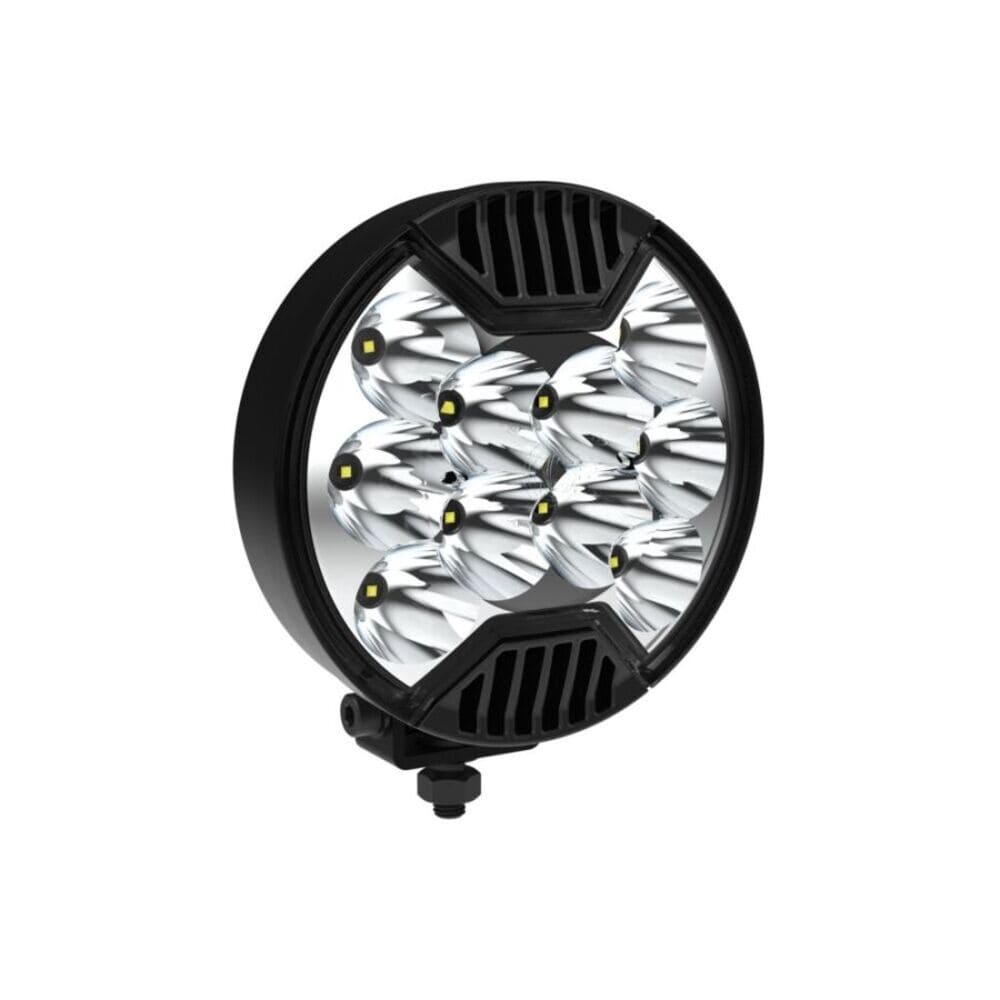

  • High-Performance Led Optics: KC's SlimLite LED lights provide exceptional output through the use of high-performance Cree XD-16 LEDs. SlimLite LED lights feature an optimized beam pattern that has a spot beam output for long-distance lighting along with fill light for short to mid-range light. The 10 internal LEDs and reflectors result in incredible light output with highly targeted light distribution and beam shape that translates to more usable light than standard round lights.

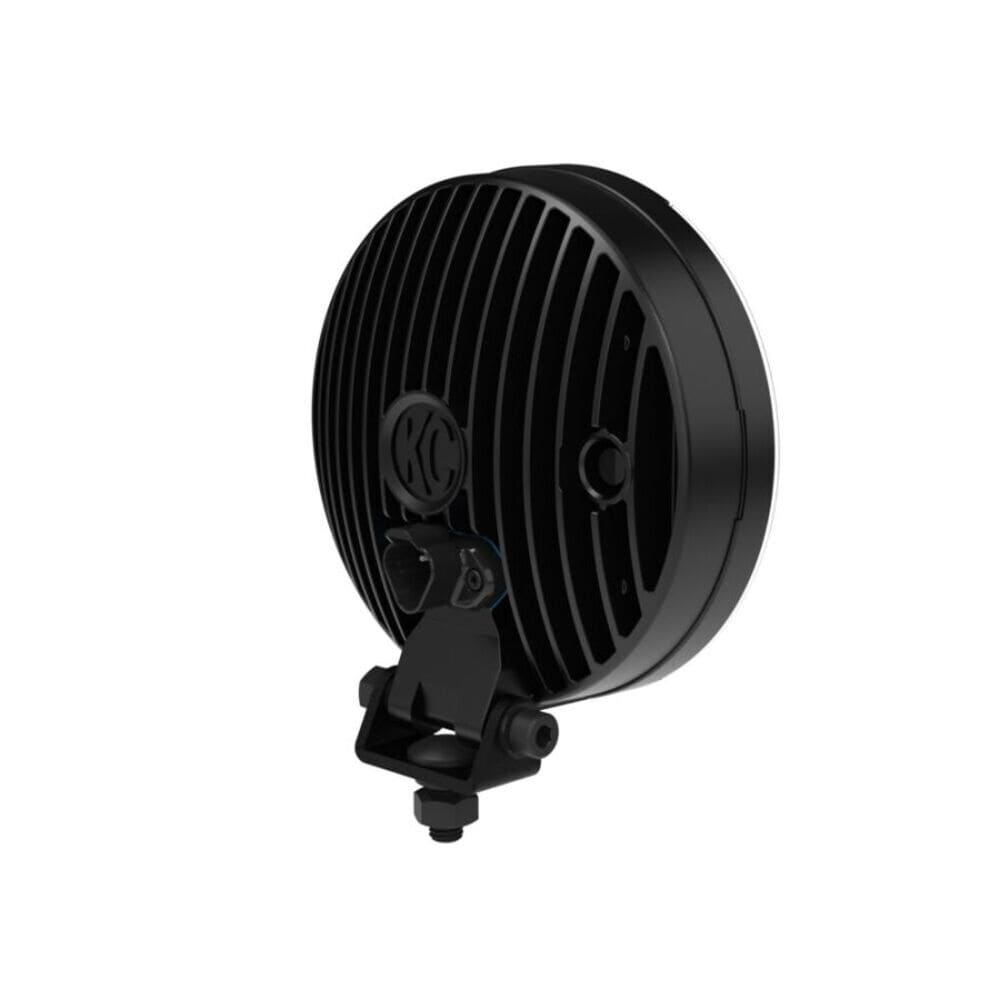

  • Adjustable Mounting for Accuracy and Precision: Universal adjustable mounts allow user to easily mount SlimLite LED lights to most bolt hole locations. The mounts also allow for easy vertical adjustment and horizontal aiming of light output while ensuring beam stability and consistency.
  • Race-Proven Strength & Durability: Constructed from a rugged aluminum housing with a durable, shatter-resistant polycarbonate lens, KC SlimLite LED lights were made to perform at their best for years to come.
  • Powerful Illumination: Now 40% brighter than the previous generation, delivering outstanding lumens for superior visibility and long-range performance.
  • Included Shields & Covers: Comes with a clear SAE driving shield for street-legal performance and a black protective cover for added durability when not in use.

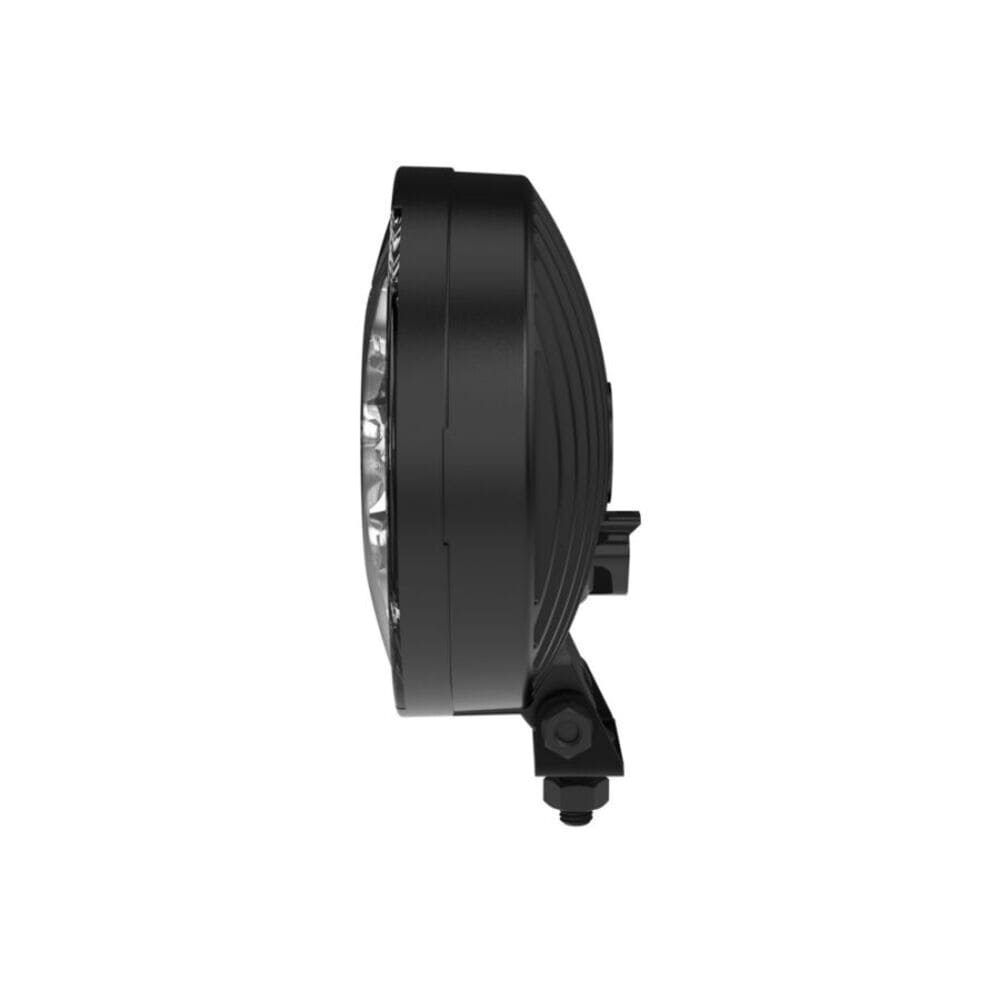

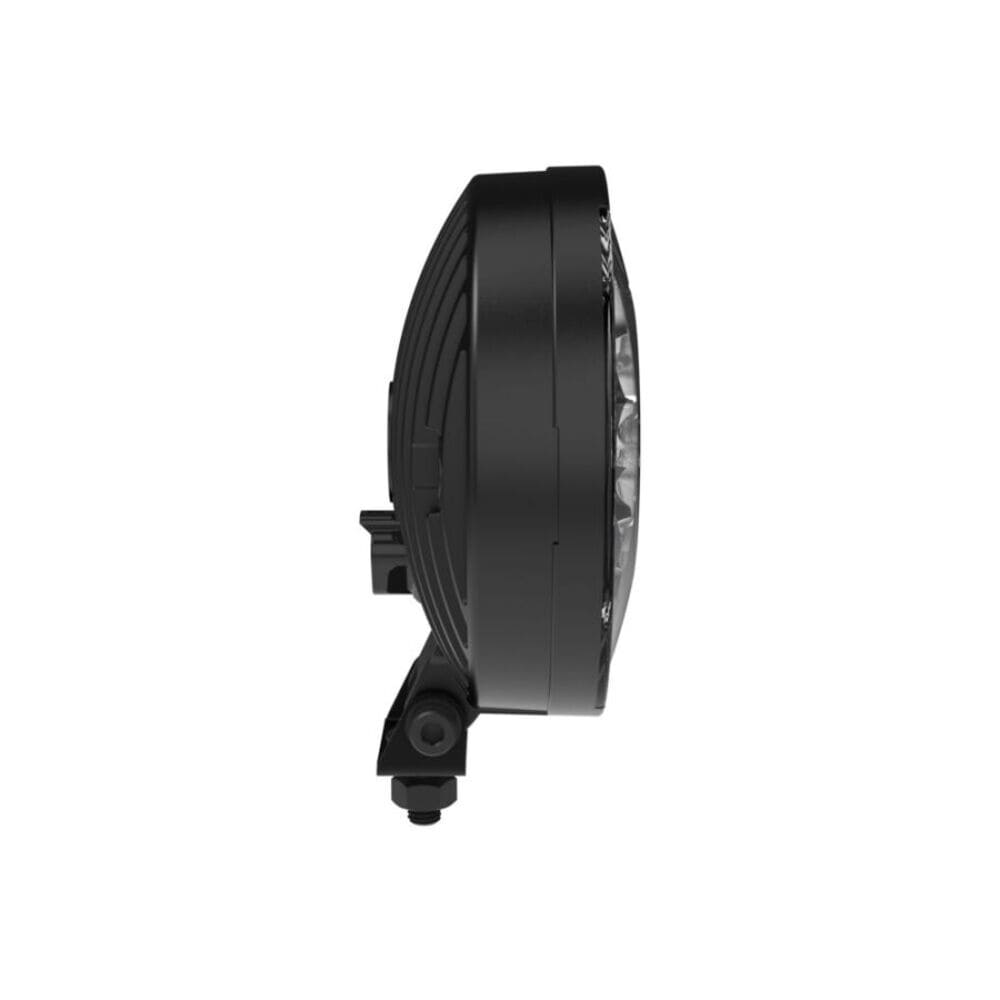

  • Iconic Design: Signature 6” round shape with an ultra-slim 2.7" housing depth, perfect for a-pillars and bumpers.

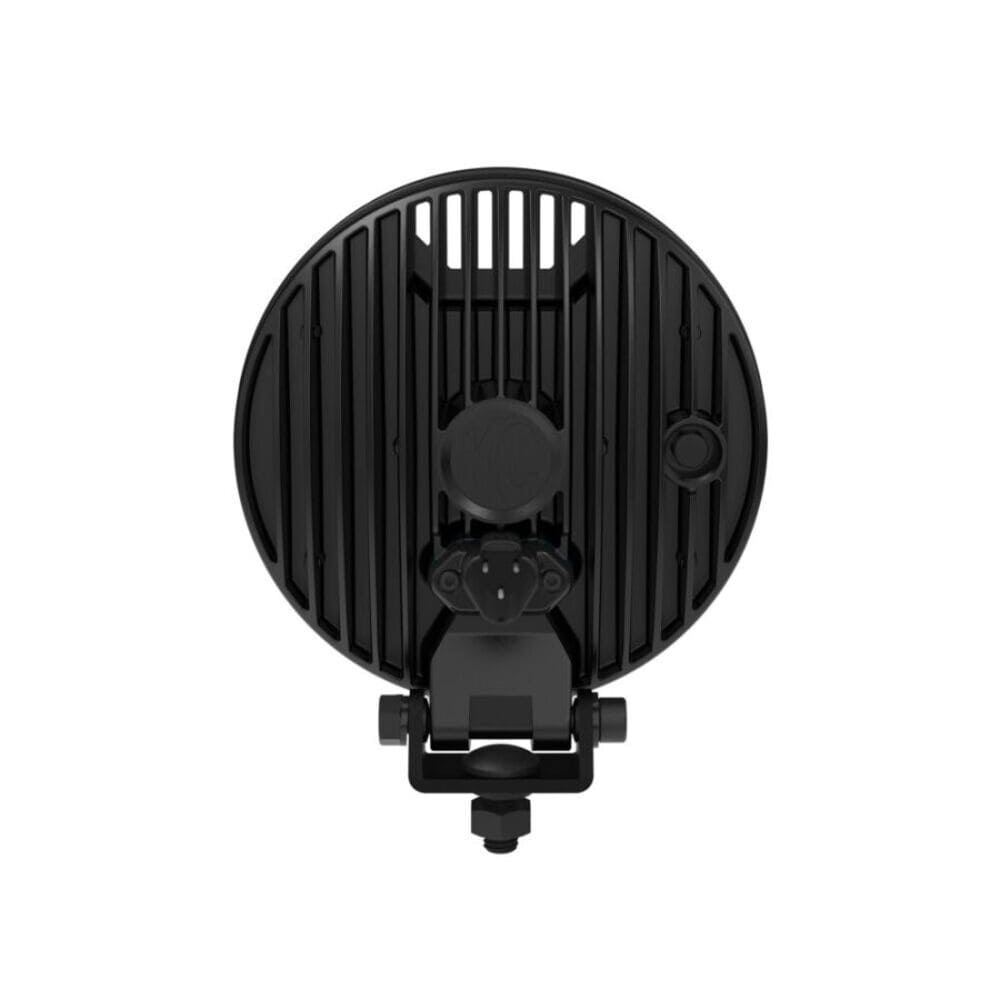

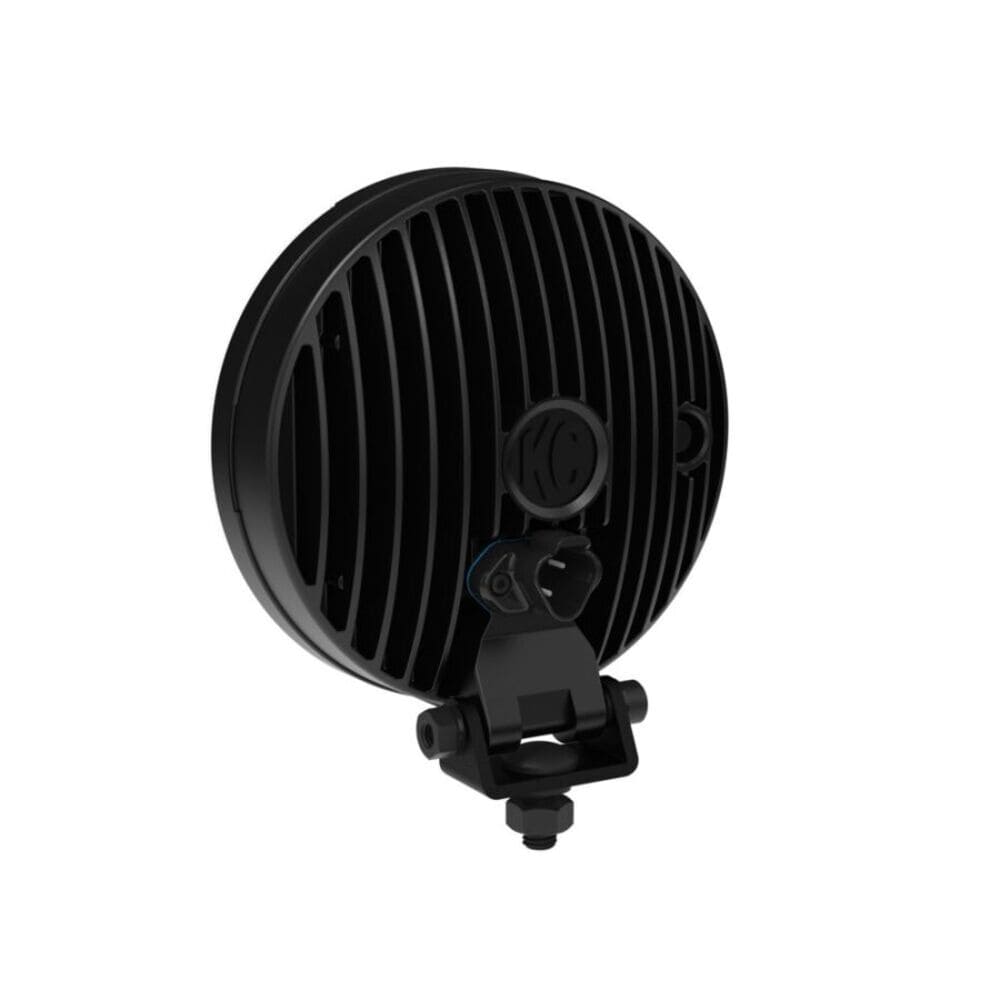

  • MoistureBlock Technology: An integrated 3-pin plug built directly into the housing to keep water out, while maintaining a secure connection.
  • Dimmed Mode: Reduces brightness to 20% for safer on-road driving, group trail rides, and situations where full power isn’t necessary.
  • Optional Customization: Additional shields are available separately, including clear & amber in spot beam, selective yellow in SAE driving beam, amber in spread beam, and stone guards for enhanced protection and tailored lighting performance.
  • Durable Construction: Built with tough materials and optional rock guard shields to withstand extreme off-road environments.
  • Dual Power Modes: Now featuring a 100% full power mode and a 20% dimmed mode for on-road use or group rides.
  • Improved LED Performance: Now 1.8x brighter with upgraded LED technology for greater beam distance and intensity.
  • Updated Wiring Kit: Includes a 3-position switch for full power, dim mode, and off functionality.

Specifications:
Weight 3.520000
Compliance DOT/SAE/ECE ECE R112 (Driving)
Wattage Per Light 76.44 W (High) / 15.29 W (Low)
Total Wattage 76.44 W (High) / 15.29 W (Low)
Amp Draw Per Light 6.37 A (High) / 1.27 A (Low)
Total Amp Draw 6.37 A (High) / 1.27 A (Low)
Voltage 9V-36V
Lumens Per Light 7,100 lm (High) / 1,420 lm (Low)
Total Lumens 7,100 lm (High) / 1,420 lm (Low)
Lux Per Light 5,495 lx( High) / 1,099 lx (Low)
Total Lux 5,495 lx( High) / 1,099 lx (Low)
Candela Per Light 549,500 cd (High) / 109,900 cd (Low)
Total Candela 549,500 cd (High) / 109,900 cd (Low)
Light Temp 5000 K
Lens Color Clear
LED Color White
Beam Pattern Spot
Beam Distance 741 m (High) / 332 m (Low)
Light Technology LED
Package Options Includes Covers, Includes Multiple Lenses
Mount Location A-Pillar / Ditch, Bumper, Overhead
Size of Products 6"
Material Aluminum Alloy
Product Finish Black
Included Components 1 x SlimLite® LED Offroad Light, 1 x KC Light Cover, 1 x Shield - SAE Driving Beam
Color Black
Product Dimensions W: 6.22 " x H: 6.79 " x D: 2.88 "
Tag Line Slim Profile Max Output
UPC 084709011062
IP Rating IP67

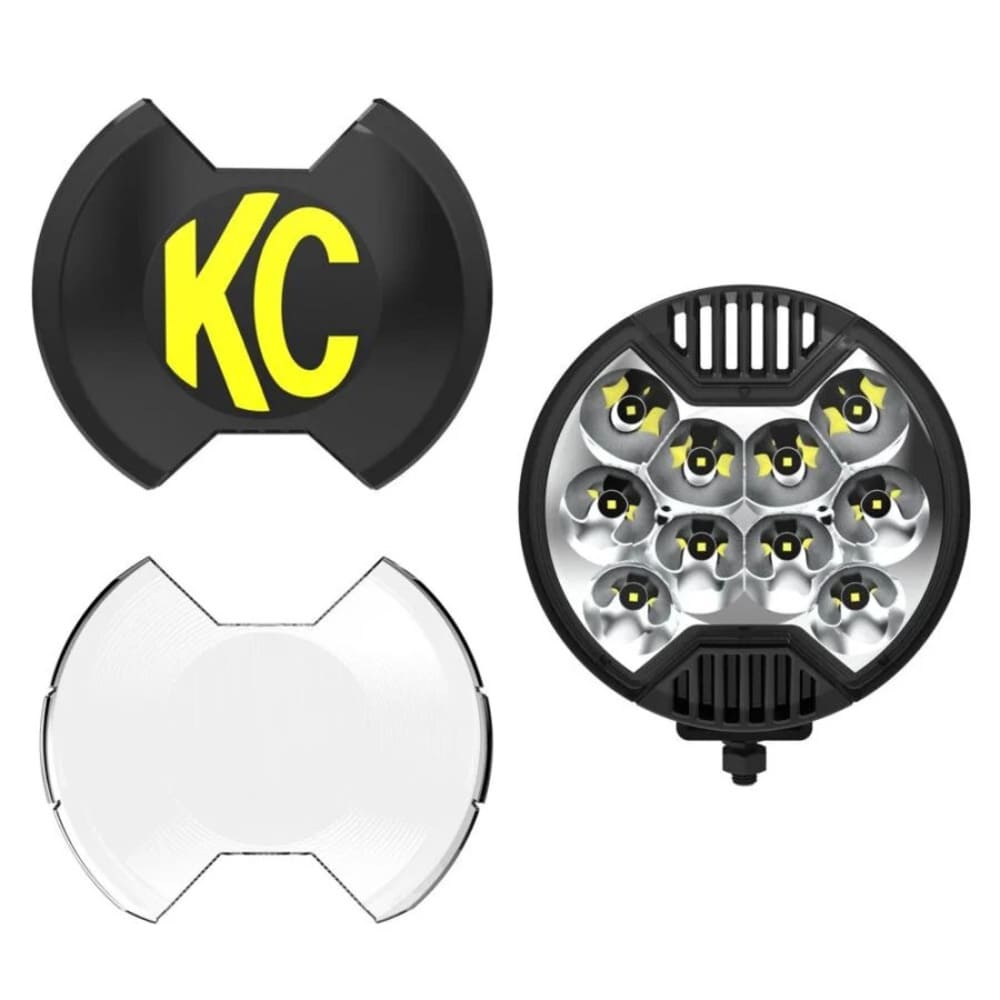

Kit Includes:
  • SlimLite® 6” LED Light
  • Light Cover - Black with Yellow KC Logo
  • Shield - SAE Driving Beam



Note:
  • Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the 2-Light Master Kit version.
  • Connector Upgrade: Switched from 2-pin DT to 3-pin  MoistureBlock panel mount connector for improved water resistance and dual-mode functionality.
  • Sold as Singles or Master Packs: Now available individually or as complete master kits with SAE driving shields and black protective covers.
