KC HiLiTES Flex Era ADD-A LED Light Bar Kit

KC HiLiTES Flex Era ADD-A LED Light Bar Kit



Expand your lighting setup with the FLEX ERA LED Light Bar Add-A-Light Kit. This kit includes a single 10" segment, designed to integrate seamlessly into your existing FLEX ERA Light Bar. Comes pre-built as a combo beam for short and mid-range lighting, yet equipped with a spot beam lens in the box for focused illumination. Also includes a protective KC cover, this add-on provides enhanced lighting precision and protection. Complete with the necessary linker bracket, power connector, and hardware, this kit makes upgrading your light configuration easy and efficient.



Features:

• Seamless Integration: Designed to fit perfectly with your existing FE Bar.

• Master Kit: Includes the KC Cover and both beam pattern lenses

• Complete Kit: Includes brackets and all required hardware for a hassle-free installation.

• Expandable Setup: Allows for the custom expansion of your light system to meet diverse lighting needs



Specifications:

Weight	9.000000
Wattage Per Light	12W (Amber) / 108W (White)
Total Wattage	12W (Amber Backlight) / 108W (High-Power)
Amp Draw Per Light	1.0a (Amber) / 9.0a (White)
Total Amp Draw	1.0a (Amber) / 9.0a (White)
Voltage	9V-36V
Lumens Per Light	7,912lm
Total Lumens	7,912lm
Lux Per Light	1,610lx (Combo) / 1,800lx (Spot)
Total Lux	1,610lx (Combo) / 1,800lx (Spot)
Candela Per Light	161,000cd (Combo) / 180,00cd (Spot)
Total Candela	161,000cd (Combo) / 180,00cd (Spot)
Light Temp	5000 K
Lens Color	Clear
LED Color	Amber / White
Beam Pattern	Combo
Beam Distance	401m (Combo) / 424m (Spot)
Light Technology	LED
Mount Location	Bumper, Overhead, Roof
Size of Products	10"
Material	Aluminum Alloy
Product Finish	Black
Included Components	1 x KC® 10" FLEX ERA® LED Light Bar Add-On Kit, Combo Beam Pattern, 1 x Spot Beam Lens, 1 x Black KC Cover with Yellow Logo, Linker and Linker Hardware Kit
Color	Black
Product Dimensions	W: 11.36 " x H: 2.66 " x D: 3.85 "
Tag Line	A New Standard.
UPC	084709002909
IP Rating	IP68

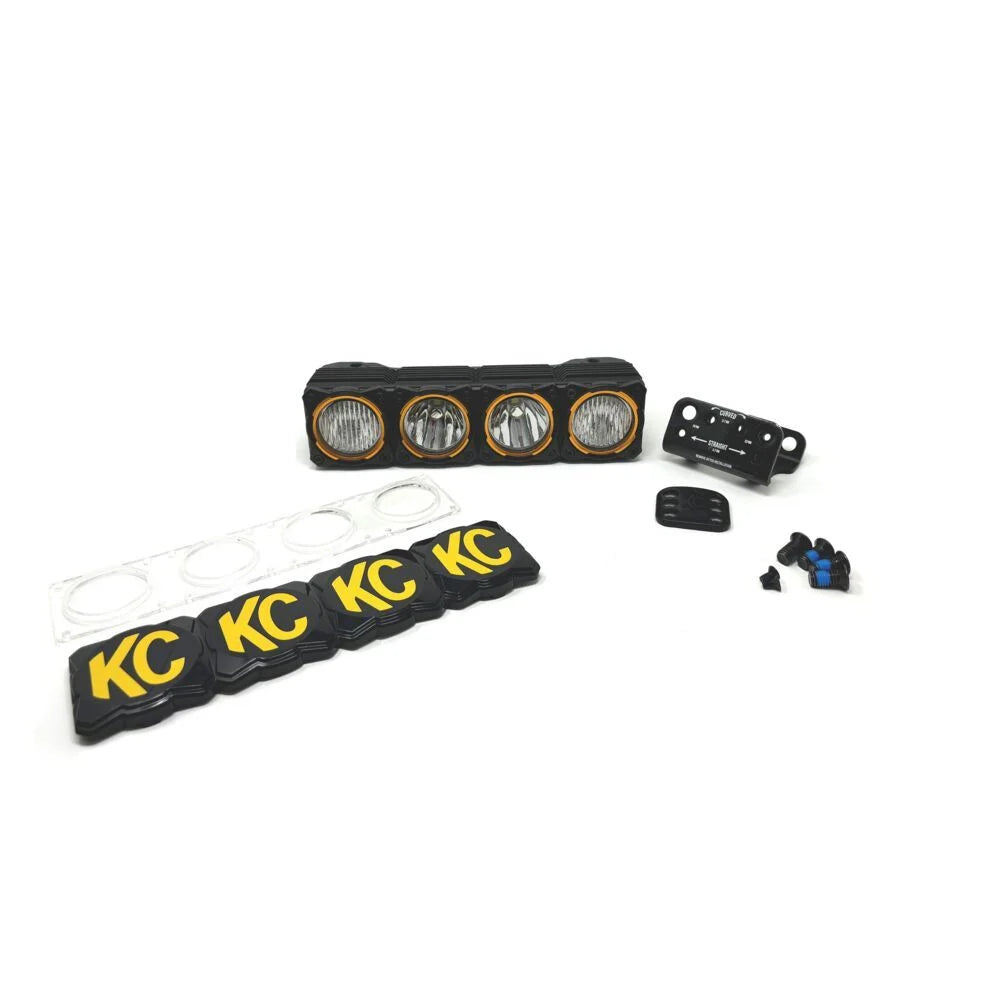

Kit Includes:

• (1) 10" FLEX ERA LED Light Bar in Combo Beam Pattern

• (1) FLEX ERA LED Light Bar KC Logo Black / Yellow Cover

• (1) FLEX ERA LED Light Bar KC Logo Clear Spot Beam Pattern Cover -(1) Linker Kit

• (6) Linker Screws



Installation Instructions:

• KC3265COA REV3 - FLEX ERA FPLT BZL ORING INSTRUCTIONS.
• 56-00036-01IM 3-RING, 50A, 80A RLY, FE BAR HRNSS_REV1.pdf
• 59-00172IM - FLEX ERA LIGHT BAR_REV1 (230920).pdf
