KC HiLiTES 6" Daylighter w/ Gravity G6 LED - Single

KC HiLiTES 6" Daylighter w/ Gravity G6 LED - Single

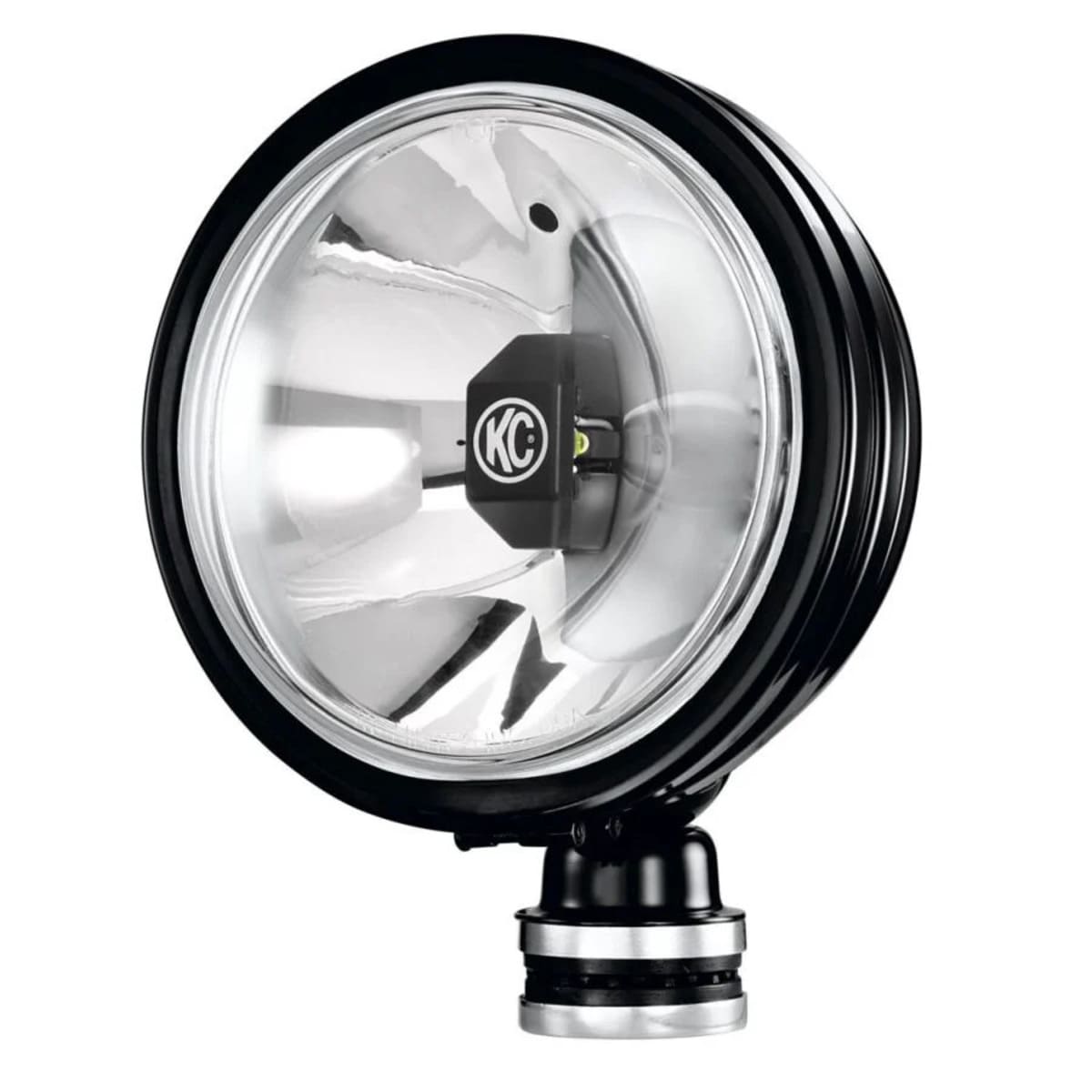

KC Hilites 6" Gravity LED Daylighter feature bright CREE LEDs in a SAE legal driving beam pattern. Black steel housing and polycarbonate lens with flexible base for accurate aiming.

Gravity Grd Extreme Output and Efficiency: Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.

Available Beam Pattern and Advantages: Different beam patterns offer advantages depending on your specific lighting needs.
Driving Beam- SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.

Adjustable Mounting for Accuracy and Precision: Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.

Race Proven Strength & Durability: The race-proven steel housing combined with our IP67 rated Gravity G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.



Features:

• 20W Gravity LED G6 optical insert

• Black Powder Coated Steel housing

• Hard Coated Polycarbonate Lens

• Driving Beam Pattern
• Raw Lumens 2,300 lm

• Lux @ 10 Meters 1,310 lx

• Candela 131,000 cd

• Beam Distance (Meters) 724m



Specifications:

Weight	3.100000
Compliance DOT/SAE/ECE	SAE J581, ECE R112 (Driving)
Wattage Per Light	20W
Total Wattage	20W
Amp Draw Per Light	1.67 a
Voltage	9V-32V
Lumens Per Light	2,300 lm
Lux Per Light	1,310 lx
Candela Per Light	131,000 cd
Light Temp	5000 K
Lens Color	Clear
LED Color	White
Beam Pattern	Driving
Beam Distance	724 m
Light Technology	LED
Mount Location	A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
Size of Products	6"
Material	Stainless Steel
Product Finish	Black
Included Components	Gravity™ LED Daylighter(Black Steel) SAE/ECE Driving Beam Light, 6" Protective KC Daylighter light Guard, Mounting Hardware
Color	Black
Product Dimensions	W: 6.22 " x H: 8.42 " x D: 5.38 "
UPC	084709016531
IP Rating	IP67
Wattage	20W
LED Source	CREE XPL HD LED
Amp Draw	1.63A
Voltage	9V-32V
IP Rating	IP67
Product Dimensions	W - 6.22" x H - 8.42" x D - 5.38"



Note:

• Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.



Installation Instructions:

• KC 6308 Wiring Harness
• LED System Installation Instructions
