KC HiLiTES 55W Spread Beam 4" Rally 400 Halogen 2 Light System

KC HiLiTES 55W Spread Beam 4" Rally 400 Halogen 2 Light System



KC's 4" 400 Rally Halogen use 55w H3 Halogen Bulbs in a spread pattern, high quality round steel, precision reflectors with a durable Lexan lens. System includes complete wiring harness, switch kit and stone guards.

Performance Halogen and Precision Optics: 4" Rally 400s deliver 392 lx @ 10m of light output with a beam distance of 396 meters. Powered by 55W H3 Halogen bulbs and KC's precision designed reflectors, providing extreme light output at high speeds and long distances.

Available Beam Pattern and Advantages: Spread Beam- Provides a balanced wider beam of light that increases peripheral visibility, as well improved forward facing light for an increased range of visibility.

Adjustable Mounting for Accuracy and Precision: Two Axis mounts allow users to easily adjust and aim the Rally 400s, for consistent and precise beam output.

Compact Size and Versatility: Rally 400s feature a compact 4" profile with a rugged steel housing makes these lights idea for front bumpers on trucks, Jeeps and SUVs, especially on vehicle locations with limited space.



Features:

• 2 x 55W Halogen Bulbs

• Black Steel Housing

• Precision Reflector Optics

• Clear Tempered Glass Lens
• Spread Beam Pattern
• RAW Lumens 1,350 lm

• LUX @ 10 meters 392 lx

• Candela 39,240 cd

• Beam Distance (Meters) 396m



Specifications:

Weight	3.500000
Wattage Per Light	55W
Total Wattage	110W
Amp Draw Per Light	4.58 a
Total Amp Draw	9.17 a
Voltage	9V-32V
Lumens Per Light	1,350 lm
Total Lumens	1,350 lm
Lux Per Light	392 lx
Total Lux	393 lx
Candela Per Light	39,240 cd
Total Candela	39,240 cd
Light Temp	4000 K
Lens Color	Clear
LED Color	White
Beam Pattern	Spread
Beam Distance	396 m
Light Technology	Halogen
Mount Location	A-Pillar / Ditch, Bumper, Overhead
Size of Products	4"
Material	Stainless Steel
Product Finish	Black
Included Components	2 x 55W 4" Rally 400 Light, 2 x 4" Black ABS Stone Guards, Deluxe Wiring Harness with DT Weatherproof Connectors, Illuminated LED Light Switch
Color	Black
Product Dimensions	W: 4.142 " x H: 4.409 " x D: 2.602 "
UPC	084709004903
IP Rating	IP68
Wattage	55W per light
Amp Draw	4.58A
Voltage	9V-32V
IP Rating	IP68
Product Dimensions	W - 4.142" x H - 4.409" x D - 2.602"

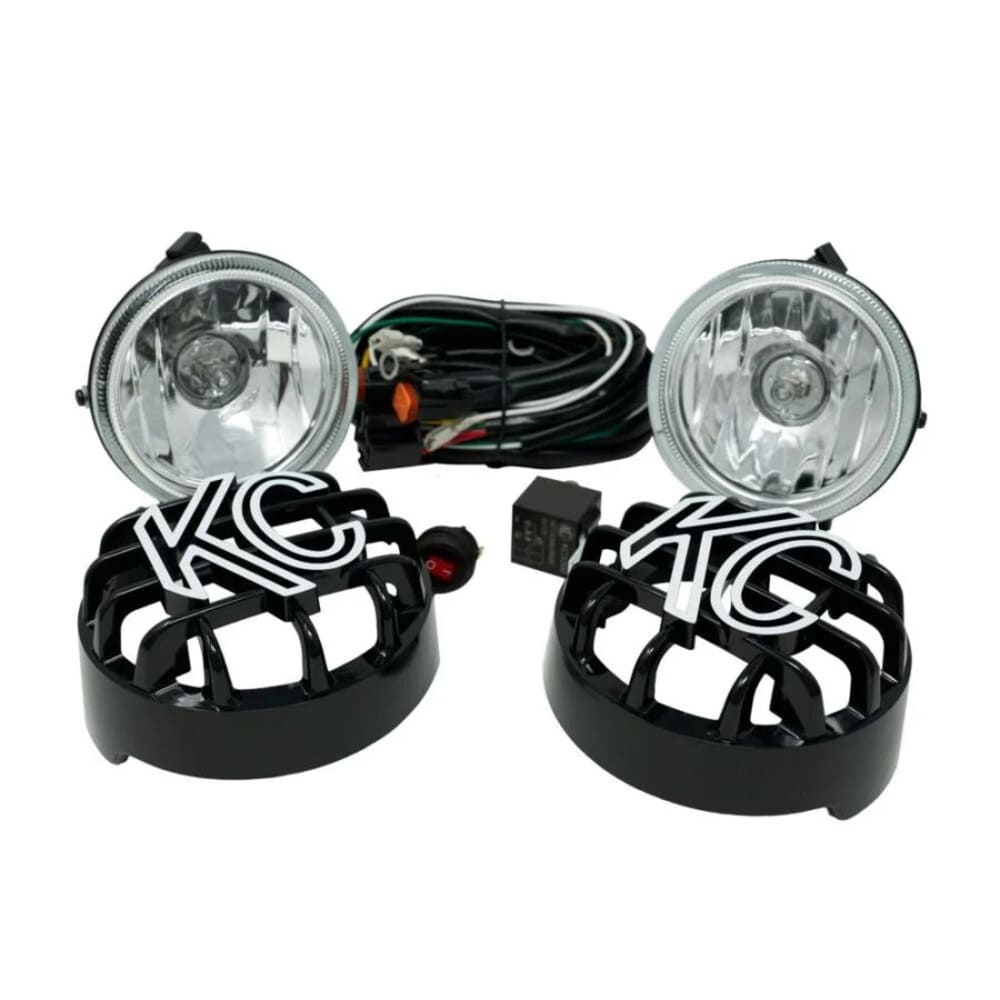

Kit Includes:

• (2) 55W 4" Rally 400 Halogen Lights

• Deluxe Wiring Harness with 2-Pin weatherproof connectors

• (2) 4" ABS Protective Stone Guards

• 30 Amp Illuminated Switch w/ Switch Panel
