KC HiLiTES '17-'24 Can-Am Maverick X3 140W Combo Beam 45" Pro6 Gravity LED 7 Light Bar System

KC HiLiTES '17-'24 Can-Am Maverick X3 140W Combo Beam 45" Pro6 Gravity LED 7 Light Bar System



KC's Gravity LED Pro6 7-Light 45" LED Overhead Light Bar System for 17-24 Can-Am Maverick X3 UTVs delivers 16,100 lumens of output to provide light where you need it most. Includes mounts and hardware.

Performance Gravity Led Optics: Patented Gravity LED G6 optical inserts provide exceptional output and efficiency. The Pro6 utilizes a combination of SAE/ECE Driving and Wide-40 G6 optical inserts. Driving Beam lights provide powerful forward distance and equal beam distribution, while the Wide-40 beam offers a wider area of coverage, increasing high-speed cornering visibility. The result is a highly targeted light distribution, translating to more usable light than standard forward-facing LED light bars

Race-Proven Strength Durability: Inspired by B.I.T.D. racers the Pro6 Can-Am X3 Pro6 7-Light LED Light Bar System, is set to break all LED lighting performance barriers.



Features:

• 7-Ring 45" LED Overhead Light Bar System for 2017-2024 Can-Am Maverick X3 UTVs

• Black Powder Coated Stainless Steel Bolt-On Overhead Brackets for O.E. Can-Am X3 Stock Roll Cages

• Engineered specifically to create the ultimate performance LED Light Bar system for Can-Am Maverick X3/X3 MAX Side-by-Sides

• Patented Gravity Reflective Diode Technology inside every Pro6 LED Light for unparalleled beam shape, performance, and clarity

• Multiple G6 LED Reflector Optics Utilizing a Combo Driving and Wide-40 Beam pattern.




Specifications:

Weight	24.000000
Product Dimensions	W: 45.625 " x H: 6.06 " x D: 3.33 "
Light Technology	LED
Mount Location	Bumper, Overhead
Beam Distance	704 m
Beam Pattern	Combo
Color	Black
Included Components	45" 7-Light Gravity LED Pro6 Light Bar, Can-Am Maverick X3 overhead mounting bracket set, 7 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
LED Color	White
Lens Color	Clear
Light Temp	5000 K
Candela Per Light	86,775cd (Spot) / 30,891cd (Wide 40)
Total Candela	495,657cd
Wattage Per Light	21.36W
Total Wattage	149.52W
Amp Draw Per Light	1.78a
Total Amp Draw	12.46a
Voltage	9V-36V
Lumens Per Light	2,508lm Spot / 2,508lm Wide 47
Total Lumens	17,556lm
Lux Per Light	868lx (Spot) / 309lx(Wide 40)
Total Lux	4,957lx
Product Finish	Black
Material	Aluminum Alloy
Size of Products	45"
UPC	084709913342
IP Rating	IP68

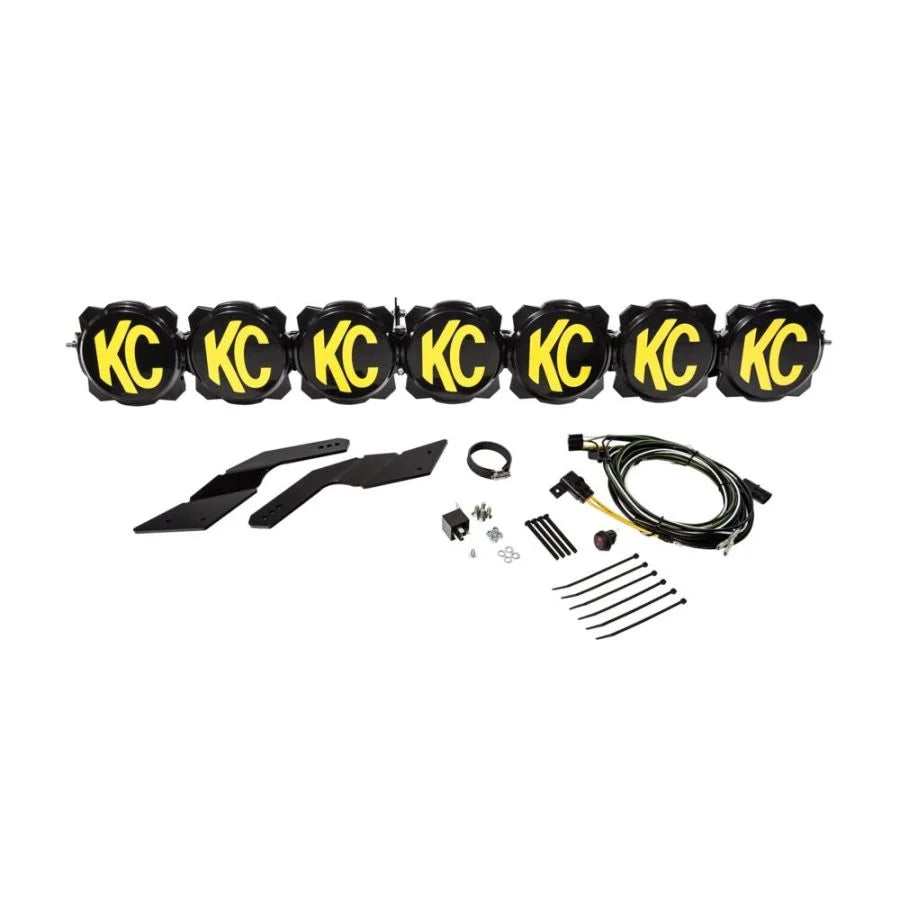

Kit Includes:

• (1) Pro6 45" 7-Light LED Light Bar

• Overhead Mounting Bracket Set w/ Hardware

• (7) KC Light Covers

• Performance Wiring Harness and Switch




Installation Instructions:

• 3265DN-gravity_pro6lightbar_USletter_full_04112025-rev2
• Can-Am Maverick X3 Gravity Pro6 Overhead System
