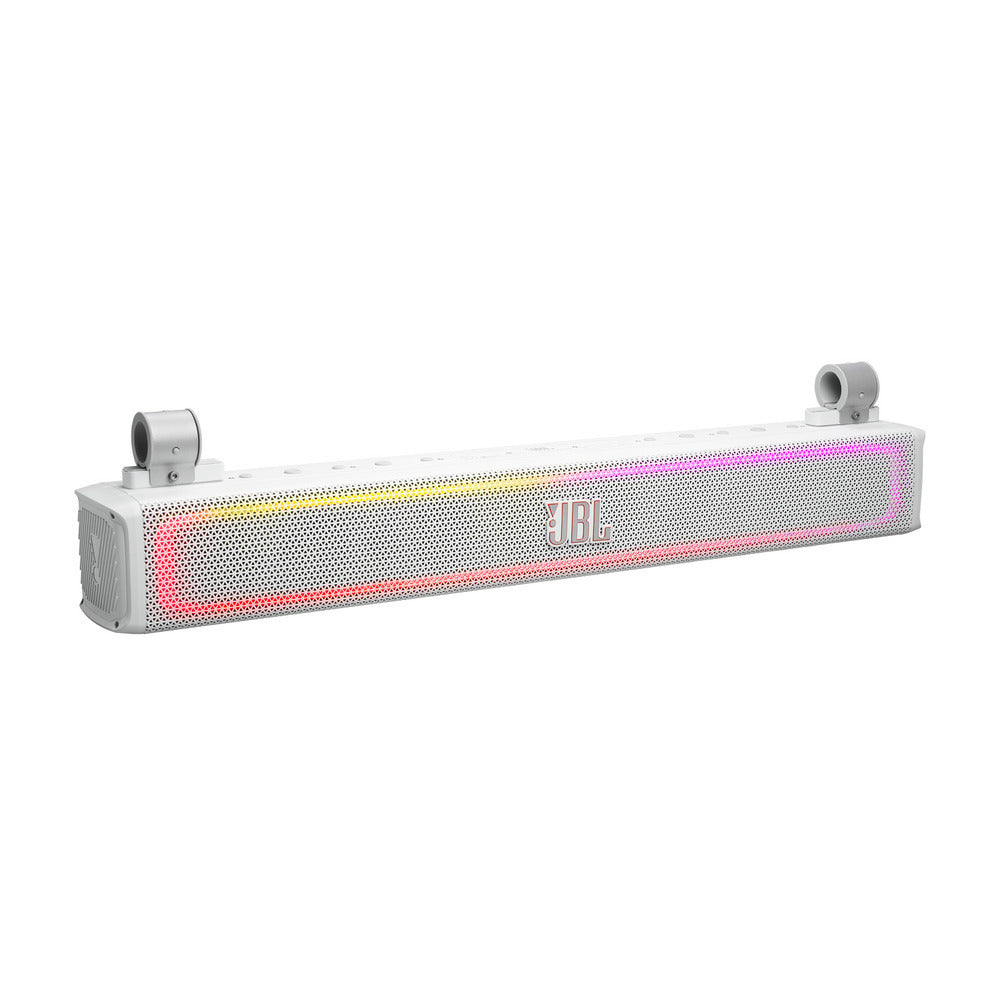

JBL XL2 Rallybar

JBL XL2 Rallybar

Features:

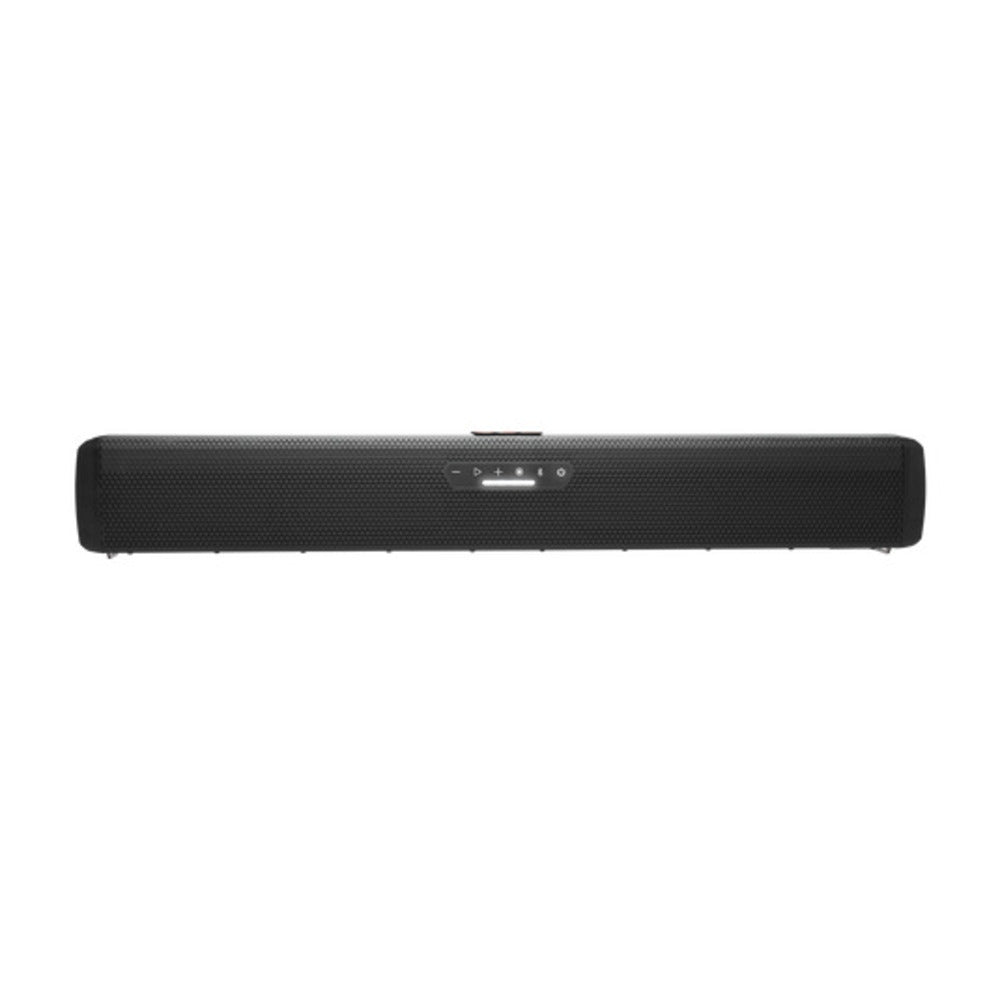

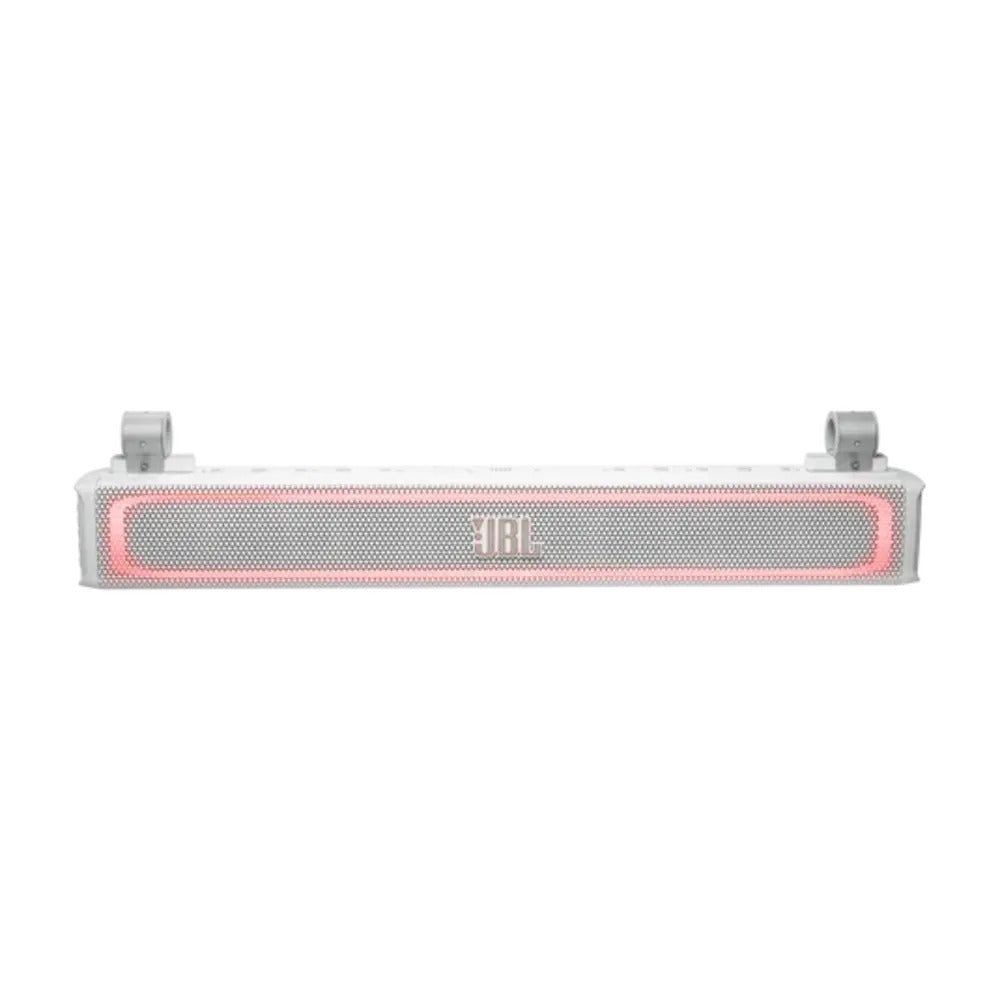

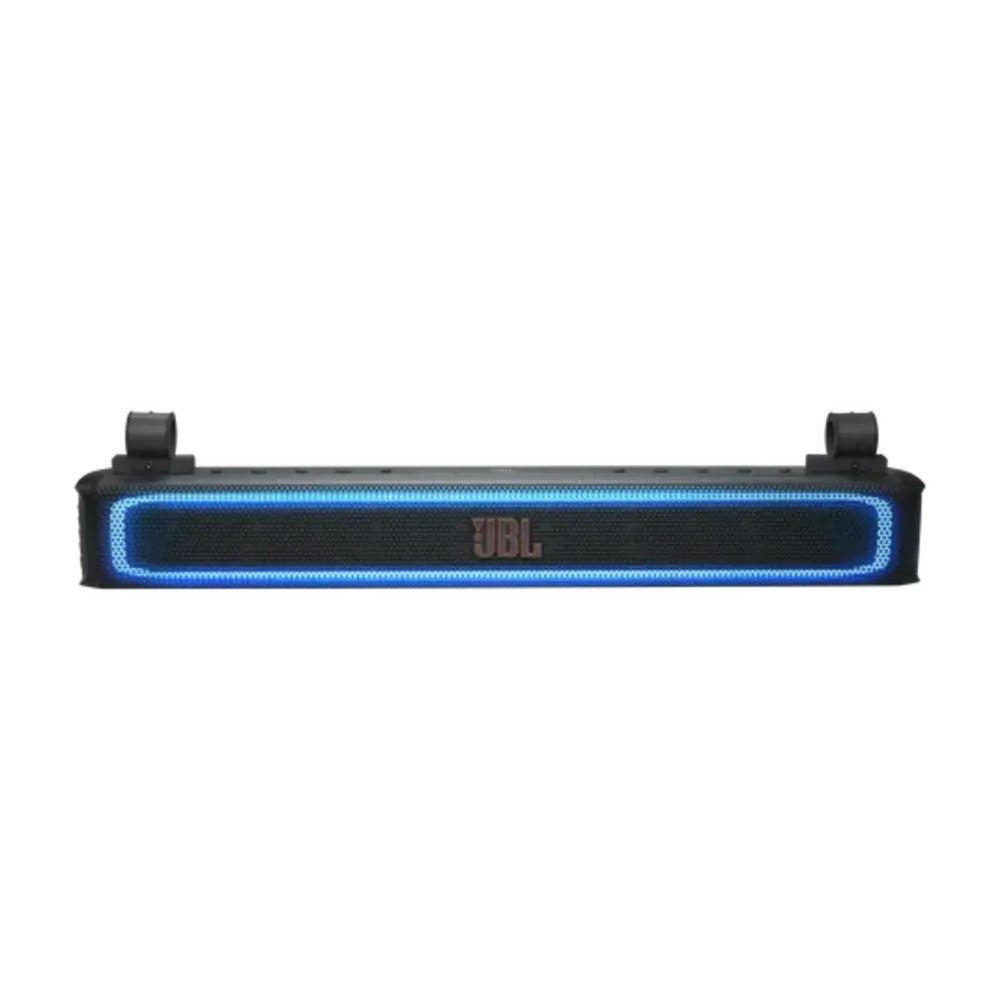

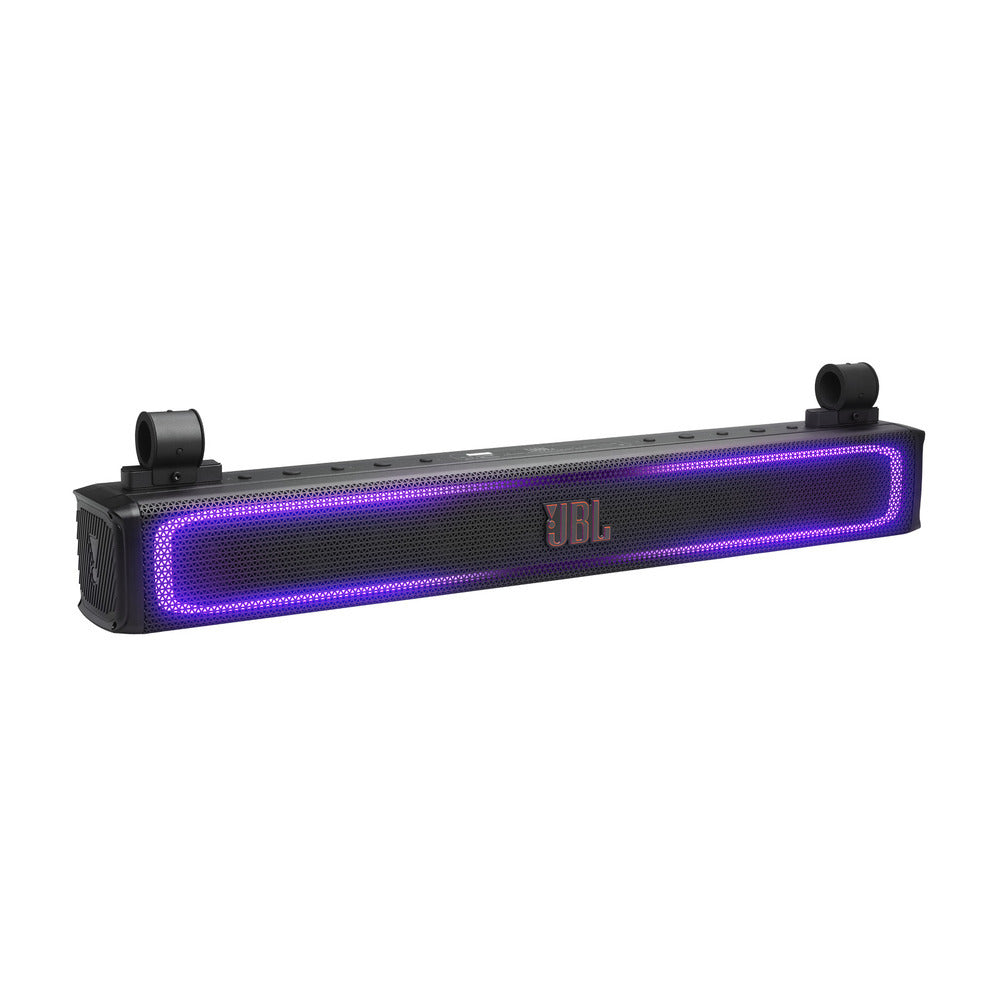

• Upgraded Dynamic LED Lights That Dance to Your Beat: Brighten every ride with vivid, beat‑driven lighting effects that energize your off‑road adventure. Use the bottom‑panel controls to fine-tune the perfect mood.
• IP67 Rated Water and dust Resistant: IP67 rated water resistant protects soundbar speakers from dust ingress and powerful water jets.
• JBL Legendary Sound gets an AI Sound Boost: Hit the trail with massive sound and deep, punchy bass. AI Sound Boost automatically fine-tunes your music in real time for peak power and crystal-clear performance—even outdoors at full volume.

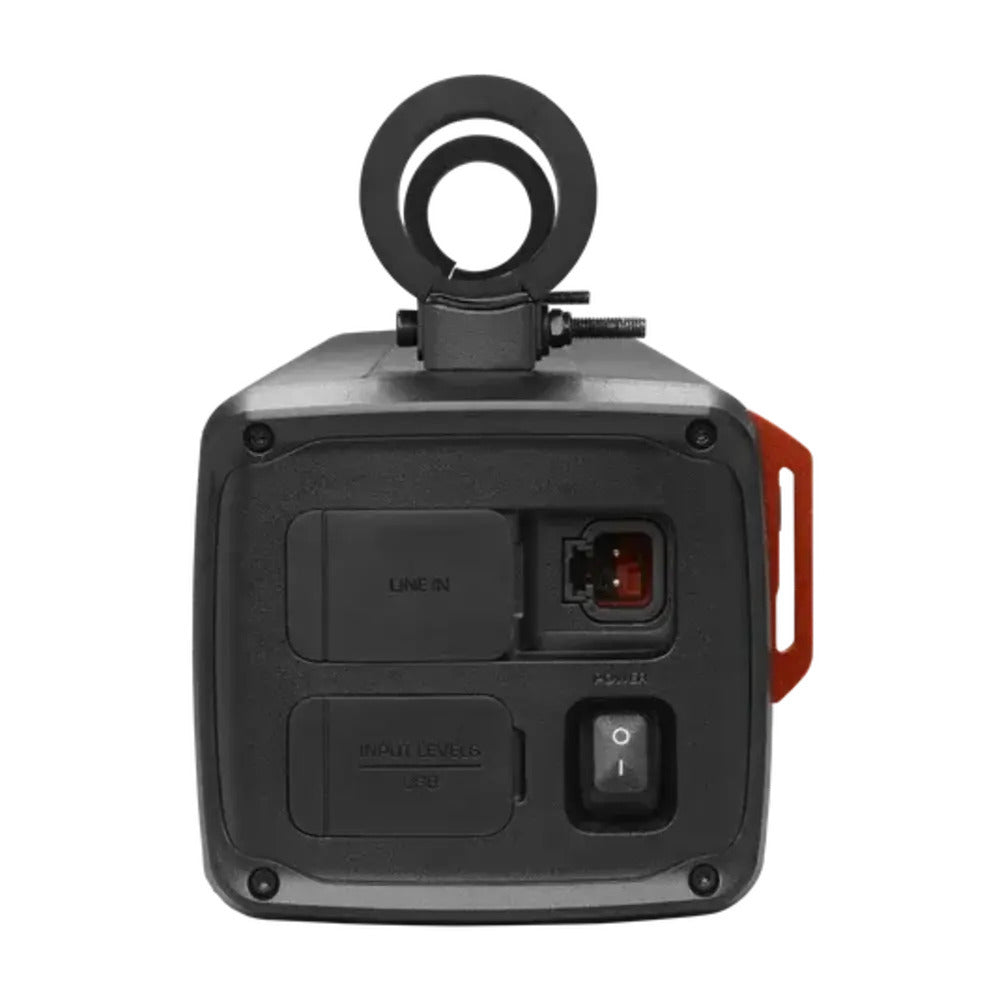

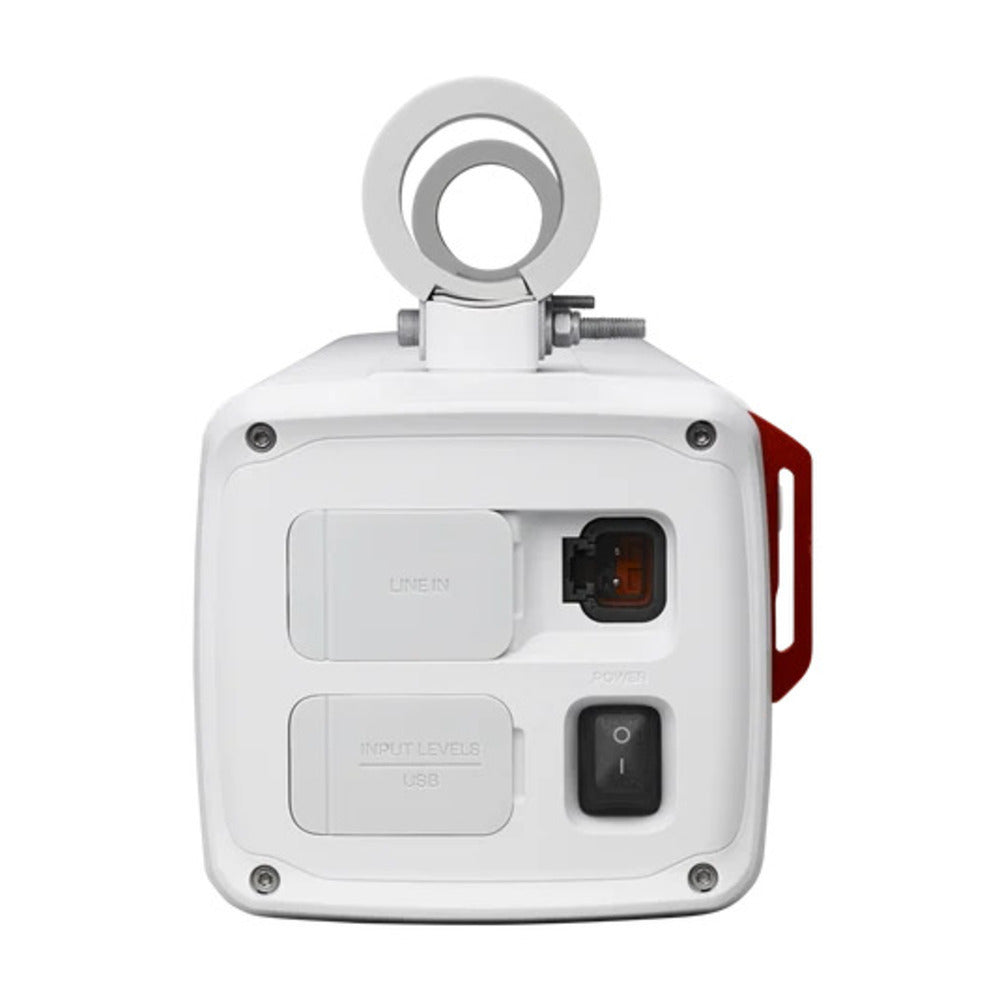

• Support Bluetooth®, USB Disk and RCA Input Audio Source Play: RALLYBAR XL2 can detect the audio source automatically according to the source priority definition: USB disk >Bluetooth®> RCA-IN audio source. Higher priority source can break-in Lower priority audio source.
• 3 Different Gain Settings: RALLYBAR XL2 Offers 3 different Gain settings when connected by RCA audio:2V, 4V, and 6V.
• 300Wrms Class-D Amplifier Built-in:  The 300Wrms (THD <1%) Class- D amplifier ensures powerful, high quality JBL Original Legendary Sound when you take the wheel or helm.
• Multi-speaker connection by Auracast: Expand your sound experience. Easily pair two RALLYBAR XL2 speakers for true stereo or connect multiple JBL Auracast™-enabled speakers wirelessly—perfect for larger parties or multi-vehicle setups.

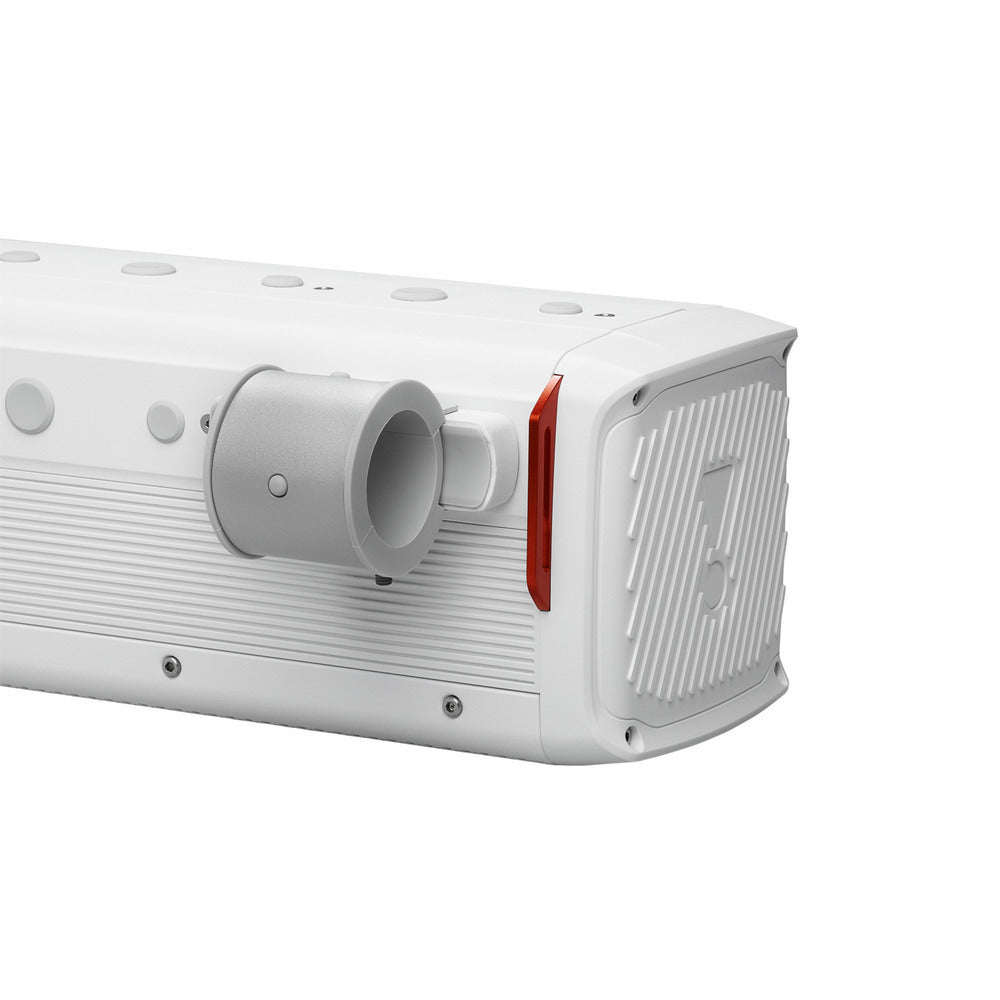

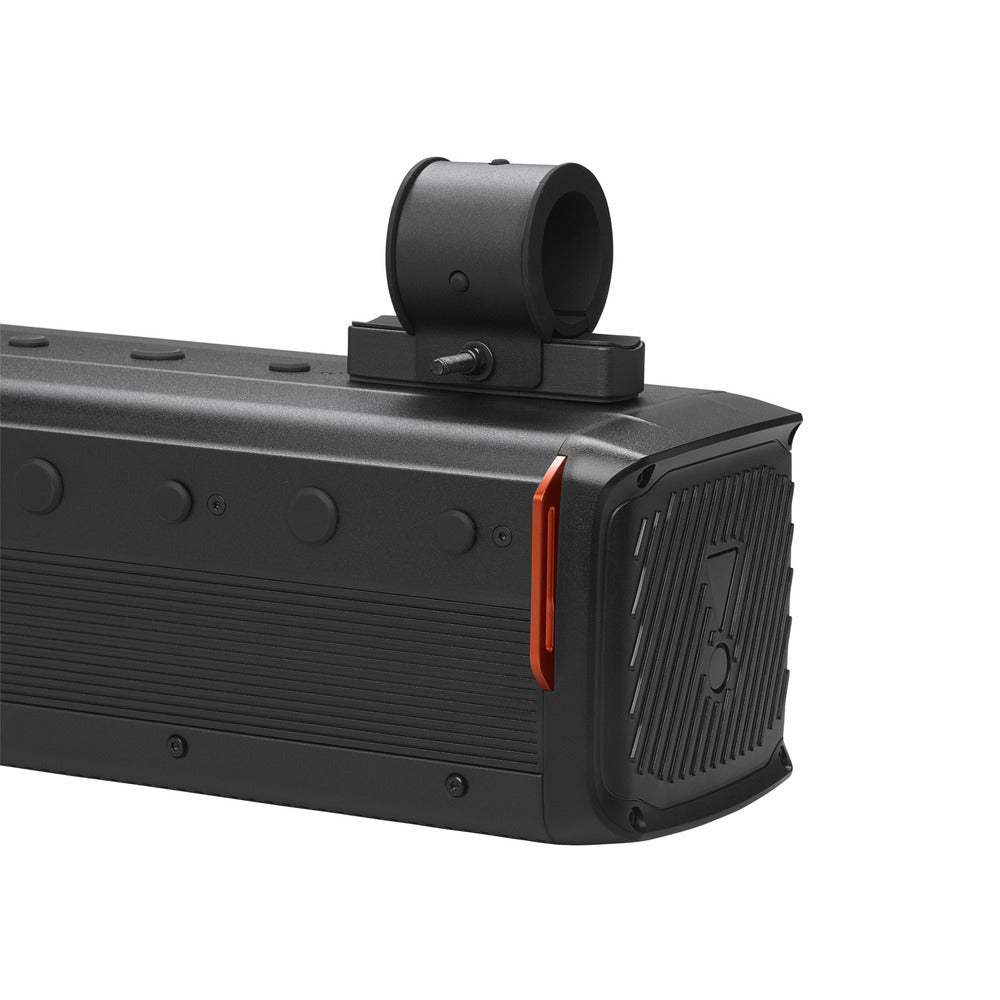

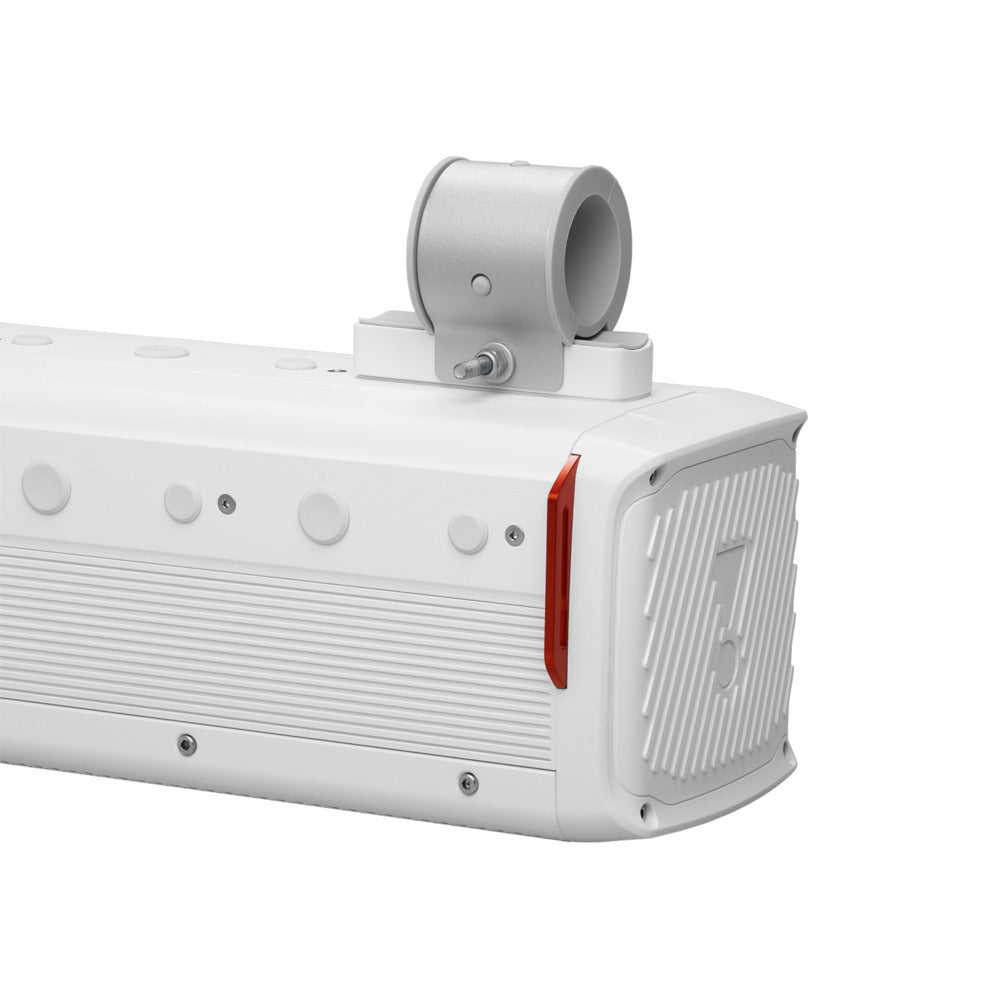

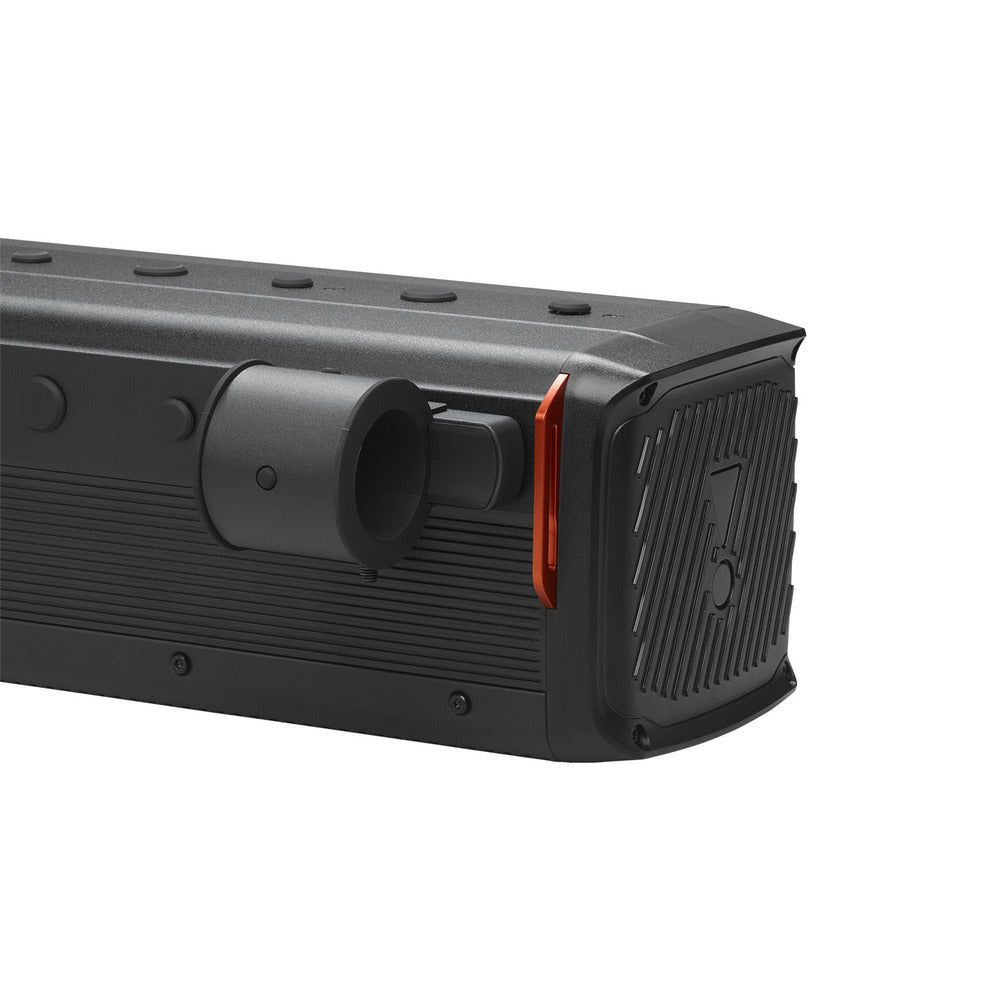

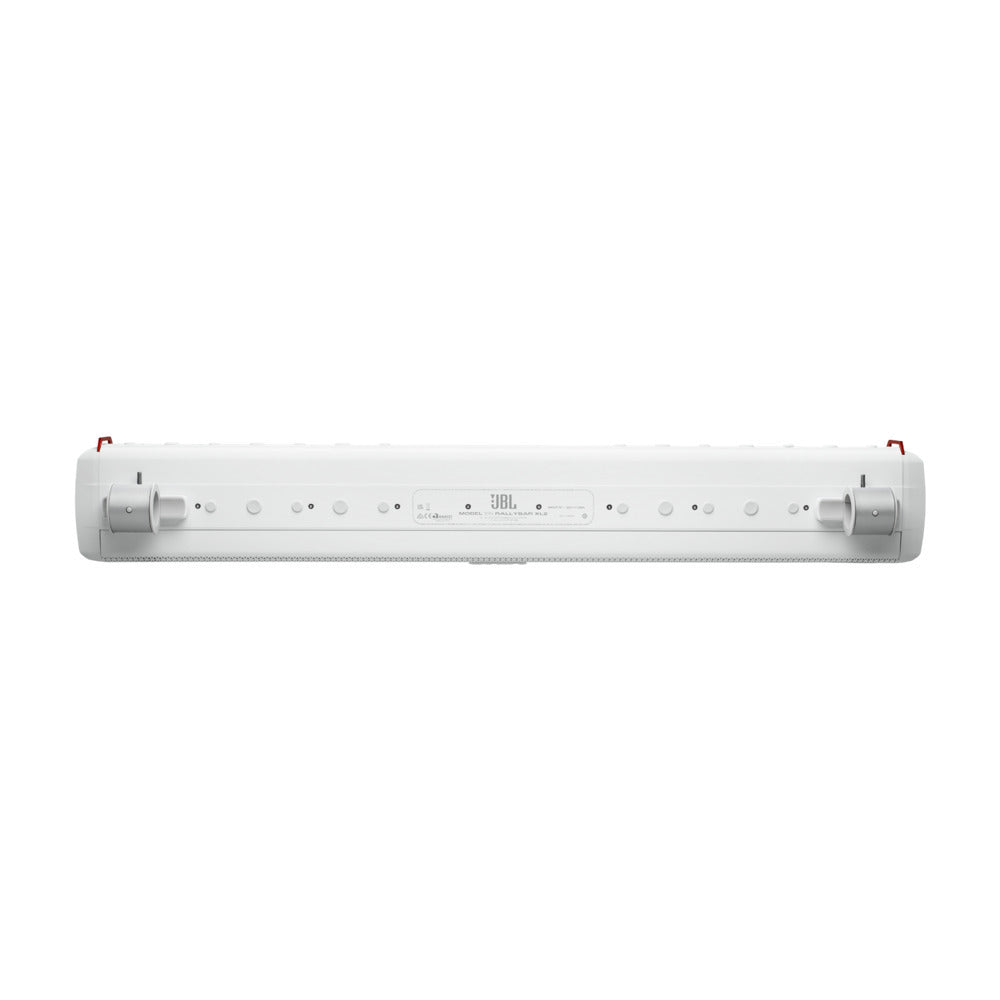

• Innovative Mounting Kits Design: The innovative mounting kits design (patent pending), offers multiple position combinations on top and back to accommodate a variety of installation requirements.
• Lighter Build: The RALLYBAR XL2 is nearly 2 kg lighter than Gen 1, making it easier to handle, transport, and install. This weight reduction, achieved through an upgraded sound system design, delivers greater convenience without compromising durability or performance.

Specifications:

• Transducers: 8x 2.75”(70mm) woofers; 2x 1”(25mm) Tweeters;4 x 7.2"(182.8mm)x3"(76.2mm)Racetrack Passive Radiators

• Output Power: 300WRMS;600W PEAK
• THD at Rated RMS Power: <1%

• Voltage Range: 9 - 16VDC
• Quiescent Current Draw:<0.9A
• Maximum Current Draw:40A
• Frequency response: 45Hz-20kHz

• Signal-to-noise Ratio: > 80 dB
• Cable type:10 AWG.
• Cable length:12 Feet (3.66m)
• Bluetooth® Version: 5.4
• Bluetooth® profile:A2DP V1.4, AVRCP V1.6
• Bluetooth® transmitter frequency range:2400 MHz – 2483.5 MHz
• RCA:2Vrms(0.35Vrms - 2Vrms);4Vrms(0.7Vrms - 4Vrms);6Vrms(1.05Vrms - 6Vrms)
• USB format:FAT16, FAT32,EXFAT
• Soundbar Dimension: (L x W x H)
• Soundbar Weight: 16.75 lbs (7.6 kg)
• Packaging dimensions (W x H x D): 38.2" x 9.3" x 7.7" (971 x 236 x 195mm)
• Gross weight:23.61 lbs (10.71 kg)

Kit Includes:

• 1x Soundbar
• 2x Security cables
• 1xSmall Wrench
• 1 x L- Small Allen wrench
• 1xT-handle hex wrench
• 2x Straps with Velcro
• 1X G -Clamp
• 1x Keychain
• 1x 12ft (3.66m) power/ground wire harness
• 2x Rubber top covers
• 2x Mount cleats
• 2x Short M8 screws
• 2x Short M5 screws
• 2x Long M5 screws
• 2x M5 screw nuts
• 4X Flat washers
• 2X C -Clamps (2" )
• 2X C -Clamps (1.75" )
• 2X Thick rubber strips (for 1.5" pole )
• 2x Thin rubber strips (for 2" &1.75" pole)
• 1x Quick start guide
• 1x Safety sheet &warranty card

Installation Instructions:

• XL2 Rallybar
