Impact Implements Hydraulic New Soil Cultivation Kit

Impact Implements Hydraulic New Soil Cultivation Kit

Includes all the pieces needed to prepare soil, chop dirt clumps, prepare food plots and more. Great tools for use around the farm, in the garden and on the lawn. Quick-attach, durable accessories go on and off easily with a single hitch pin. The powerful hydraulic lift system is wired through the onboard electrical system and operates with an up/down control switch to apply down-force for ground engagement. Easily installs into a 2 inch hitch style receiver already installed on the ATV, UTV or lawn tractor.

1-Point Hydraulic Lift System

• Heavy Duty, 14-gauge tube steel construction
• Approximately 1,100lbs of pushing force and 800lbs of pulling force
• Hydraulic lift for an additional 10" of fine adjustments
• Amp draw of pump 5A-30A, depending on load
• Fits 2″ hitch receiver (not included)
• Weight: 52 lbs


Cultivator

• 49 inch cutting path and six (6), adjustable and replaceable cutting-edge tines
• Dimensions: Unit: 50″ (W) x 12.5″ (H), Tines: 2″ (W) x 12.5″ (H)
• Weight: 40 lbs

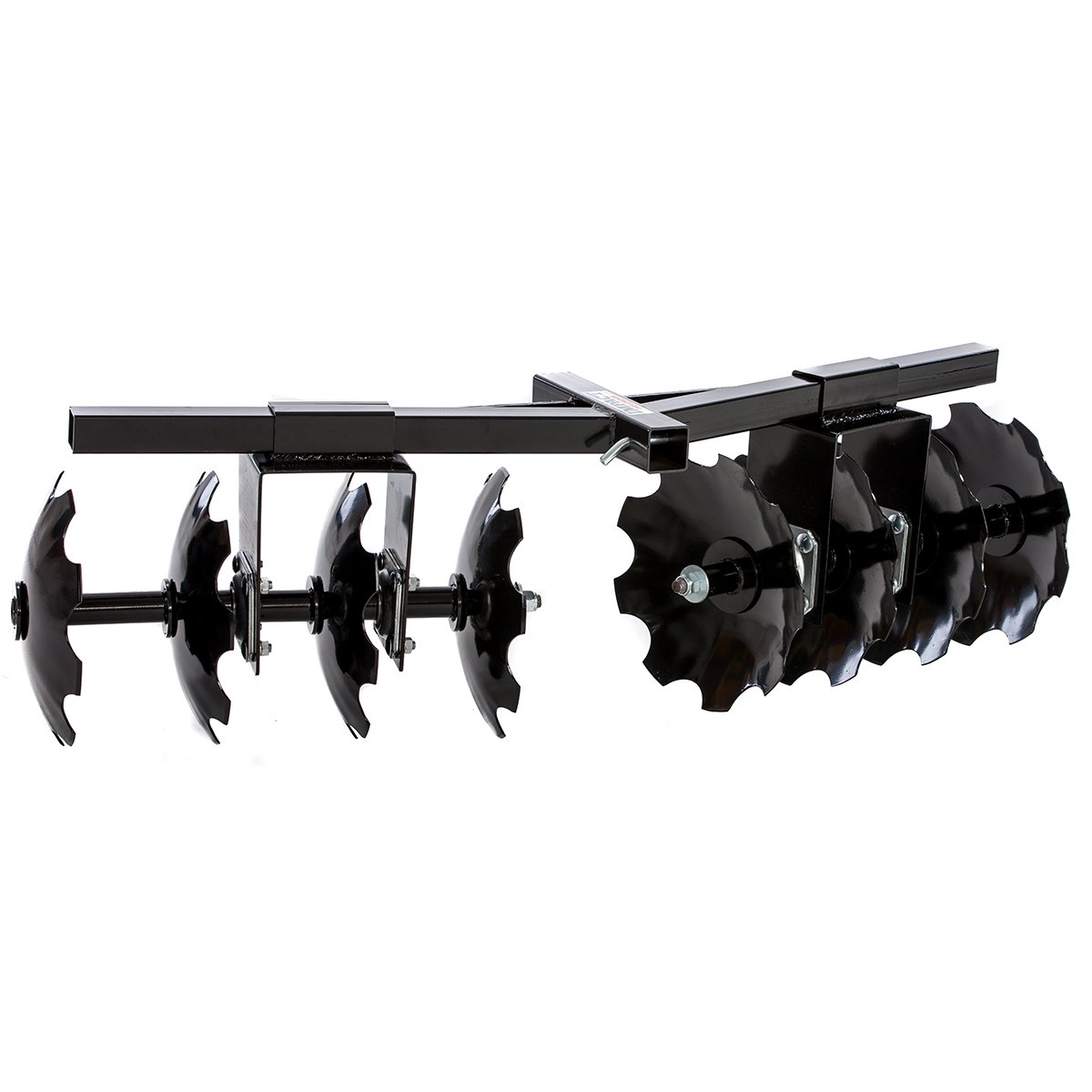

Disc Plow / Harrow

• Features eight (8), 12″ notched, hardened steel, cutter disc blades
• 54 inch of cutting width and two (2) heavy duty roller bearings per axle
• 15° blade angle of attack
• Integrated weight tray
• Dimensions: 17″ (L) x 17″ (W) x 1 3/8″ (D)
• Weight: 120 lbs

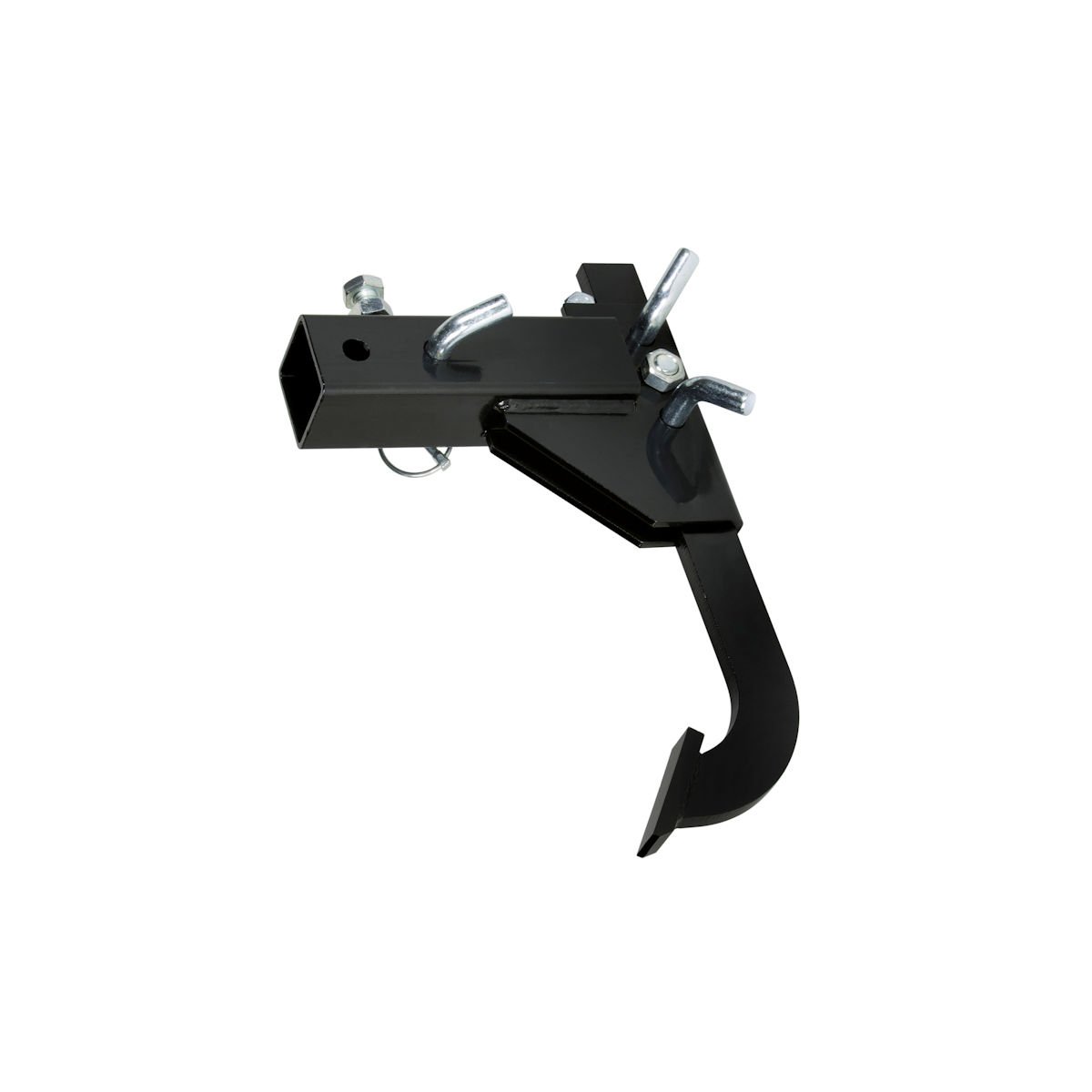

Middle Buster

• Rigid drop shank
• Dimensions: 16″ (W) x 9.75″ (H), Tine: 16″ (W) x 5.5″ (H), Tine Edge: 3″ (L) x 1″ (W) x 3/8″ (D)
• Weight: 40lbs

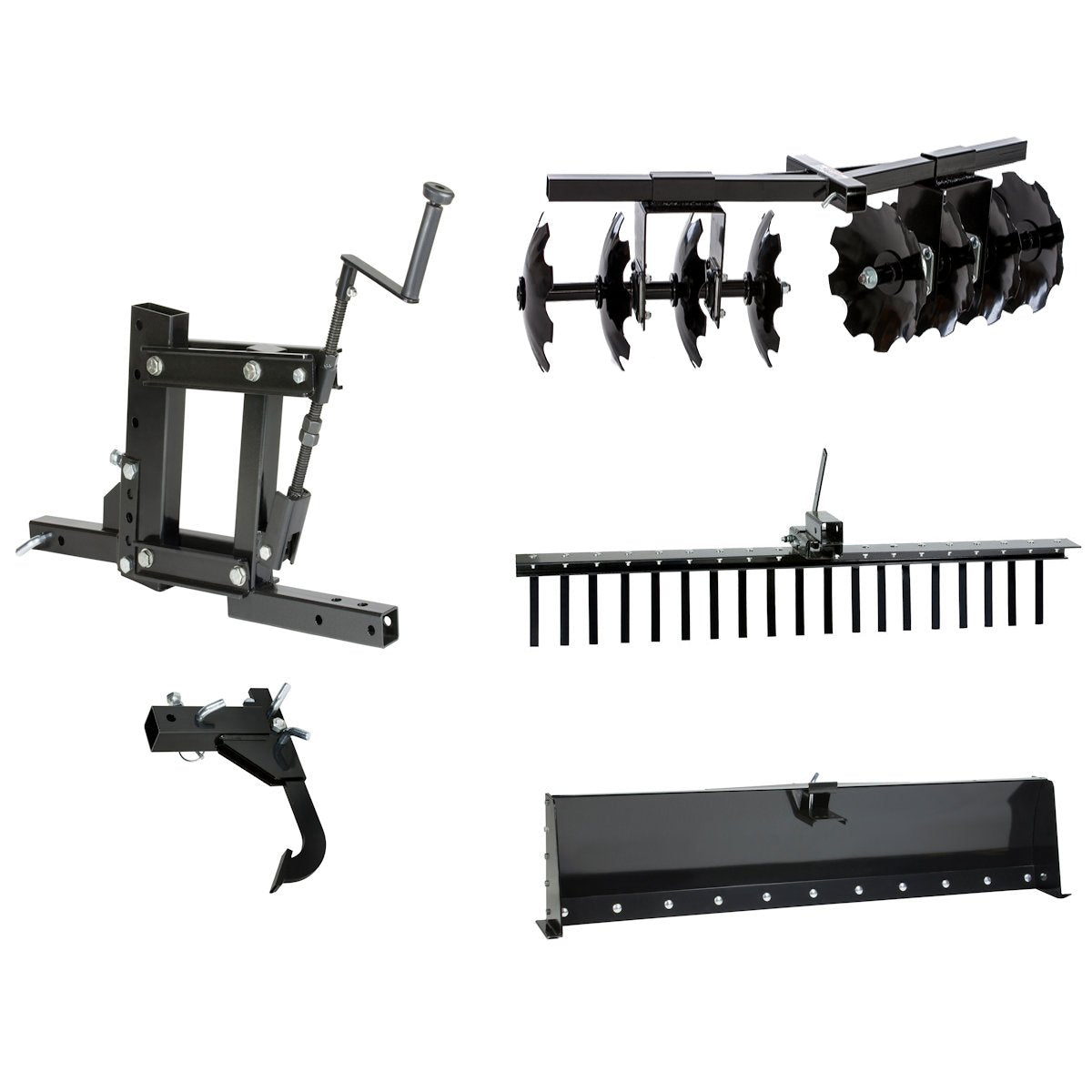

Kit Contents:

• 1-Point Hydraulic Lift System
• Cultivator
• Disc Plow / Harrow
• Middle Buster

Instructions:

• Hydraulic Lift Instructions
• Disc Harrow Instructions
