Impact Implements Hydraulic Landscape Kit

Impact Implements Hydraulic Landscape Kit

Includes all the pieces needed to clear brush, smooth trails, level dirt, rake horse arenas and more. Great tools for use around the farm, in the garden and on the lawn. Quick-attach, durable accessories go on and off easily with a single hitch pin. The powerful hydraulic lift system is wired through the onboard electrical system and operates with an up/down control switch to apply down-force for ground engagement. Easily installs into a 2-inch hitch style receiver already installed on the ATV, UTV or lawn tractor.

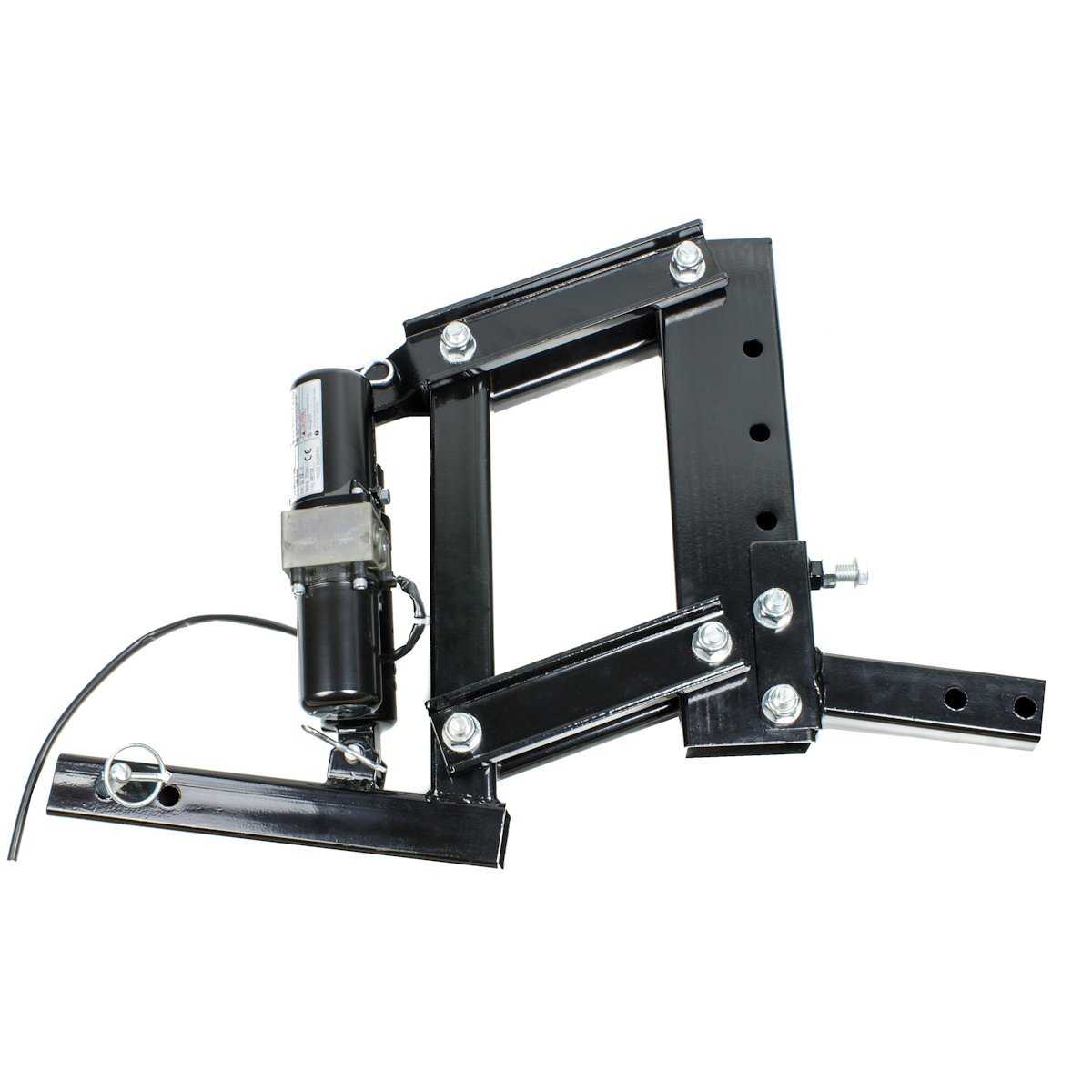

1-Point Hydraulic Lift System

• Heavy Duty, 14-gauge tube steel construction
• Approximately 1,100lbs of pushing force and 800lbs of pulling force
• Hydraulic lift for an additional 10" of fine adjustments
• Amp draw of pump 5A-30A, depending on load
• Fits 2″ hitch receiver (not included)
• Weight: 52 lbs

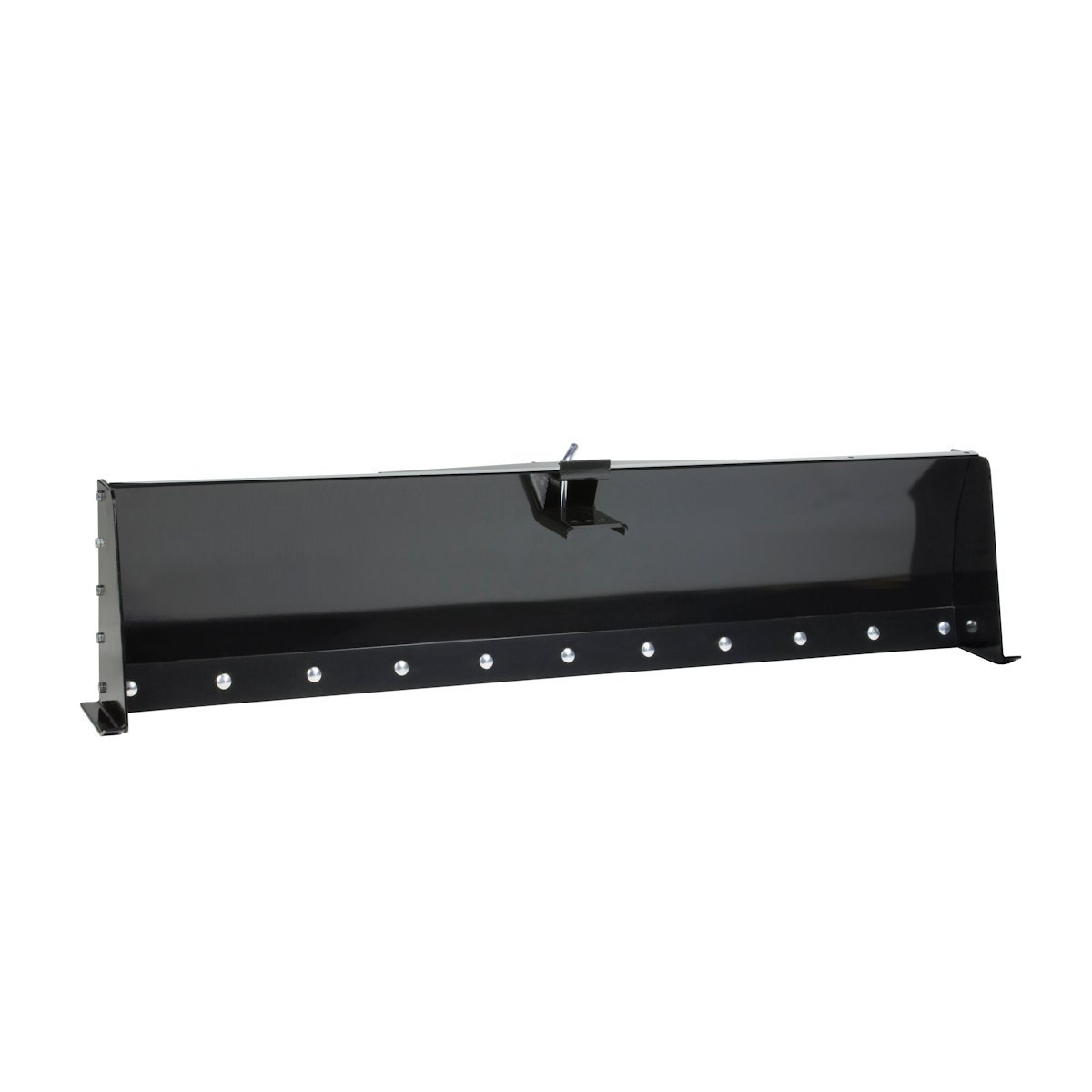

3-Position Blade with Box Ends

• Three (3) position blade with 12° angle adjustment in either direction
• Reversible / Replaceable cutting edge
• Dimensions: Blade: 52″ (W) x 12″ (H)
• Weight: 42 lbs

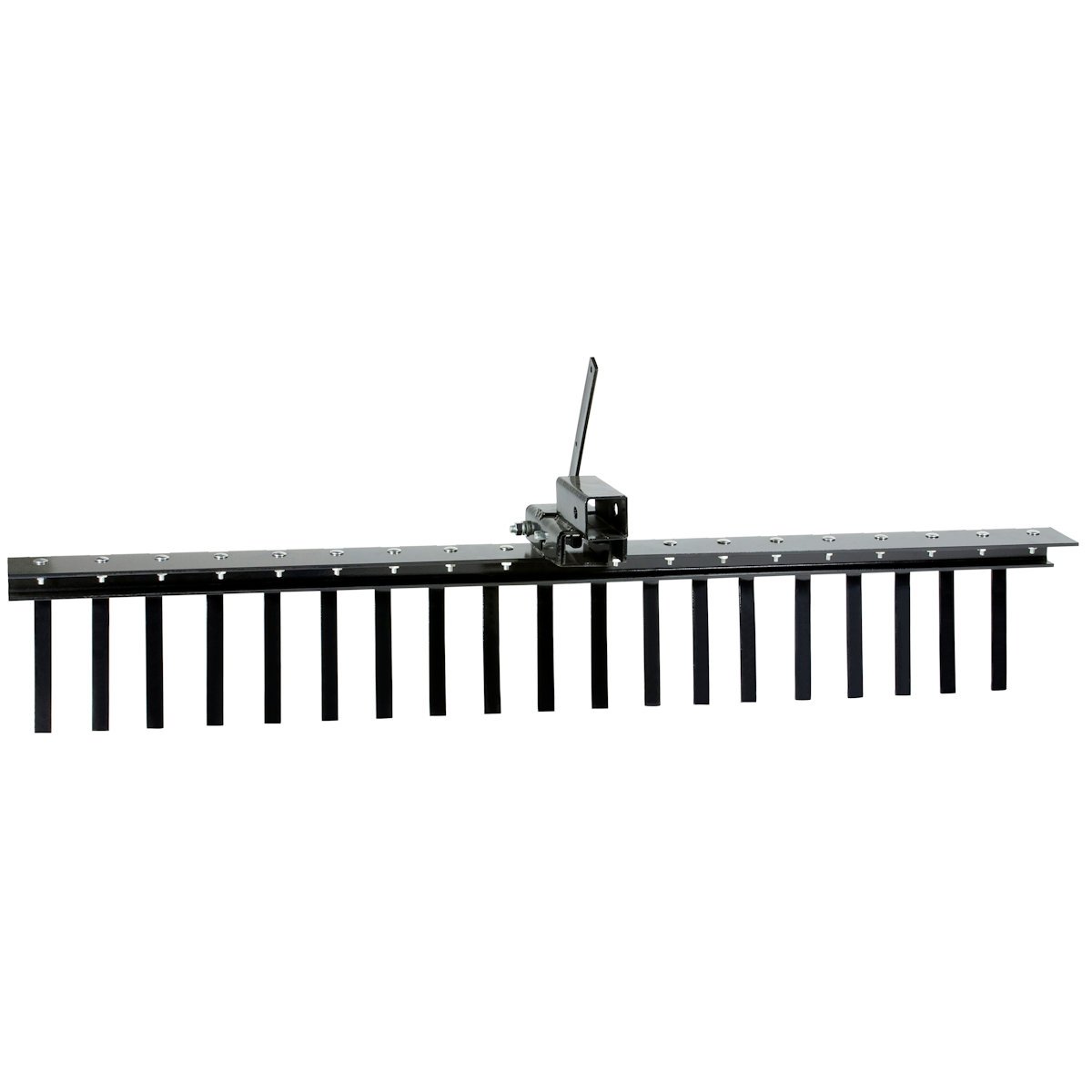

Landscape Rake with Latch

• Nineteen (19), replaceable spring steel rake tines
• Dimensions: Rake: 62″ (W) x 10.75″ (H) x 7.75″ (D), Tines: 10″(H) x 1″ (W)
• Weight: 32 lbs

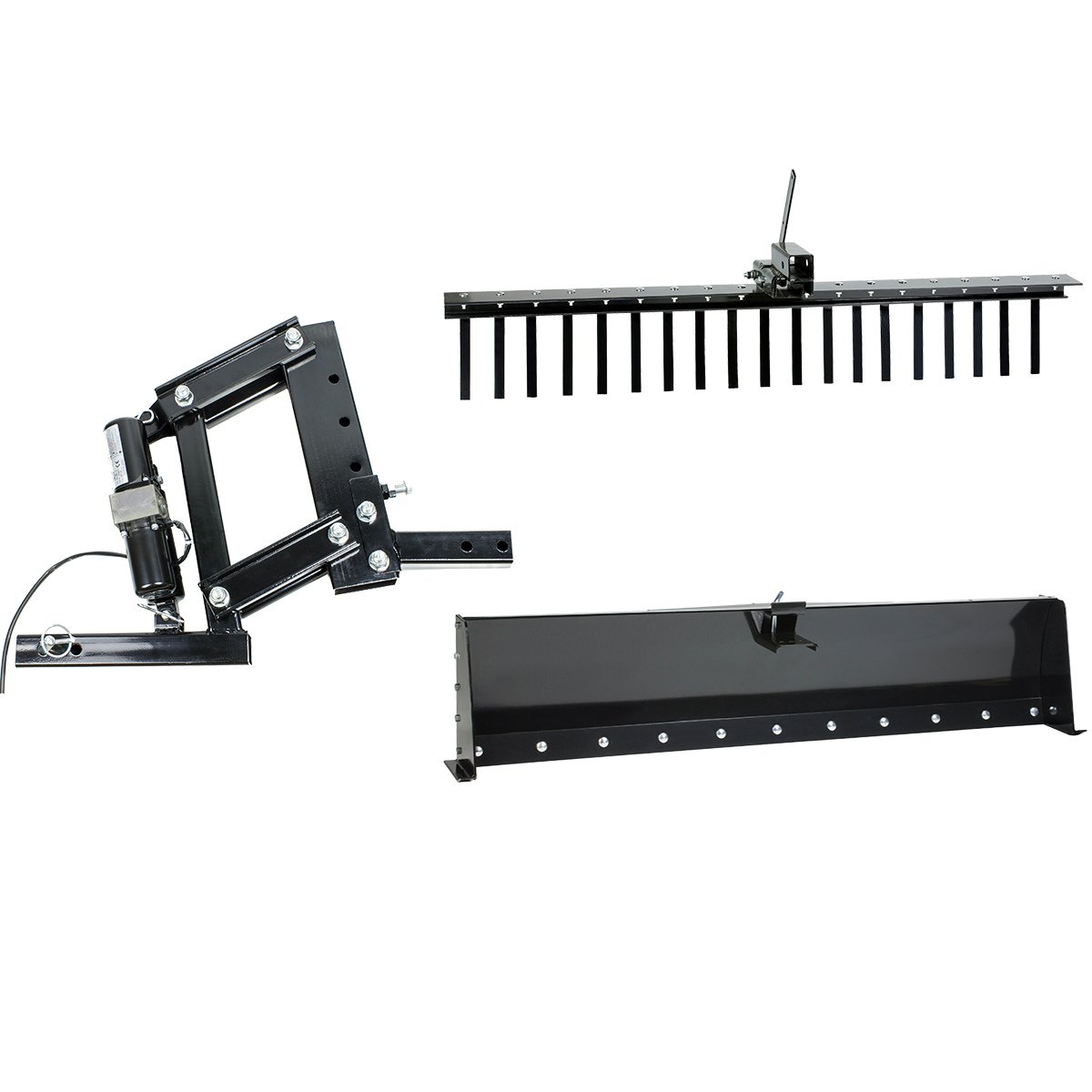

Kit Contents:

• 1-Point Hydraulic Lift System
• 3-Position Blade with Box Ends
• Landscape Rake with Latch

Instructions:

• Hydraulic Lift Instructions
