Ice Crusher Heaters '17-'22 Honda Pioneer 700 Deluxe Cab Heater
New in 2023! Y Fittings have been upgraded from the two piece aluminum and brass barb fittings, to single piece, Brass Y Fittings. The Single piece design makes installation faster and easier, all while eliminating any chance of leaky threads.

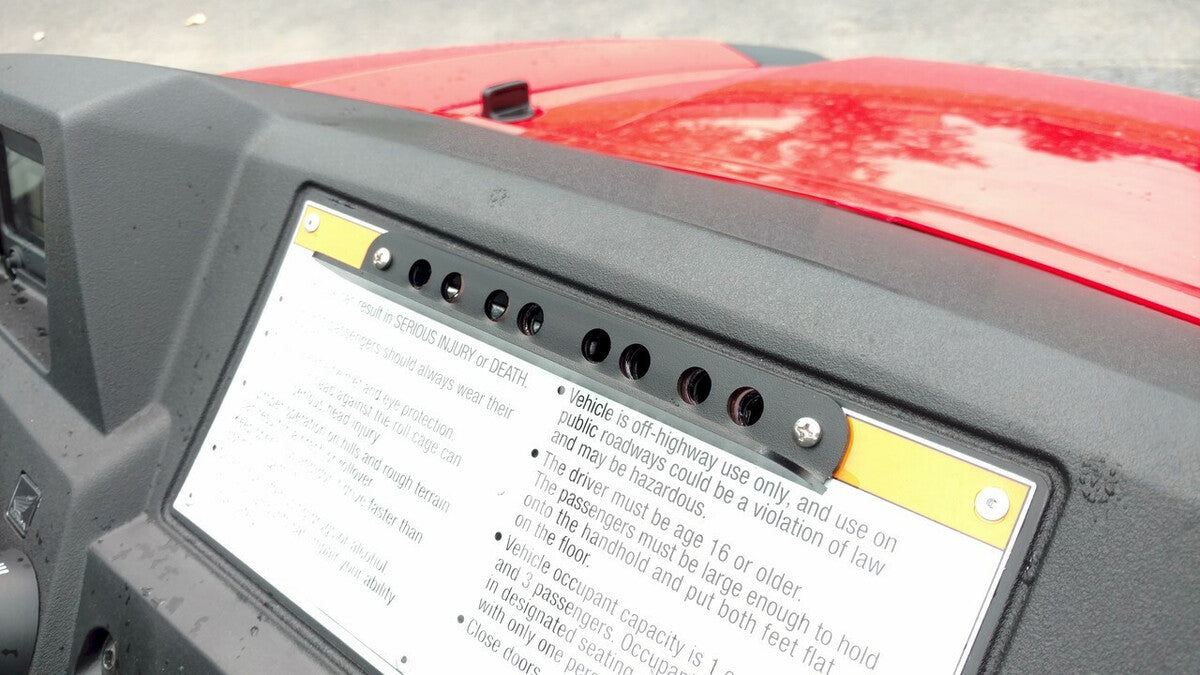

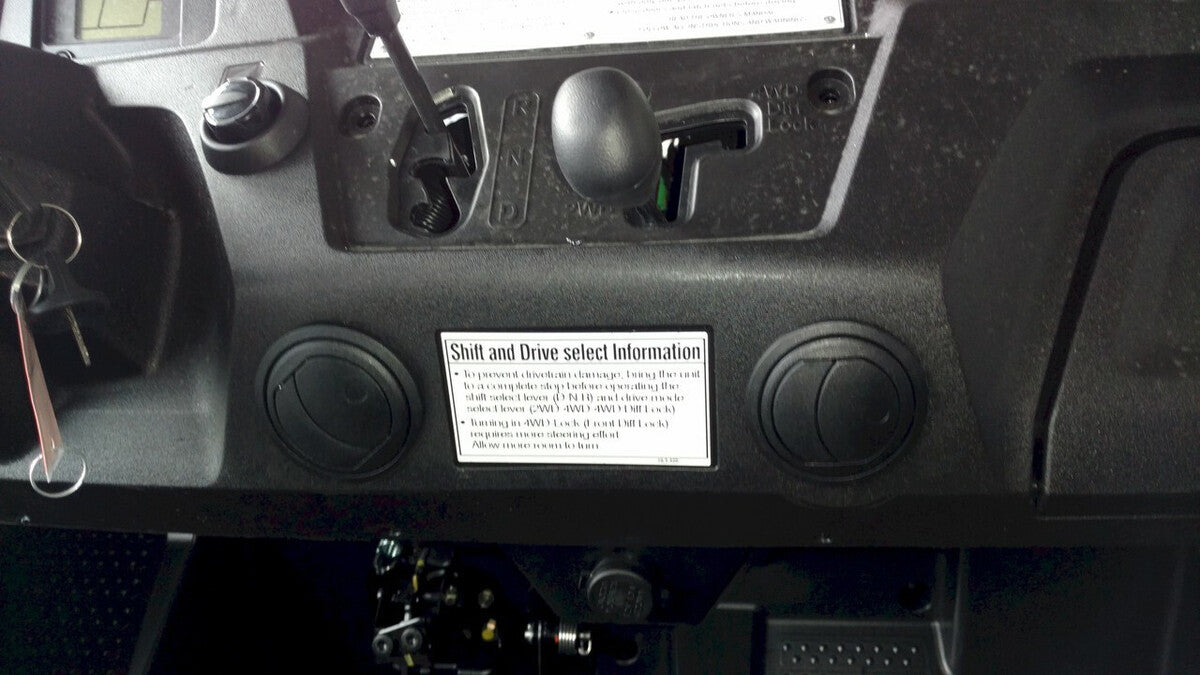

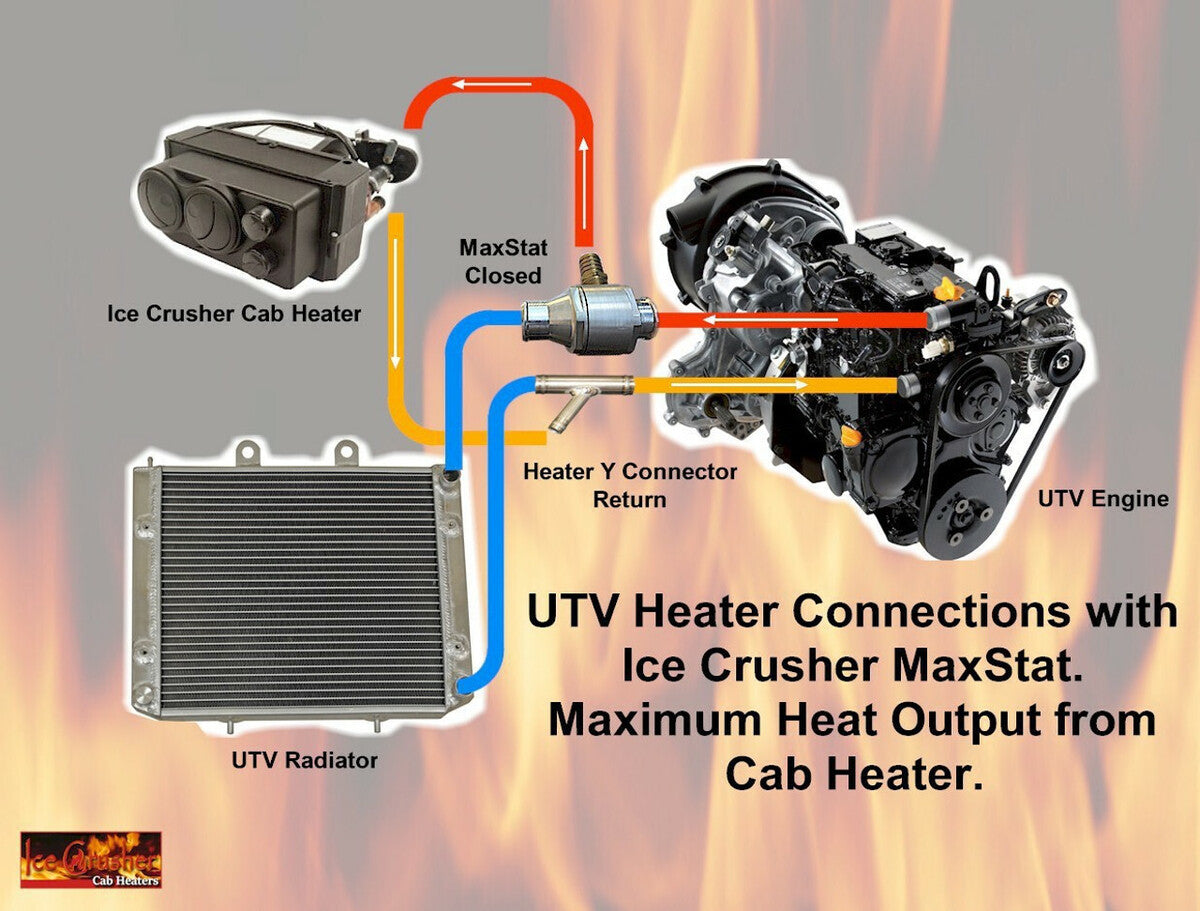

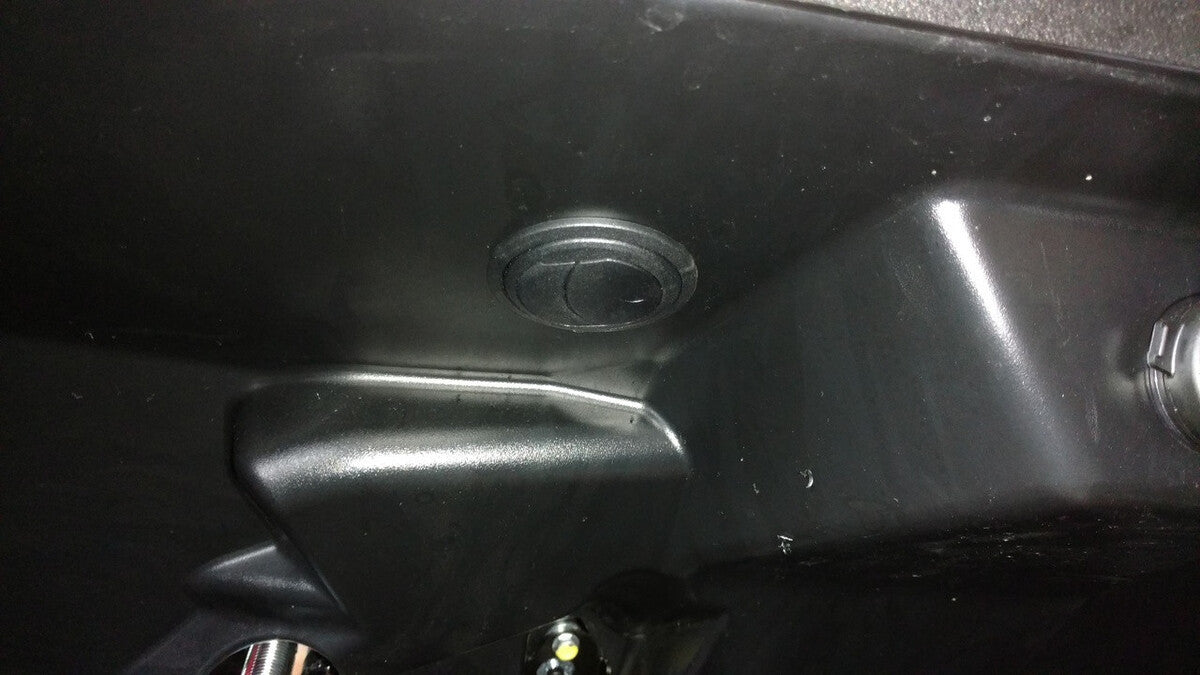

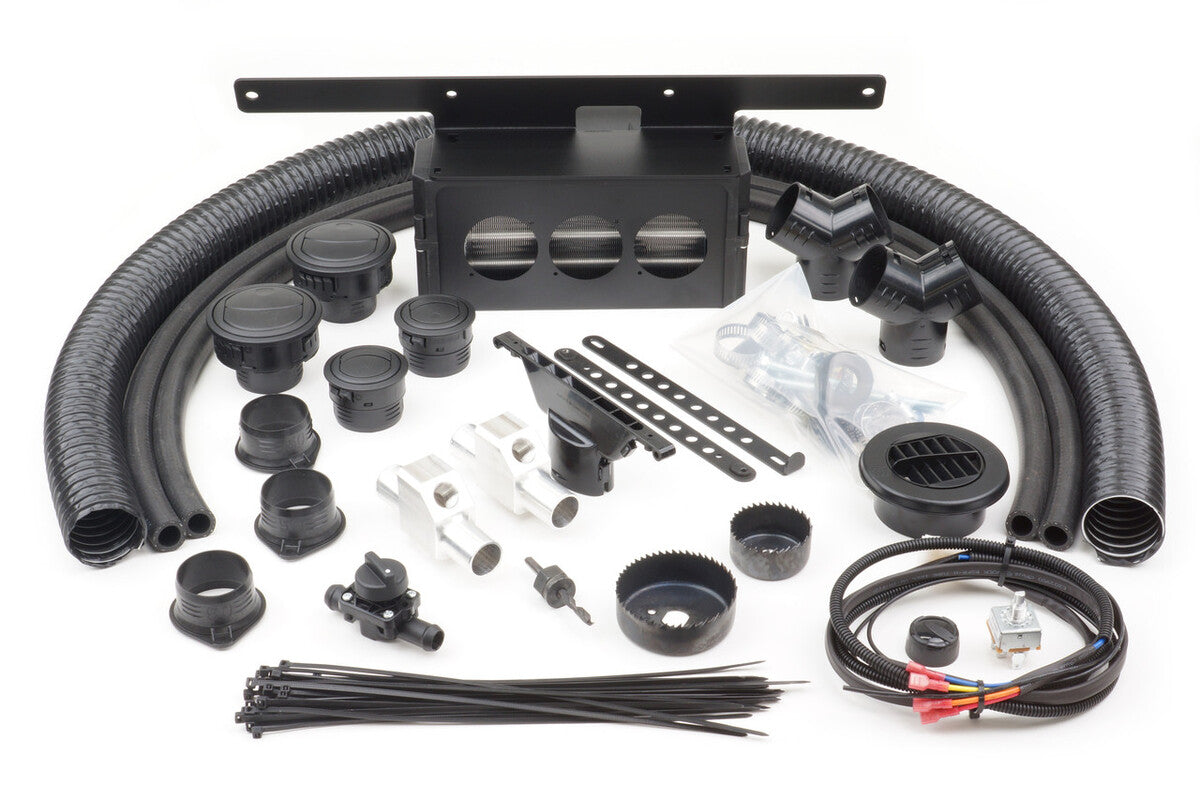

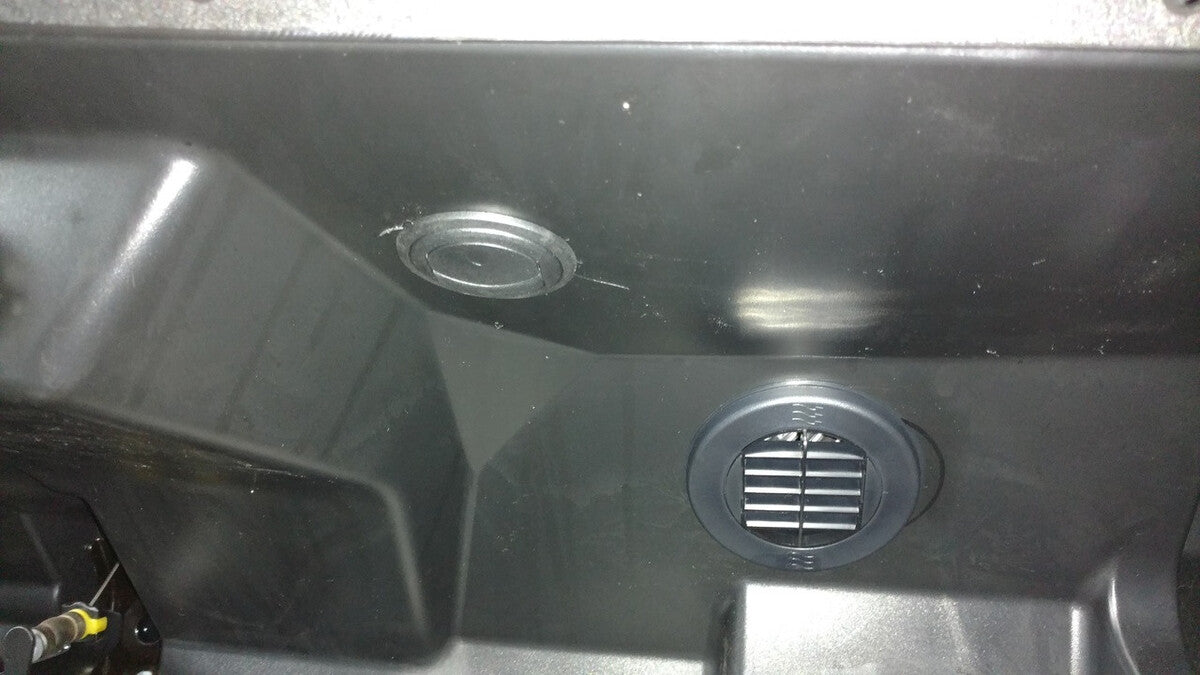

This Ice Crusher Under Hood Heater kit has 5 Vents that fit completely inside the hood area. This kit comes with a compact yet powerful heater with a three speed fan which will deliver heat from the 14,600 BTU* Compact Heater Unit. Modern automotive quality adjustable vents direct the heat were you need it. One vent mounts in the center of thedash top to defrost the windshield, two 3” vents mount in the center dash panel and two2” vents mount in the lower dash area. A unique feature of our kit is that the heateri ntake air comes from inside the cab were the air is cleaner and warmer. Warmer air means more available heat for you inside the cab. This kit utilizes the oil cooler bypass hose to tap directly into the engine for maximum quickest heat. Kits also include custom CNC laser cut mounting brackets, heater hoses and duct hoses, hose clamps, new and improved vents, hole saws (for the heater hoses and vents), grommets, Switch, wiring loom and terminals included, templates, your specific mounting bracket with hardware, and instructions.
Heater BTU: output is theoretical and is dependent on the coolant temperature of the UTV and the flow rate of the coolant, which varies by UTV and engine RPM.
Outside(ambient) temperature the UTV is being operated in also can change heater output. That being said these 14,600 BTU Heater Units are more that capable of heating 99.99% of all UTV's
British Thermal Unit (BTU or Btu) is a traditional unit of work needed to raise the temperature of one pound of water by one degree Fahrenheit. One four-inch wooden kitchen match consumed completely generates approximately 1 BTU.
Video Instruction:
