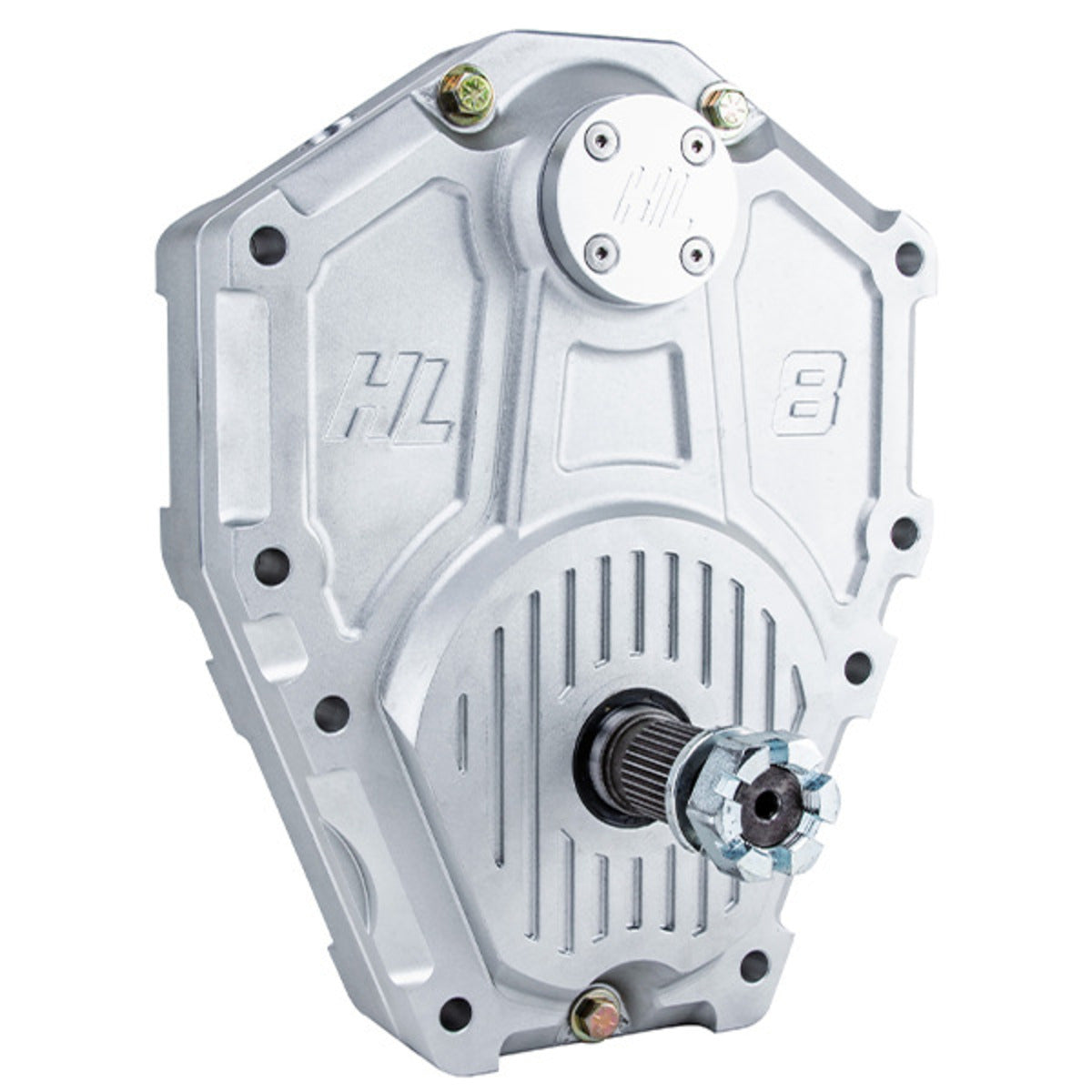

High Lifter Polaris Ranger 1000 50% Dual Idler 8" Portal Gear Lift

High Lifter Polaris Ranger 1000 50% Dual Idler 8" Portal Gear Lift



Forged Gear Boxes

The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8" portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!

• These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!

• Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!

• Forging is stronger than both cast and billet aluminum which is used by the competitor.

Brake lines

• No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!

• Large advantage for Can-Am owners!

Gear Box Venting

• Customers asked for box venting, and we give you the option

• Our box design offers a plug for venting with an optional easy to install kit that will be available soon

• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed

• Gasket material is creep resistant plus oil and coolant resistant

Seals

• Two oil seals on the spindle shaft for 100% more sealing area

• Dual seals prevent water intrusion and oil leaks

• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate

• These are the strongest backing plates on the market

• 5/16" steel plate with bent flanges for strength and durability

• Welded gusset brackets and designed to factory off-set

• Works with all control arms that are built to factory hub specifications

• Backing plates have an offset or "CLOCKED" forward & rearward design so you can run BIG tires and not interfere with your clearance!

13" Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)

• Access holes for ease of assembly and disassembly

• Slotted rotor allows for heat dissipation and cooling

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength

• CNC precision ground machining ensures excellent fitment and increased strength


• Controlled gear lapping for ease of installation and a quieter performance



Dimensions:

• Weight: 365.000000

• Length: 48.000000

• Width: 40.000000

• Height: 40.000000




Installation Instruction:



Fitment:

• 2020 Polaris Ranger Crew XP 1000 Premium Ride Command

• 2020 Polaris Ranger XP 1000 Winter Prep

• 2020 Polaris Ranger XP 1000 Premium Ride Command

• 2020 Polaris Ranger XP 1000 NorthStar Ride Command

• 2020 Polaris Ranger XP 1000 Northstar Premium

• 2020 Polaris Ranger XP 1000 NorthStar Ultimate

• 2020 Polaris Ranger Crew XP 1000 Winter Prep

• 2020 Polaris Ranger Crew XP 1000 NorthStar Premium

• 2020 Polaris Ranger Crew XP 1000 NorthStar Ultimate

• 2020 Polaris Ranger Crew XP 1000 Northstar Ride Com

• 2020 Polaris Ranger XP 1000 Premium

• 2020 Polaris Ranger XP 1000 Northstar Edition

• 2020 Polaris Ranger XP 1000 EPS Texas Edition

• 2020 Polaris Ranger XP 1000 High Lifter Edition

• 2020 Polaris Ranger 1000
• 2020 Polaris Ranger 1000 EPS

• 2020 Polaris Ranger 1000 EPS Winter Prep

• 2020 Polaris Ranger Crew XP 1000 Premium
• 2020 Polaris Ranger Crew XP 1000 Northstar

• 2020 Polaris Ranger Crew XP 1000 Texas Edition

• 2020 Polaris Ranger Crew XP 1000 High Lifter Edition

• 2020 Polaris Ranger Crew 1000

• 2020 Polaris Ranger Crew 1000 EPS

• 2020 Polaris Ranger Crew 1000 EPS Winter Prep

• 2019 Polaris Ranger XP 1000 EPS Ride Command Edition

• 2019 Polaris Ranger Crew XP 1000 EPS Northstar

• 2019 Polaris Ranger Crew XP 1000 EPS
• 2019 Polaris Ranger XP 1000 Premium

• 2019 Polaris Ranger Crew XP 1000 Premium

• 2019 Polaris Ranger XP 1000 EPS Northstar Edition
• 2019 Polaris Ranger XP 1000 EPS High Lifter Edition

• 2019 Polaris Ranger Crew XP 1000 EPS High Lifter

• 2019 Polaris Ranger XP 1000 EPS Back Country Edition

• 2019 Polaris Ranger Crew XP 1000 Back Country Edition

• 2018 Polaris Ranger XP 1000 EPS

• 2018 Polaris Ranger XP 1000 EPS Northstar Edition
