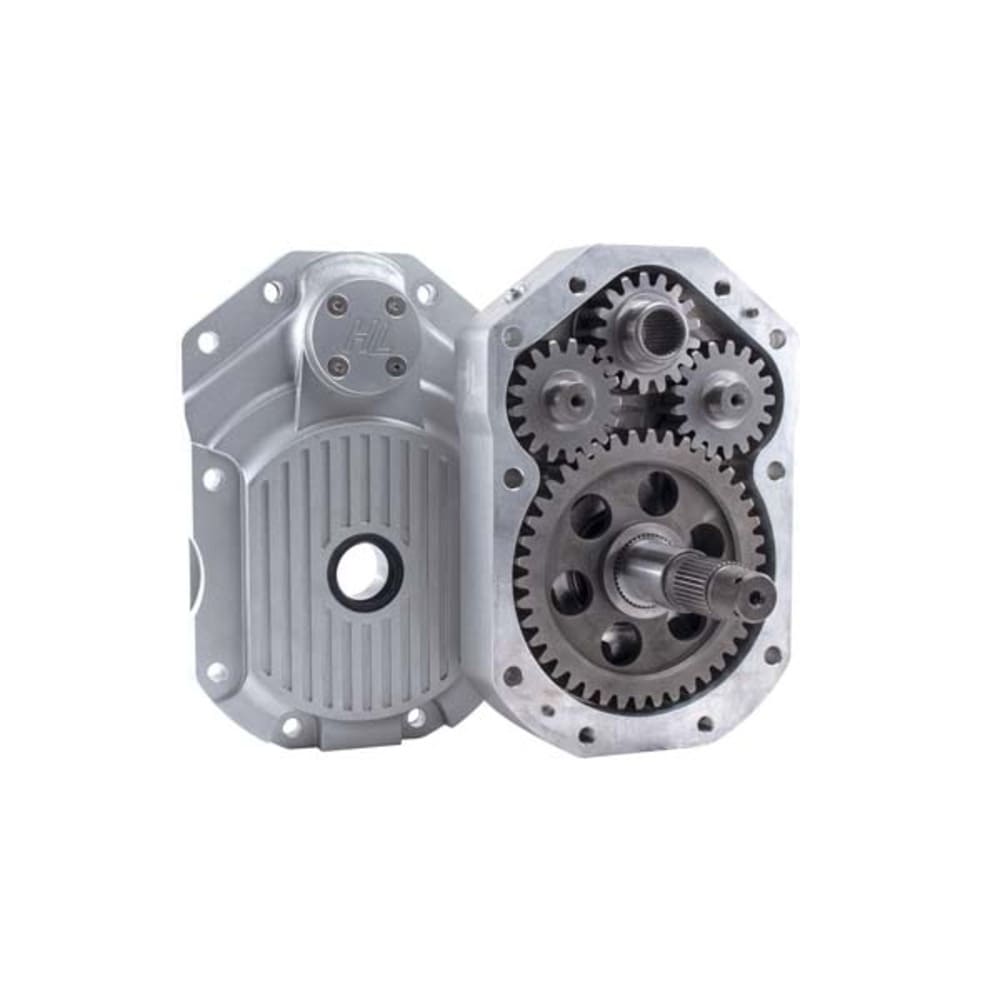

High Lifter Can-Am Maverick X3 Max 60% Dual Idler 6" Portal Gear Lift

2High Lifter Can-Am Maverick X3 Max 60% Dual Idler 6" Portal Gear Lift

Why is this 6” kit better than our competitor?

Forged Gear Boxes:

• Strongest boxes on the market because forging produces a tougher piece of metal
• Forging is stronger than both cast and billet aluminum
• Competitors use cast aluminum and billet aluminum boxes
• These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting:

• Customers asked for box venting and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design:

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

Seals:

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate:

• These are the strongest backing plates on the market
• 5/16” steel plate with Bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications

13” Rotor:

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

Gear Profile:

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

Fitment:

• 2022 Can-Am Maverick X3 MAX XRS Turbo RR Smart Shox
• 2022 Can-Am Maverick X3 MAX DS Turbo 64
• 2022 Can-Am Maverick X3 MAX DS Turbo RR 64
• 2022 Can-Am Maverick X3 MAX XDS Turbo RR 64
• 2022 Can-Am Maverick X3 MAX RS Turbo RR 72
• 2022 Can-Am Maverick X3 MAX XRS Turbo RR 72
• 2022 Can-Am Maverick X3 MAX XMR Turbo RR 72
• 2023 Can-Am Maverick X3 MAX DS Turbo 64
• 2023 Can-Am Maverick X3 MAX DS Turbo RR 64
• 2023 Can-Am Maverick X3 MAX RS Turbo RR 72
• 2023 Can-Am Maverick X3 MAX XDS Turbo RR 64
• 2023 Can-Am Maverick X3 MAX XMR Turbo RR 72
• 2023 Can-Am Maverick X3 MAX XRS Turbo RR 72
• 2023 Can-Am Maverick X3 MAX XRS Turbo RR Smart Shox
• 2017 Can-Am Maverick X3 MAX STD
• 2017 Can-Am Maverick X3 MAX XDS
• 2017 Can-Am Maverick X3 MAX XRS
• 2018 Can-Am Maverick X3 Turbo MAX
• 2018 Can-Am Maverick X3 Turbo R MAX
• 2018 Can-Am Maverick X3 Turbo R MAX XDS
• 2018 Can-Am Maverick X3 Turbo R MAX XRS
• 2019 Can-Am Maverick X3 Turbo MAX
• 2019 Can-Am Maverick X3 Turbo R MAX
• 2019 Can-Am Maverick X3 Turbo R MAX XDS
• 2019 Can-Am Maverick X3 Turbo R MAX XRS
• 2020 Can-Am Maverick X3 Turbo MAX
• 2020 Can-Am Maverick X3 Turbo R MAX XDS
• 2020 Can-Am Maverick X3 Turbo R MAX XRS
• 2020 Can-Am Maverick X3 Turbo RR MAX XDS
• 2020 Can-Am Maverick X3 Turbo RR MAX XRS
• 2020 Can-Am Maverick X3 Turbo RR MAX XMR
• 2020 Can-Am Maverick X3 Turbo R MAX
• 2021 Can-Am Maverick X3 Turbo MAX DS
• 2021 Can-Am Maverick X3 Turbo MAX R DS
• 2021 Can-Am Maverick X3 Turbo MAX R RS
• 2021 Can-Am Maverick X3 Turbo MAX RR XDS
• 2021 Can-Am Maverick X3 Turbo MAX RR XRS
• 2021 Can-Am Maverick X3 Turbo MAX RR XRS Smart-Shox
• 2021 Can-Am Maverick X3 Turbo MAX RR XMR
