High Lifter Can-Am Maverick X3 30% Dual Idler 4" Portal Gear Lift

High Lifter Can-Am Maverick X3 30% Dual Idler 4" Portal Gear Lift

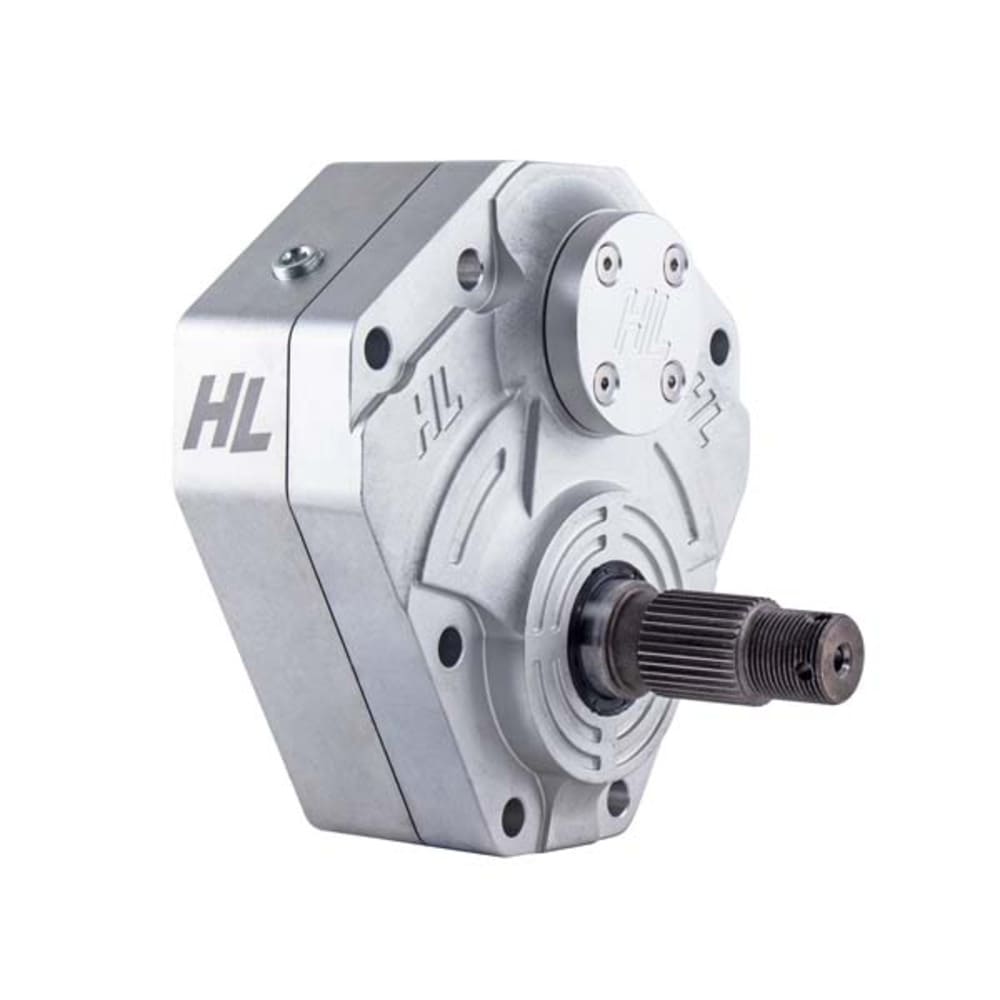

High Lifter Portal Gear Lift (Each kit includes 4 portal boxes)

15% & 30% Dual Idler Reductions

What does the Dual Idler Gear Lift offer?

• High Lifter improved the portal design by adding a second idler gear in the gear box
• The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
• You gain more reliable torque transfer
• Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
• Gear reduction extends brake life by needing brakes less often due to greatly improved engine braking
• Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don't have a need to run fast, a lower ratio performs better and give you the power you want!

Why is this 4" kit better than our competitor?

Forged Gear Boxes:

• Strongest boxes on the market because forging produces a tougher piece of metal
• Forging is stronger than both cast and billet aluminum
• Competitors use cast aluminum and billet aluminum boxes
• These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting:

• Customers asked for box venting and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design:

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

Seals:

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate:

• These are the strongest backing plates on the market
• 5/16" steel plate with Bent flanges for strength and durability Okay
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications

Rotors:

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

Gear Profile:

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

Tire Fitment:

• Largest Tire with Portal: 33"

• Largest Tire with Forward Arms: 35"

• Our stated tire fitment guide is a general fitment and is in no way guaranteed.
• Tires and lifts vary by manufacture and tire fitment can be affected by other modifications. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

Wheel Requirements:

• 14" or larger

• 14" factory wheels must run 1" spacer

• 14" & 15" can not exceed 4-1/2" backspacing

• 16" & larger can not exceed 5" backspacing



Dimensions:

• Weight: 250.000000
• Length: 48.000000
• Width: 48.000000
• Height: 36.000000



Installation Instructions:

• Dual Idler 4'' Portal Gear Lift



Fitment:

• 2024 Can-Am Maverick X3 ds Turbo 64

• 2024 Can-Am Maverick X3 ds Turbo RR 64

• 2024 Can-Am Maverick X3 rs Turbo 64

• 2024 Can-Am Maverick X3 rs Turbo 72

• 2024 Can-Am Maverick X3 rs Turbo RR 72

• 2024 Can-Am Maverick X3 X ds Turbo RR 64

• 2024 Can-Am Maverick X3 X mr Turbo RR 64

• 2024 Can-Am Maverick X3 X mr Turbo RR 72

• 2024 Can-Am Maverick X3 X rc Turbo RR 64

• 2024 Can-Am Maverick X3 X rc Turbo RR 72

• 2024 Can-Am Maverick X3 X rs Turbo RR 72

• 2023 Can-Am Maverick X3 ds Turbo 64

• 2023 Can-Am Maverick X3 ds Turbo RR 64

• 2023 Can-Am Maverick X3 rs Turbo RR 72

• 2023 Can-Am Maverick X3 X ds Turbo RR 64

• 2023 Can-Am Maverick X3 X mr Turbo RR 64

• 2023 Can-Am Maverick X3 X mr Turbo RR 72

• 2023 Can-Am Maverick X3 X rc Turbo RR 64

• 2023 Can-Am Maverick X3 X rc Turbo RR 72

• 2023 Can-Am Maverick X3 X rs Turbo RR 72

• 2023 Can-Am Maverick X3 X rs Turbo RR Smart-Shox 72

• 2022 Can-Am Maverick X3 X rs Turbo RR Smart-Shox 72

• 2022 Can-Am Maverick X3 ds Turbo 64

• 2022 Can-Am Maverick X3 ds Turbo RR 64

• 2022 Can-Am Maverick X3 X ds Turbo RR 64

• 2022 Can-Am Maverick X3 rs Turbo RR 72

• 2022 Can-Am Maverick X3 X rs Turbo RR 72

• 2022 Can-Am Maverick X3 X rc Turbo RR 64

• 2022 Can-Am Maverick X3 X rc Turbo RR 72

• 2022 Can-Am Maverick X3 X mr Turbo RR 64

• 2022 Can-Am Maverick X3 X mr Turbo RR 72

• 2021 Can-Am Maverick X3 ds Turbo

• 2021 Can-Am Maverick X3 X rc Turbo

• 2021 Can-Am Maverick X3 X mr Turbo

• 2021 Can-Am Maverick X3 ds Turbo R

• 2021 Can-Am Maverick X3 rs Turbo R

• 2021 Can-Am Maverick X3 X ds Turbo RR

• 2021 Can-Am Maverick X3 X rs Turbo RR

• 2021 Can-Am Maverick X3 X rs Turbo RR Smart-Shox

• 2021 Can-Am Maverick X3 X mr Turbo RR

• 2021 Can-Am Maverick X3 X rc Turbo RR

• 2020 Can-Am Maverick X3 Turbo

• 2020 Can-Am Maverick X3 X rc Turbo

• 2020 Can-Am Maverick X3 X mr Turbo

• 2020 Can-Am Maverick X3 X ds Turbo R
• 2020 Can-Am Maverick X3 X rs Turbo R

• 2020 Can-Am Maverick X3 X ds Turbo RR

• 2020 Can-Am Maverick X3 X rs Turbo RR

• 2020 Can-Am Maverick X3 X rc Turbo RR

• 2020 Can-Am Maverick X3 X mr Turbo RR

• 2019 Can-Am Maverick X3 Turbo

• 2019 Can-Am Maverick X3 X rc Turbo

• 2019 Can-Am Maverick X3 X mr Turbo

• 2019 Can-Am Maverick X3 Turbo R

• 2019 Can-Am Maverick X3 X ds Turbo R

• 2019 Can-Am Maverick X3 X mr Turbo R

• 2019 Can-Am Maverick X3 X rc Turbo R

• 2019 Can-Am Maverick X3 X rs Turbo R

• 2018 Can-Am Maverick X3 Turbo

• 2018 Can-Am Maverick X3 Turbo R

• 2018 Can-Am Maverick X3 X ds Turbo R

• 2018 Can-Am Maverick X3 X rs Turbo R

• 2018 Can-Am Maverick X3 X rc Turbo R

• 2018 Can-Am Maverick X3 X rc Turbo

• 2018 Can-Am Maverick X3 X mr Turbo

• 2018 Can-Am Maverick X3 X mr Turbo R

• 2018 Can-Am Maverick X3 900 HO

• 2017 Can-Am Maverick X3 Turbo R

• 2017 Can-Am Maverick X3 X ds Turbo R

  • 2017 Can-Am Maverick X3 X rs Turbo R
