HCR Suspension Polaris RZR XP 1000/Turbo Dual Sport LT Suspension Kit

HCR Suspension Polaris RZR XP1000/Turbo Dual Sport LT Suspension Kit

HCR's proprietary billet, slot and tab design and honeycomb boxed arms are built to withstand the beatings of rigorous off-road riding which achieving the optimal combination of strength and appeal. Designed to improve the vehicle's handling, stability, and overall performance, both on and off the road. The A-arms are also designed to increase the vehicle's ground clearance, allowing you to take on more challenging terrain.

Kit Features:

• HCR alloy used to build every kit is 30% stronger than 4130 Chromoly
• Every external weld is an internal plate structured into the design
• HCR kits run a 4130-heat treated billet end allowing all internal and external plating to be attached to this billet eliminating a potential weak point
• Billets are available in both ball joint and spherical applications
• HCR Shock tower to reduce compound leverage and achieve a better motion ratio
• Addition wheelbase of +3 inches
• Additional width of +4 inches per side
• Ground Clearance increased by 1.25 inches in the arm design
• RCV 4340 Chromoly extended axle bars
• King 2.5 Series HCR Spec. shocks with a 2.5 piggyback up front and the 2.5 IBP in the back

IBP Front Upgrade:

• Intended for the Dune enthusiast, Racers, and those who like to push it that much harder.
• This upgrade extends the same internal bypass technology included in the rear shocks to all 4 corners.
• This patented needle-valve design allows for less bottoming and shock fatigue on square edges, G outs, long distance racing, jumping, etc.
• Where the front end needs a little more.

High Clearance Radius Rods:

• The high links are recommended for the recreational trail rider or Rock crawler.
• These all new HCR Aluminum High Links are a great way to get clearance under the rear and avoid rocks while out on the trails.
• Additional cost to upgrade.

Straight Radius Rods:

• These heavy-duty HCR Race links follow the same design as the standard radius rod with material increased to .120 wall tubing.
• The 5/8-18 heims are available in Right hand threads only.
• Additional cost to upgrade.

Kit Contains:

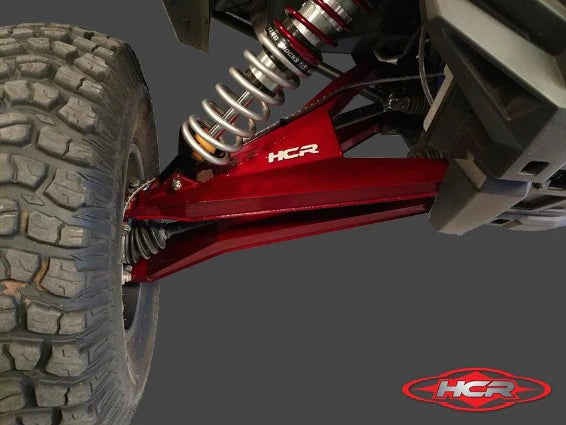

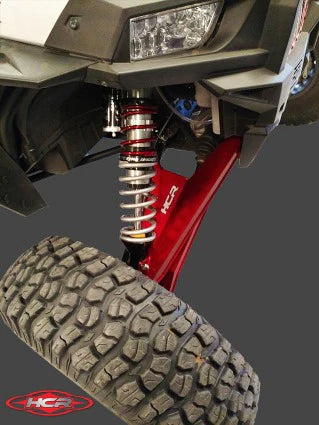

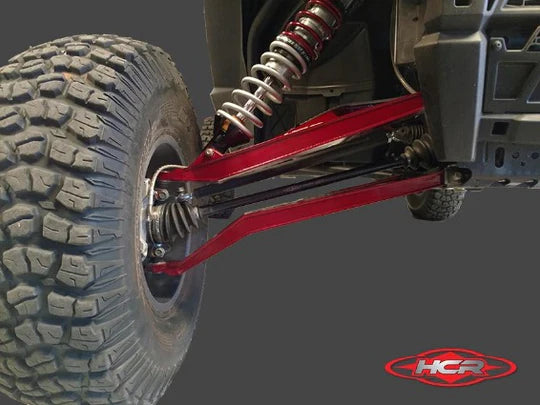

• 4 Front A-arms

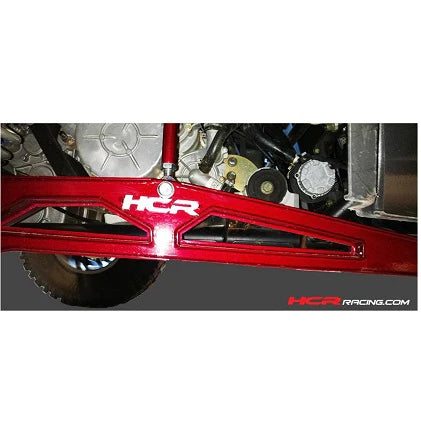

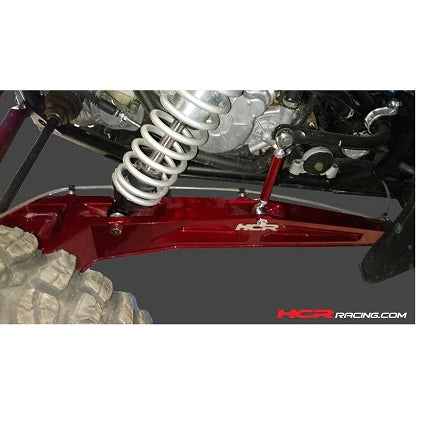

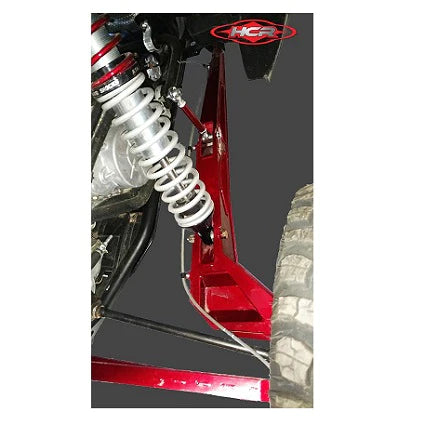

• 2 Rear Trailing arms
• Tie-rod Extensions
• Shock Tower
• 4 RCV Axle bars
• 4 King 2.5 HCR Spec. Shocks
• 4 Radius Rods
• Heavy-Duty Backplate
• Hardware Pack
• Install guide

Must use 4+3 offset wheel with this Kit.
