EcoXgear SoundExtreme 4-Channel Marine Grade Amplifier

EcoXgear SoundExtreme 4-Channel Marine Grade Amplifier

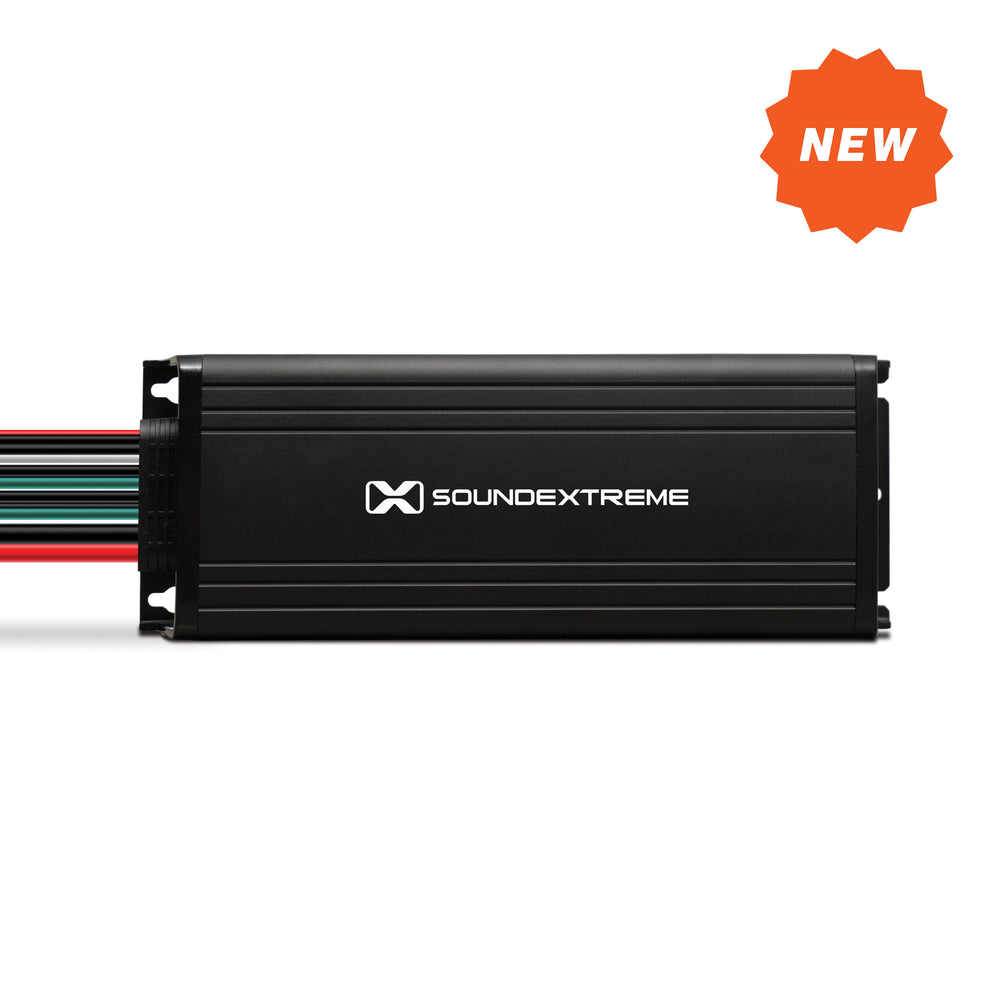

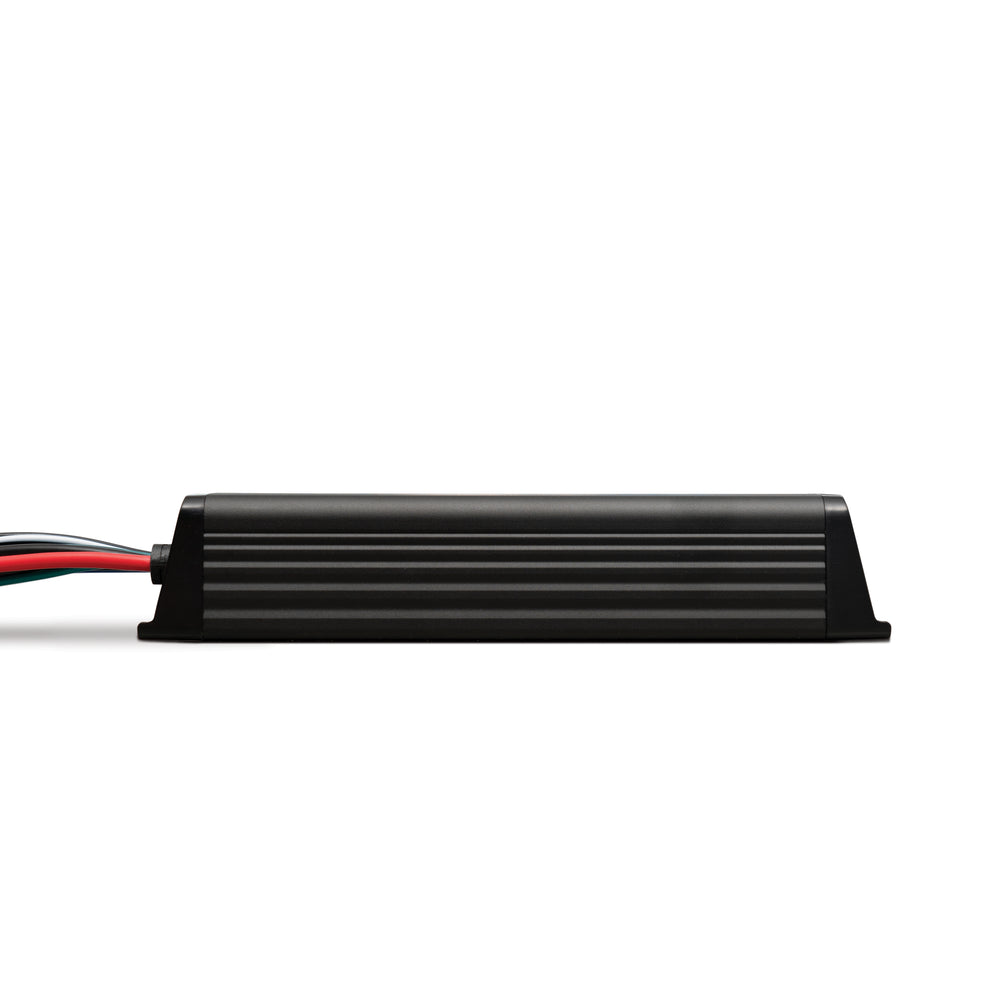

Introducing the AMP30041 compact marine/powersports HD 4-Channel Amp- 75 watts RMS x 4.

Featuring the Texas Instruments High Definition digital amplifier for high power and low distortion in a compact marine-grade design. Its built-in DSP cross over control provides the widest frequency filter adjustments from 20Hz- 6KHz, delivering a thrilling audio experience.

24 dB/ Octave for high-pass and 55HZ to 6KHz, 24dB/Octave for low pass.

100% waterproof and dirtproof, even rinse it off with a hose. The die-cast aluminum chassis is sealed to keep all the components free of water, dirt, sand, and salt. Incredible power in a compact size that is perfect for any outdoor vehicle where space is a premium being ideal for UTV's, ATV's, boats and golf carts.

Utilize the amp to pump out 4 channels of 75 watts at 4 ohms, or use it as a 3 channel amplifier to drive 2 speakers + 150 watts at 2 ohms to drive a subwoofer or even bridge the amplifier to drive 150 watts x 2 at 2 ohms and be the life of the party.

The Real Tech Details:

• Compact marine/powersports 2, 3 or 4 channel amp.
• 75 watts RMS x 4
• 4- Channel: 75 W x 4, at 4 Ohm, THD+N < 2%
• 3- Channel: 75W x 2, at 4 Ohm + 150W at 2 Ohm, THD+N < 2%
• 2- Channel: 150W x 2 at 2 Ohm, THD+N < 2%
• Advanced Integrated Feedback design with bandwidth up to 100 Khz, which provides low distortion across the audio band to deliver excellent high fidelity sound quality
• 0.02% THD+N at 1 W into 4 Ω
• 60 dB PSRR
• <75 µV Output Noise (A-Weighted)
• 108 dB SNR (A-Weighted)
• 90% Efficient Class- D Operation (4 Ω)
• Integrated Protection: Undervoltage, Overvoltage, Cycle-by-cycle Current Limit, Short Circuit, Clipping Detection, Overtemperature Warning and Shutdown, and DC Speaker Protection

Specifications:

• Operating Voltage: 11.5V – 18V.
• Incredible power with low distortion in a compact size is perfect for any outdoor vehicle where space is at a premium, ideal for UTV's, ATV's, boats and golf carts.
• Integrating the top-of-the-line Texas Instruments High-Definition Class D amplifier
• Configurable channel modes for different speaker output settings
• 4-Channel setting with each 75 watts power at 4 ohms
• 3-Channel setting with driving 2 speakers and one subwoofer with 150 watts @ 2 ohms
• 2-Channel setting to bridge the amplifier to drive 150 watts x 2 @ 2 ohms.
• Built-in DSP cross-over control provides the widest frequency filter adjustments from 20Hz- 6Khz, 24 dB/Octave for high-pass and 55Hz to 6kHz, 24dB/Octave for low pass.
• 8-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
• 100% waterproof and dirtproof, even rinse it off with a hose. The die-cast aluminum chassis is sealed to keep all the components free of water, dirt, sand and salt.
• Dimensions: 9" x 3.25" x 1.84"  (L x W x H)
• Weights: 2lb

Kit Includes:

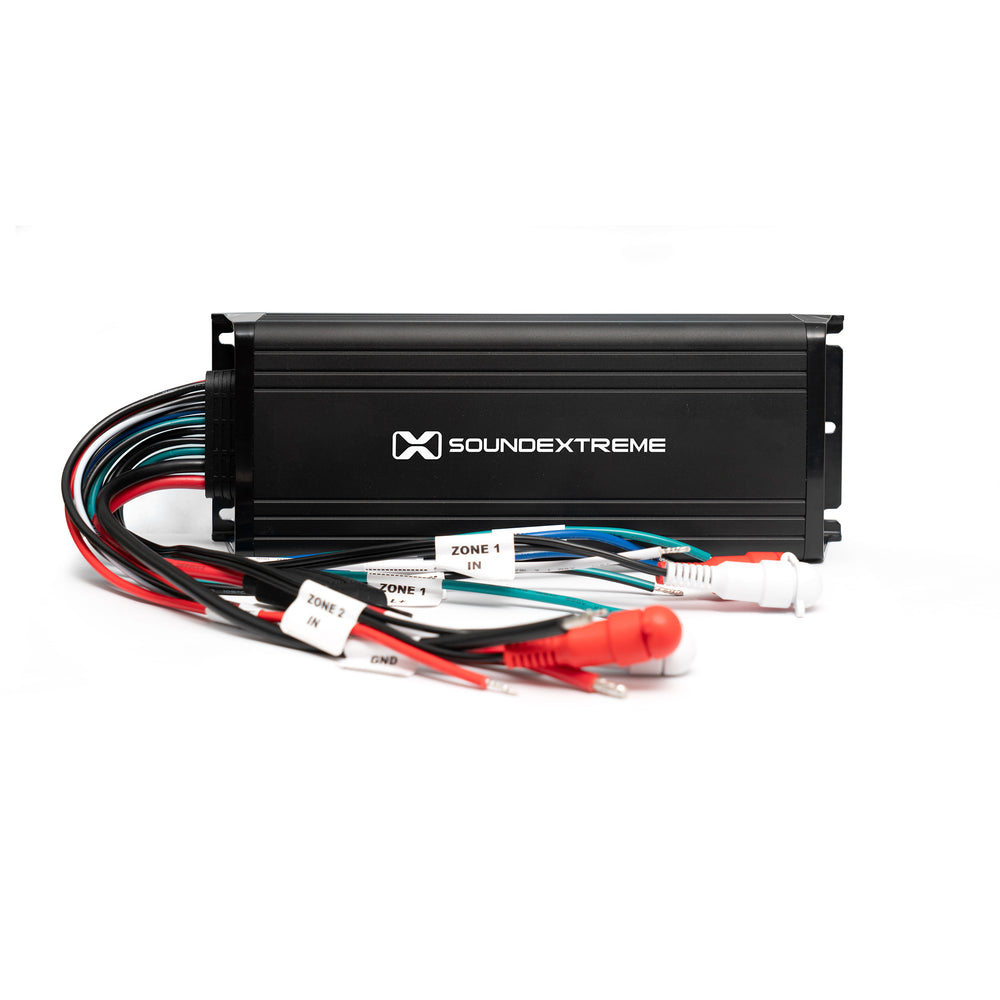

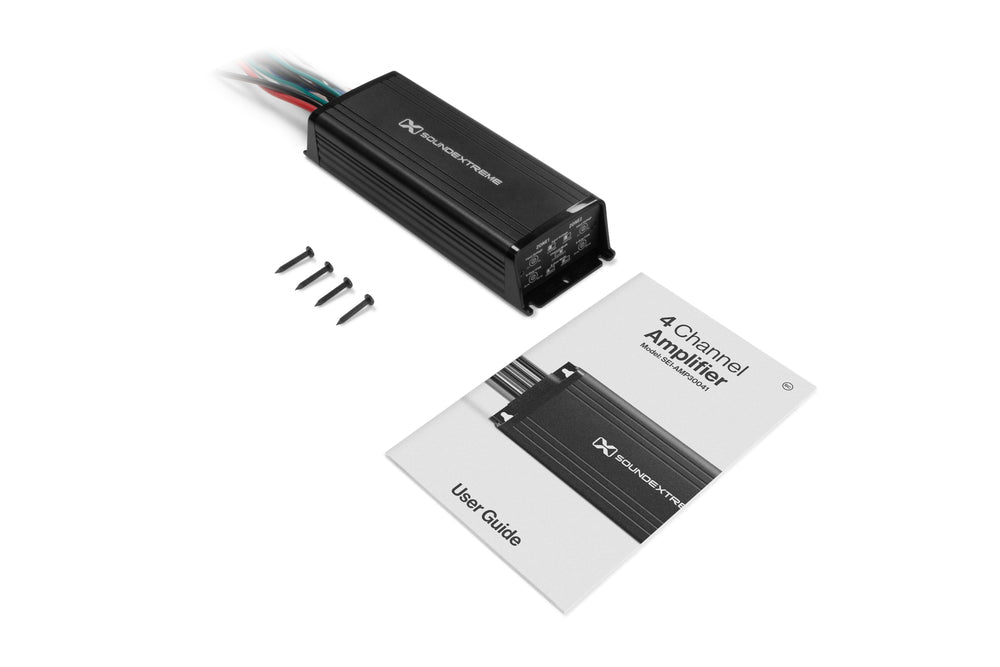

• Amplifier with 11" pigtails, fuse, manual, 4 x 1" self tapping screws
