EcoXgear SoundExtreme 4-Channel EV Marine Grade Amplifier

EcoXgear SoundExtreme 4-Channel EV Marine Grade Amplifier

This SoundExtreme EV Amp is not suitable for vehicles equipped with a sole +12V power supply.

Elevate your electric vehicle audio game with the Compact HD 4-channel EV Amplifier! No need for step-down converters or intricate wiring – directly connect the EV30041 to your 32V – 82V battery for a mind-blowing 75 watts RMS x 4 output. Inside its compact frame, a top-notch Texas Instruments High Definition amplifier ensures powerful, minimal distortion sound in a golf cart-friendly size.

Experience cutting-edge technology with the built-in DSP crossover control, offering a wide frequency range from 20Hz to 20KHz. Worried about the elements? Don't be – this amp is 100% waterproof and dirtproof, sealed in a die-cast aluminum chassis for durability. The EV30041 is not just versatile but also packs a punch – use it to pump out 4 channels of 75 watts at 4 ohms, create a 3-channel setup for speakers and a subwoofer, or bridge the amplifier for a party-ready 150 watts x 2 at 2 ohms. Unleash the potential of your electric vehicle audio with the EV30041 – it's not just an amplifier; it's a game-changer!

The Real Tech Details:

• Advanced Integrated Feedback design with bandwidth up to 100 Khz, which provides low distortion across the audio band to deliver excellent high fidelity sound quality
• 0.02% THD+N at 1 W into 4 Ω
• 60 dB PSRR
• <75 µV Output Noise (A-Weighted)
• 108 dB SNR (A-Weighted)
• 90% Efficient Class- D Operation (4 Ω)
• Integrated Protection: Undervoltage, Overvoltage, Cycle-by-cycle Current Limit, Short Circuit, Clipping Detection, Overtemperature Warning and Shutdown, and DC Speaker Protection.

Specifications:

• Operating Voltage: 43V to 82V
• Connect the amplifier directly into your 48V to 72V battery. No need to add an expensive step down converter and complex wiring.
• Incredible power with low distortion in a compact size is perfect for any outdoor vehicle where space is at a premium, ideal for UTV's, ATV's, boats, and golf carts.
• Integrating the top-of-the-line Texas Instruments High-Definition Class D amplifier.
• One channel amplifier with 300 watts RMS @4 ohms
• Built-in DSP cross-over control provides the widest frequency filter adjustments from 20Hz- 6Khz, 24 dB/Octave for high-pass and 55Hz to 6kHz, 24dB/Octave for low pass.
• In addition to the crossover, the Bass and Treble settings make this amplifier the de facto standard to power subwoofers or even audiophile dedicated tweeters!
• 100% waterproof and dirtproof, even rinse it off with a hose. The die-cast aluminum chassis is sealed to keep all the components free of water, dirt, sand and salt.
• Dimensions: 9" x 3.25" x 1.84"  (L x W x H)
• Weights: 1.8lb

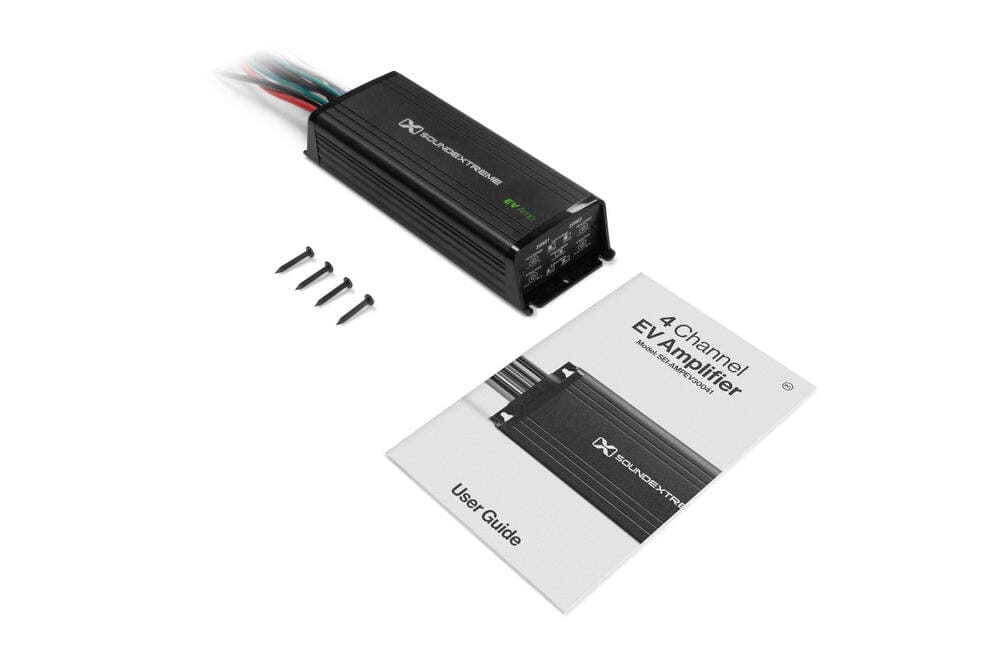

Kit Includes:

• Amplifier with 11" pigtails, fuse, manual, 4 x 1" self tapping screws
