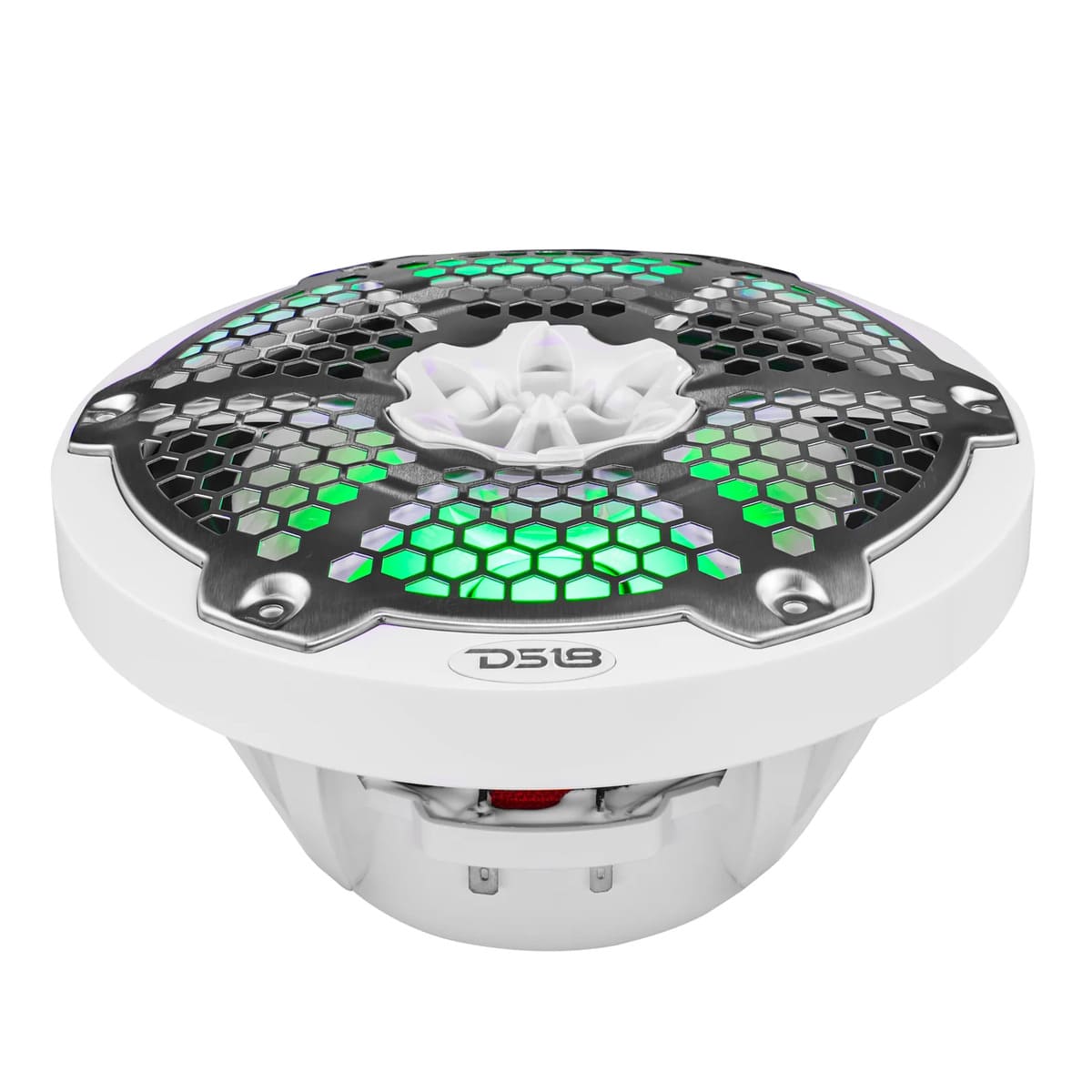

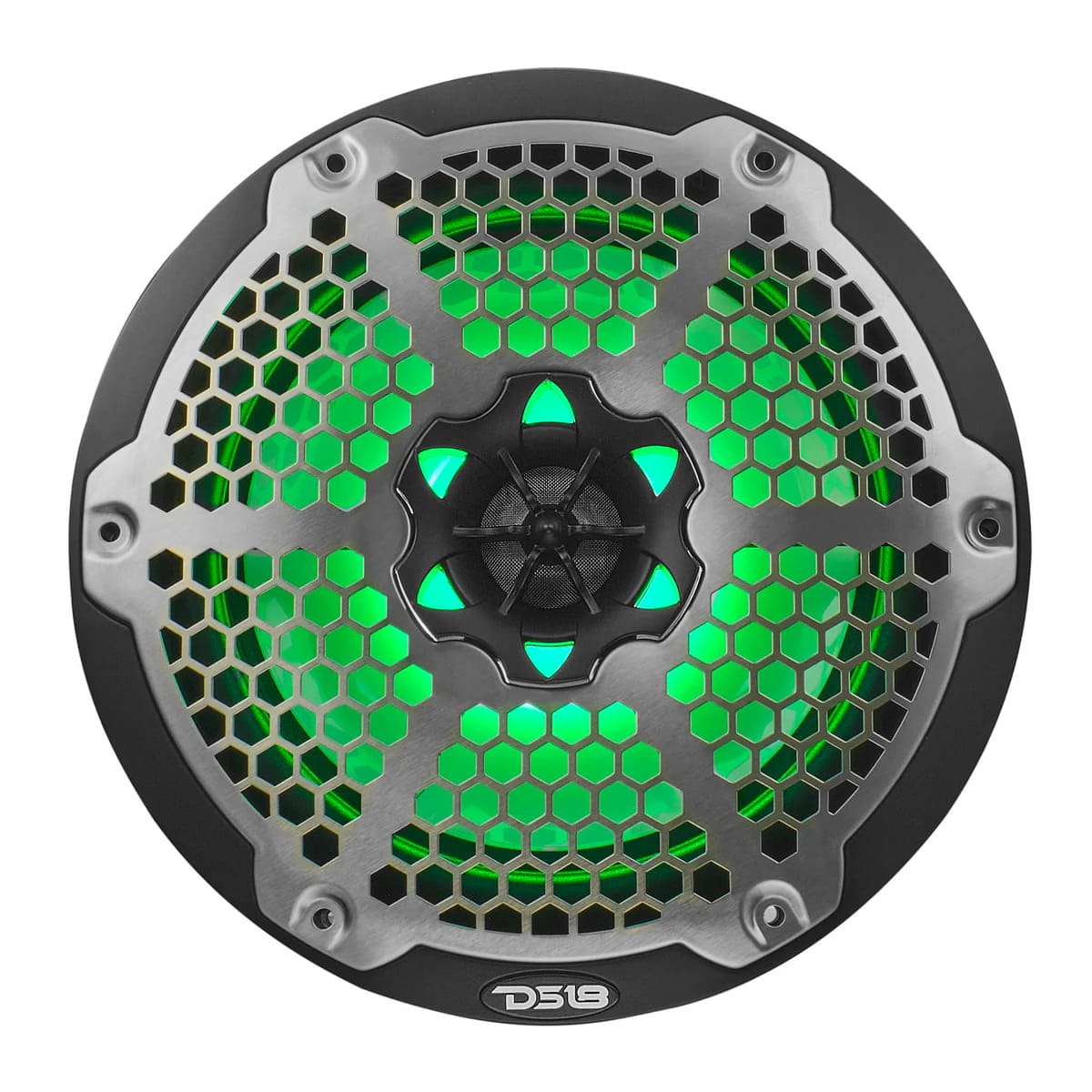

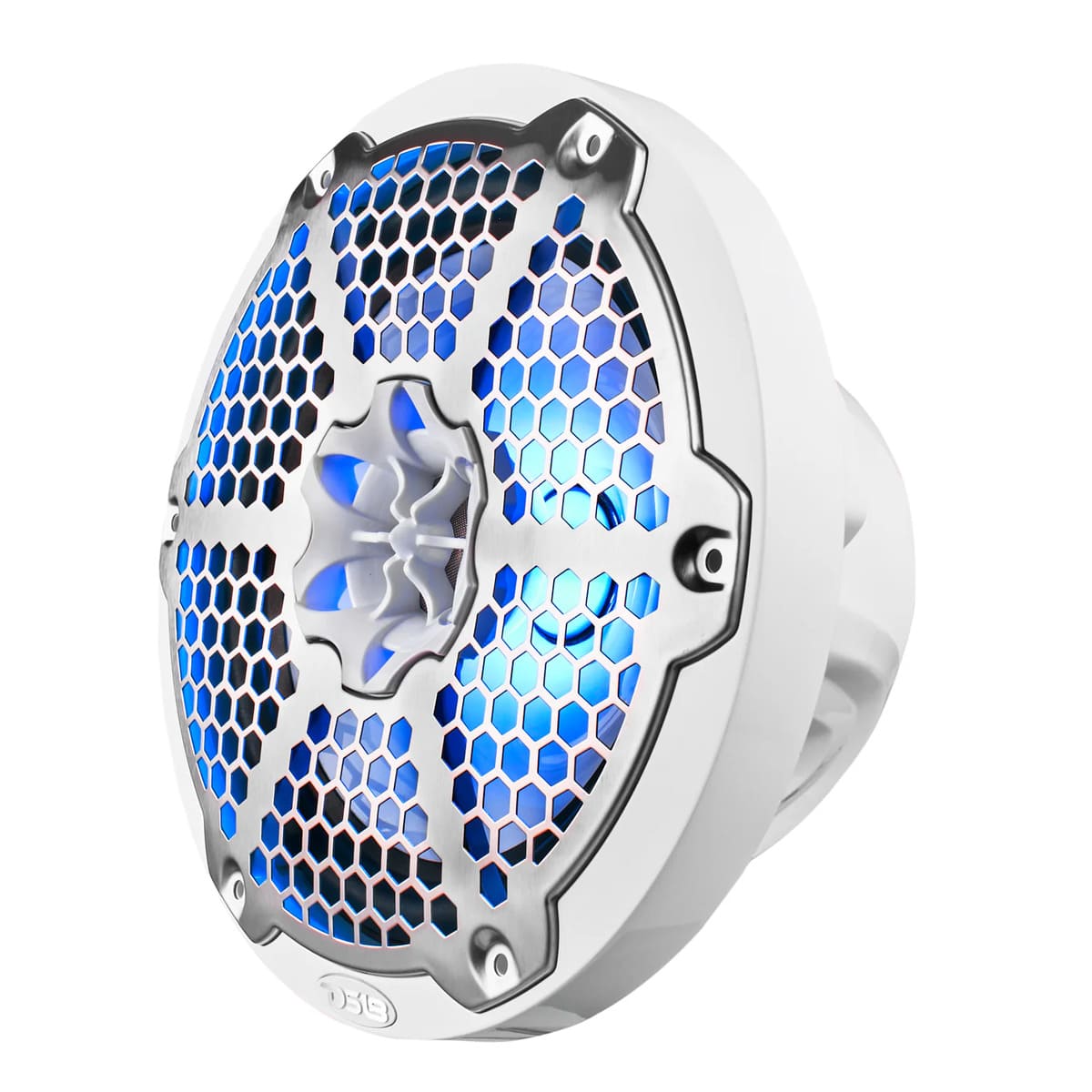

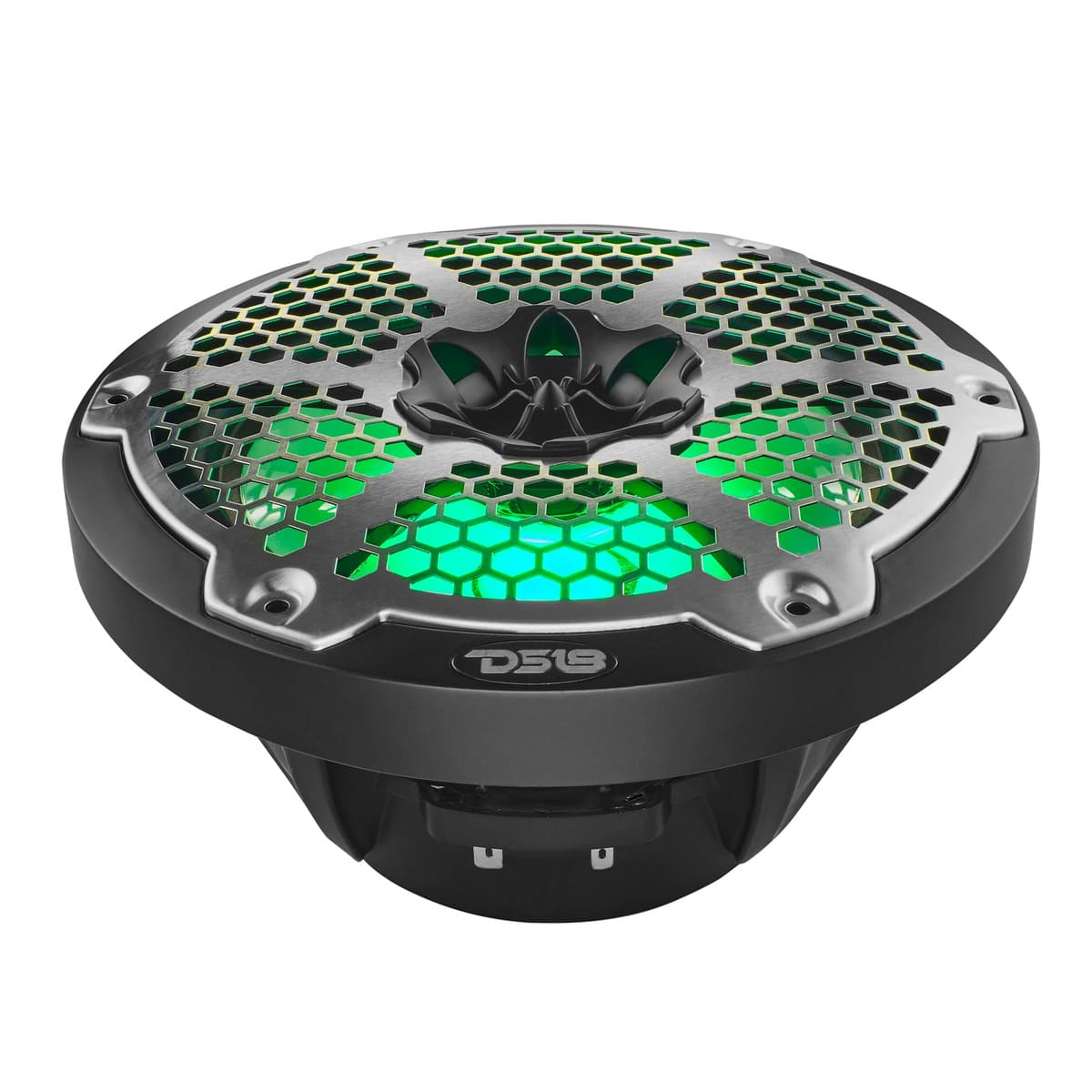

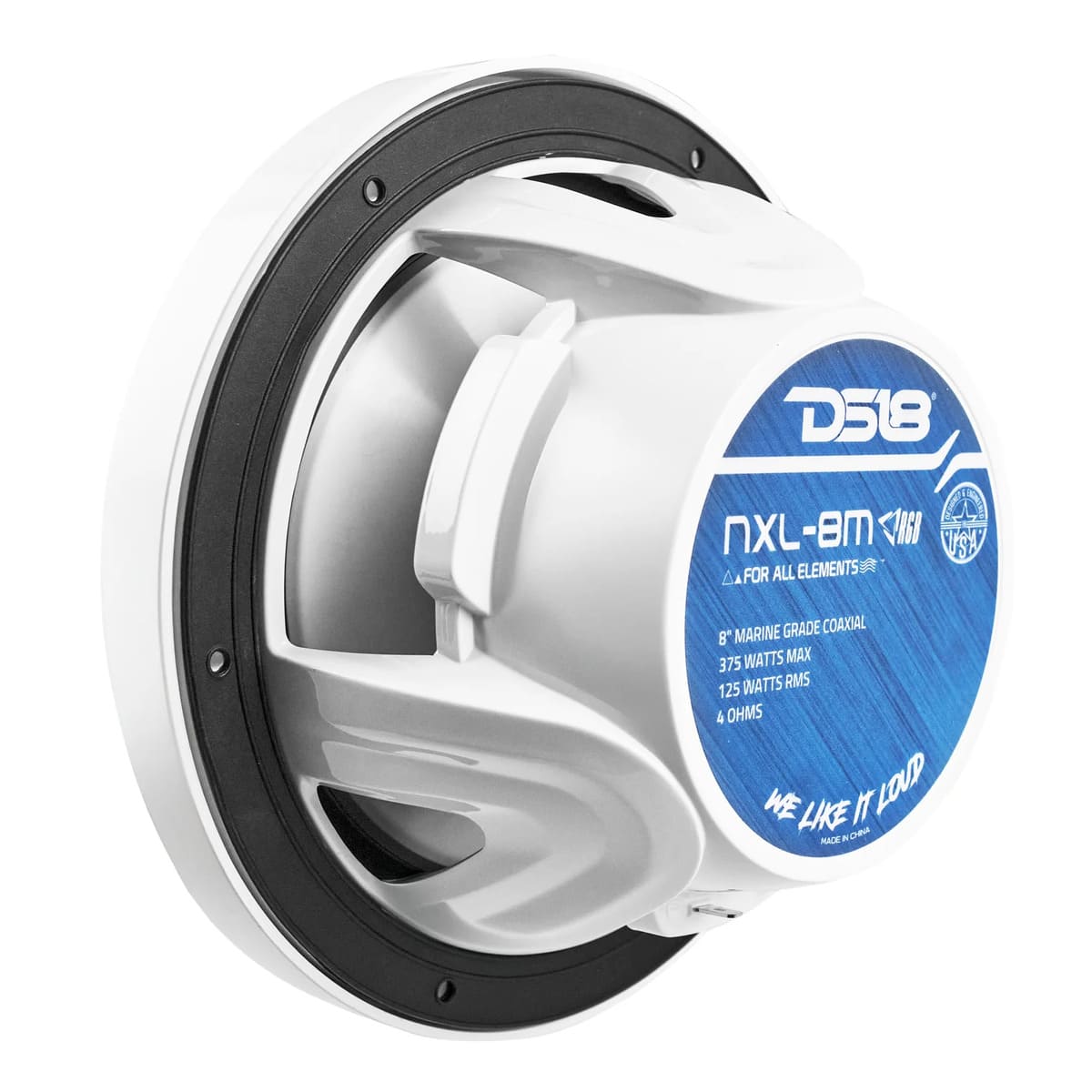

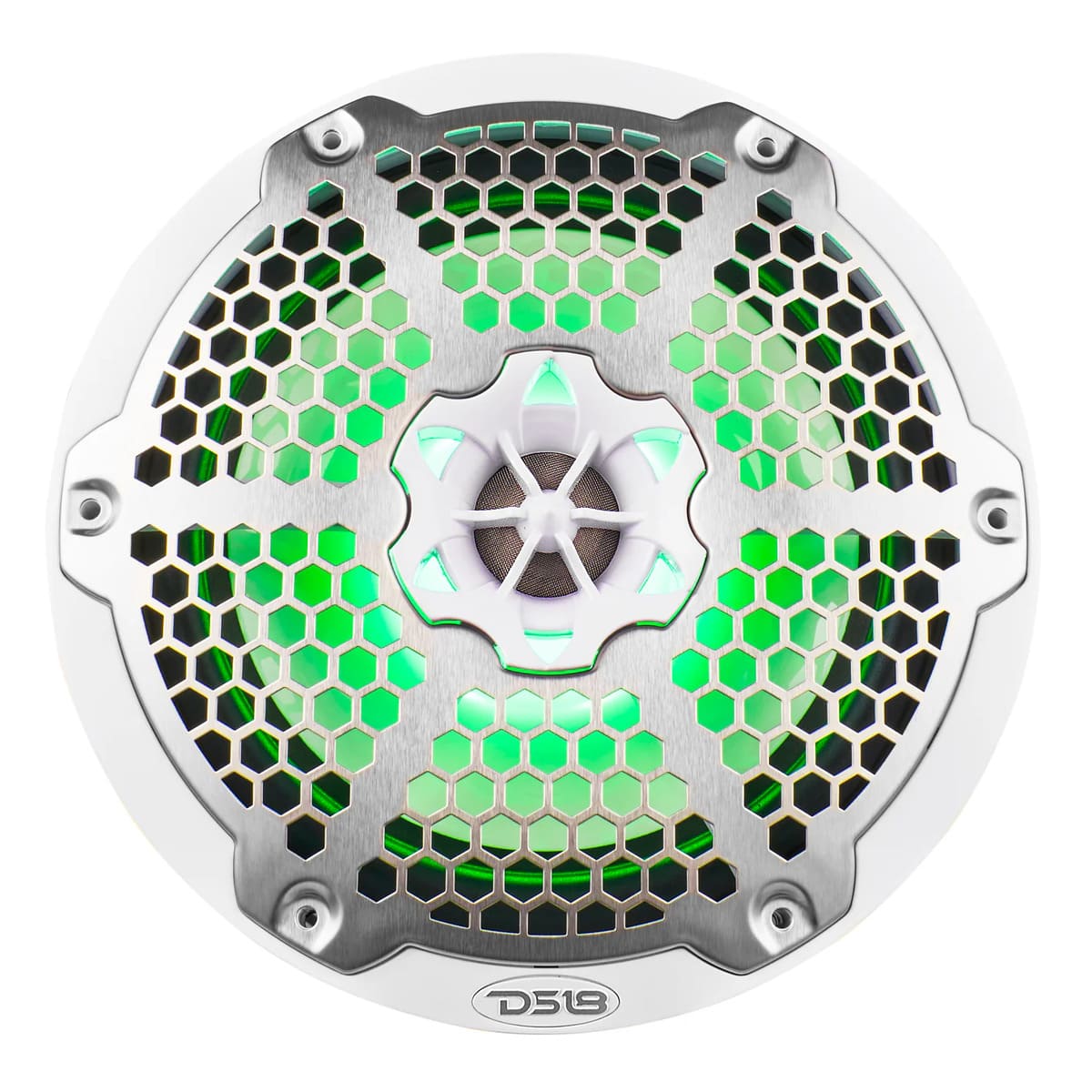

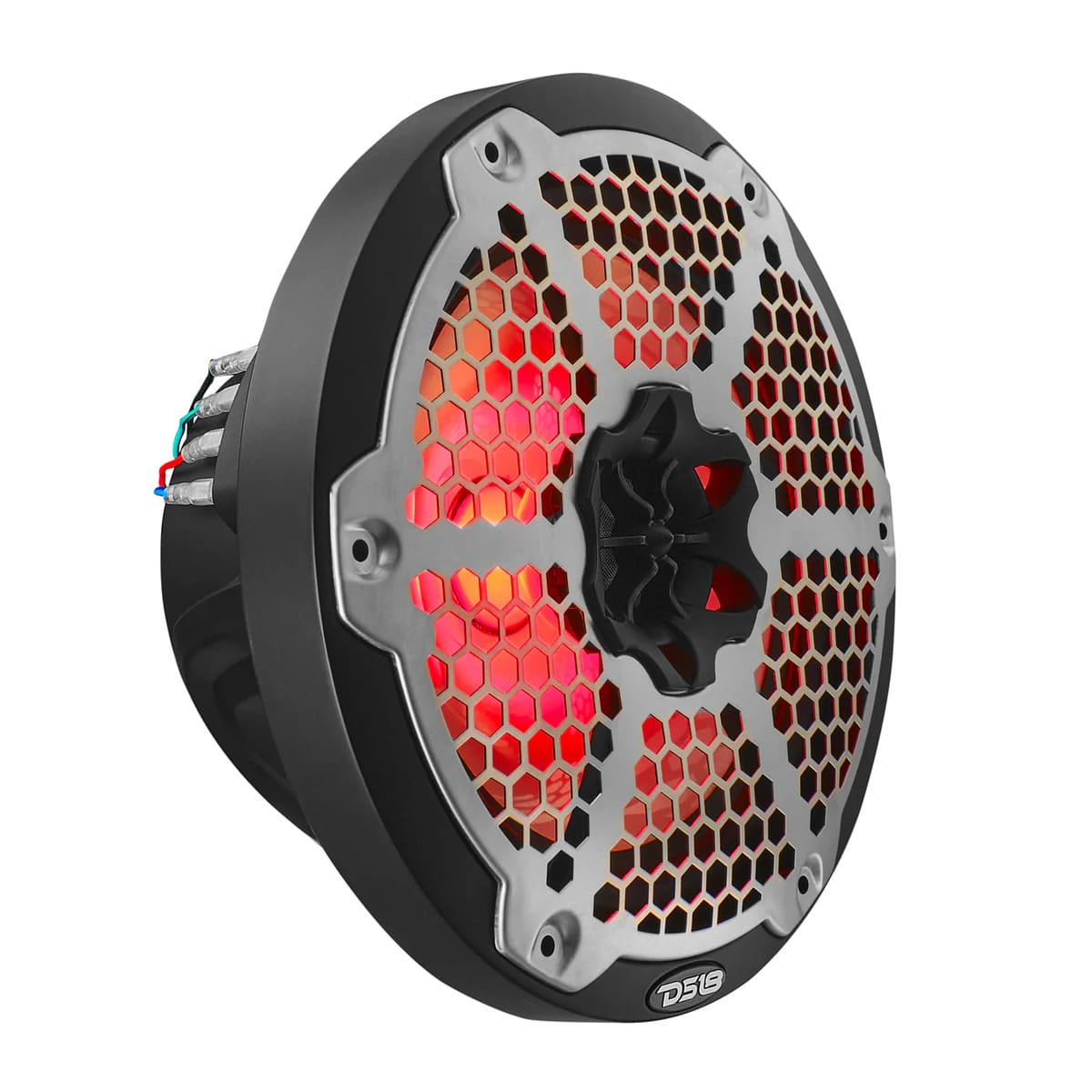

DS18 NXL 8" 2-Way Coaxial Marine Speaker With RGB LED Lights 125 Watts RMS 4-Ohm

DS18 NXL 8" 2-Way Coaxial Marine Speaker With RGB LED Lights 125 Watts RMS 4-Ohm

DS18’s NXL-8M is engineered for those who refuse to settle. These speakers deliver breathtaking sound in a cutting-edge design, tailored to withstand the harshest marine and off-road environments.

With IP65 Marine Grade Certification, these beasts endure saltwater, UV rays, and extreme temperatures. The high-temp injection-molded composite construction and detachable stainless-steel mesh grills offer resilience, protection and endless customization. The new silicone cover adds a tough, sleek layer of defense for even more durability.

Handling an impressive 125W RMS power, these speakers deliver loud, crystal-clear sound. Equipped with Y35 Ferrite Main Magnet and Reverse Neodymium, these speakers deliver astonishingly clear and powerful sound. Thanks to the revolutionary 2-way design that incorporates a 25mm Titanium Dome Tweeter, you'll experience the full range of frequencies, capturing every nuance of your favorite tracks. The NXL-8M’s sensitivity of 93dB at 1 w/m, offer an unmatched level of detail and precision in every note.

Take your experience up a notch with vibrant RGB LED lighting, fully customizable to match your vibe using the optional LED-BTC or other RF/BT/Wi-Fi Controllers (sold separately).

The NXL-8M dominates. It’s rugged, stylish, and performs like the legend it is. Upgrade today for sound that never goes out of style!

Features:

• 8" 2-Way Marine Speaker

• RMS Power: 125 Watts

• Impedance: 4 Ohm

• Ferrite & Neodymium Magnets

• RGB LED Light

• Water Resistant IP65

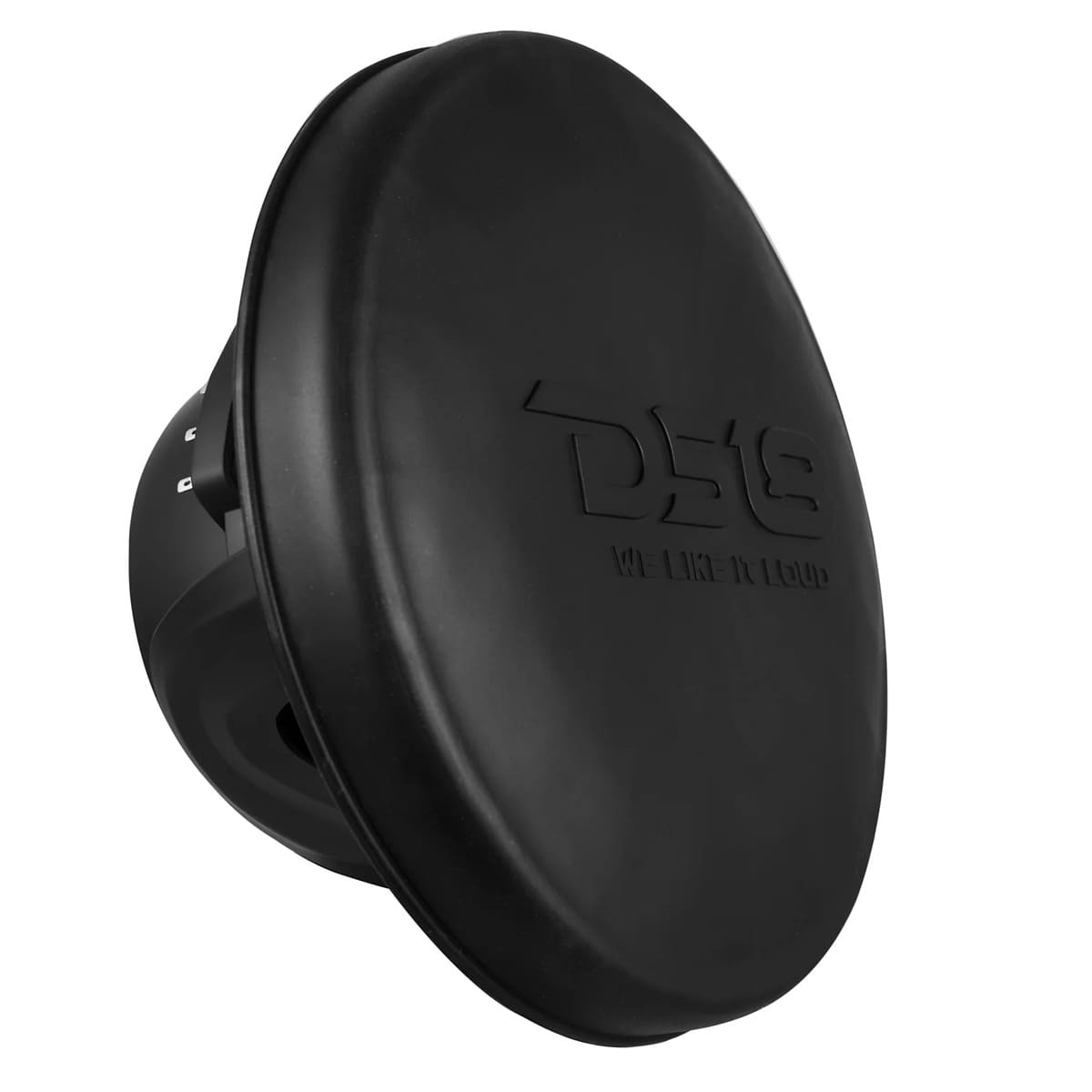

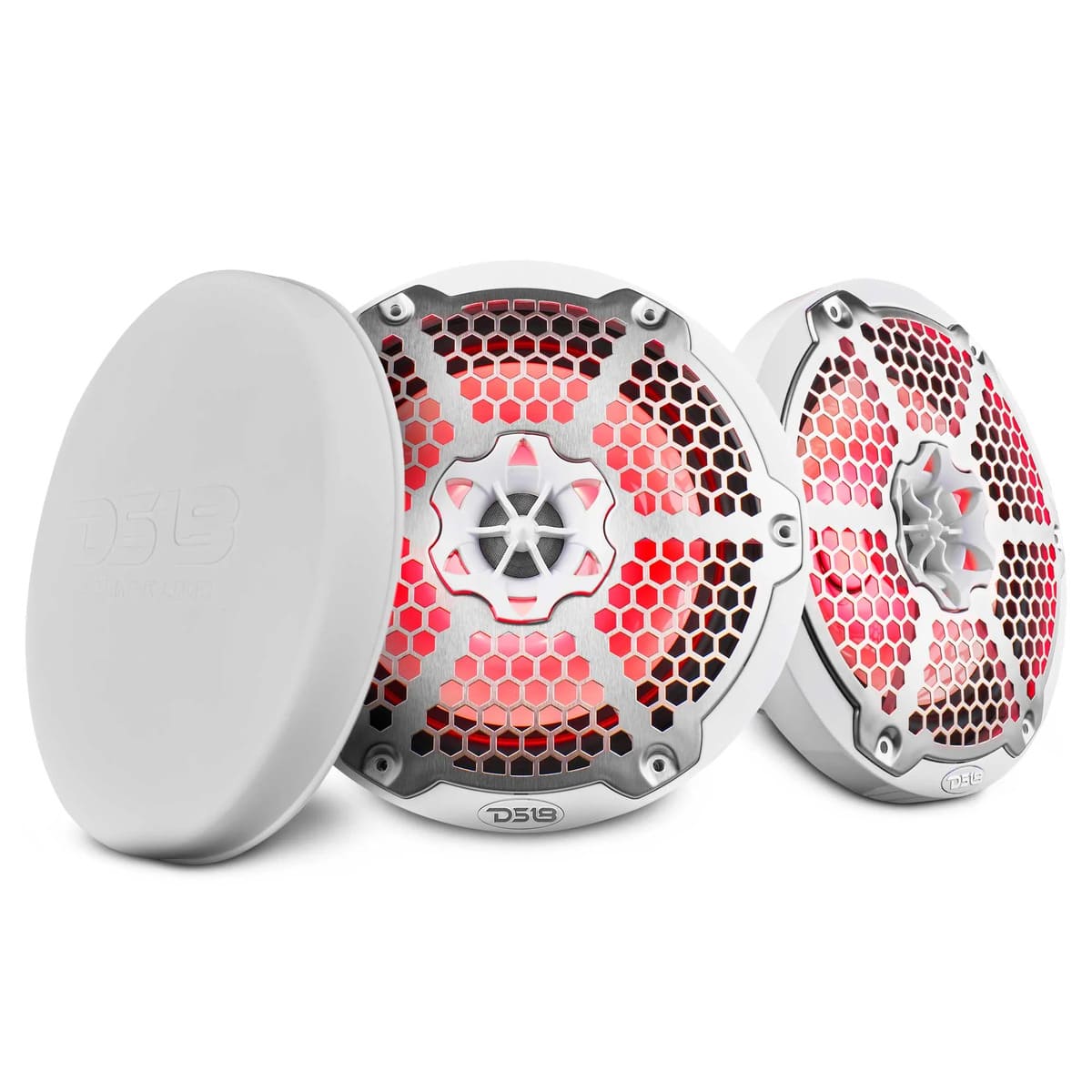

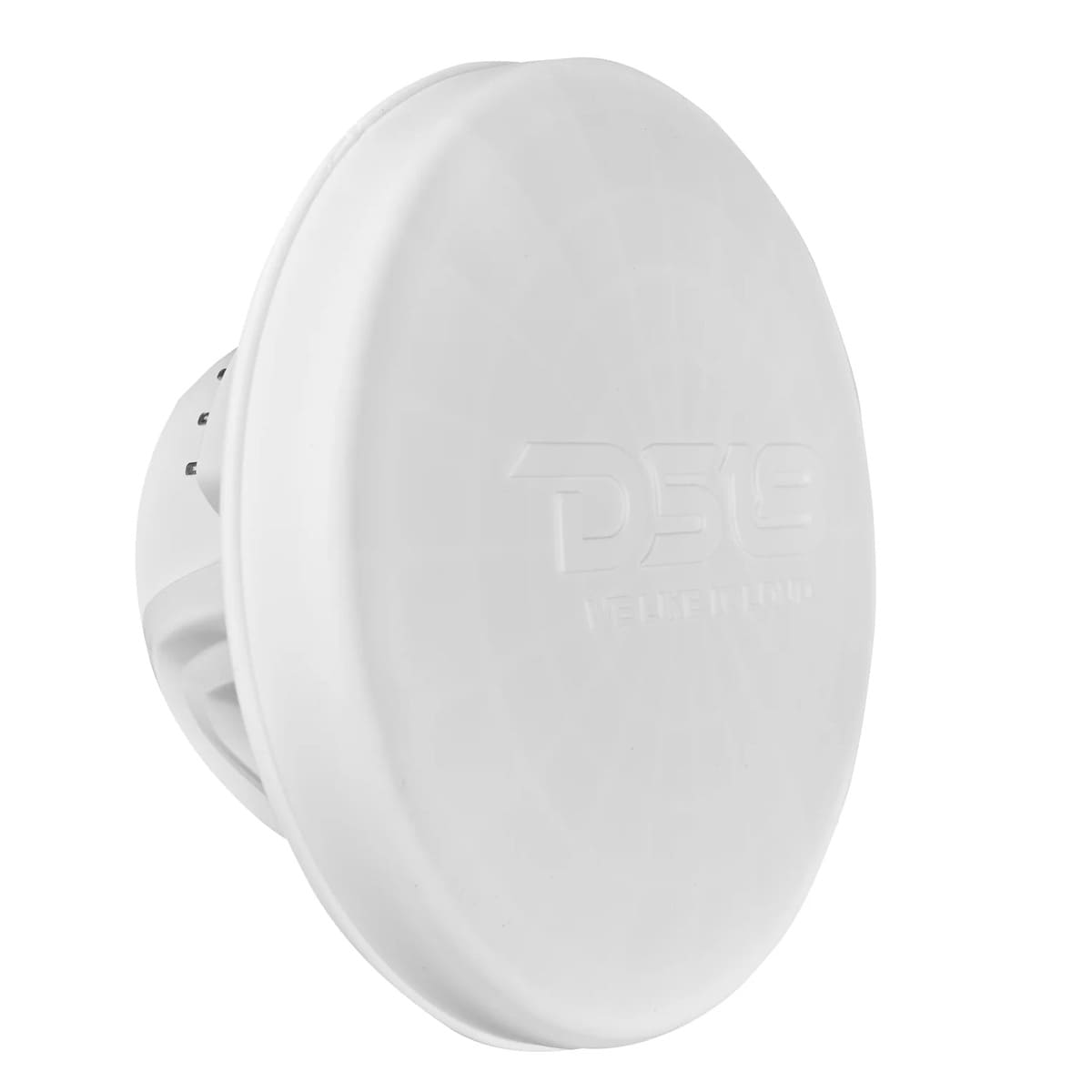

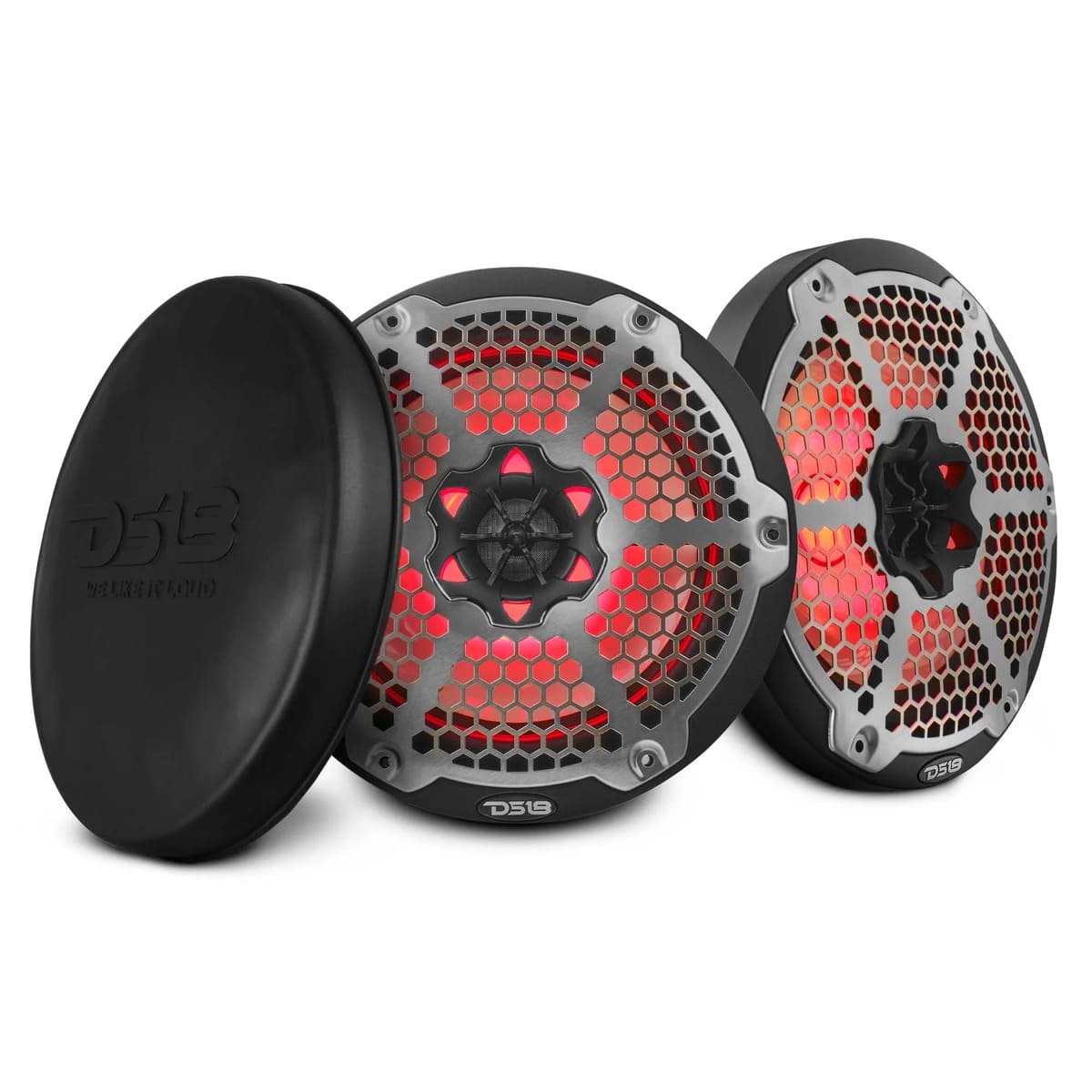

• Silicone Cover Included

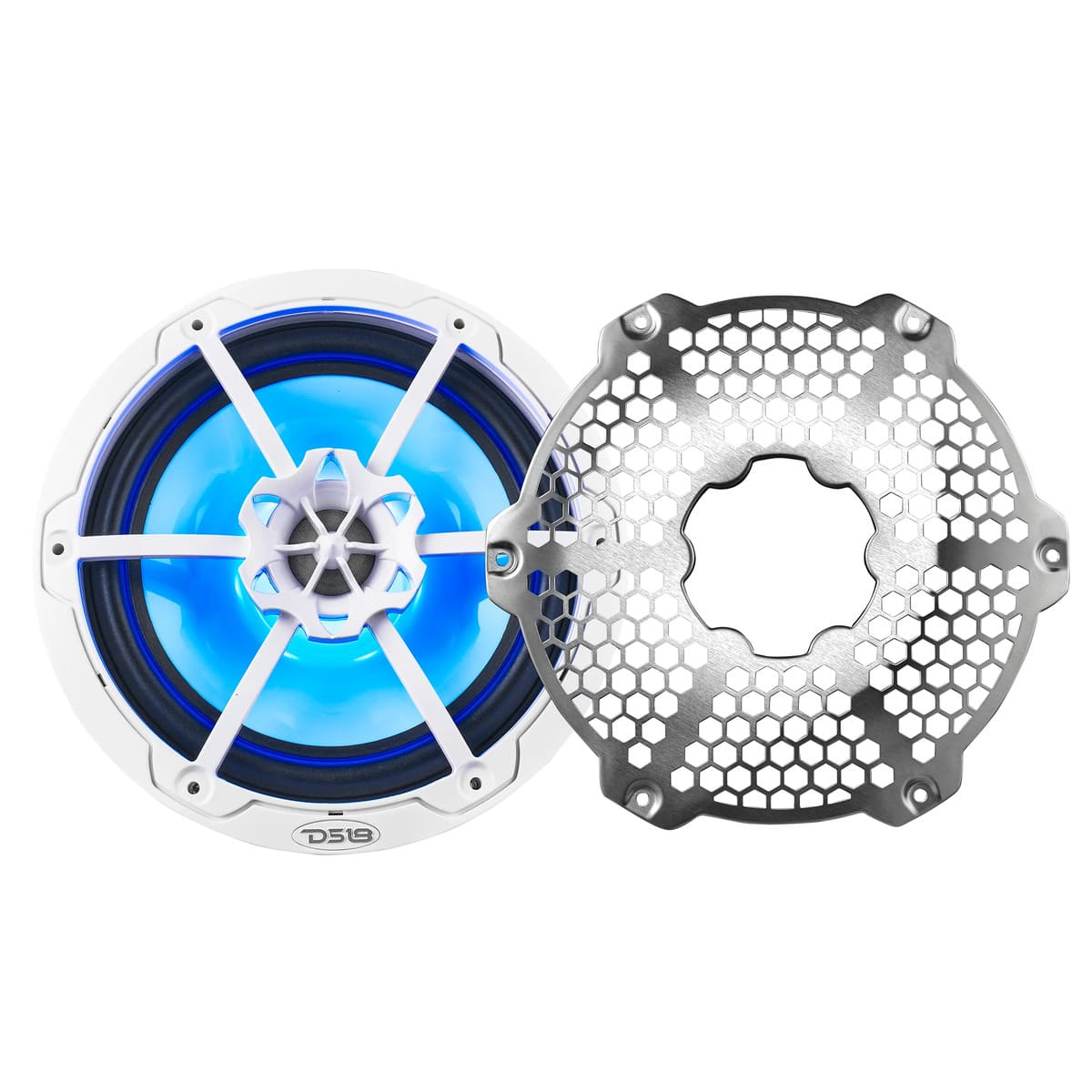

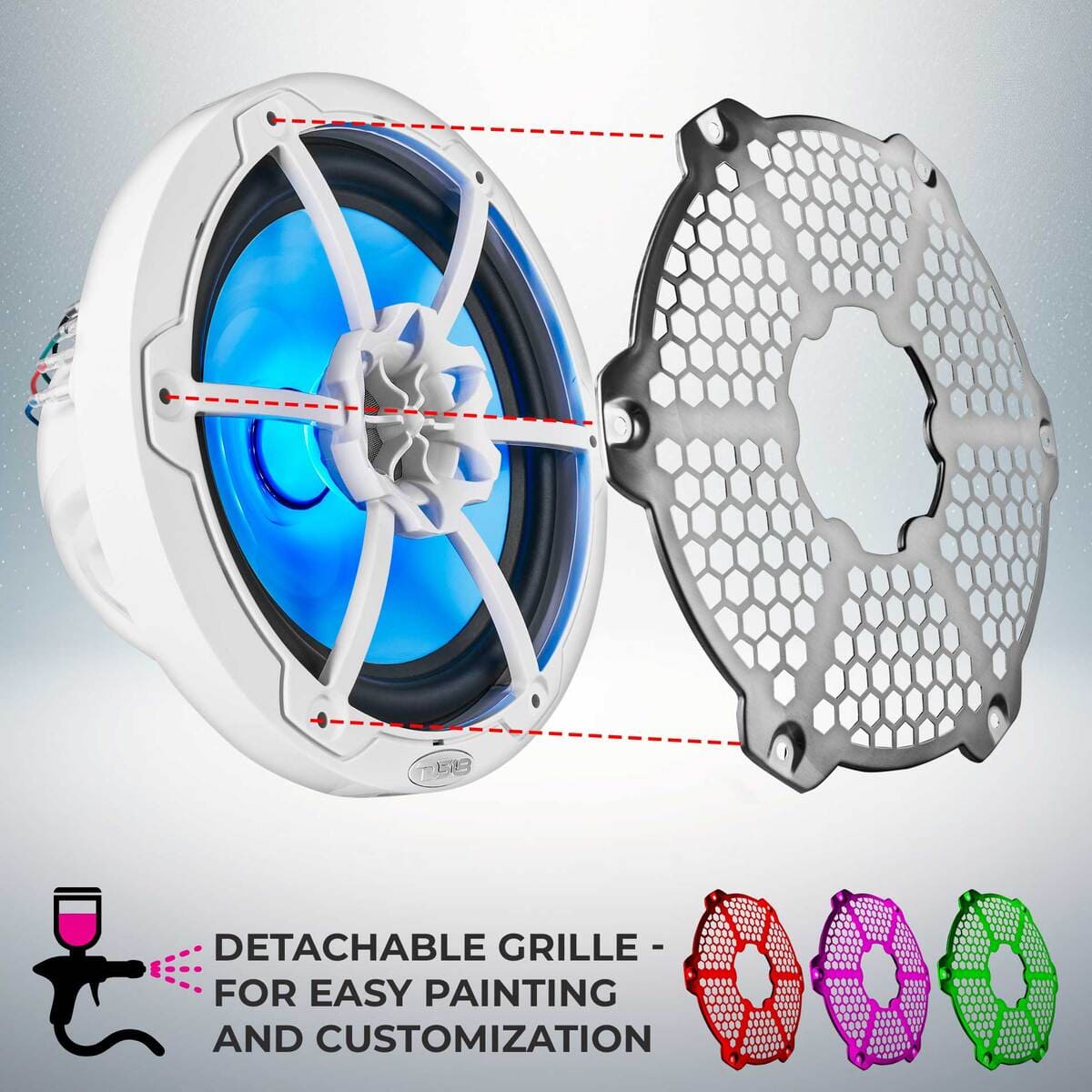

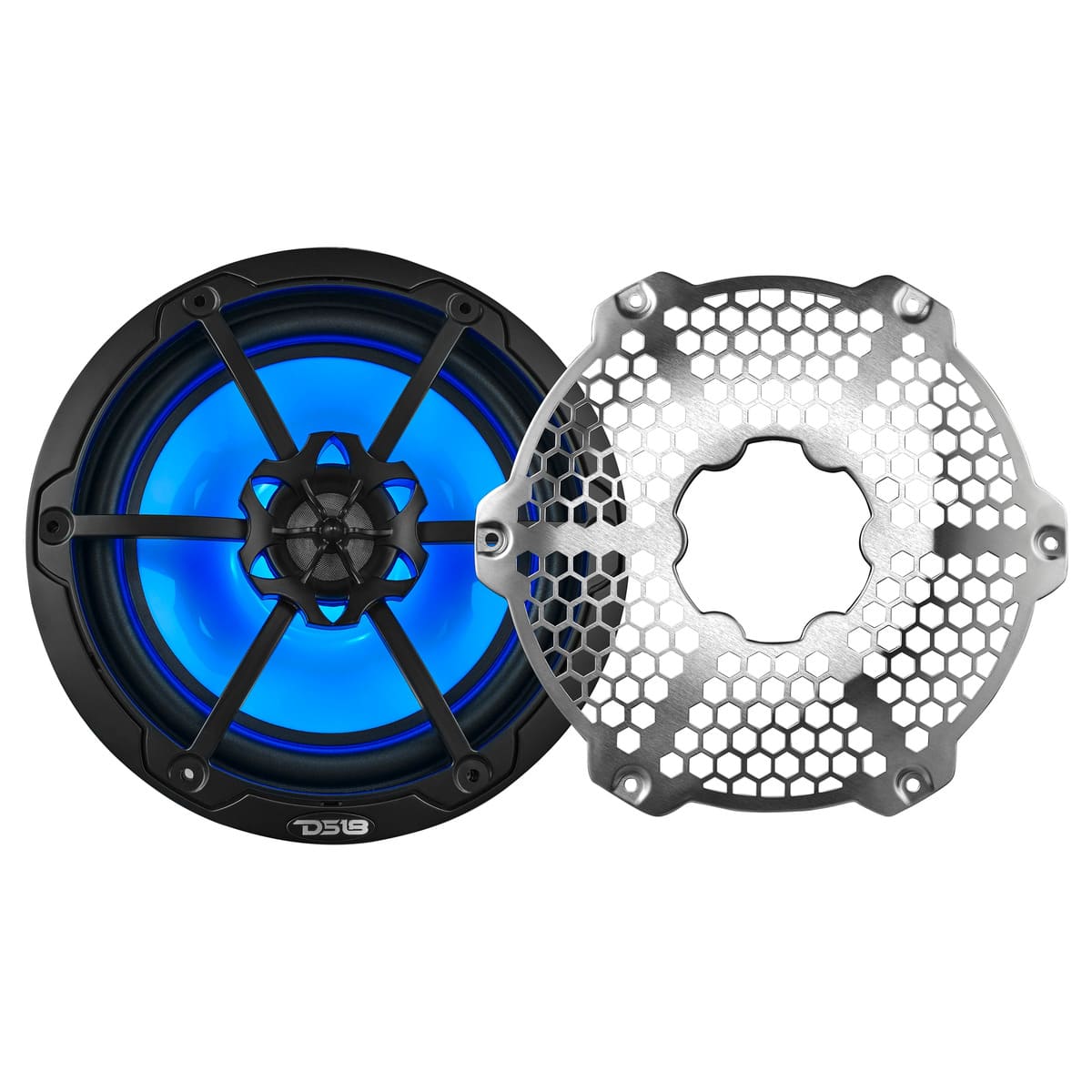

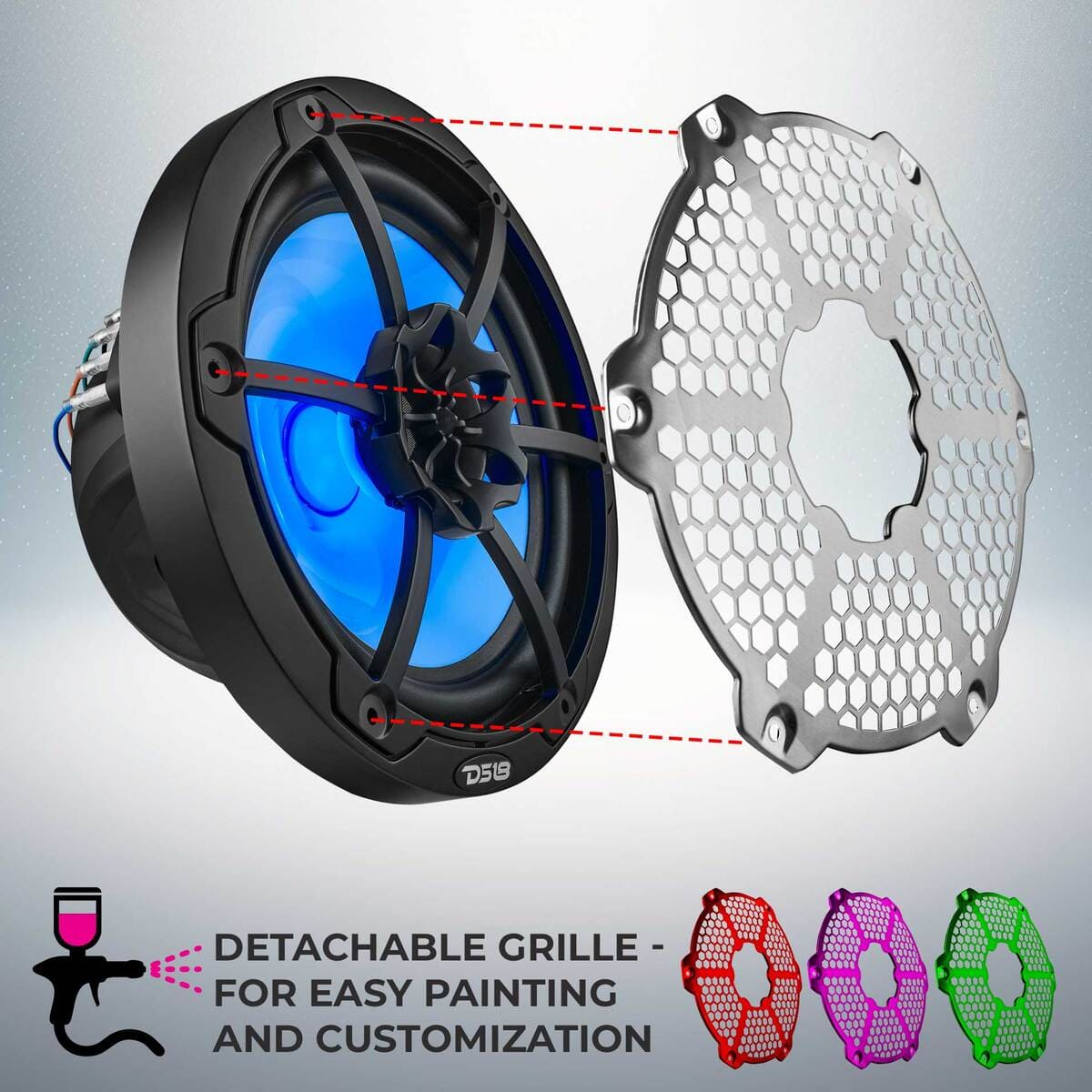

• Detachable Grille

Instructions:

• NXL-8M Hydro Speakers Web Manual V1


Specifications:

Specs:

• Nominal Diameter: 8" / 203mm

• Nominal Impedance: 4 Ohm

• RMS Power Handling: 125W

• MAX Power Handling: 375W

• Sensitivity (1w/1m): 93dB

• Frequency Response: 35Hz-23KHz

• Recommended HI Pass Crossover: 50 Hz

Body / Features:

• UV Compliant: Yes, 100% Stable

• Marine Grade Type: IP65

• RGB LED: Yes, RGB integrated

• Grill Type: Injection Molded Composite ASA with 316 Stainless Steel mesh

• Pair: Yes

• Color / Finish: Glossy White, Matte Black


Woofer Specifications:

• Voice Coil Diameter: 1.2" / 30.5mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Cone Material: Injection Molded Polypropylene + UV Compliant

• Surround Material: Butyl (Rubber)

• Basket Material: High Temp Injection Molded Composite ASA with UV Protection coating

• Magnet Material: Ferrite+Neodymium

• Magnet Weight: 24oz + 0.32oz

Tweeter Specifications:

• Nominal Diameter: 1" / 25.4mm

• Voice Coil Diameter: 1" / 25.4mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: Titanium + PEI Surround

• Magnet Material: Neodymium (N38H)

• Magnet Weight: 0.54oz

Thiele & Small Parameters:

• Equivalent Volume Vas: 66.7L / 2.35ft3

• Excursion (one way) Xmax: 8.5 mm

• Free Air Resonance Fs: 56Hz

• Mechanical Factor Qms: 7.701

• Electrical Factor Qes: 0.899

• Total Factor Qts: 0.805

• Moving Mass Mms: 7.265g

• Compliance Cms: 1.119mm/N

• Bl Factor Bl: 2.98

• Voice Coil Inductance Le: 0.49mH

• Cone Area Sd: 206.12cm2

• DC Resistance Re: 3.15ohms

• Efficiency Bandwidth Product EBP: 62.2

Speaker Measurement:

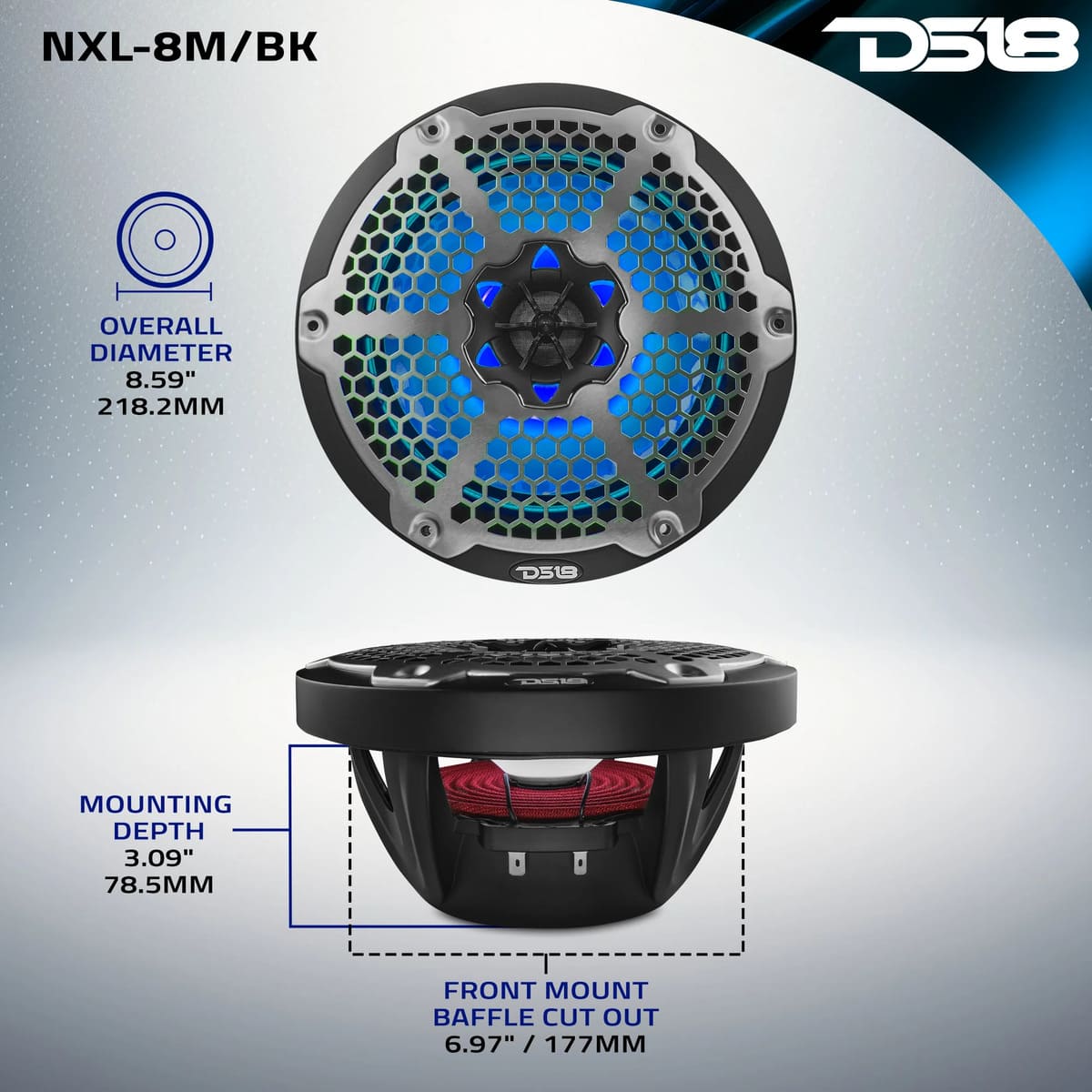

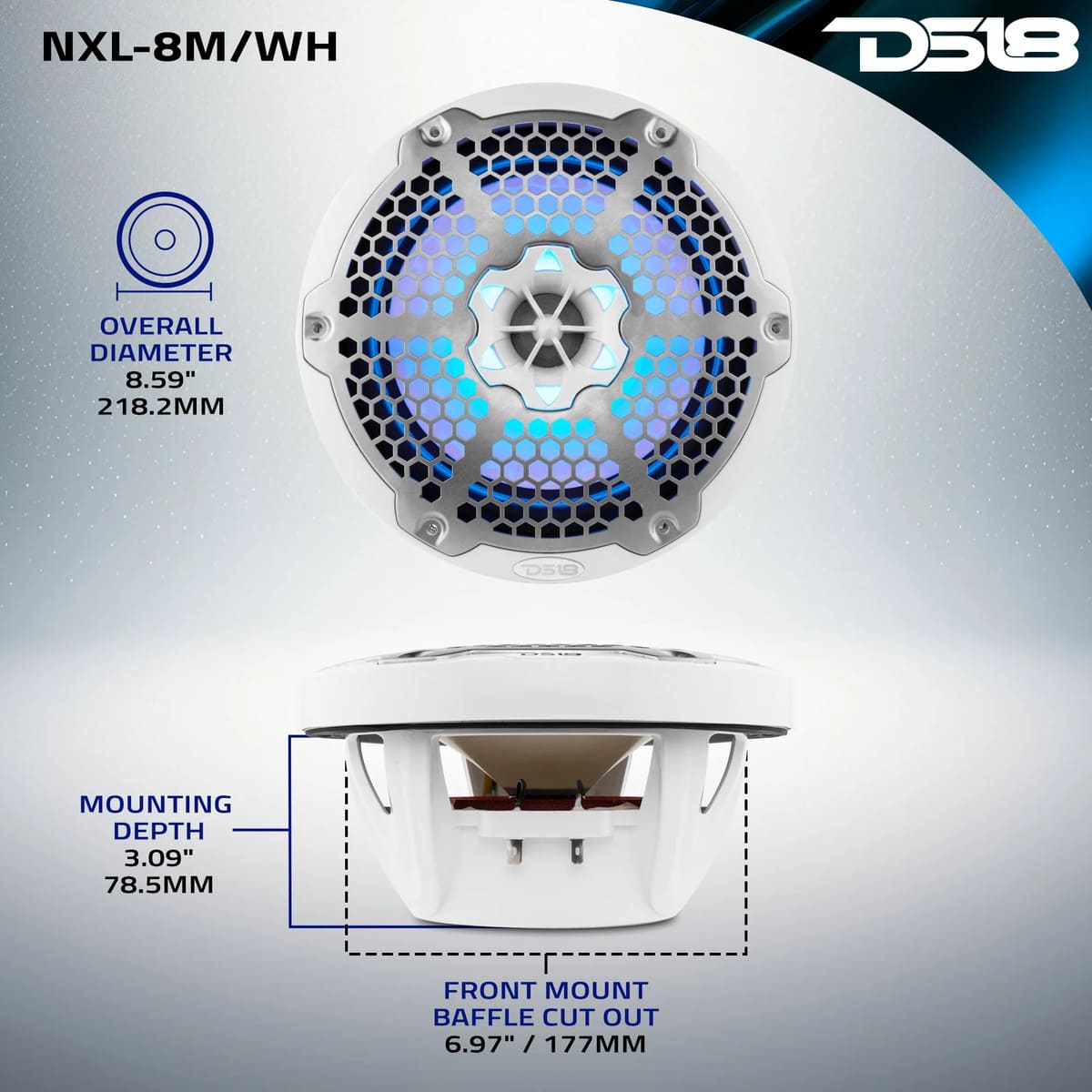

• Overall Diameter: 8.59" / 218.2mm

• Overall Depth: 4.45" / 113mm

• Front Mount Baffle Cutout: 6.97" / 177mm

• Mounting Depth: 3.09" / 78.5mm

• Motor Diameter: 4.32" / 110mm

• Gross Single Unit Weight (lb.): 10.5

• Single Unit Box Dimensions W x L x H (Inches): 20 x 10.5 x 5.5

• Quantity of Units in Master Carton: 2

• Gross Master Carton Weight (lb.): 23

• Master Carton Dimensions W x L x H (Inches): 20 x 11.5 x 11.5
