DS18 NXL 8" 2-Way Coaxial Marine Speaker w/ 125 Watts RMS 4-Ohm RGB LED Lights - Black Carbon Fiber

DS18 NXL 8" 2-Way Coaxial Marine Speaker w/ 125 Watts RMS 4-Ohm RGB LED Lights - Black Carbon Fiber

DS18, the unrivaled leader in audio innovation, presents the CF-8M: HYDRO Marine Speakers combine rugged durability with sleek elegance, designed to withstand the harshest elements without compromising on audio quality.

Engineered for all elements, DS18’s CF-8M, like other speakers in our HYDRO Series, are your ideal companions for both marine adventures and exhilarating motorsports. Crafted with precision, these speakers feature black carbon fiber texture with 316 metal mesh grill, allowing your speakers to remain as stylish as they are sturdy. The high temp injection-molded composite high gloss basket, fortified with UV coating, guarantees long-lasting durability that can withstand the test of time. With an impressive IP65 waterproof rating, you can rest assured DS18’s CF-8M will effortlessly endure any challenge nature throws at them.

The CF-8M HYDRO handles a commanding RMS Power of 125W and a MAX Power of 375W, delivering jaw-dropping sound quality that surpasses your expectations. The Y35 Ferrite Main Magnet combined with Reverse Neodymium technology produces unparalleled performance, resulting in a rich and dynamic audio experience. The 93dB sensitivity at 1w/m ensures every detail is crystal clear, immersing you in a world of pure audio ecstasy. The CF-8M Hydro covers the full range of frequencies from 45Hz to 23 KHz, ensuring a full-bodied sound that captures the essence of your favorite tracks.

For the ultimate audio control and customization, the CF-8M Hydro is compatible with DS18’s LED-BTC (sold separately) or any other RF/BT/Wifi Controller for Multi-Function RGB LED Lighting. Immerse yourself in a symphony of color and sound as you navigate the endless possibilities of audio customization.

Features:

• 8" 2-Way Marine Speaker

• RMS Power: 125 Watts

• Impedance: 4 Ohm

• Ferrite & Neodymium Magnet

• RGB LED Light ~ Metal Mesh Grill

• Water Resistant IP65

• Built in Tweeter

Instructions:

• CF-8M Manual Web V1


Specifications:

Specs:

• Nominal Diameter: 8" / 203mm

• Nominal Impedance: 4 Ohm

• RMS Power Handling: 125W

• MAX Power Handling: 375W

• Sensitivity (1w/1m): 93dB

• Frequency Response: 35Hz-23KHz

• Recommended HI Pass Crossover: 50 Hz

Body / Features:

• UV Compliant: Yes, 100% Stable

• Marine Grade Type: IP65

• RGB LED: Yes, RGB integrated

• Grill Type: Injection Molded Composite (ASA) with 316 Stainless Steel mesh

• Pair: Yes

• Color / Finish: Carbon Fiber Texture / Gloss

Woofer Specifications:

• Voice Coil Diameter: 1.2" / 30.5mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Cone Material: Injection Molded Polypropylene + UV Compliant

• Surround Material: Butyl (Rubber)

• Basket Material: High Temp Injection Molded Composite (ASA) with UV Protection coating

• Magnet Material: Ferrite (Y35) + Neodymium (N35)

• Magnet Weight: 24oz+0.32oz

Tweeter Specifications:

• Voice Coil Diameter: 1" / 25.4mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: PEI

• Magnet Material: Neodymium(N38H)

• Magnet Weight: 0.54oz

Thiele & Small Parameters:

• Equivalent Volume VAS: 66.7L / 2.35ft3

• Excursion (one way) XMAX: 8.5 mm

• Free Air Resonance FS: 56Hz

• Mechanical Factor QMS: 7.701

• Electrical Factor QES: 0.899

• Total Factor QTS: 0.805

• Moving Mass MMS: 7.265g

• Compliance CMS: 1.119mm/N

• BL Factor BL: 2.98

• Voice Coil Inductance LE: 0.49mH

• Cone Area SD: 206.12cm2

• DC Resistance RE: 3.15ohms

• Efficiency Bandwidth Product EBP: 62.2

Speaker Measurement:

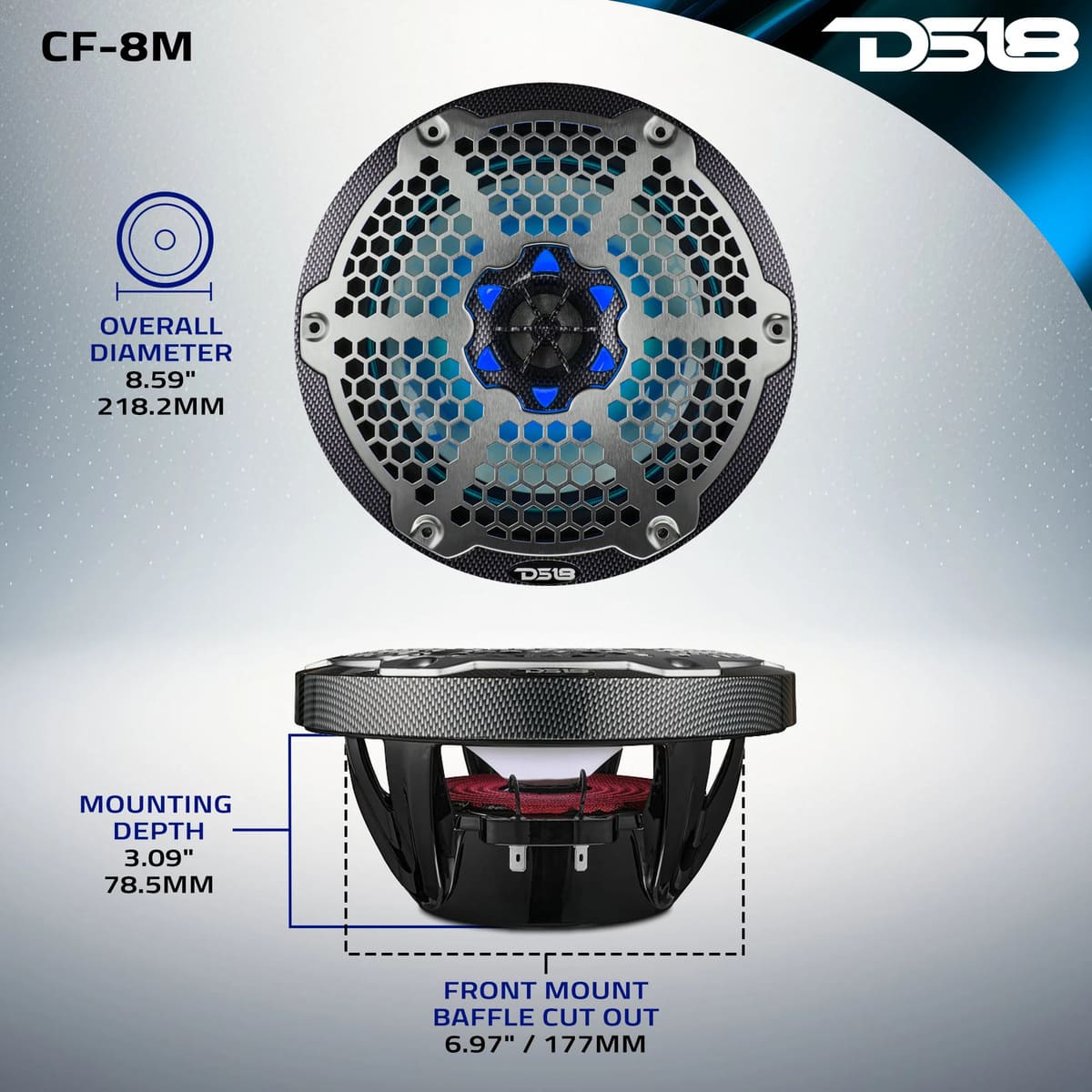

• Overall Diameter: 8.59" / 218.2mm

• Overall Depth: 4.45" / 113mm

• Front Mount Baffle Cutout: 6.97" / 177mm

• Mounting Depth: 3.09" / 78.5mm

• Motor Diameter: 4.32" / 110mm

• Gross Single Unit Weight (lb.): 10.25

• Single Unit Box Dimensions W x L x H (Inches): 20.25 x 10.25 x 5.5

• Quantity of Units in Master Carton: 4

• Gross Master Carton Weight (lb.): 45.5

• Master Carton Dimensions W x L x H (Inches): 22.5 x 20 x 11
