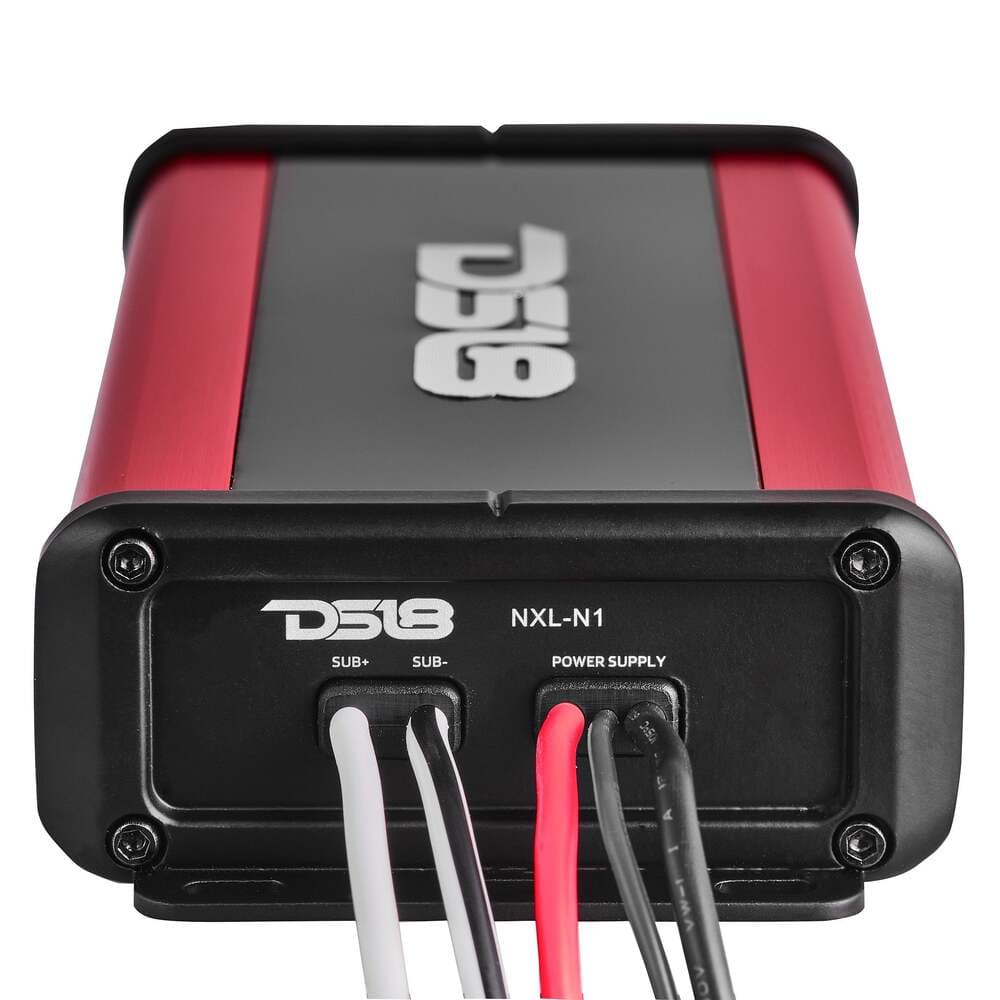

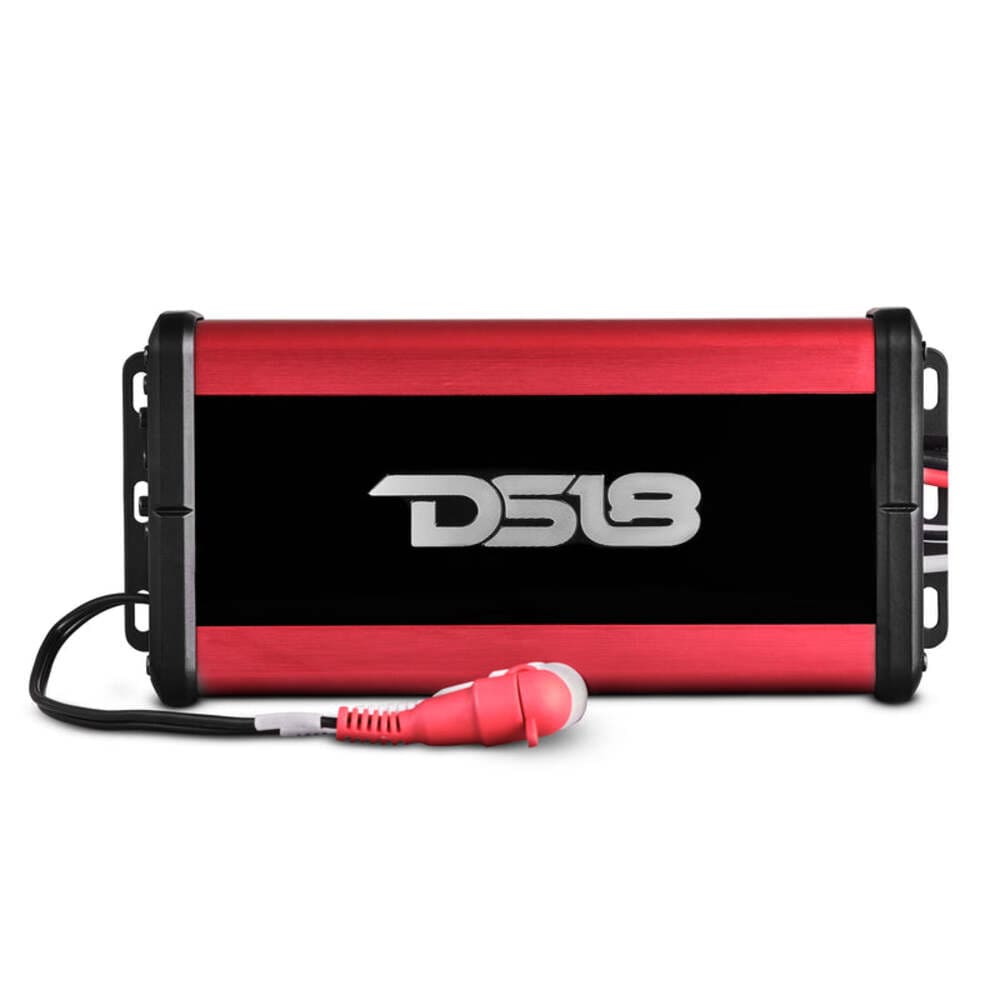

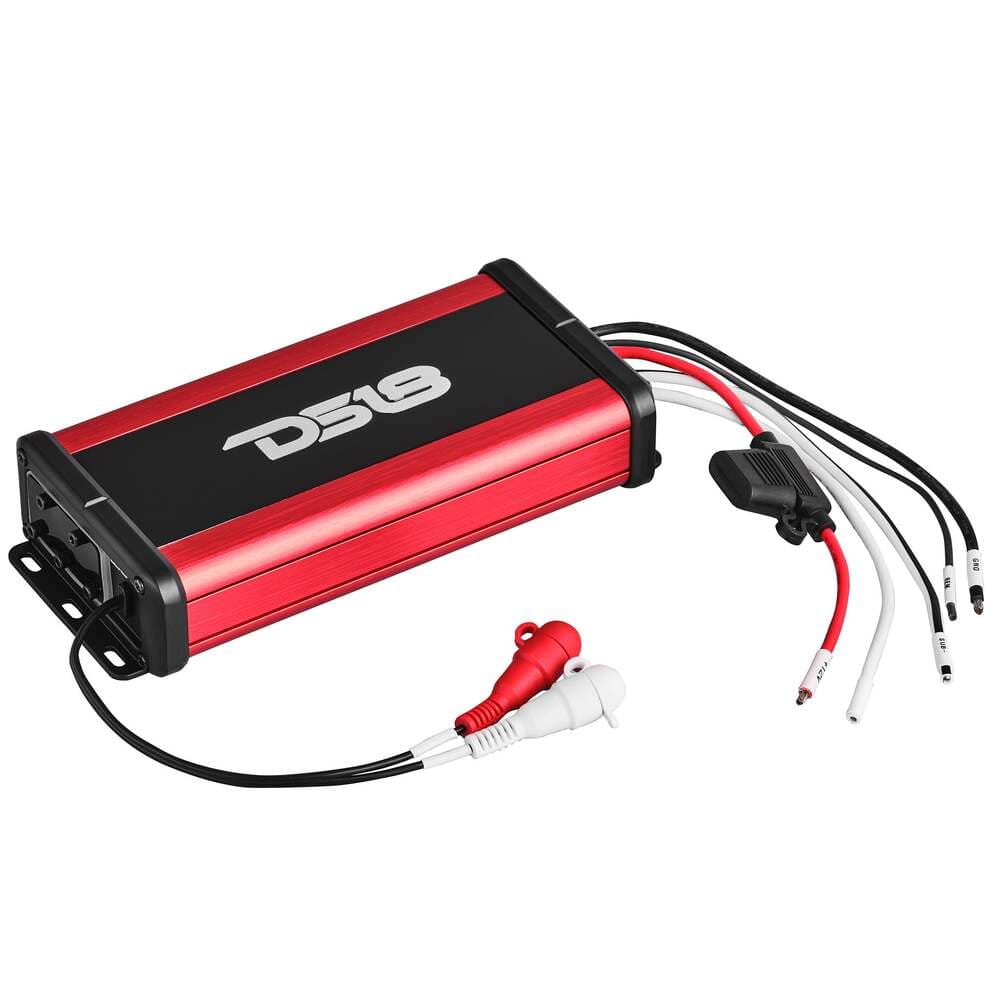

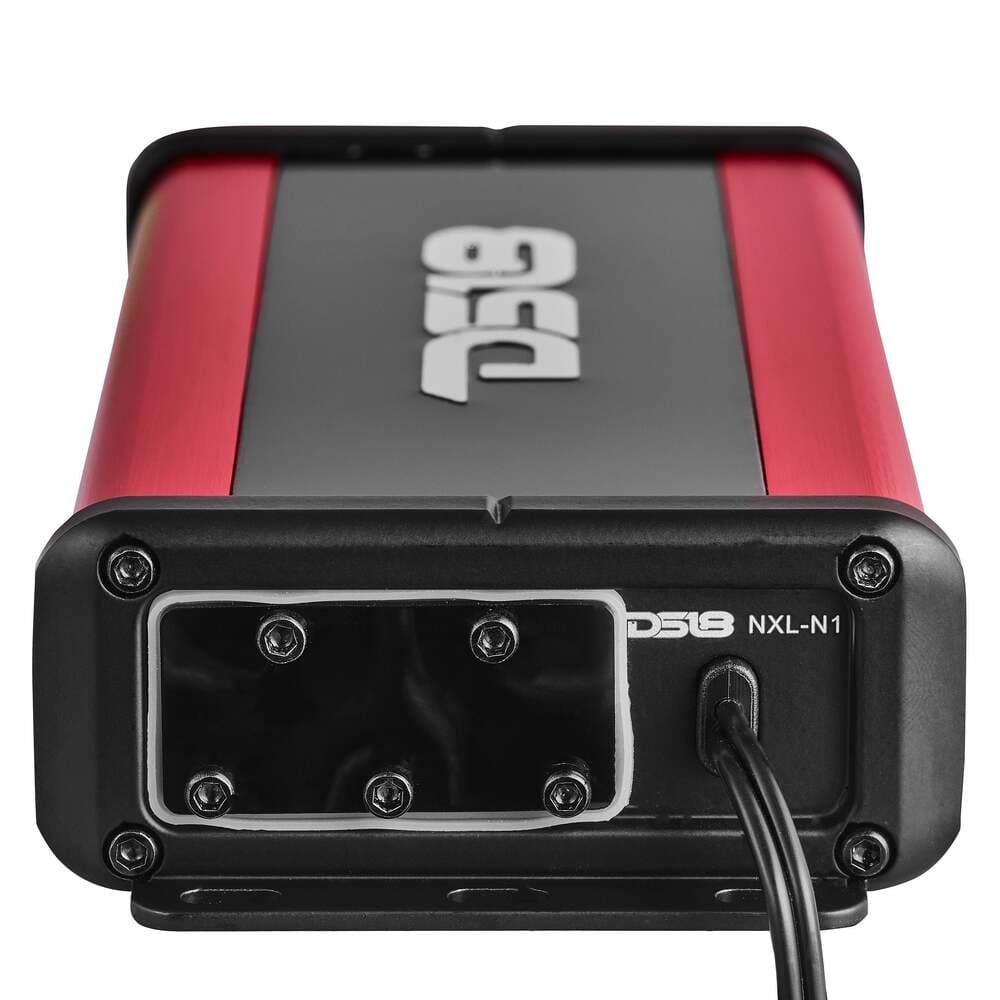

DS18 NXL 1-Channel Class D 1 x 350 Watts RMS @ 1-Ohm IP67 NANO Amplifier

DS18 NXL 1-Channel Class D 1 x 350 Watts RMS @ 1-Ohm IP67 NANO Amplifier

DS18’s NXL-N1 is the ultimate power solution for audio enthusiasts who like it LOUD on the go! Whether you're hitting the open road on your bike, tearing through rough trails on your side by side, or cruising the open waters, this waterproof rated amp delivers exceptional performance in a compact package.

DS18's NXL-N1 is designed to power your entire system with efficiency and precision. With a 1-channel configuration these amplifiers provide your subwoofers with uninterrupted power for them to get as LOUD as possible!

Built with a stable and reliable 4-layer PCB layout design, the NXL-N4 ensures consistent performance even in challenging conditions. Rated IP67 for powersports applications, they are fully waterproof and ready to withstand the harshest environments. Plus, their ultra-compact size makes installation a breeze, fitting seamlessly into any setup.

Featuring a max power of 1050W, this amplifier delivers rich and immersive sound with 1 x 230W of RMS power at 2 Ohm and 1 x 350W of RMS power at 1 Ohm!

Experience the DS18 difference with DS18’s NXL-N1 1-Channel Monoblock Marine Amplifier.

Features:

• Marine Mono Block

• 1 Channel

• 1 X 350 Watts @ 1 Ohm

• Class D

• Micro

• Water Resistant IP67

Instructions:

• NXL-N Spanglish Manual Web V2

Specifications:

General Specs:

• Total Watts (Peak): 1050W

• RMS Power @ 4 ohm: 1 X 140W

• RMS Power @ 2 ohm: 1 X 230W

• RMS Power @ 4 ohm Bridge :1 X 350W

Audio:

• Frequency Response: 20Hz-20KHz

• Signal to Noise Ratio 1W @ 4Ω: 90dB

• Total Harmonic Distortion (THD): 0.1%

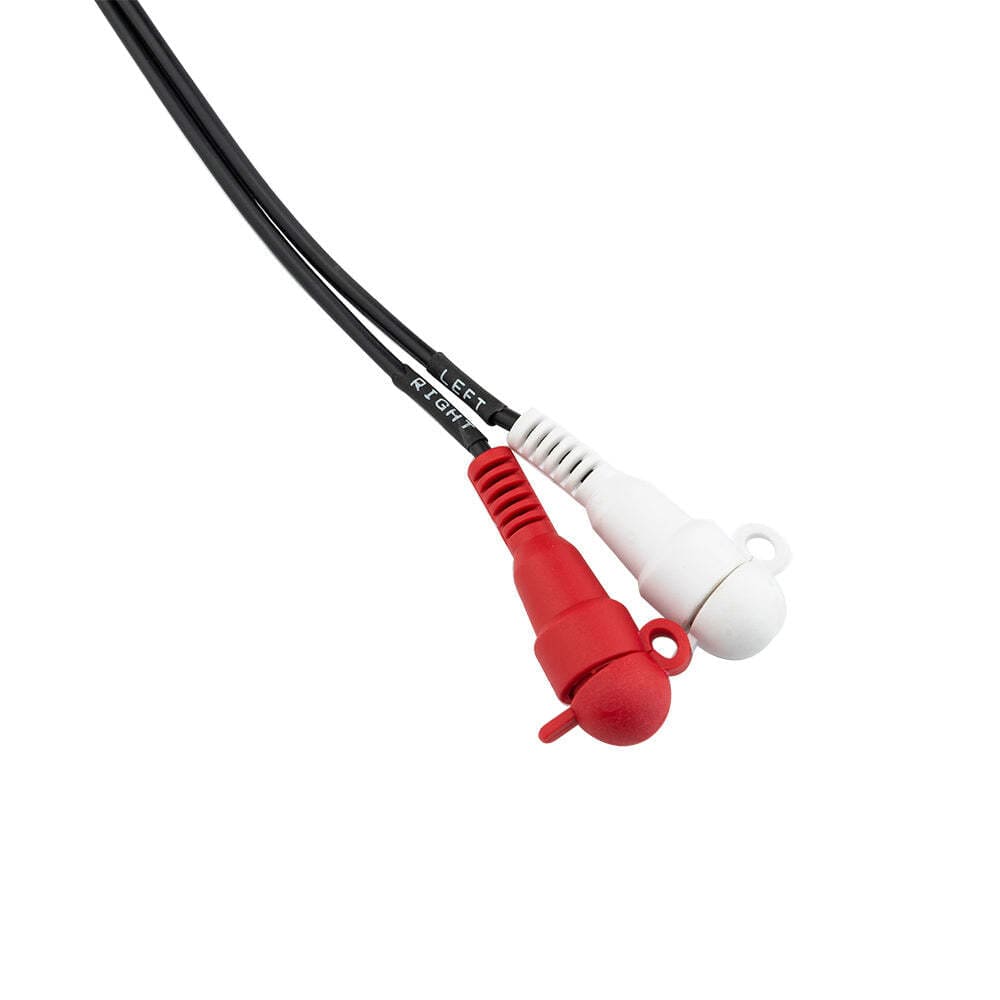

• Low Level Input Range: 200mV-5V

• Selectable X-Over: LPF Fixed

• X-Over Filter Range: 50-250Hz

• Bass Boost Range: 0-18dB

• Bass Boost Frequency: 45Hz

• Infrasonic Filter: 10-50Hz

Features 1:

• Amplifier Class: Digital
  Amplifier Type: Monoblock Subwoofer
  Number of Channels: 1
  Minimum Impedance: 1 Ohm
  LED Indicator: Power / Protection

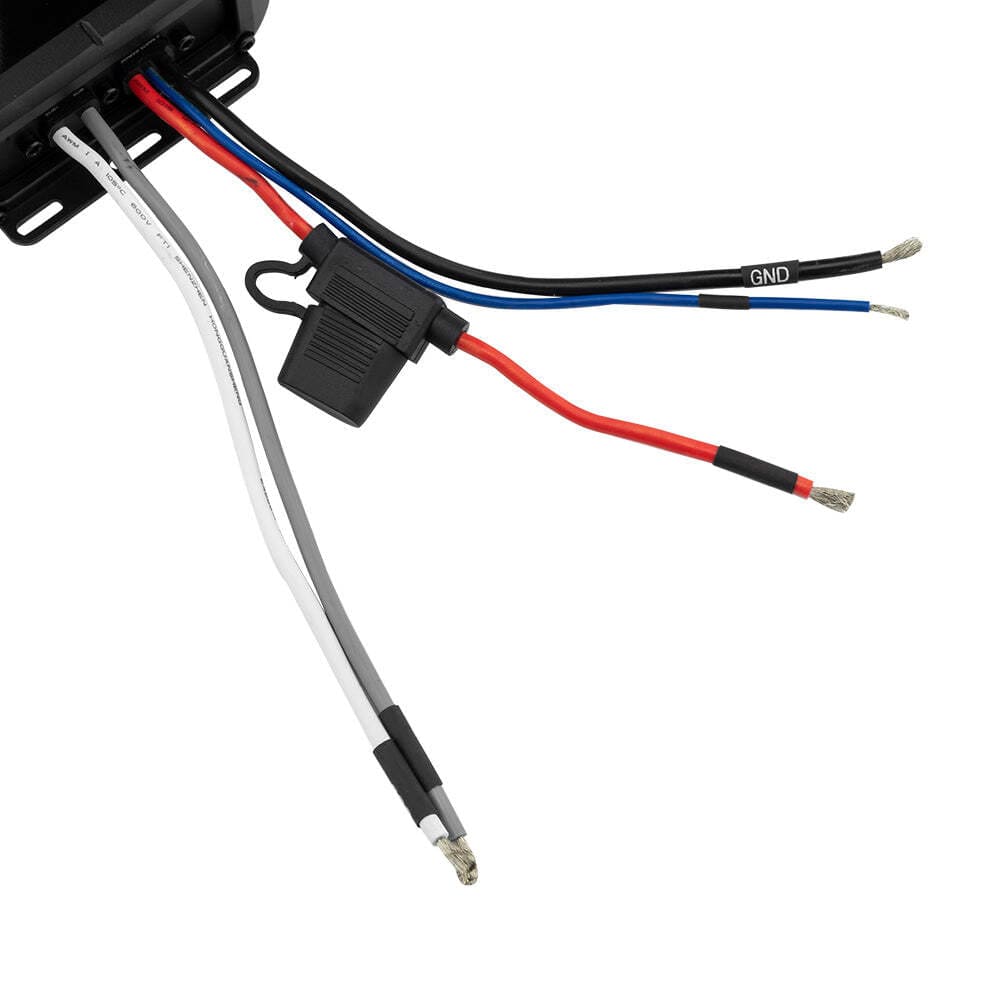

  Power Input Size: Wired 10Ga OFC

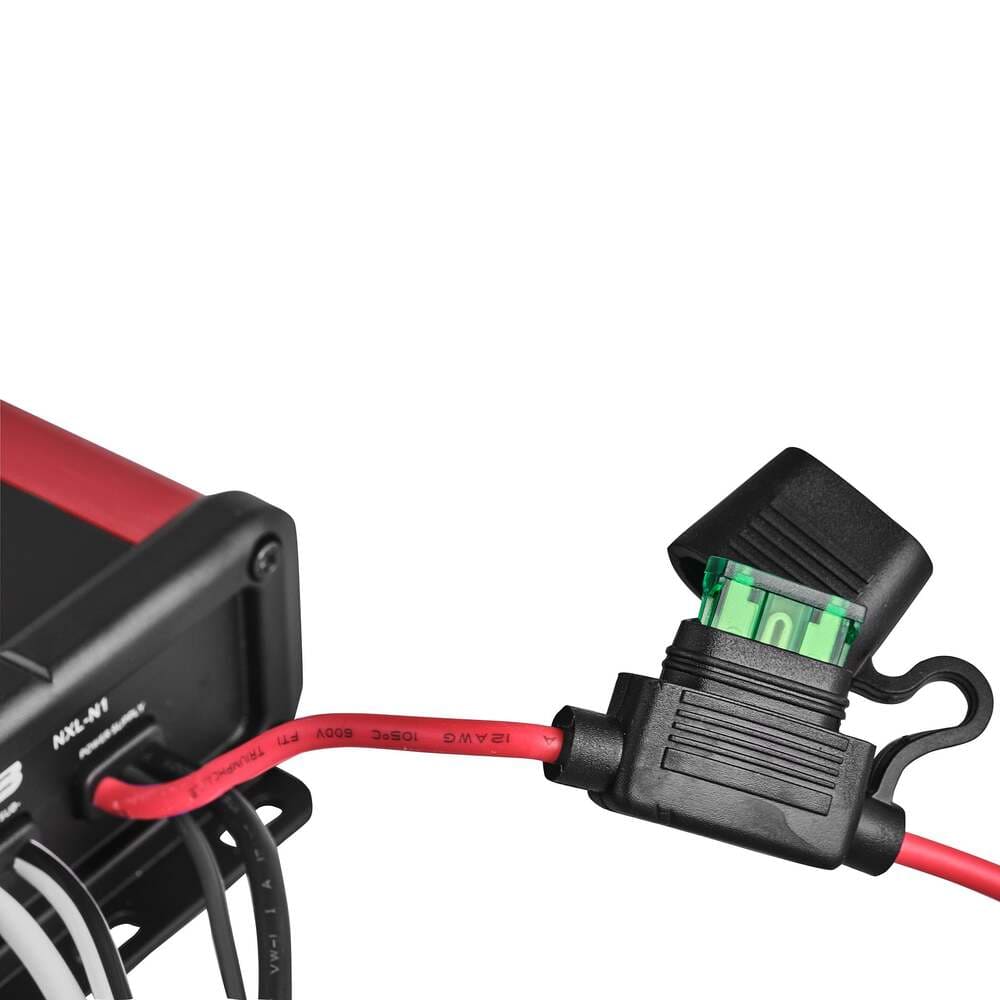

  Fuse Size: 30A
  Thermal Protection: Yes

Features 2:

• Over-Load Protection: Yes

• DC Output Protection: Yes

• Short Circuit Output Protection: Yes

• Voltage Input Protection: Yes (>15V)

• Body Color: Aluminum Black and Red

• Waterproof Rating: IPX67

• Latest Full Range Digital Design Based on IR Platform: Yes

• Ultra Compact Design for Easy Installation: Yes

• PCB Design with Stable and Reliable 4-Layer Layout: Yes

• Quality Control Verification Using AP Instruments: Yes

Measurement:

• Overall Length: 7.87" / 200mm

• Overall Wide: 3.67" / 93.4mm

• Overall Height: 1.56" / 39.8mm

• Heatsink Length: 7.16" / 182mm

• Gross Single Unit Weight: 2.14Lb / 974g

• Product Weight: 2 lbs

• Product Dimensions: 10.25 x 5 x 3

• M/C Weight: 25.5 lbs

• M/C Dimensions: 16 x 11 x 10.75

• M/C QTY: 10

• Sold In: Piece
