DS18 NVY 4-Channel Full-Range IP67 200 x 4 @ 4-Ohm Watts Rms Marine and Powersports Amplifier

DS18 NVY 4-Channel Full-Range IP67 200 x 4 @ 4-Ohm Watts Rms Marine and Powersports Amplifier

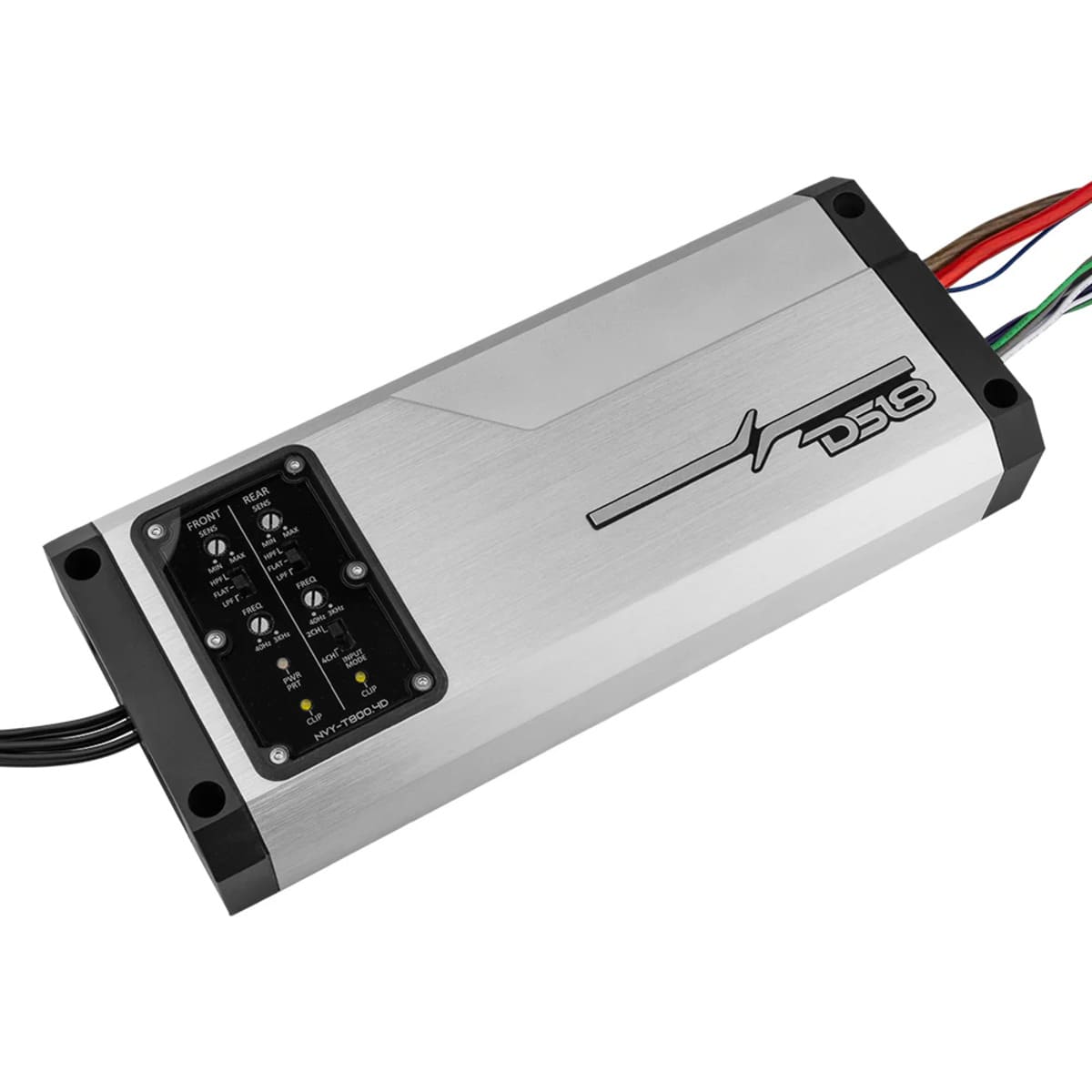

Introducing the NVY-T800.4D: a versatile 4-channel amplifier designed for high quality audio reproduction and unbreakable durability.

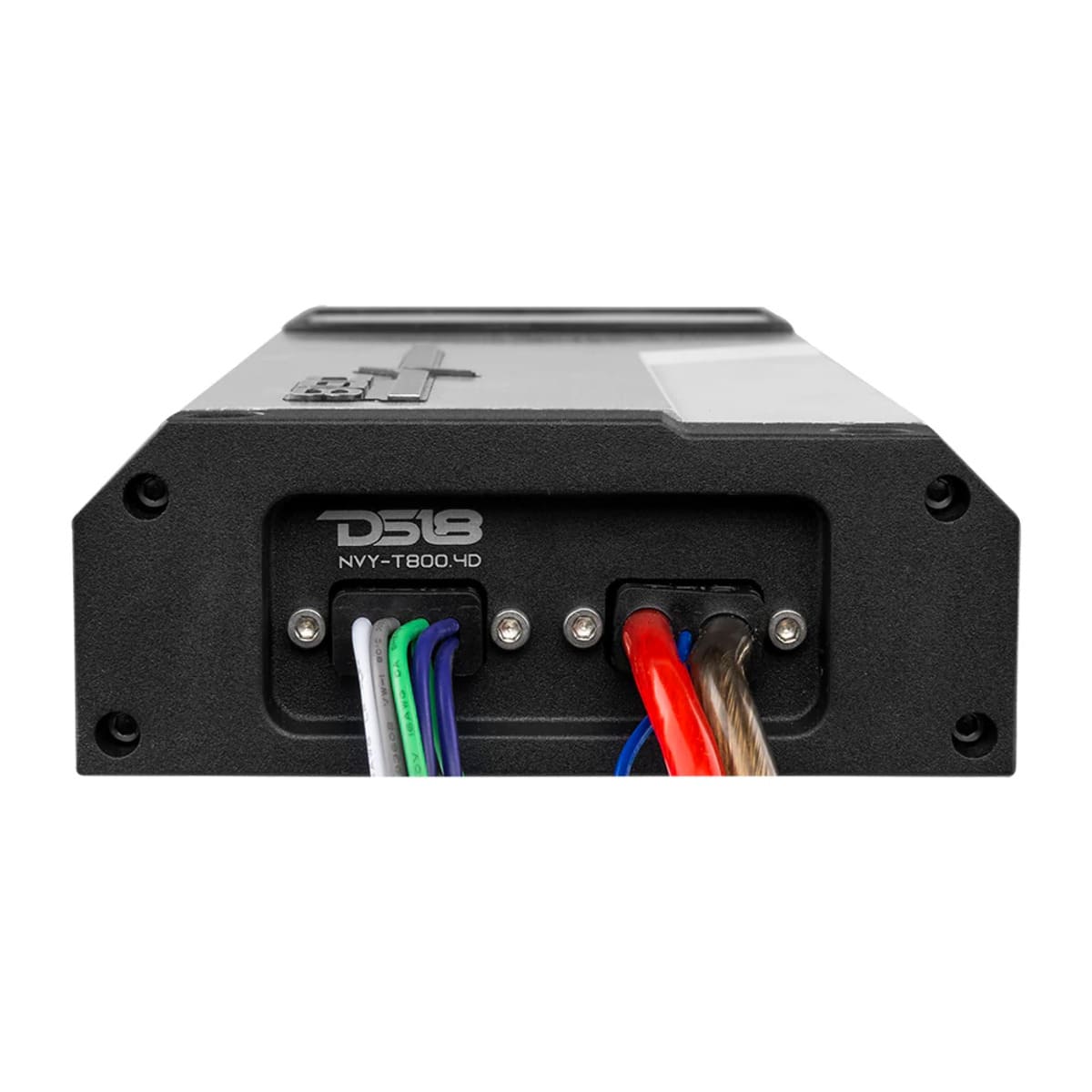

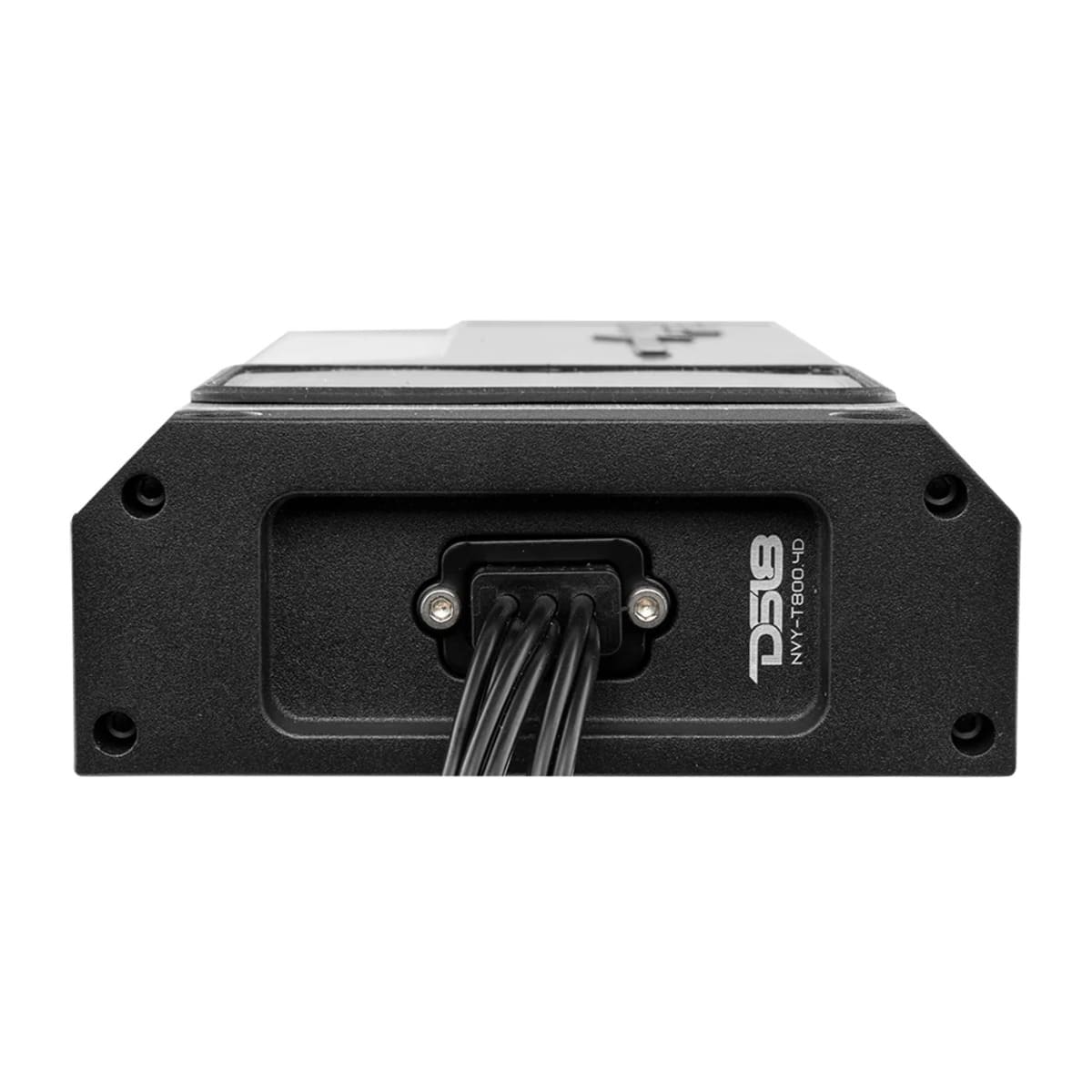

The NVY-T800.4D was designed to withstand the harshest elements: it’s IP67 waterproof rating and UV/SALT/Fog Protection, paired with it’s surface mount component technology and direct harness design allows this amplifier to be installed anywhere easily without sacrificing space!

The NVY-T800.4D also features a 2CH/4CH Input Selector so you can use 2 RCAs or 4 depending on your setup.

It’s wide range of protection features, including thermal protection, over-load protection, short circuit output protection, and voltage input protection reinforced by power, protection, and clipping indicators ensures the safety and longevity of the NVY-T800.4D.

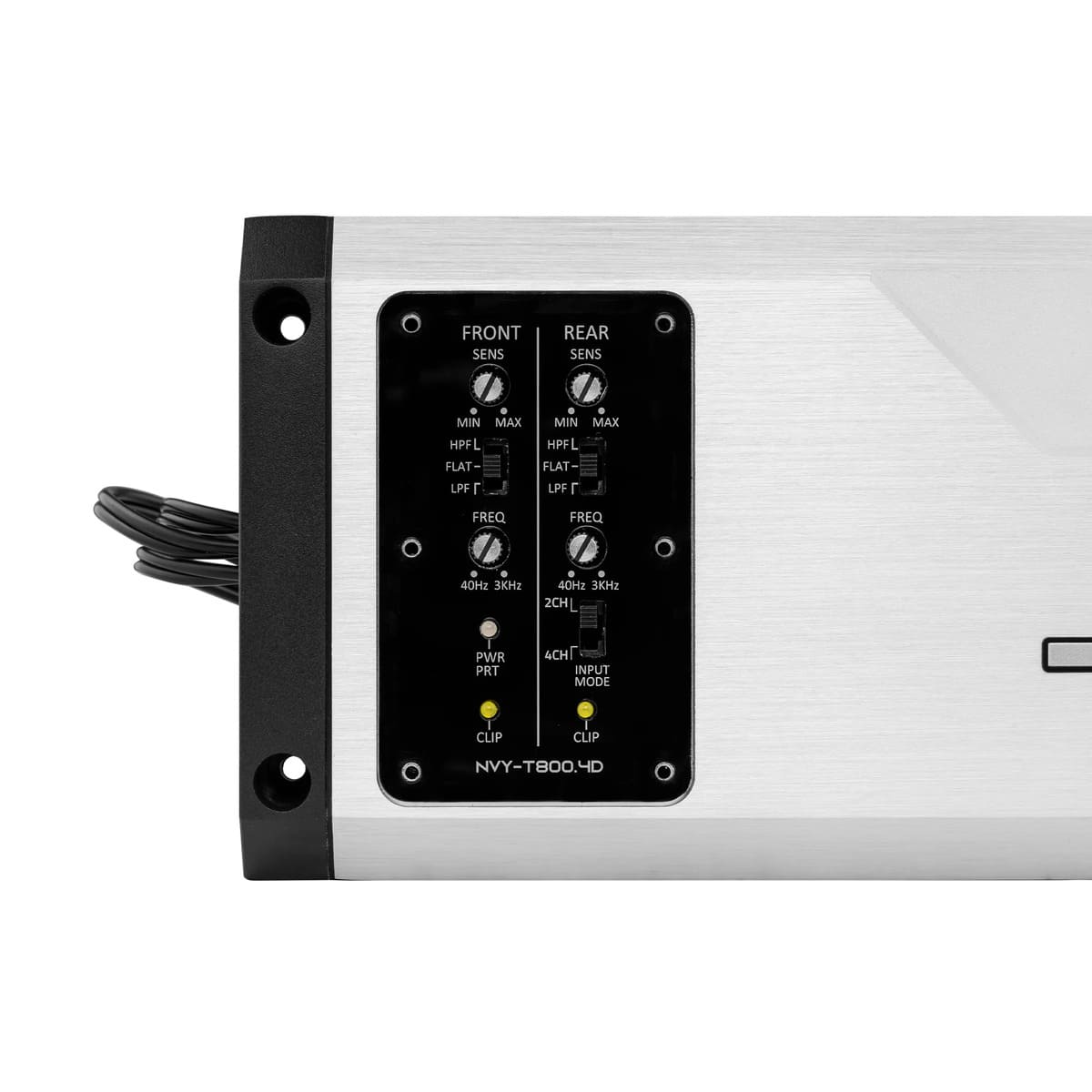

Equipped with selectable HPF, LPF, and FULL crossover filters; the NVY-T800.4D allows you to customize your sound to your liking.

This stereo full range amplifier covers ranges from 20Hz-20KHz and has a signal-to-noise ratio of >80dB for crisp and clear audio with minimal distortion.

With a peak power output of 2400W and RMS power of 4 x 200W @ 4 ohm, 4 x 300W @ 2 ohm, and 2 x 600W @ 4 ohm bridge, the NVY-T800.4D is perfect for powering any speakers in your marine audio system.

Be prepared for everything with the NVY-T800.4D!

Features:

• Marine Full Range
  4 Channel
  4 x 200 Watts @ 4 Ohm
  Built in Crossover
  Class D
  Water Resistant IP67
• LED Indicator
• HPF/LPF/FLAT

Instructions:

• NVY-T800.4D Spanglish Manual Web V1


Specifications:

General Specifications:

• Total Watts (Peak): 2400W

• RMS Power @ 4 ohm: 4 x 200W

• RMS Power @ 2 ohm: 4 x 300W

• RMS Power @ 4 ohm Bridge: 2 x 600W

Audio:

• Frequency Response: 10Hz-20KHz

• Signal to Noise Ratio 1W @ 4Ω: > 80dB

• Efficiency @ 4 ohm: 85%

• Input Impedance: 20K ohms

• Channel Separation: >55dB

• Total Harmonic Distortion (THD): < 0.05%

• Low Level Input Range: 200mV-5V

• Selectable X-Over: HPF/Full/LPF

• X-Over Filter Range: 40Hz-3KHz

• Damping Factor: >55dB

Features 1:

• Amplifier Class: Digital

• Amplifier Type: Stereo Full Range

• Number of Channels: 4

• Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)

• LED Indicator: Power | Protection | Clip

• Power Input Terminal Size: 8GA Tinned OFC

Features 2:

• Recommended Fuse Size: 80A

• Thermal Protection: Yes

• Over-Load Protection: Yes

• Short Circuit Output Protection: Yes

• Voltage Input Protection: Yes

• Body Color | Finish: Brushed Aluminum

Extra Features:

• 2Ch / 4Ch Input Selector: Yes

• Waterproof Rating: IP67

• UV / Salt Fog Protection: Yes

• Power Direct Harness Design: Yes

• Surface Mount Component Technology: Yes

• Metal Knobs: Yes

Measurement:

• Overall Length: 11.6" / 295mm

• Overall Wide: 4.9" / 125mm

• Heatsink Length: 10.2" / 261mm

• Gross Single Unit Weight: 2.86Kg

• Product Weight: 6.5 lbs.

• Product Dimensions: 14.5 x 6.75 x 4

• M/C Weight: 27 lbs.

• M/C Dimensions: 16.5 x 15.25 x 7.75

• M/C QTY: 4

• Sold In: Piece
