DS18 Hydro MRX100 Headunit

DS18 Hydro MRX100 Headunit

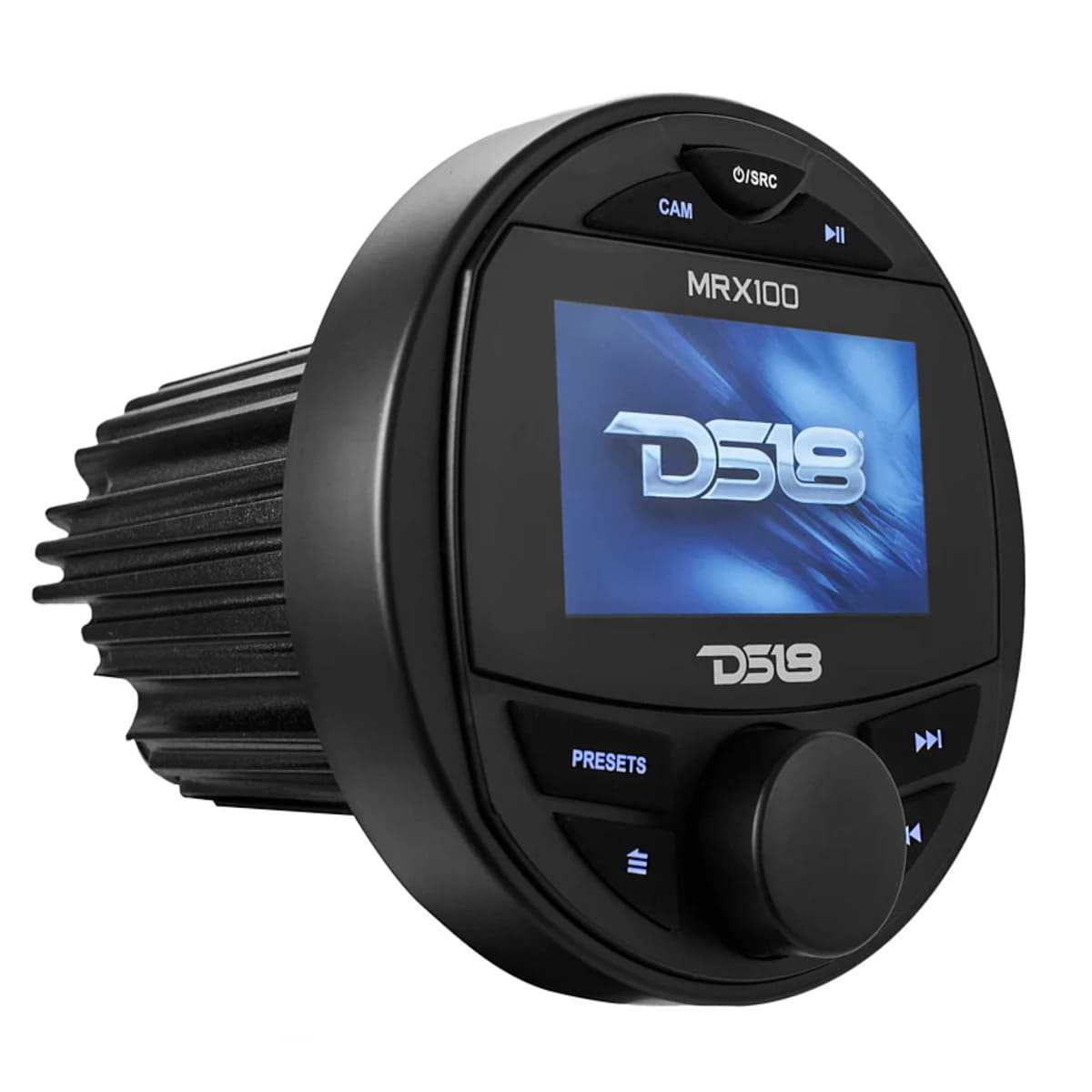

DS18’s HYDRO MRX100 is the all-in-one marine head unit, designed to take on any challenge and exceed expectations.

Connectivity is key, and the MRX100 delivers. Featuring enhanced Bluetooth connectivity with an extended range, you can easily play music from your phone or any Bluetooth source. Additionally, USB and AUX inputs allow you to connect any device of your choice. With over 37 preset radio stations available, you can enjoy your favorite tunes without the need for an external device.

Not only does the MRX100 offer exceptional audio quality, but it also provides full control over your sound experience. Take advantage of precise sound settings to adjust bass, treble, balance, fade, EQ, loudness, and Subwoofer crossover effortlessly. The vibrant LCD display with RGB keys ensures easy readability while adding a touch of personalization to match your mood or color scheme.

Built with durability in mind, the MRX100 is engineered to withstand the harshest conditions that marine, golf-cart, and off-road environments can throw at it. The MRX100 allows you to view your vehicle's rear camera directly through the receiver.

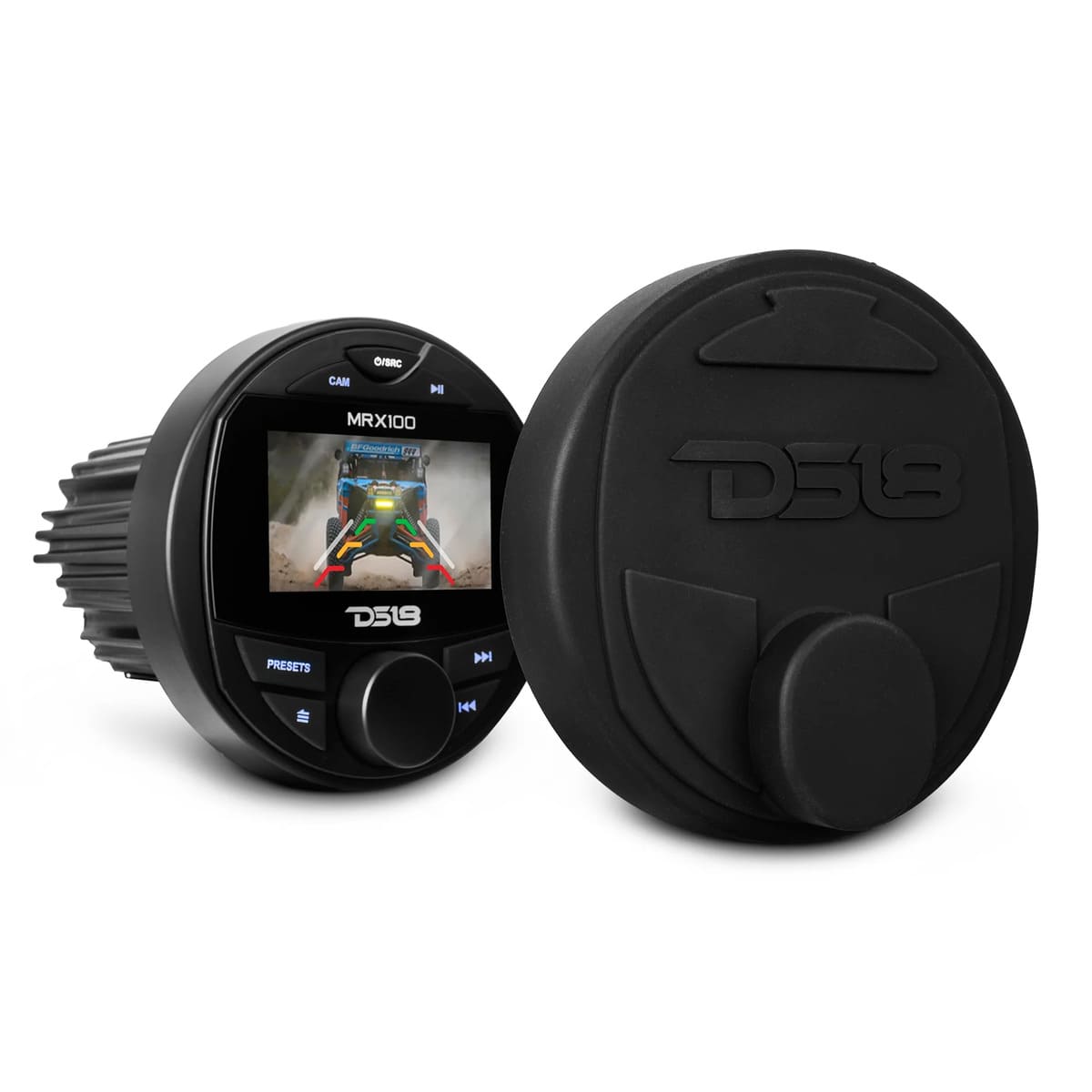

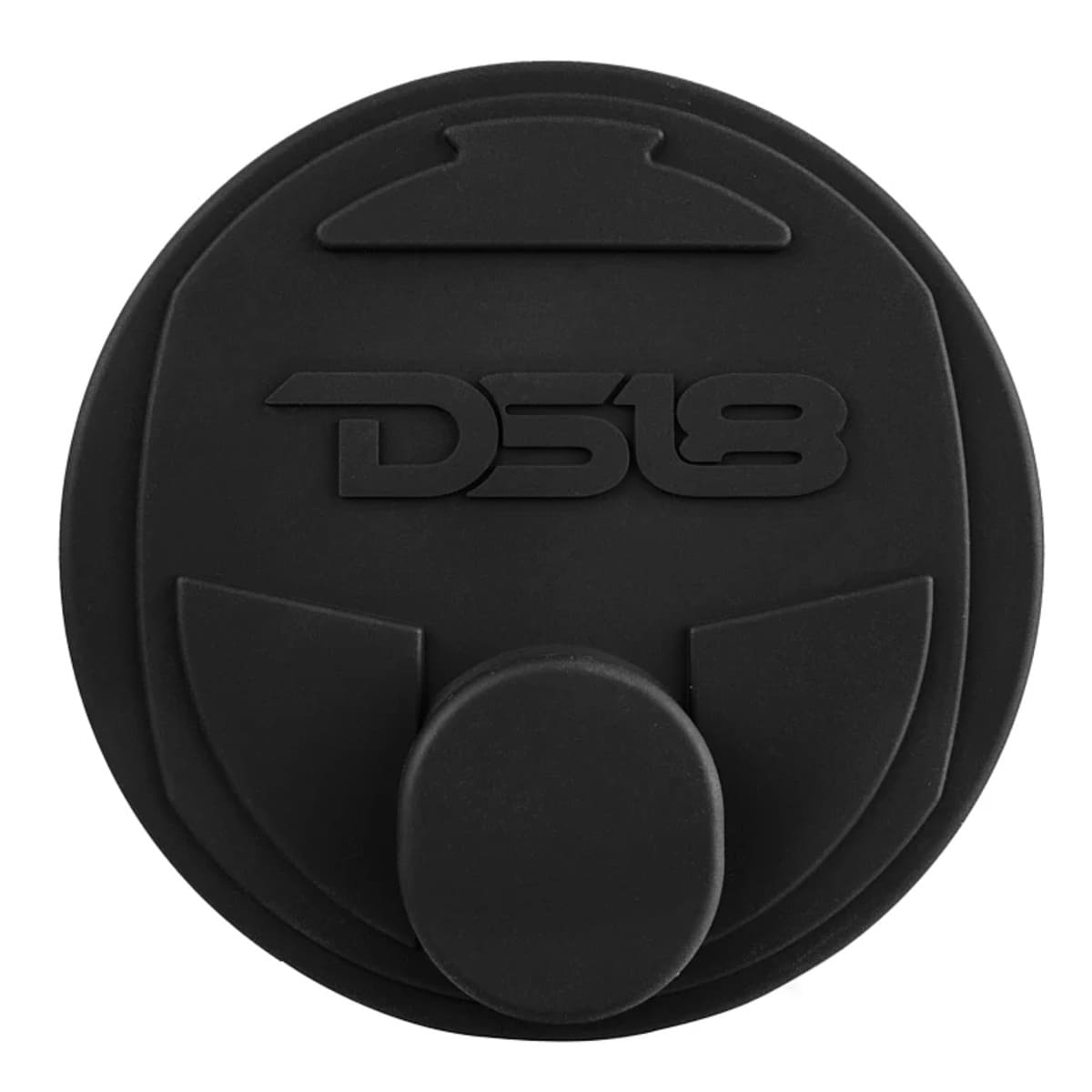

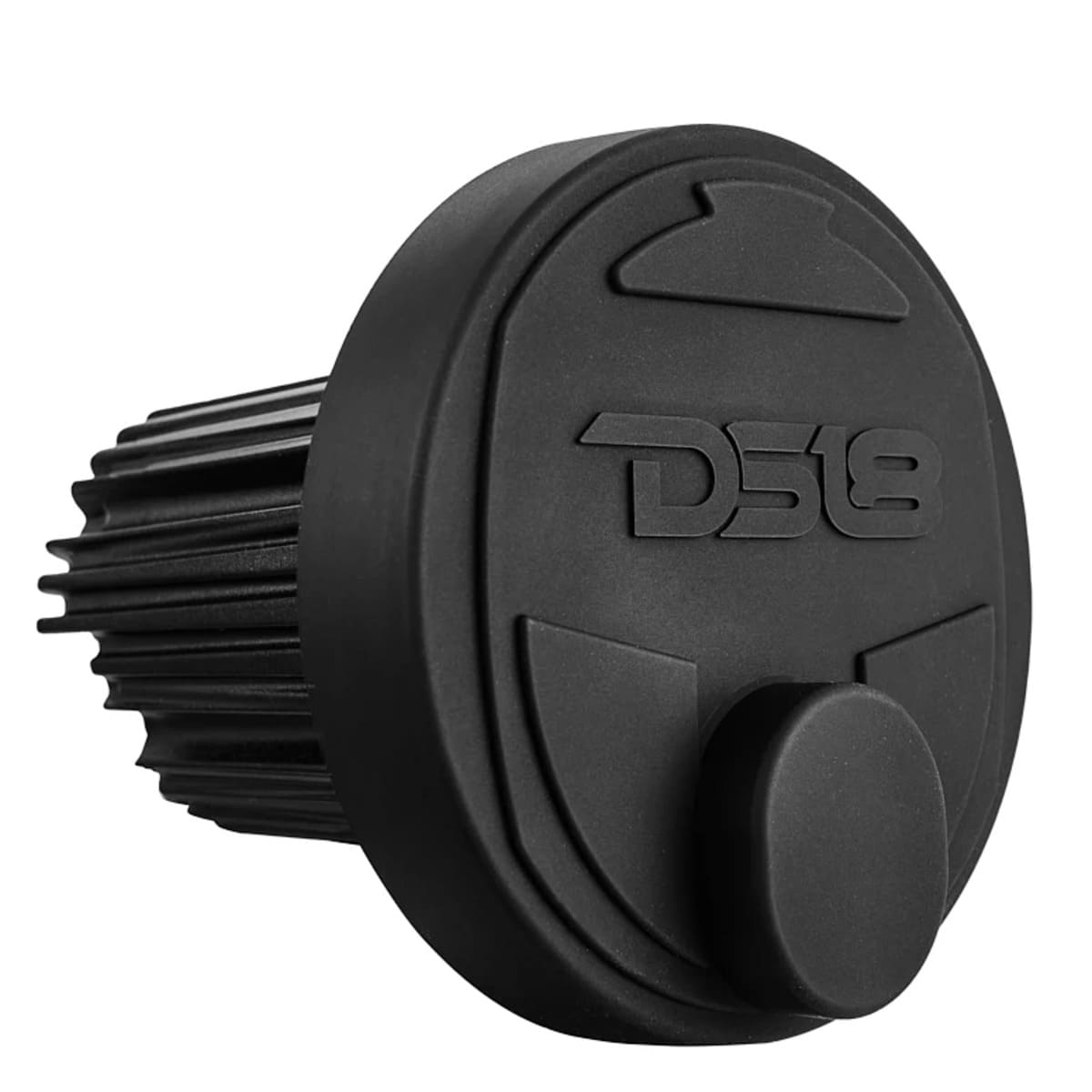

Equipped with a Gorilla Glass screen and an IP65 waterproof rating, this marine head unit was built to go against the elements. To top it off, it comes with a silicone cover designed to provide extra protection when the unit is not in use. Additional features include a voltmeter and low voltage alert to optimize all connected equipment.

It's time to take control of your sound and enjoy the ultimate audio experience on the water, off-road, or wherever adventure takes you.

Features:

• Marine and Powersports Head Unit

• 3" TFT RGB LCD Display

• USB ~ Bluetooth ~ AUX ~ Camera

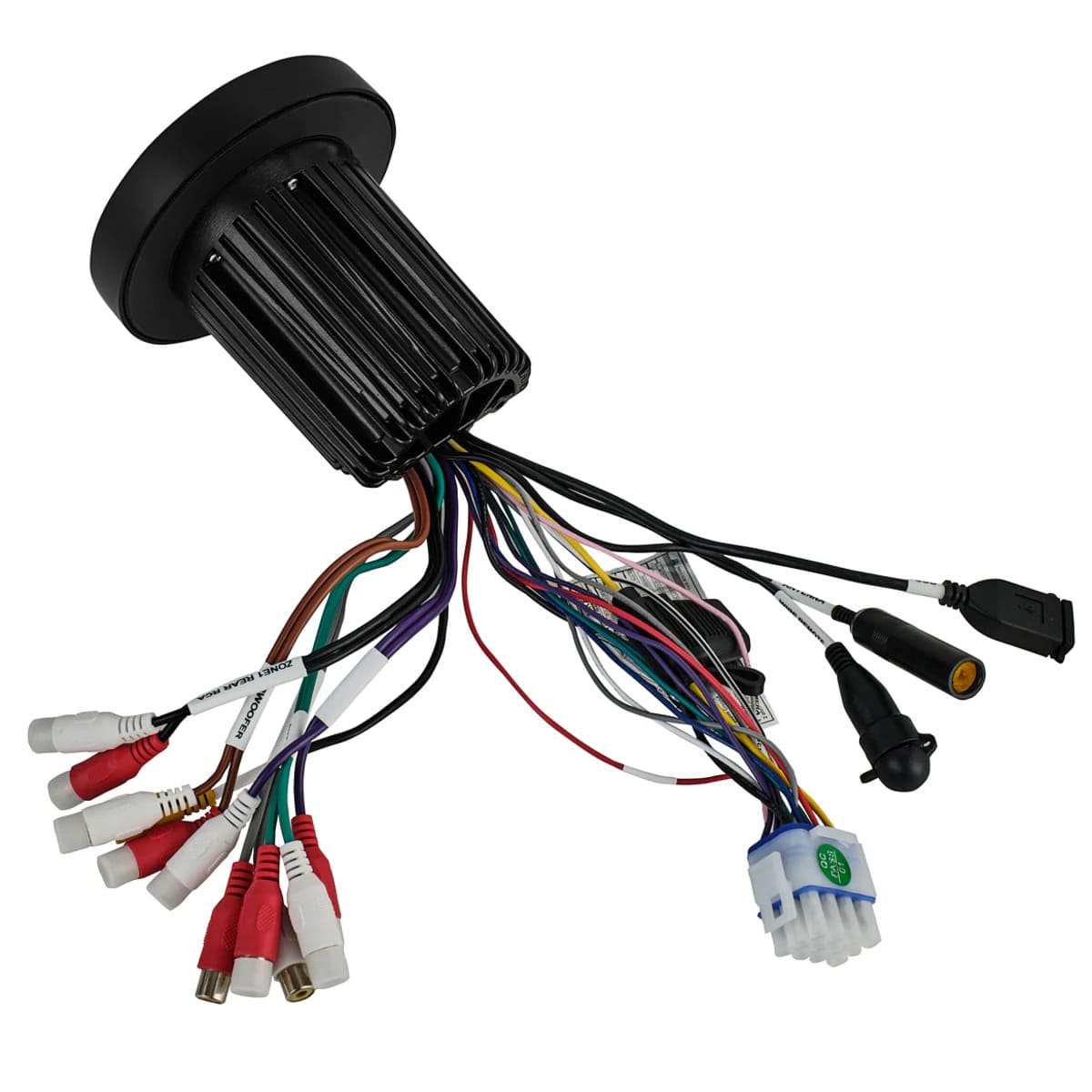

• 2 Zones ~ F/R/SUB RCA

• 4 X 50 Watts

• Water Resistant IP65 / Silicone cover included
• IP65 RATING
• Bluetooth Receiver
• View Camera Input
• Wired Remote Control Input

Instructions:

• MRX100 Manual Web V2


Specifications:

General Specifications:

• Operating Voltage: 10.5 – 16 Volts
• Current Drain: 15 Ampere / (Max)
• Low Voltage Warning Alert: Yes
• Waterproof Rating: IPX6
• UV/Salt Protection: Yes
• Buttons: Rubber + RGB Blacklit (Blue Color)

Display:

• Screen Panel: Gorilla Glass with OCA Full Bonding
• Backlight: LED

Audio:

• RMS: 4 X 18W @ 4 ohm (14.4v)
• RMS: 4 X 25W @ 4 ohm (14.4v)
• MAX: 4 X 50W @ 2 ohm (14.4v)
• Minimum Load: 2 ohm Stable per Channel
• Frequency Response: 20Hz to 20KHz
• RCA Pre-Out Voltage: 4 Volts
• Output Impedance: 500 ohm
• Equalizer: 2 Bands/ Bass 100Hz / ±10dB / Treble 10Khz / ±10dB
• Presets: Yes (S-Bass / Vocal / Powerful / Clarity)
• Subwoofer Control: Level (-10 to +10)
• Audio Zones: 2 Zones (Zone 1: Front R+L / Zone 2: R+L)
• Independent Zone Control: Yes (Level/Tone)
• Audio Input: L+R RCA (Aux Input)

Tuner:

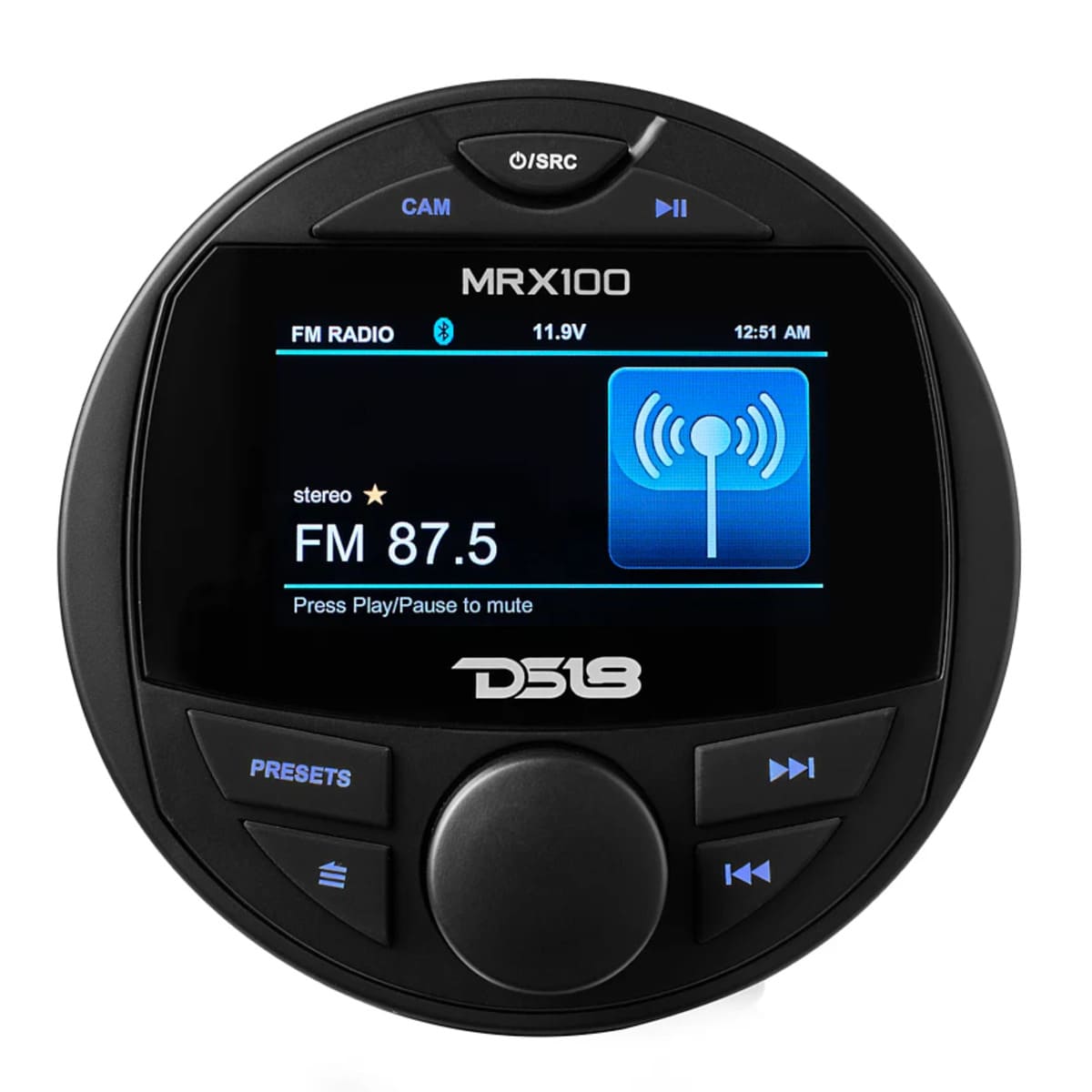

• FM Frequency Range: 87.5 - 107.9 MHz
• AM Frequency Range: 530 - 1710 KHz

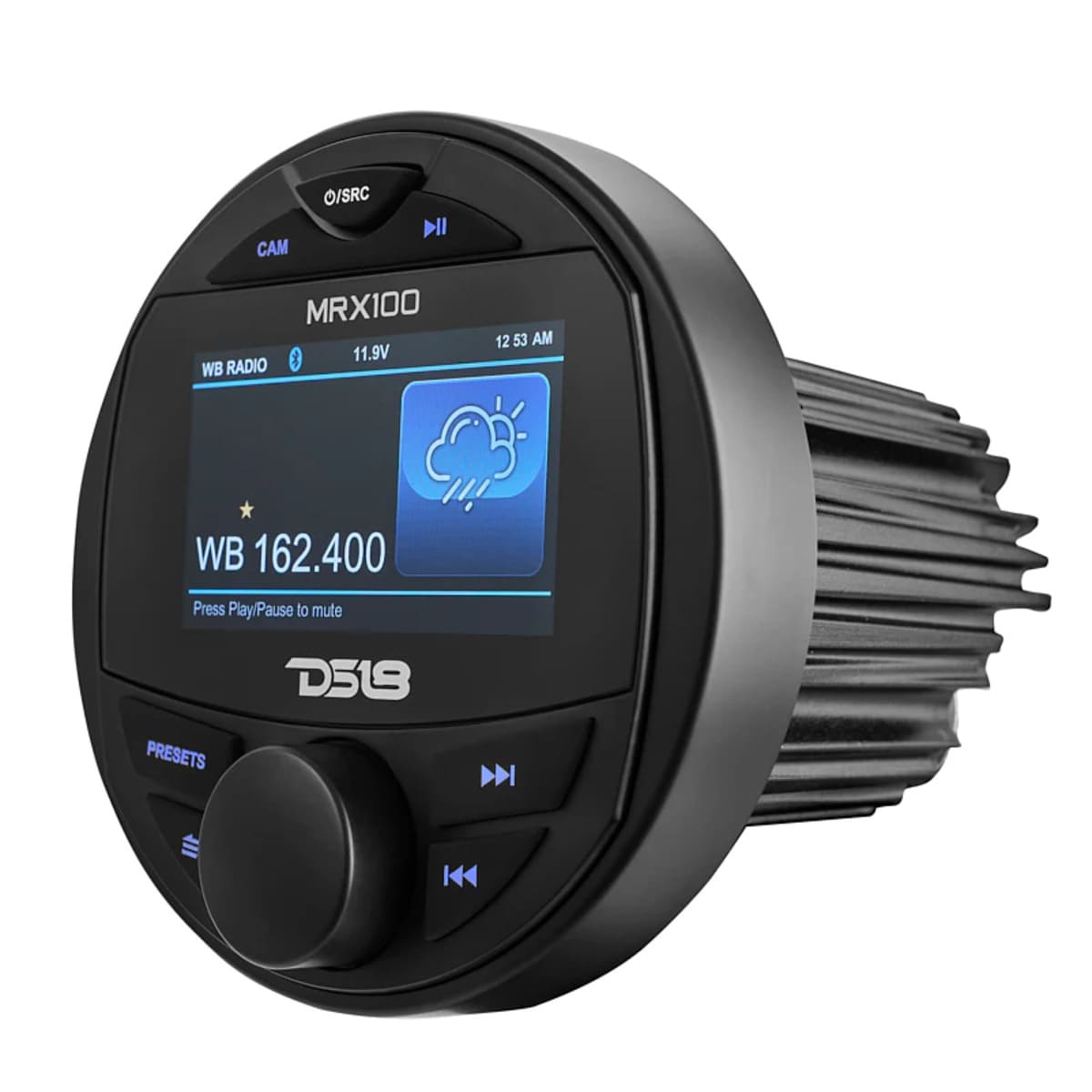

• Weather Band: 162.40 - 162.55 MHz
• NOAA Weather Band: Yes
• Tuner Presets: 18 FM / 12 AM / 6 WB
• Radio Data System: Yes (AF/TA/NEWS)
• IF: 10.7MHz (FM), 450KHz (AM)
• Sensitivity: 4µV (FM), 36dBuV. (AM)
• Signal To Noise Ratio: 30dB FM
• Stereo Separation: 25 dB

Connectivity:

• BT Version: 5.0 + EDR
• Audio Streaming: A2DP
• USB Compatibility: v2.0
• USB Capacity: 64 Gb Max
• USB Charge Capacity: 2.1 Amp
• Audio Files Compatibility: MP3, WMA
• Remote Control: Wired 3.5mm Jack Input (Compatible with MXRC)

Measurements:

• Product Weight: 2 lbs
• Product Dimensions: 6 x 6 x 7.75
• M/C Weight: 28 lbs
• M/C Dimensions: 18.5 x 12.75 x 16.5
• M/C QTY: 12
• Sold In: Piece
