DS18 Infinite 80 AH 2300 Watts AGM Power Cell 12 Volt Battery

DS18 Infinite 80 AH 2300 Watts AGM Power Cell 12 Volt Battery

Upgrade your power source with the DS18 INF-80AH!

Designed with AGM (Absorbed Glass Mat) technology, this battery is the top choice among team competitors seeking high-performance solutions.

Featuring a non-spill design, this battery can be mounted upside down or in multiple configurations, providing you with maximum flexibility and convenience. The bolt M5 terminals ensure a secure connection and offer multiple options for add-on terminals and busbars, allowing for enhanced connectivity and conduction.

With its high burst reserve, this power cell maintains high volumes of amperage draw while efficiently holding voltage. Say goodbye to dim lights and weak electronics - the high float charge of the DS18 INF-80AH ensures that your lights stay brighter, your electronics run stronger, and you have more reserve power and voltage altogether.

Don't settle for less when it comes to your power needs. Experience the DS18 difference first hand.

Features:

• 12 Volt AGM Battery

• 80 AMP Hours

• Thread Lead Alloy Recessed / M6 Bolt

• Maintenance Free

• 2300 Power Watts

• Made in Vietnam


Specifications:

• Battery Type: AGM

• Nominal Voltage: 12.8 V

• Capacity: 80Ah @ 10hr-rate to 1.8V per cell @ 25°C (77°F)

• Maximum Discharge Current: 2400 Amps

• Cranking Amps (CA): 1200 Amps

• Cold Cranking Amps (CCA): 580 Amps

• Spillable: Non Spillable

Other Specs:

• Watts (RMS): 2300W

• Internal Resistance: Approx. 5.7 mΩ

• Float Charging Voltage: 13.5 to 13.8 Vdc / unit average at 25°C (77°F)

• Recommended Charging Current: 24 Amps

• Nominal Operating Temperature Range: 25°C +/- 3° (77°F +/- 5°)

• Bolt / Terminal Type: Thread Lead Alloy Recessed / M6 Bolt

• Battery Group: 24

• Made In: Made In Vietnam

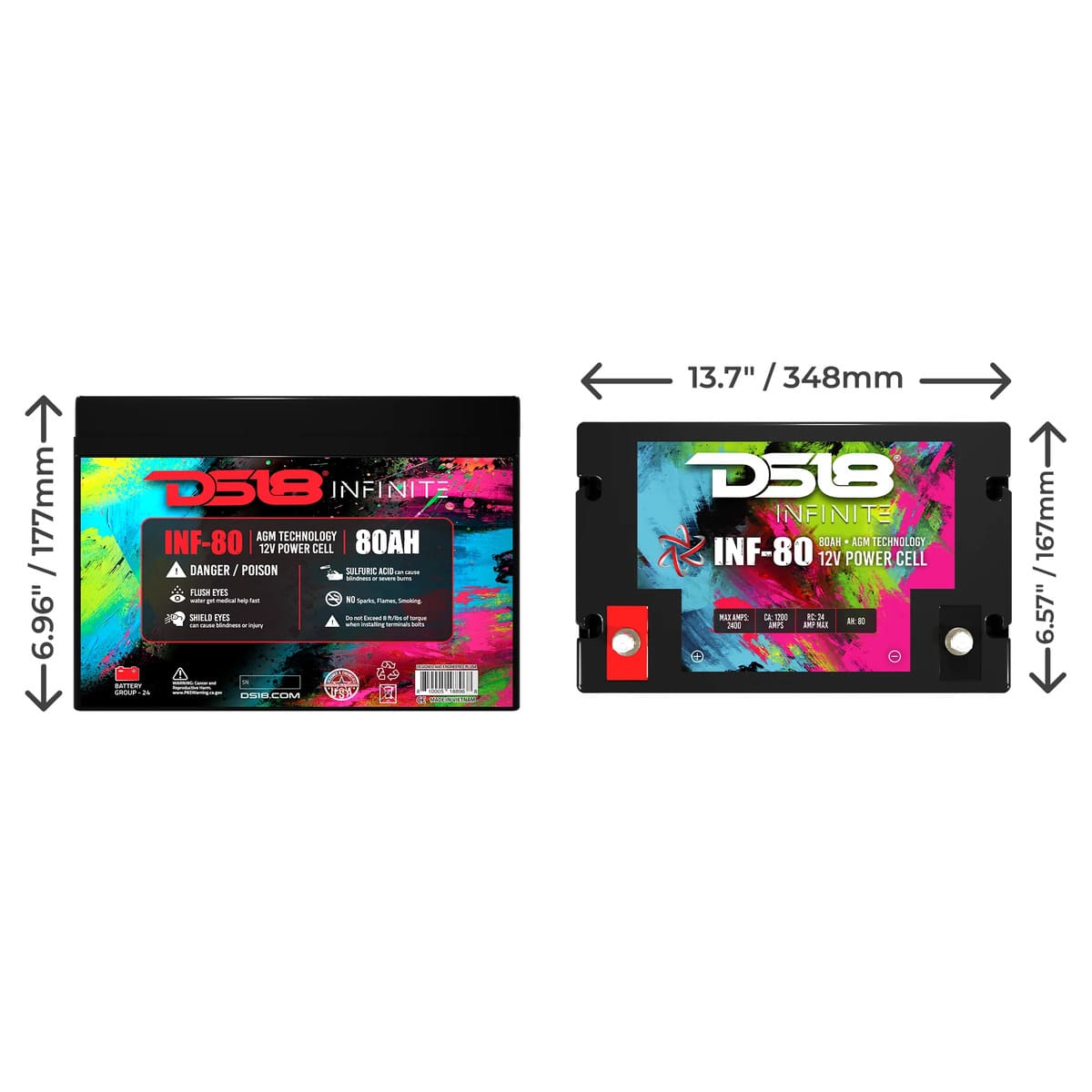

Measurement:

• Overall Length: 13.7" / 348mm

• Overall Width: 6.57" / 167mm

• Overall Height: 6.96" / 177mm

• Overall Height (Without Terminals): 6.96" / 177mm

• Weight: 48.4 lbs. / 22 kg
