DS18 Infinite 55 AH AGM Power Cell Battery

DS18 Infinite 55 AH AGM Power Cell Battery

Upgrade your power source with the DS18 INF-55AH!

Designed with AGM (Absorbed Glass Mat) technology, this battery is the top choice among team competitors seeking high-performance solutions.

Featuring a non-spill design, this battery can be mounted upside down or in multiple configurations, providing you with maximum flexibility and convenience. The bolt M5 terminals ensure a secure connection and offer multiple options for add-on terminals and busbars, allowing for enhanced connectivity and conduction.

With its high burst reserve, this power cell maintains high volumes of amperage draw while efficiently holding voltage. Say goodbye to dim lights and weak electronics - the high float charge of the DS18 INF-55AH ensures that your lights stay brighter, your electronics run stronger, and you have more reserve power and voltage altogether.

Don't settle for less when it comes to your power needs. Invest in the DS18 INF-55AH and experience the DS18 difference first hand.

Features:

• 12 Volt AGM Battery

• 55 AMP Hours

• Thread Lead Alloy Recessed / M6 Bolt

• Maintenance Free

• 1750 Power Watts

• Made in Vietnam


Specifications:

• Battery Type: AGM

• Nominal Voltage: 12.8 V

• Capacity: 55Ah @ 10hr-rate to 1.8V per cell @ 25°C (77°F)

• Maximum Discharge Current: 1650 Amps

• Cranking Amps (CA): 825 Amps

• Cold Cranking Amps (CCA): 400 Amps

• Spillable: Non Spillable

Other Specs:

• Watts (RMS): 1750W

• Internal Resistance: Approx. 6.5 mΩ

• Float Charging Voltage: 13.5 to 13.8 Vdc / unit average at 25°C (77°F)

• Recommended Charging Current: 16.5 Amps

• Nominal Operating Temperature Range: 25°C +/- 3° (77°F +/- 5°)

• Bolt / Terminal Type: Thread Lead Alloy Recessed / M6 Bolt

• Battery Group U1: Thread Lead Alloy Recessed / M6 Bolt

• Made In: Made In Vietnam

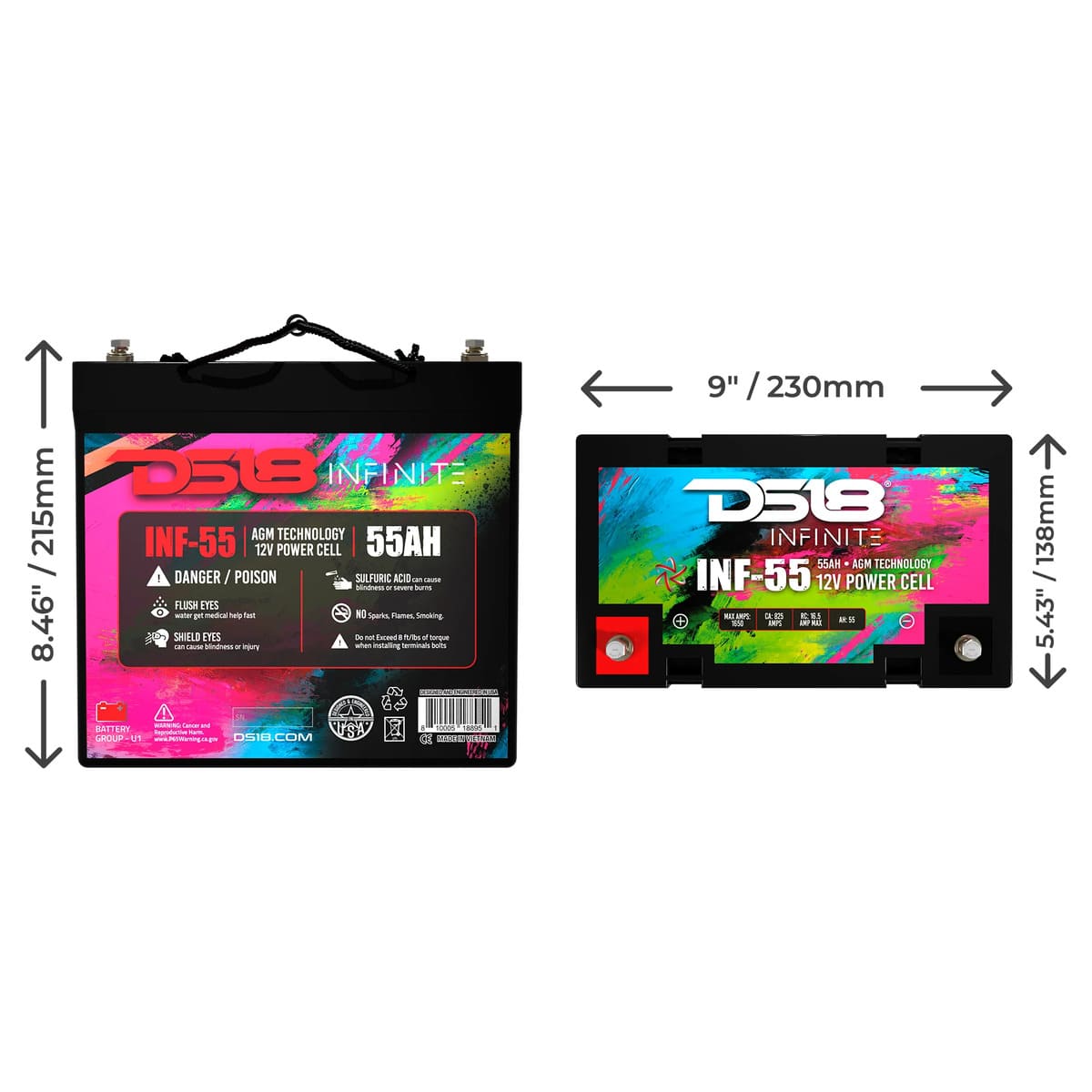

Measurement:

• Overall Length: 9" / 230mm

• Overall Width: 5.43" / 138mm

• Overall Height: 8.46" / 215mm

• Overall Height (Without Terminals): 8.26" / 210mm

• Weight: 36.30 lbs. / 16.5 kg

• Product Weight: 37.5 lbs.

• Product Dimensions: 10 x 6 x 10.25

• M/C Weight: 37.5 lbs.

• M/C Dimensions: 10 x 6 x 10.25

• M/C QTY: 1

• Sold In: Piece
