DS18 4 X 1.5 AMP Automatic Smart Lithium & AGM Battery Charger & Maintainer

DS18 4 X 1.5 AMP Automatic Smart Lithium & AGM Battery Charger & Maintainer

With DS18’s INF-C1.5AX4, it's easy to maintain and charge your batteries to ensure they will operate at their MAX, delivering uninterrupted power to your sound system and elevating your experience to new heights.

Equipped with advanced charging and maintaining capabilities, the INF-C1.5AX4 is designed to power a wide range of battery types; including Lead-Acid, Wet, Gel, AGM, and Lithium batteries using LiFePO4 cells. No matter the size and type of your battery, the INF-C1.5AX4 effortlessly delivers a maximum output current of 1.5A across four outputs, ensuring an efficient charging process. The INF-C1.5AX4 charger offers exceptional adaptability with compatibility for 6V, and 12V systems, along with a choice of Ring Terminal or Battery Clamp options, making it one of the most versatile chargers available today.

The INF-C1.5AX4 is equipped with a range of essential safety features, including thermal protection to prevent overheating, reverse connection protection to safeguard against accidental mistakes, and overcurrent/overcharge protection to maintain a healthy battery life. The INF-C1.5AX4 also has an impressive IP65 protection rating. This means it is dust-tight and protected from low pressure water jets from all directions, ensuring the internal components are shielded from any potential damage. This charger is also temperature tested and operates flawlessly in temperatures ranging from 0°C to +40°C.

Intelligently designed to handle battery capacities ranging from 2Ah to an impressive 60Ah across all 4 outputs. Your battery’s size won’t matter, the INF-C1.5AX4 provides the perfect charging and maintaining solution for all setups. DS18’s INF-C1.5AX4 is an essential companion for every audio enthusiast.

Features:

• Smart Car Battery Charger & Maintainer

• 4 x 1.5 Amp Output ~ Clamp or Bolt-On Connection

• 6 or 12 Volt System

• Lead-Acid ~ Wet ~ Gel ~ AGM ~ Lithium

• Thermal ~ Reverse ~ Over Charge/Current Protect

• Charge Multiple Battery Sizes & Types


Instructions:

• INF-C1.5Ax4 Spanglish Manual Web V1

Specifications:

• Charger Type: 8 Steps Charging / Maintainer

• Maximum Output Current (Charging): 4 x 1.5A

• Maximum Input Current: Variable up to 120W (1A)

• Battery Type Compatibility: Lead-Acid, Wet, Gel, AGM, Calcium, Lithium (LiFePO4)

• Battery Voltage Compatibility: 6 / 12 Volts

• Battery Capacity Compatibility: 4 x 2~60Ah

• AC Input: 110-120VAC / 50-60Hz

• 6 Volts DC Output Current: 4 x 1.5A

• 12 Volts DC Output Current: 4 x 1.5A

• 24 Volts DC Output Current: N/A

• Minimum Start Voltage: >3 Volts

• Housing Protection Rate: IP65

• Temperature Operation: 0C to +40C

• Efficiency: 85% Approx

Features:

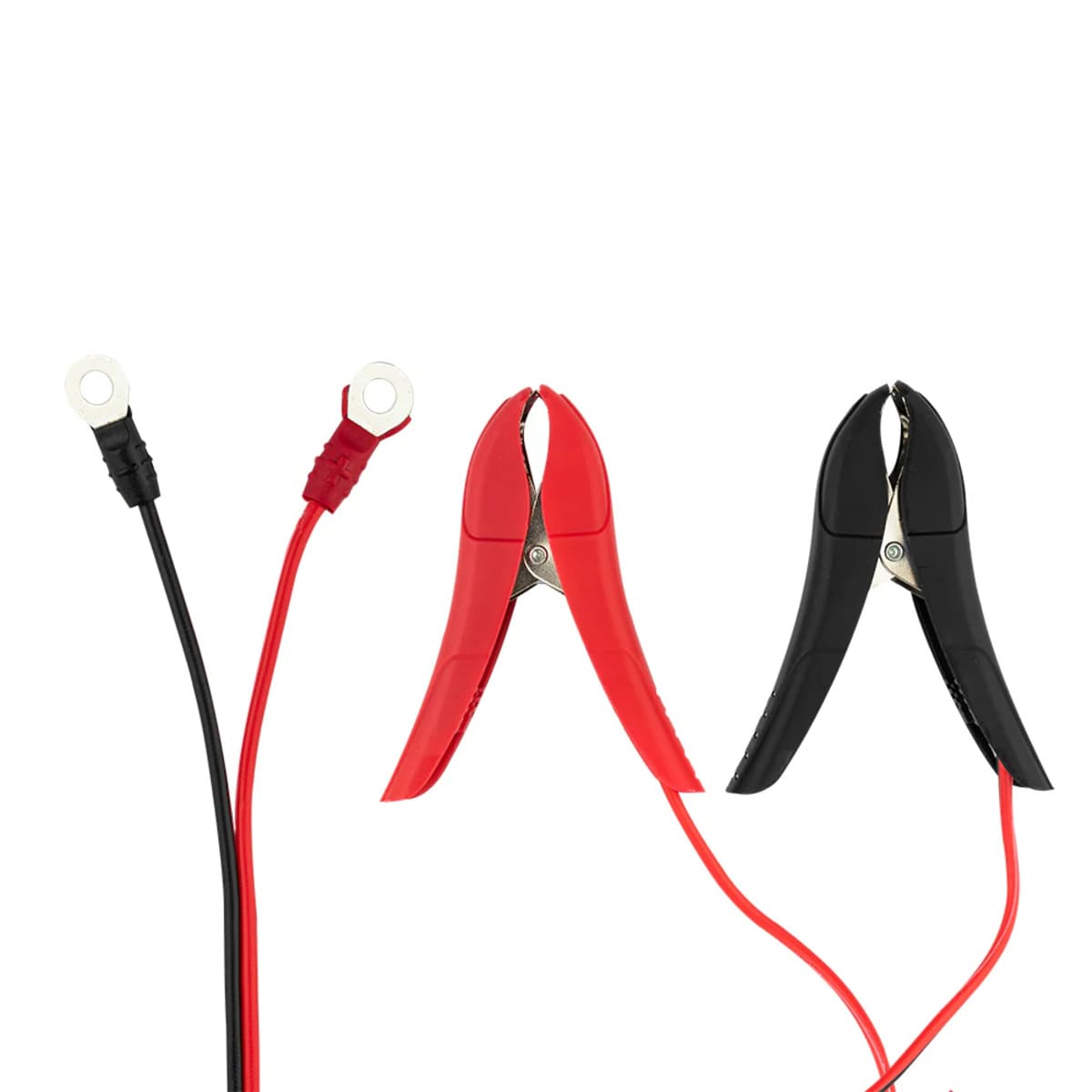

• Clamps Type: Battery Clamp / O-Ring Terminal

• Quick Connector: Yes

• Function Display Type: LED

• Voltmeter: No

• Ammeter: No

• Boost Mode: No

• Power Supply Mode: No

• Low Temperature Charging Mode: No

• High Temperature Charging Mode: No

• Battery Repair Mode: No

• Thermal Protection: Yes

• Reverse Connection Protection: Yes

• Overcurrent / Overcharge Protection: Yes

• Faulty Battery Indicator: Yes

• Faulty Connection Indicator: Yes

Measurement:

• Overall Length: 9.48" / 241mm

• Overall Depth: 9.64" / 245mm

• Overall Height: 2.6" / 66mm

• AC Cord Length: 6ft / 1.8m

• DC Cord Length: 4.2ft / 1.3m
