Diode Dynamics Heavy Duty 4-Pin Single Output Harness Wiring

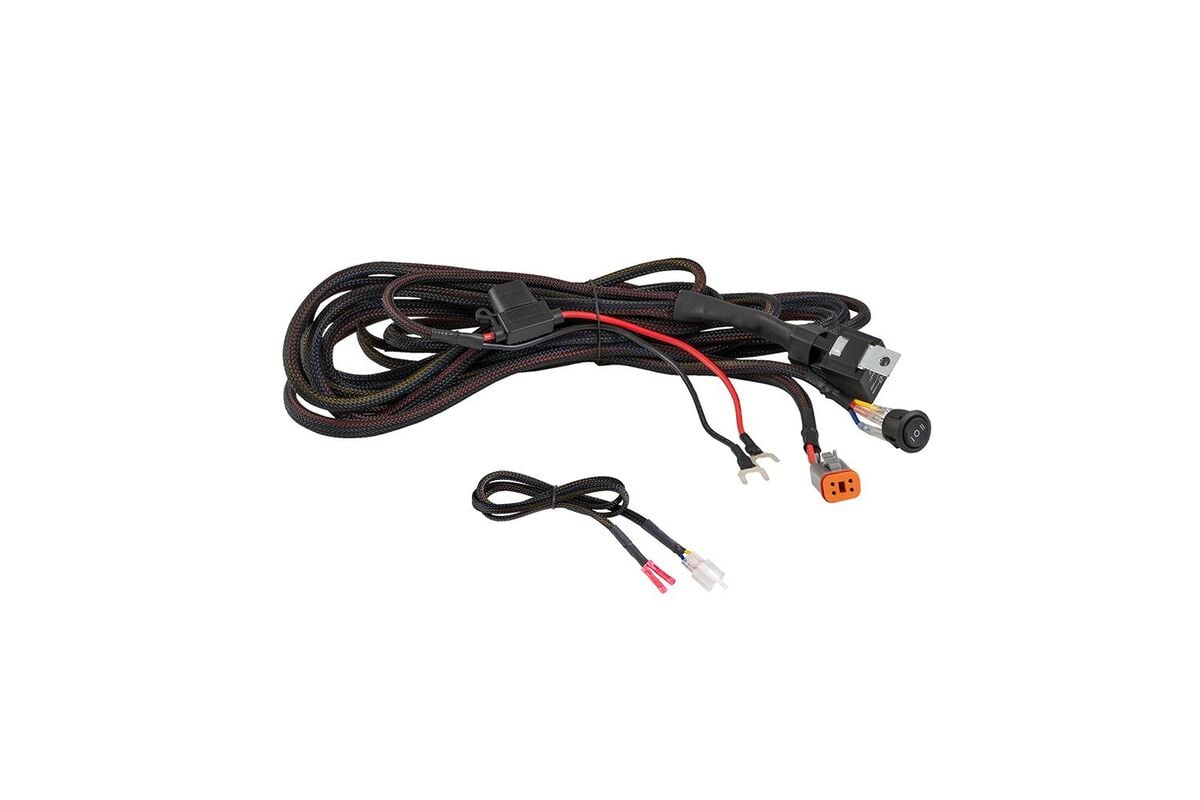

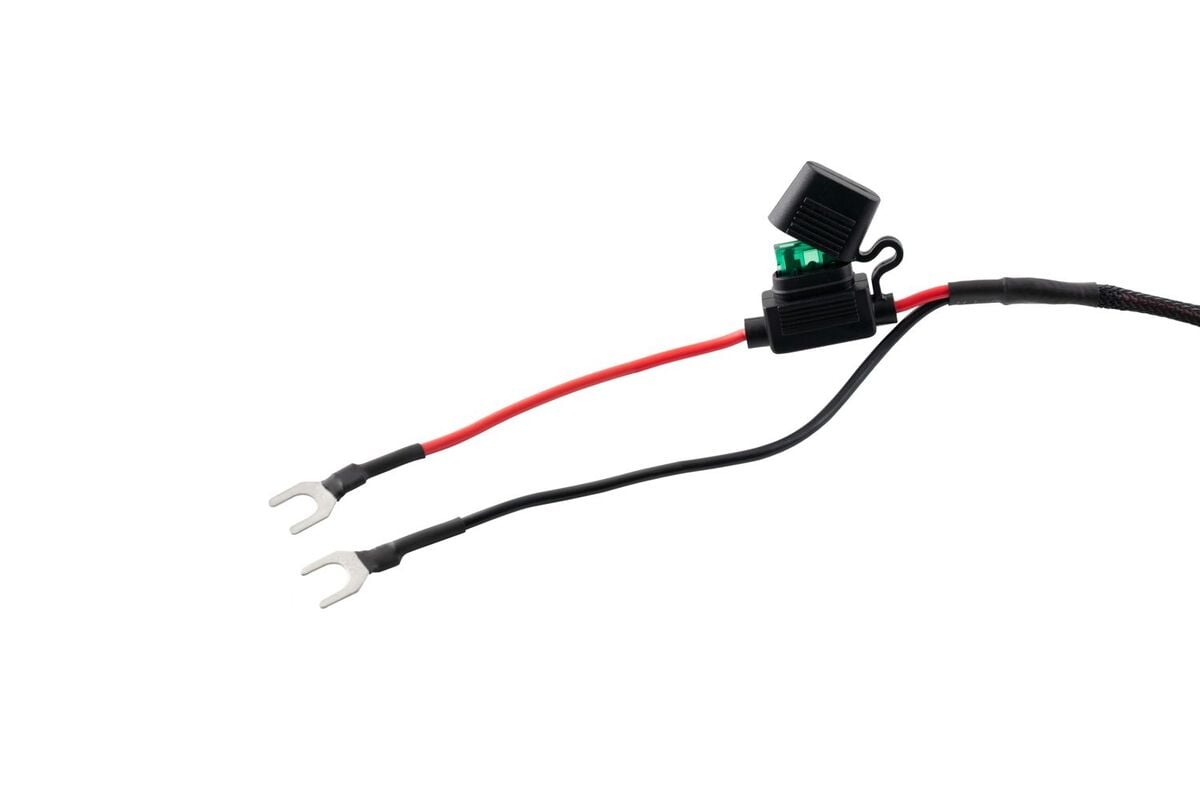

Stage Series: This harness is intended to be used with our Stage Series LED Pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your off-road lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and a Deutsch DT connector for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.

• C1 Sport: 1.2A
• C1 Pro: 1.7A
• SSC2 Sport: 0.6A
• SSC2 Pro: 1.75A
• SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
• SS3 Pro Main beam: 2.7A, Backlight: 0.03A

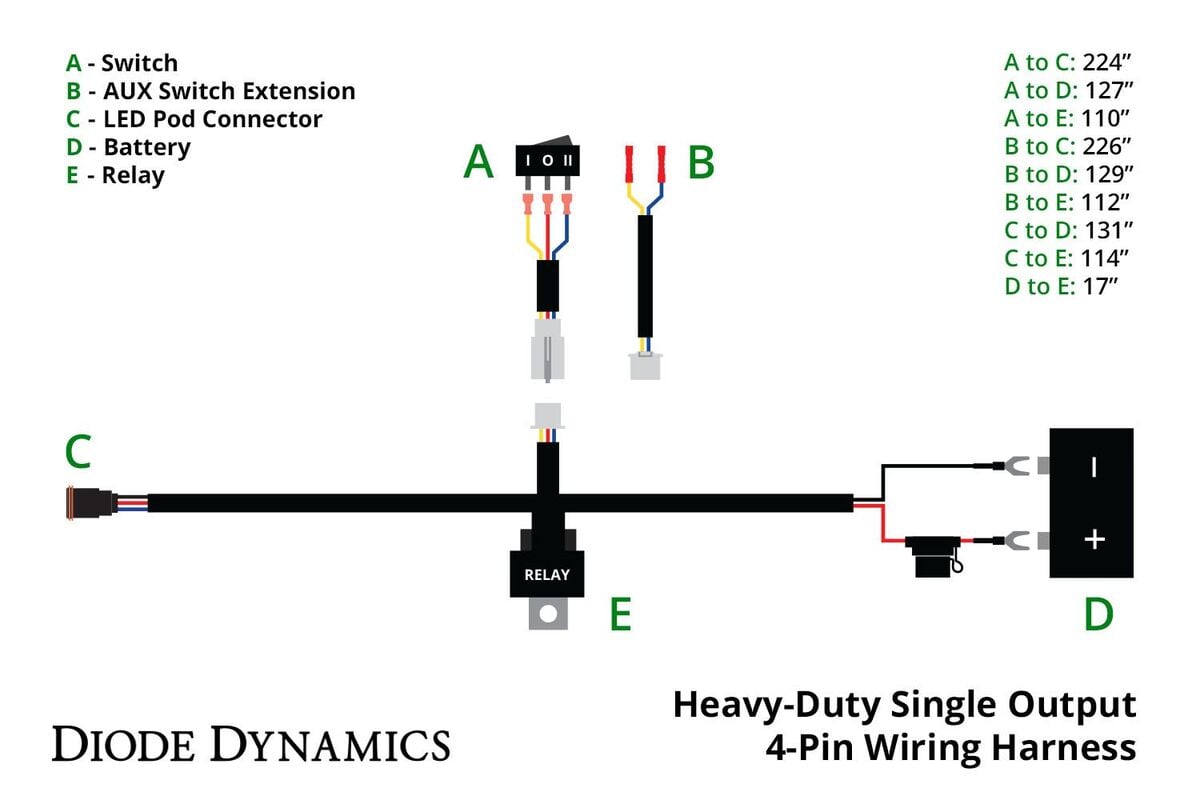

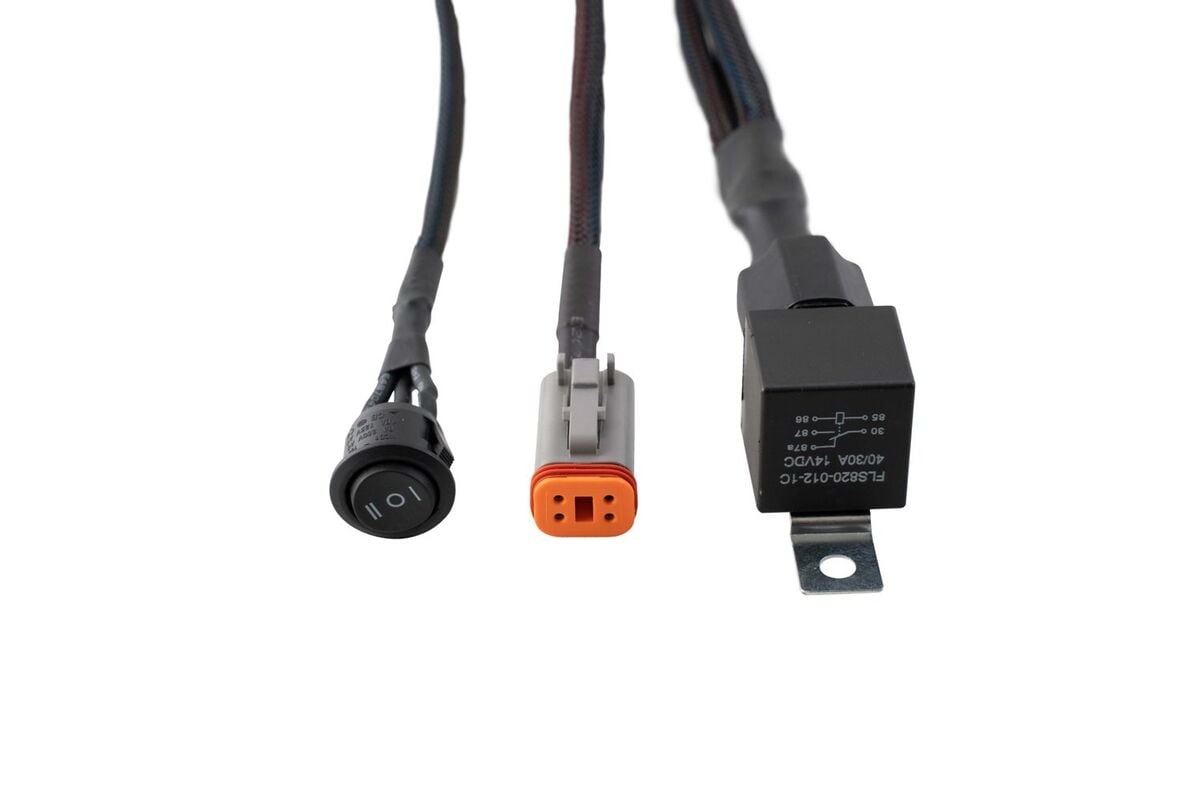

Control through OEM Aux Switches: This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the included toggle switch adapter wire to mount a switch.
