Diode Dynamics '14-'23 Polaris RZR XP 1000 SS3 LED Headlight Kit

Diode Dynamics '14-'23 Polaris RZR XP 1000 SS3 LED Headlight Kit

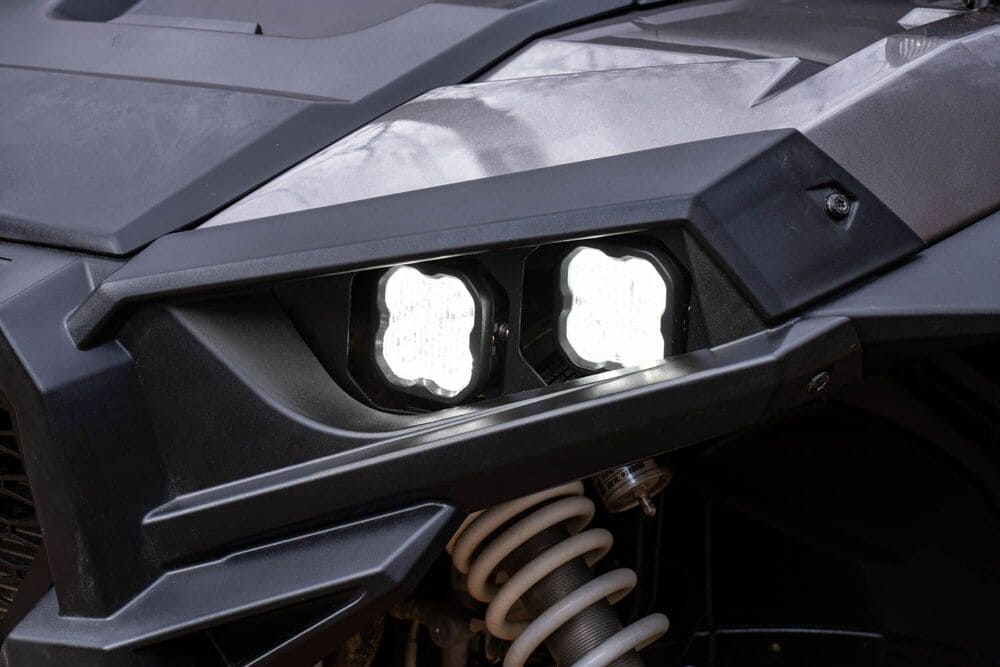

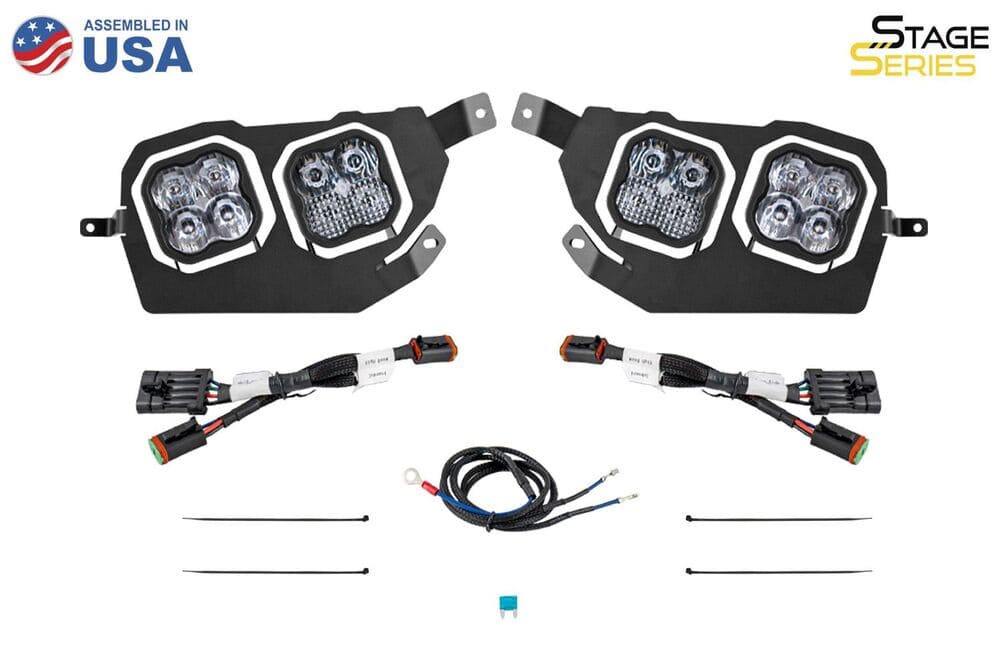

Introducing the SS3 LED Headlight Kit for the 2014-2023 Polaris RZR XP! This bolt-on, plug-and-play headlight kit allows you to mount four SS3 LED Pods in place of the factory headlights. Using two highly functional beam patterns, this kit gives you a significant increase in light output over the stock units with more functionality. Constructed using highly durable powdercoated stainless steel and polycarbonate lenses, this kit was built to withstand whatever you throw at it!

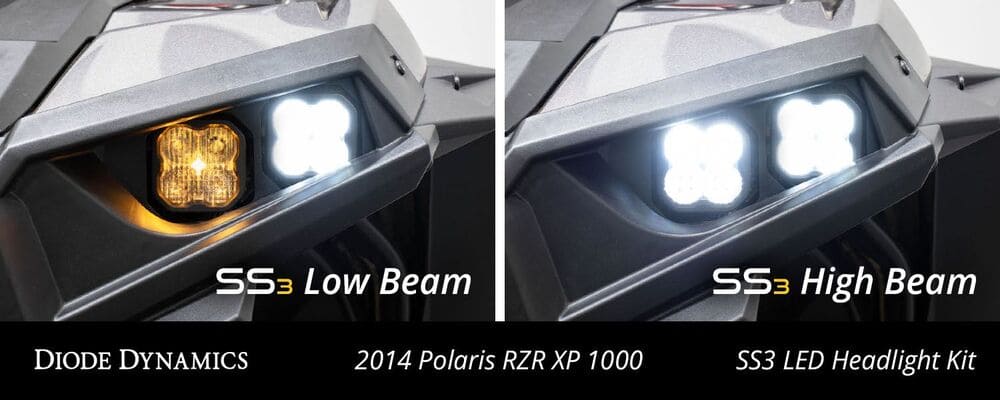

More Usable Light Output. The pods included in this kit were chosen specifically to improve your visibility while driving at night. The SAE Driving pattern provides a highly-functional low beam, while the Combo pattern gives you more fill light when the high beams are activated. This combination provides ideal light output for off-roading at speed or slowly exploring terrain.

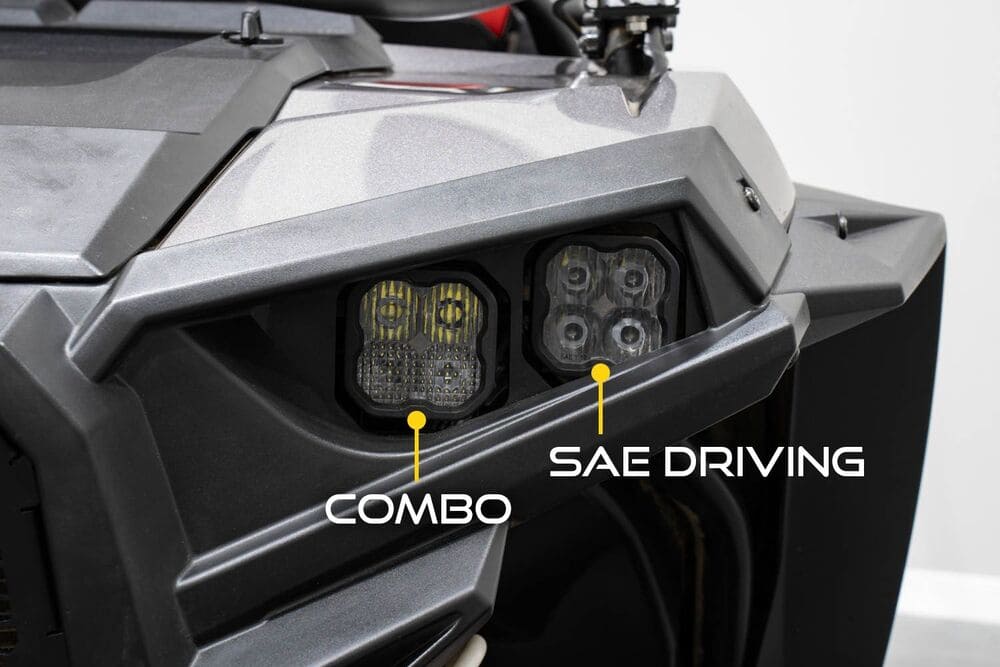

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

SAE Driving is great for general illumination. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road or trail ahead at high speeds.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optics in the SS3 LED Headlight Kit collect all of the light from the LEDs, and direct it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the included SS3 LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

White. The SS3 pods included in this kit have a cool white main beam. The white is a 6000K color temperature, which is a true cool white output.

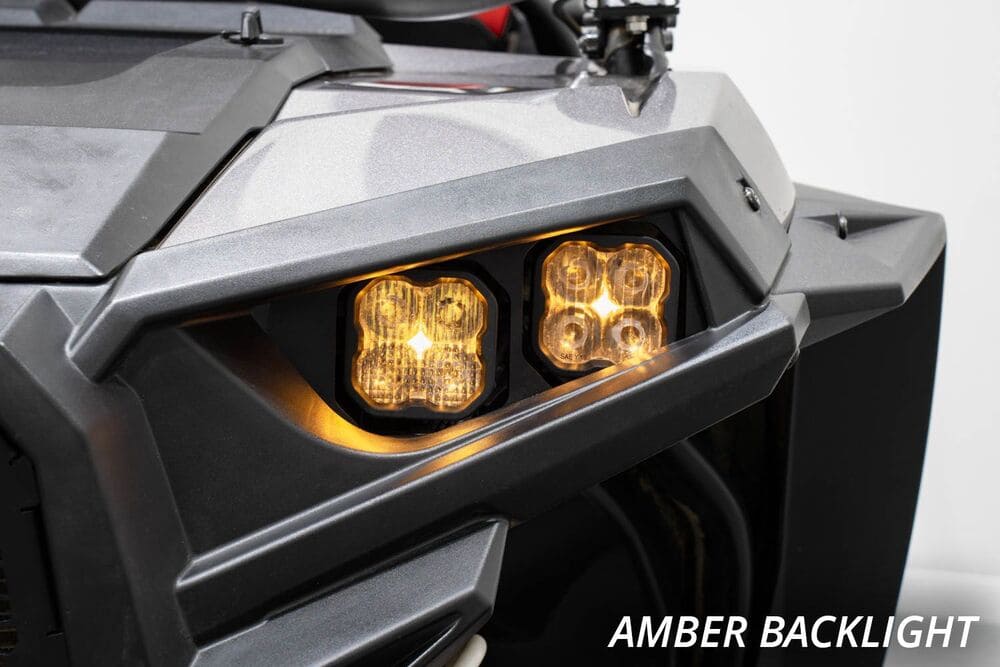

Backlight Functionality. The SS3 pods in this kit include a distinctive amber backlight feature. The backlight fully illuminates the TIR optics, providing unique accent lighting that you won't find in other Polaris RZR XP Headlight Kits on the market. The included harness allows you to easily enable the DRL functionality!

Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Sport or Pro. SS3 LED Headlight Kits are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option uses a higher amount of total power.

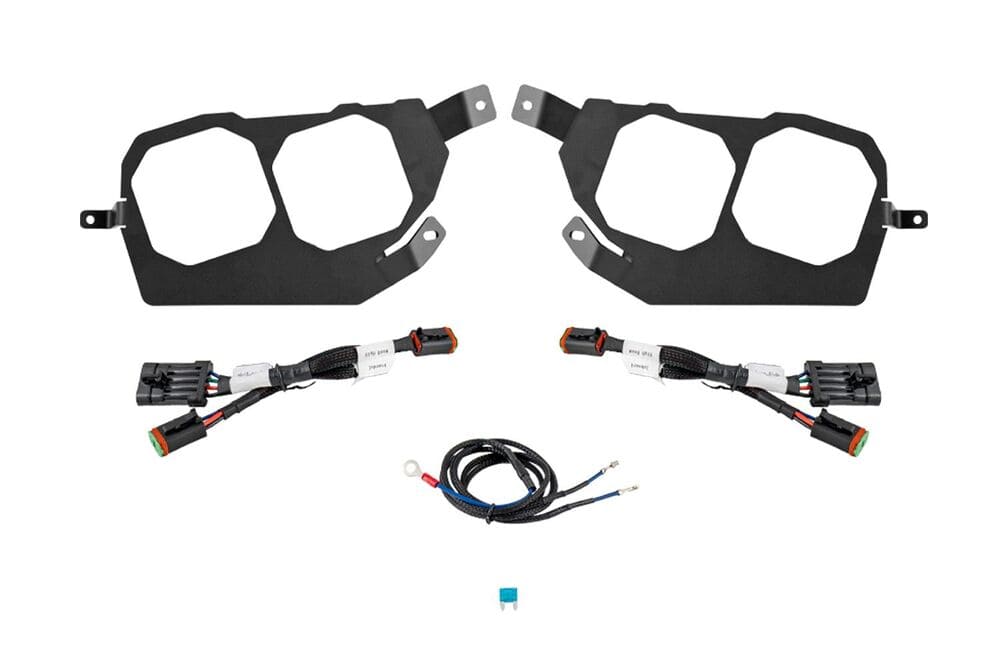

Bolt-on Fitment. All SS3 Headlight Kits feature plug-and-play harnesses that plug directly into the factory headlight connector and the CAD-designed brackets in the SS3 LED Headlight Kit bolt right in place of the factory headlight. No cutting or drilling is necessary!

Proven Durability. All Stage Series lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
