Demon Powersports Polaris RZR XP 1000 Race Spec Xtreme Heavy Duty Tie Rod

Demon Powersports Polaris RZR XP 1000 Race Spec Xtreme Heavy Duty Tie Rod

The X-treme Heavy Duty Race Spec Tie Rod is an essential element of your steering mechanism that you wouldn't want to overlook. Crafted from robust 7075 aircraft-grade aluminum with rod ends made of Chromoly steel, our Tie Rods are engineered to withstand any level of force exerted on them. Designed to enhance strength and address the common failure points associated with OEM parts, these Tie Rods ensure reliability and durability. The incorporation of a heavy-duty billet aluminum rod, paired with chromoly steel ends and heim joints that are both chrome and zinc-plated, adds an extra layer of corrosion resistance, guaranteeing a long-lasting performance upgrade for your steering system.

Material Strength: Demon Xtreme Heavy Duty tie rods are made from 7075 aluminum, which is over 70% stronger than the tie rods of same size that are made of 6061, a commonly used material by our competitors. During our bend tests, our fully assembled tie rod can withstand over 2,200 lbs load right in the middle, and bounce back to it's original shape like nothing happened. It means you don't have to worry about bending, denting the rods or damaging the threads like you would with 6061 aluminum. 7075 aluminum excels where 6061 would fail.

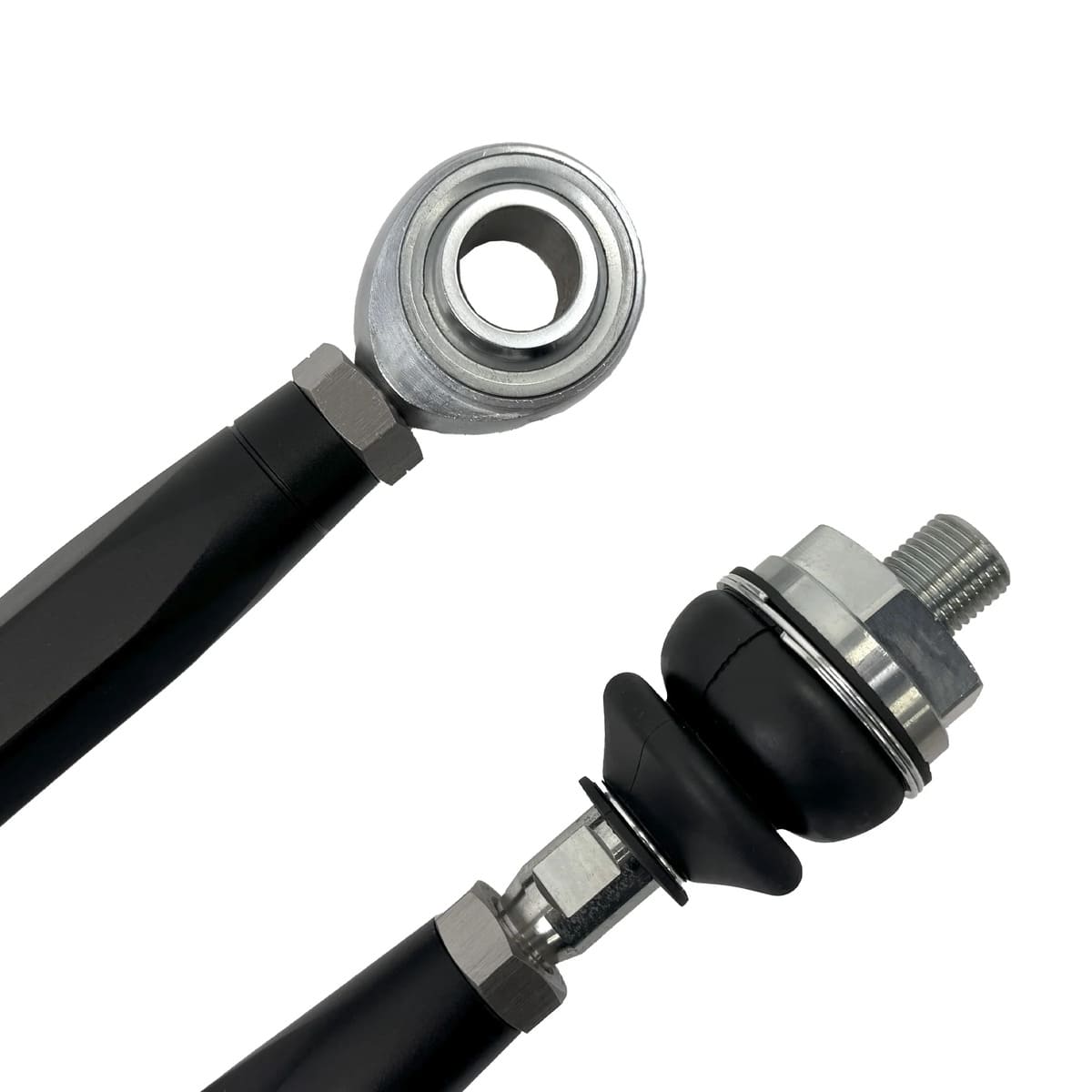

Ball Stud Joint: Built for strength and durability, the inner ball stud joint is crafted from 4135 Chromoly Alloy Steel. It features a maintenance-free PTFE liner for smooth performance without the need for lubrication, and an additional CR boot that provides extra protection and long-lasting reliability.

Heim Joint: The heim joint is engineered with a high-durability 3-piece assembly design for maximum strength. Its body is built from 4135 Chromoly Alloy Steel, while the inner ball is crafted from hardened bearing steel, polished and hard chrome plated for superior wear resistance. Featuring a maintenance-free PTFE insert, this joint delivers smooth performance without lubrication, and boasts an impressive radial static load rating of 28,080 lbs.

Features:

• Made from aircraft-grade 7075 Aluminum
• 1" Oversized Hexagonal Design
• Heat treated chromoly steel inner rod end with chrome plating finish for longevity and durability
• Engineered to withstand aggressive riding and extreme conditions
• Equipped with 3-piece Chromoly PTFE-lined Heim joints capable of withstanding a radial static load of 28,000 lbs.
• High-Grade Stainless-Steel hardware and spacers
• Able to replace factory Tie Rod on a wide range of fitments, including ATV, UTV and SxS vehicle
• Easy to adjust without disassembly

Installation Instructions:

• Xtreme Heavy Duty Tie Rod

Fitment:

• 2014-2018 RZR XP 1000 EPS
• 2015-2023 RZR XP 1000 High Lifter Edition
• 2017-2023 RZR XP 1000 Trail and Rock Edition
• 2014-2018 RZR XP 4 1000 EPS
• 2016-2022 RZR XP 4 1000 EPS High Lifter Edition
• 2019-2023 RZR XP 1000
• 2019-2023 RZR XP 4 1000
• 2017-2021 RZR XP Turbo
• 2017-2021 RZR XP 4 Turbo
