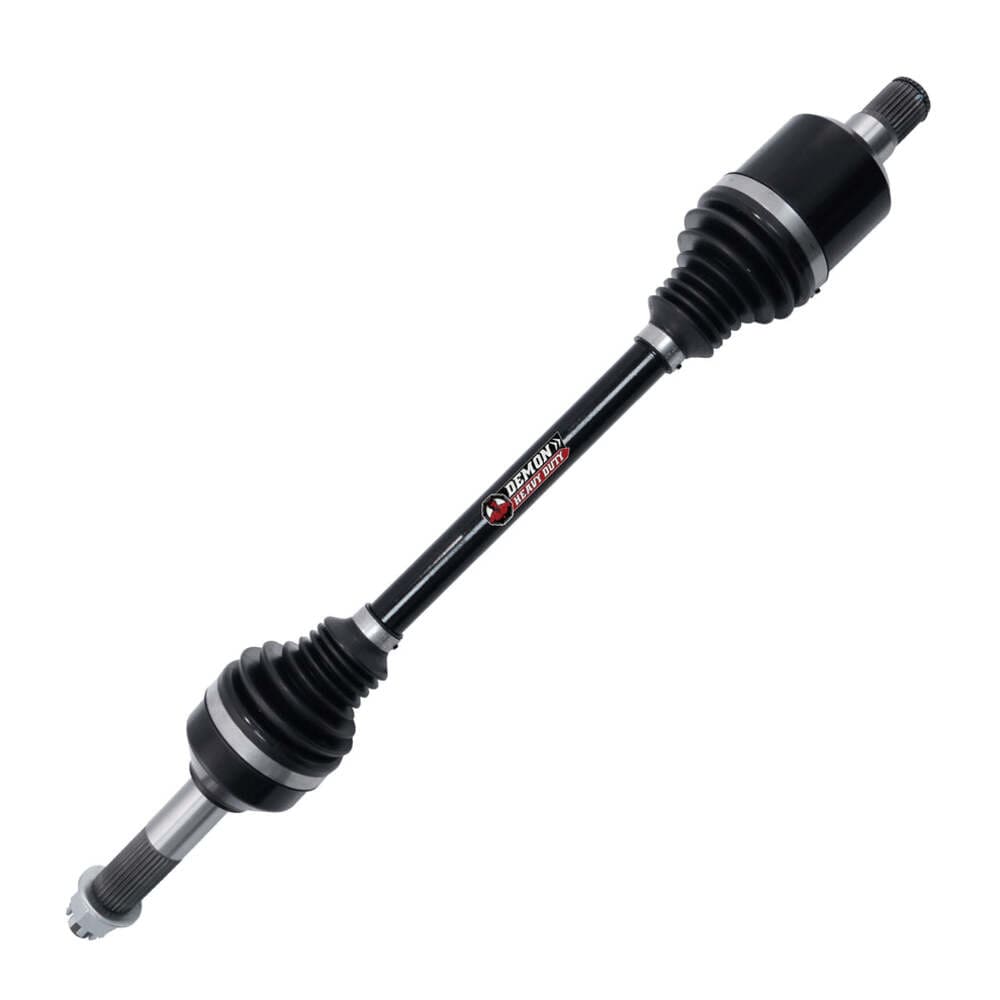

Demon Powersports Kawasaki KWF 1000 Ridge Heavy Duty Axle

Demon Powersports Kawasaki KWF 1000 Ridge Heavy Duty Axle



Through years of research and development Demon Powersports has developed an axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger. Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.

These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40° articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion. Trust in Demon Heavy Duty Axles to keep you riding.



Features:

• The Demon heavy duty axles are equipped with TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, has more fatigue resistant, more puncture resistant, and higher temperature resistant than a standard OEM boot.
• Dual heat treated high strength Chromoly steel shaft, with upgraded inner cage material to 4340 Chromoly Steel.
• Design and test all our Heavy Duty Axle to have 1.5 inches of plunge travel and 40° articulation over terrain on the inboard joint. While the outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
• Axles use molybdenum grease to provide low friction and smooth motion. Trust in Demon Heavy Duty Axles to keep you riding!
• These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately.
• Please review all product information to ensure that this product is compatible with your unit.



Fitment:

Front Left:

• 2024-2024 KWF1000 Ridge HVAC Front Left
• 2024-2024 KWF1000 Ridge Limited Front Left
• 2024-2024 KWF1000 Ridge Ranch Edition Front Left

Front Right:

• 2024-2024 KWF1000 Ridge HVAC Front Right
• 2024-2024 KWF1000 Ridge Limited Front Right
• 2024-2024 KWF1000 Ridge Ranch Edition Front Right

Rear Left:

• 2024-2024 KWF1000 Ridge HVAC Rear Left
• 2024-2024 KWF1000 Ridge Limited Rear Left
• 2024-2024 KWF1000 Ridge Ranch Edition Rear Left
• 2024-2024 KWF1000 Ridge XR HVAC Rear Left
• 2025-2025 KWF1000 Ridge XR Deluxe HVAC Rear Left

Rear Right:

• 2024-2024 KWF1000 Ridge HVAC Rear Right
• 2024-2024 KWF1000 Ridge Limited Rear Right
• 2024-2024 KWF1000 Ridge Ranch Edition Rear Right
• 2024-2024 KWF1000 Ridge XR HVAC Rear Right
• 2025-2025 KWF1000 Ridge XR Deluxe HVAC Rear Right
