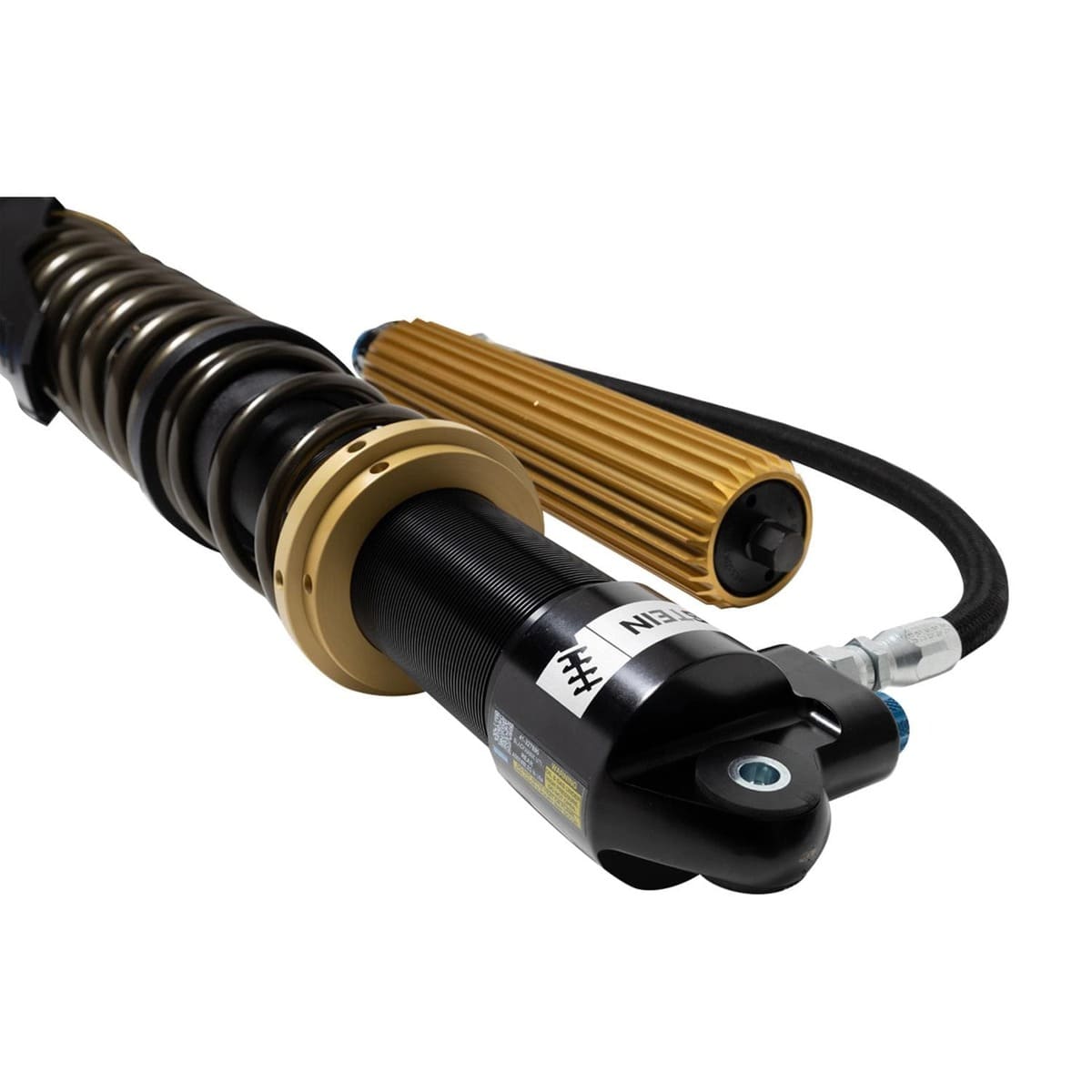

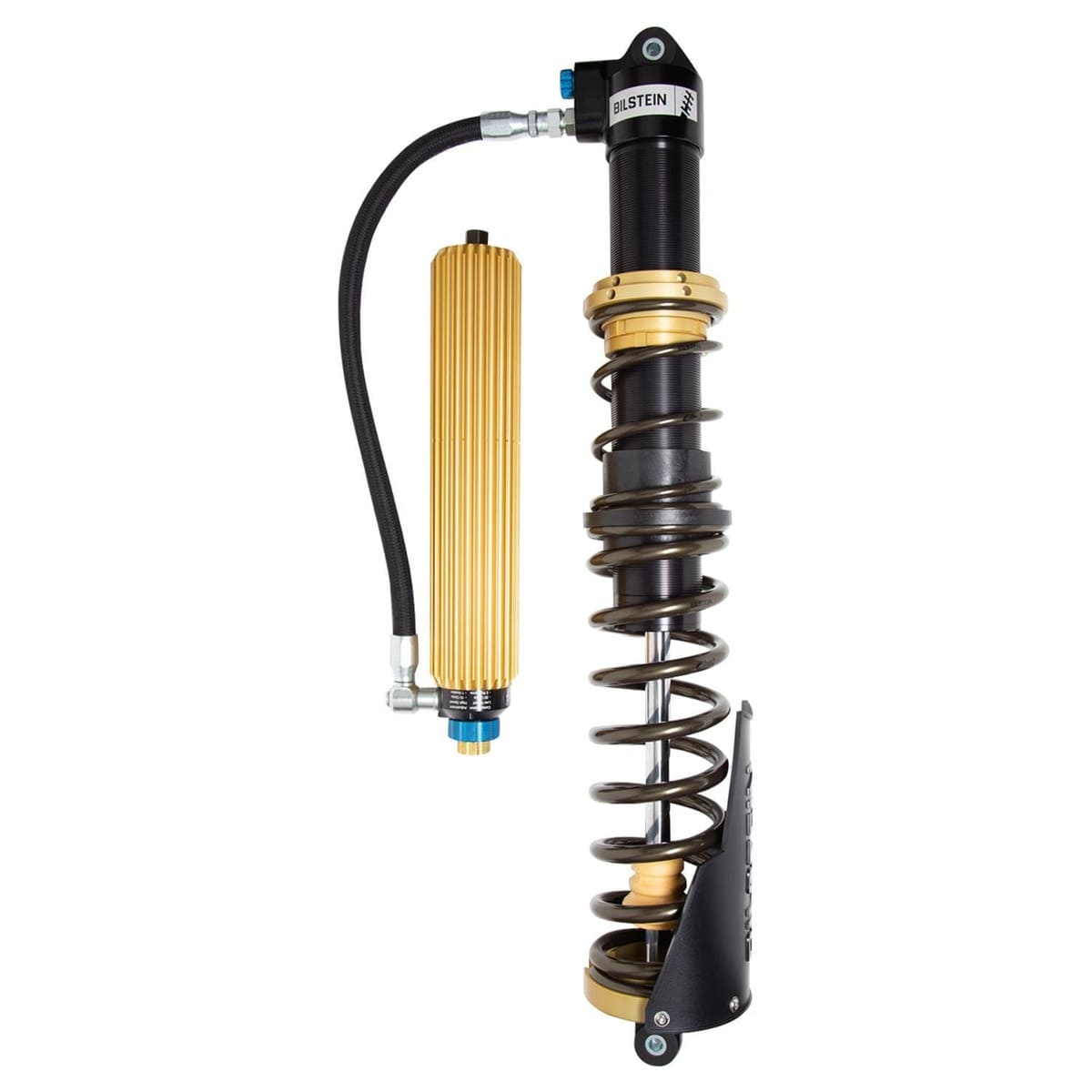

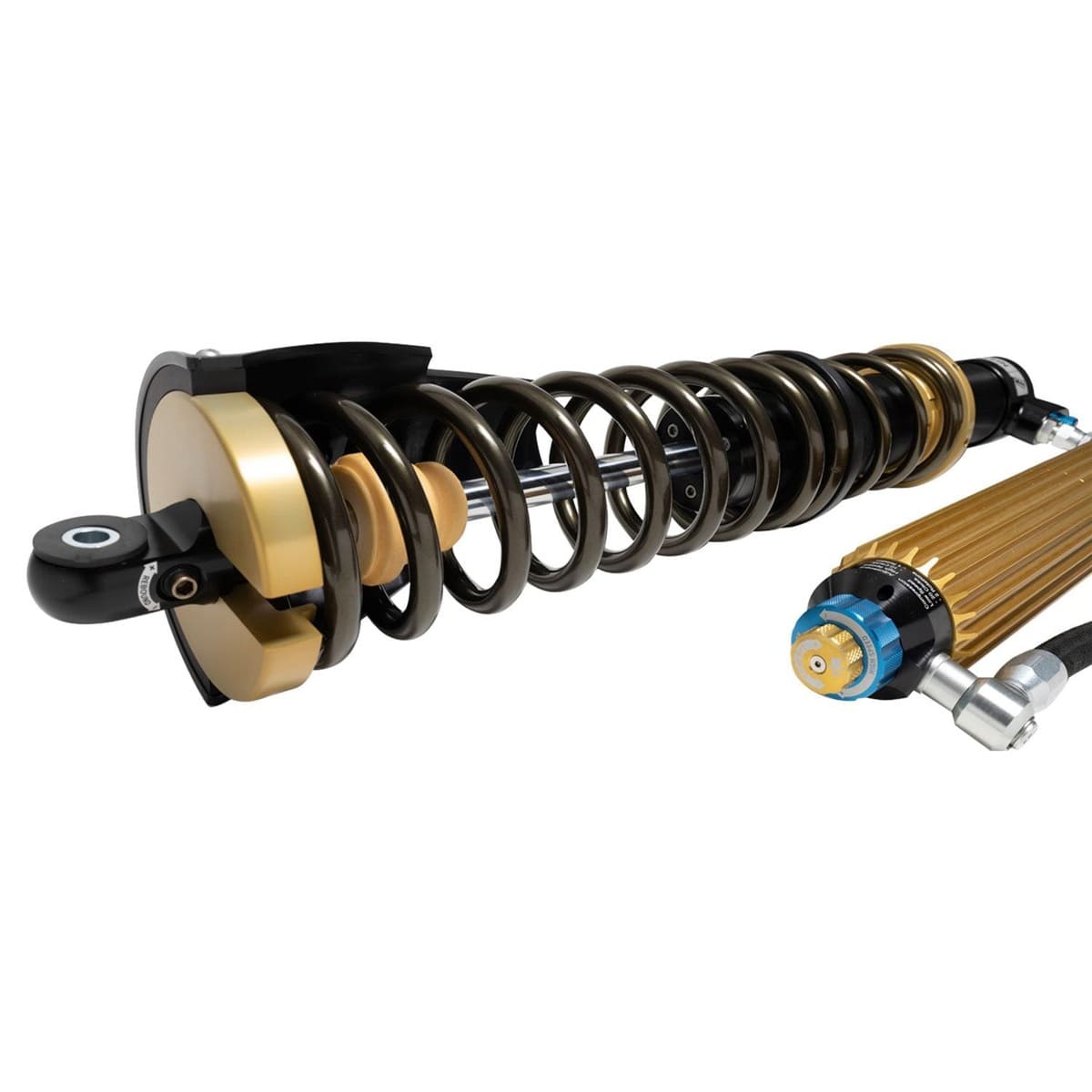

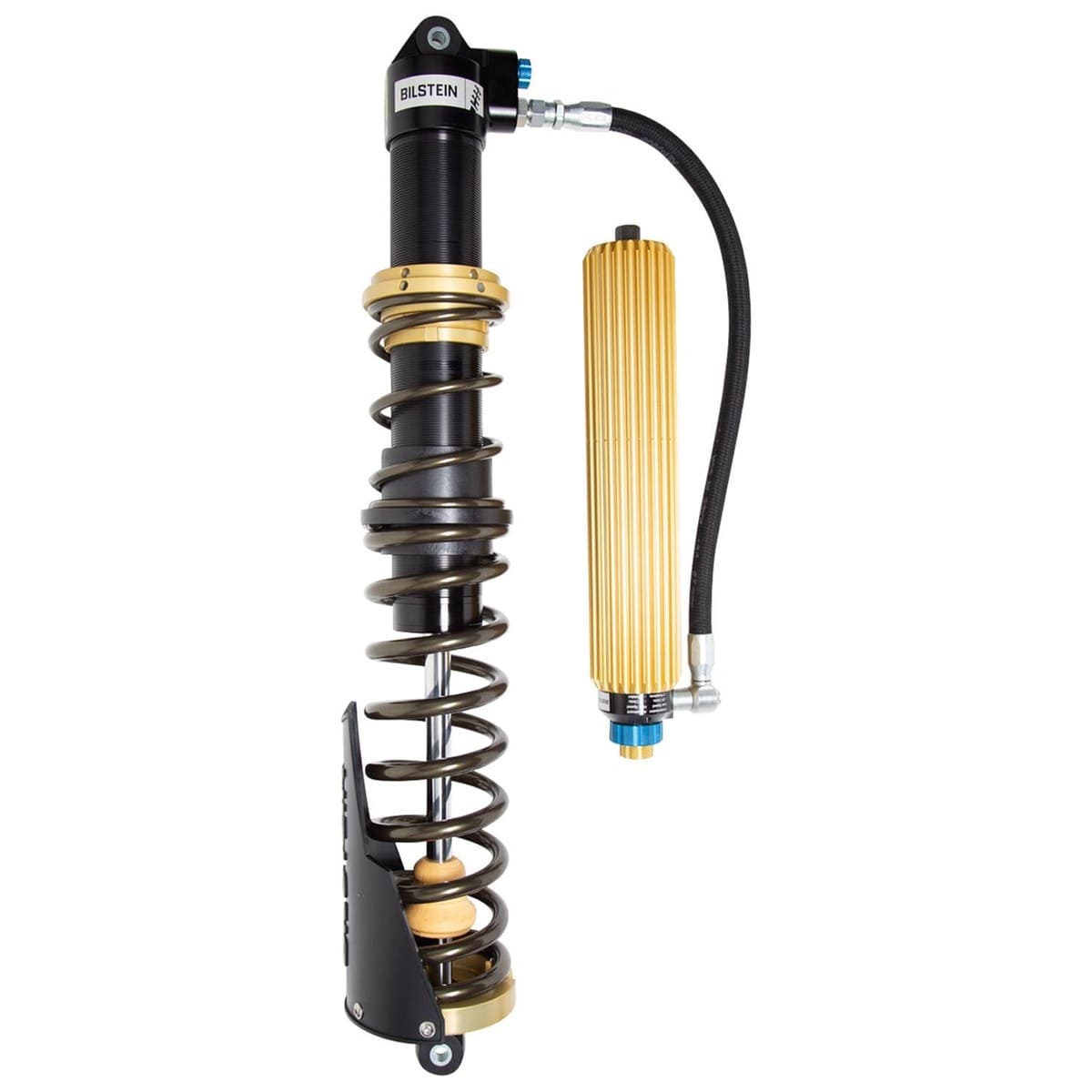

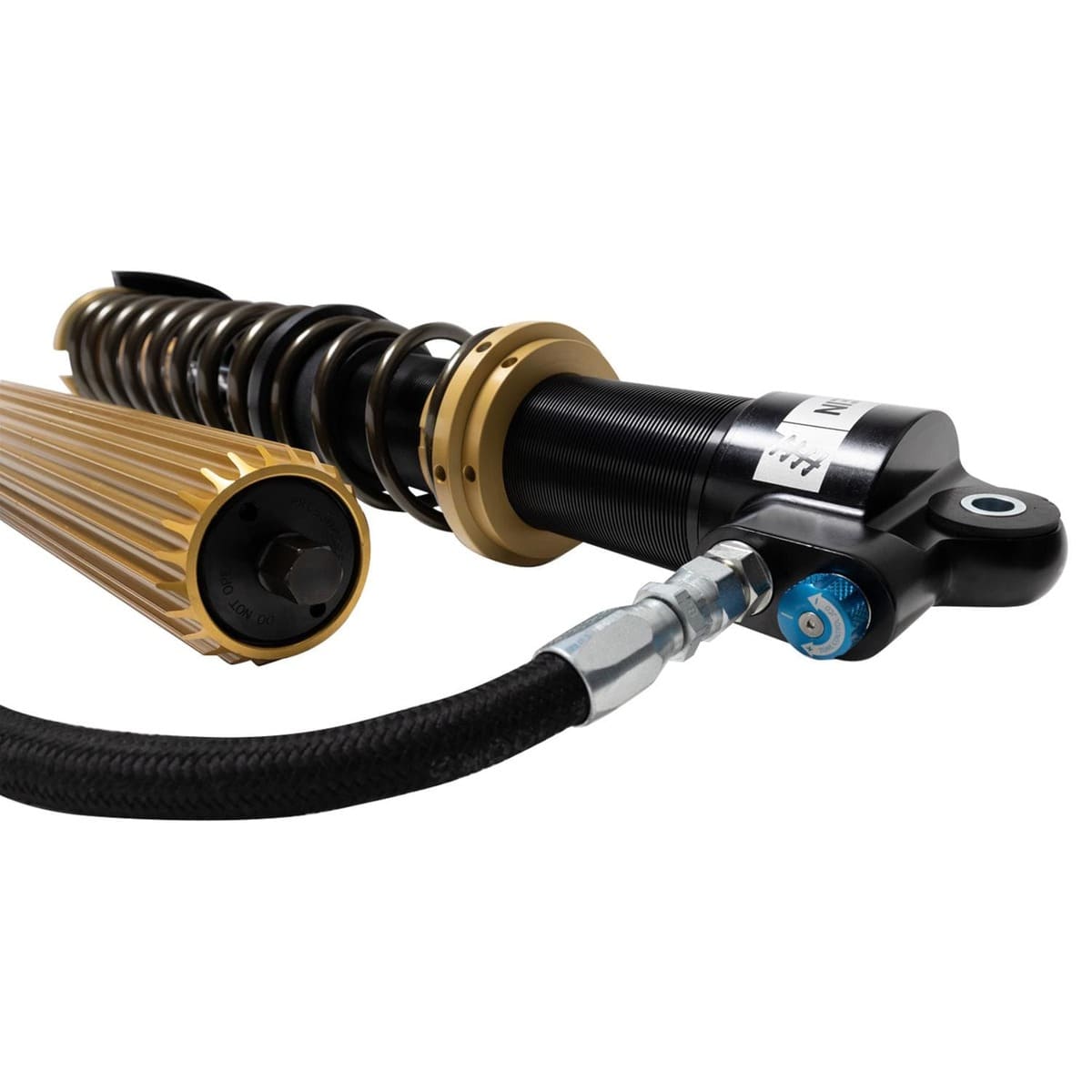

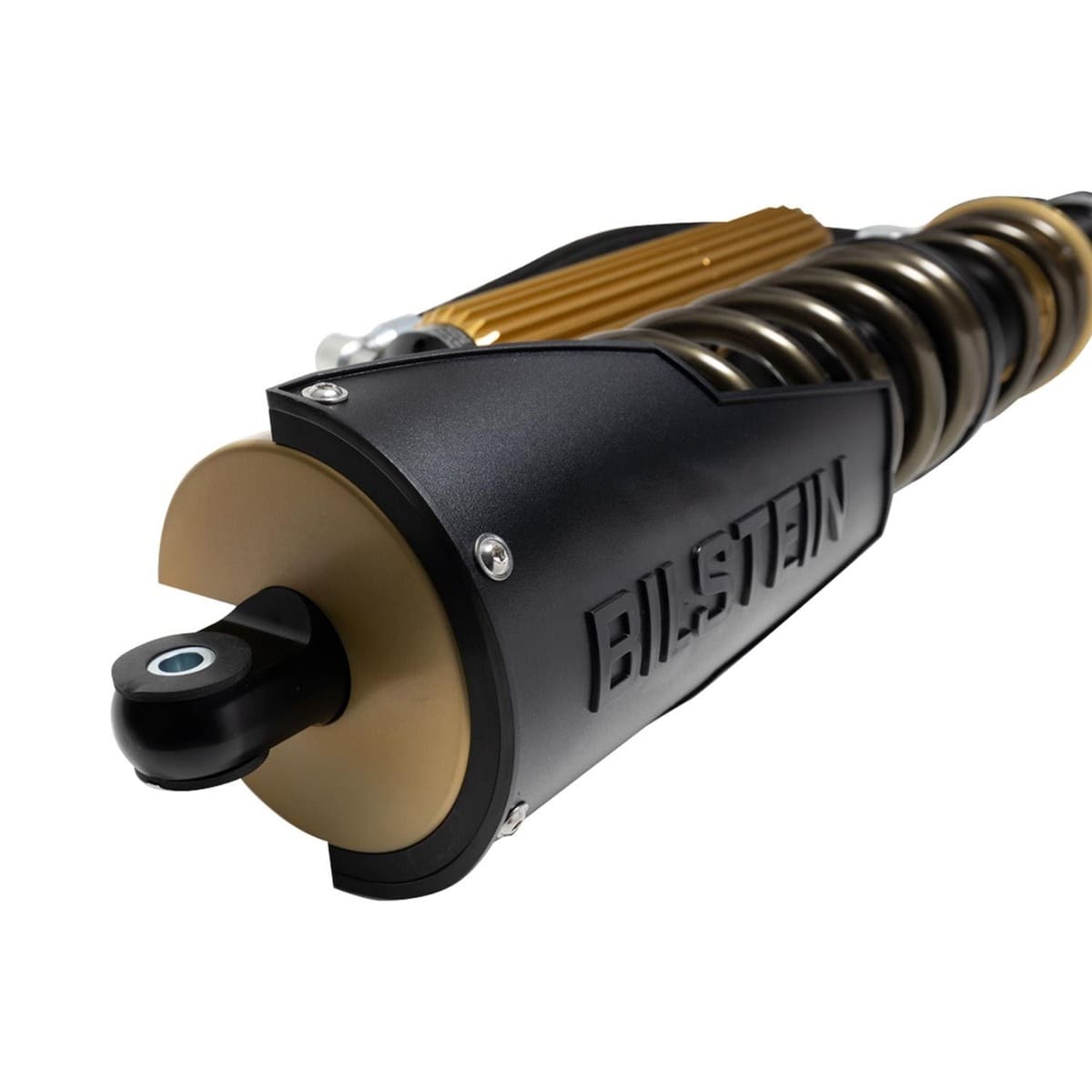

Bilstein Polaris RZR Turbo S Black Hawk Powersports UTV Rear Shock

Bilstein Polaris RZR Turbo S Black Hawk Powersports UTV Rear Shock

Bilstein Black Hawk Powersports coil overs are specifically engineered to vastly improve the performance of your UTV. These direct fit shock and coil spring assemblies offer position-sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein's patented Zone Control position-sensitive technology that contains five independently tuned damping zones—three compression and two rebound. Zone Control incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine-tune bottom-out control. For rebound, Zone Control features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap.

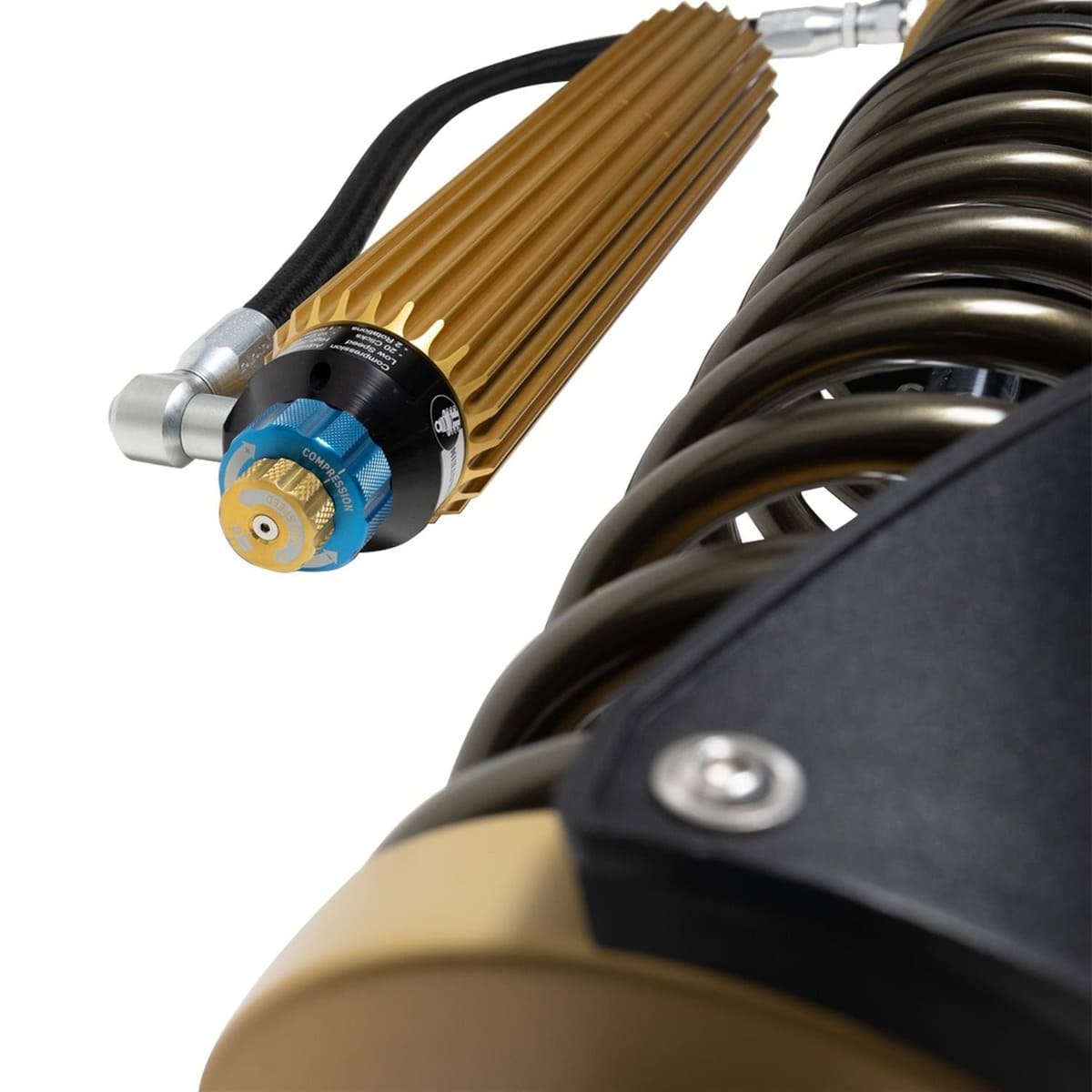

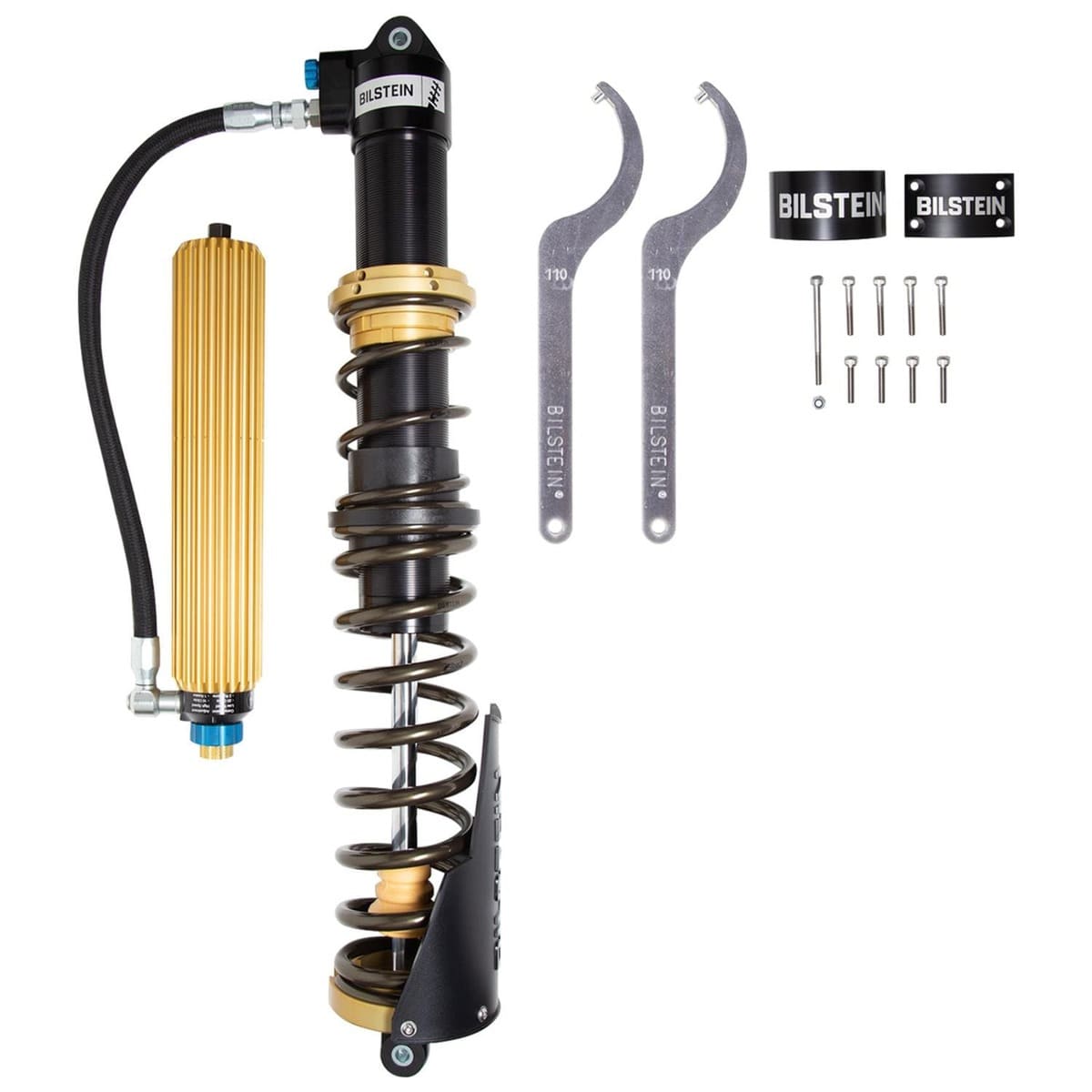

Black Hawk Powersports offer four unique external adjustments: high/low speed compression, rebound, and JCO—all easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk Powersports feature an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to be race-ready right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom-out control. Experience a unique "bottomless" ride with Bilstein's new Black Hawk Powersports coilover packages, available separately for front and rear applications

Specifications:

• Part Type: Powersports Shocks
• Powersports Shock Position: Rear
• Powersports Shock Type: Double-adjustable
• Shock Body Material: Aluminum
• Shock Body Finish: Black
• Body Diameter (mm): 76.20mm
• Body Diameter (in.): 3.000
• Adjustable Valving: Yes
• Low Speed Compression Adjustable: Yes
• High Speed Compression Adjustable: Yes
• Rebound Adjustable: Yes
• High Flow Valving: Yes
• Number of Valving Selections: 10
• Extended Length (in.): 33.75
• Collapsed Length (in.): 21.65
• Upper Mount: Eyelet
• Lower Mount: Eyelet
• Gas Charged: Yes
• Reservoir Included: Yes
• Coilover Springs Included: Yes
• Spring Preload Adjustable: Yes
• Spring Rate (lbs./in.): 150/250 lbs./in.
• Shock Linkage Included: No
• Shock Linkage Bearings Included: No
• Quantity:

  Sold individually.

F

Fitment:

• 2021–2022 Polaris RZR TURBO S
• 2021 Polaris RZR TURBO S LIFTED LIME LE
• 2021–2022 Polaris RZR TURBO S VELOCITY
• 2018–2020 Polaris RZR XP TURBO S
• 2020 Polaris RZR XP TURBO S VELOCITY
• 2021–2022 Polaris RZR TURBO S BASE
• 2021 Polaris RZR TURBO S LIFTED LIME LE BASE
• 2021–2022 Polaris RZR TURBO S VELOCITY BASE
• 2018–2020 Polaris RZR XP TURBO S BASE
• 2020 Polaris RZR XP TURBO S VELOCITY BASE
