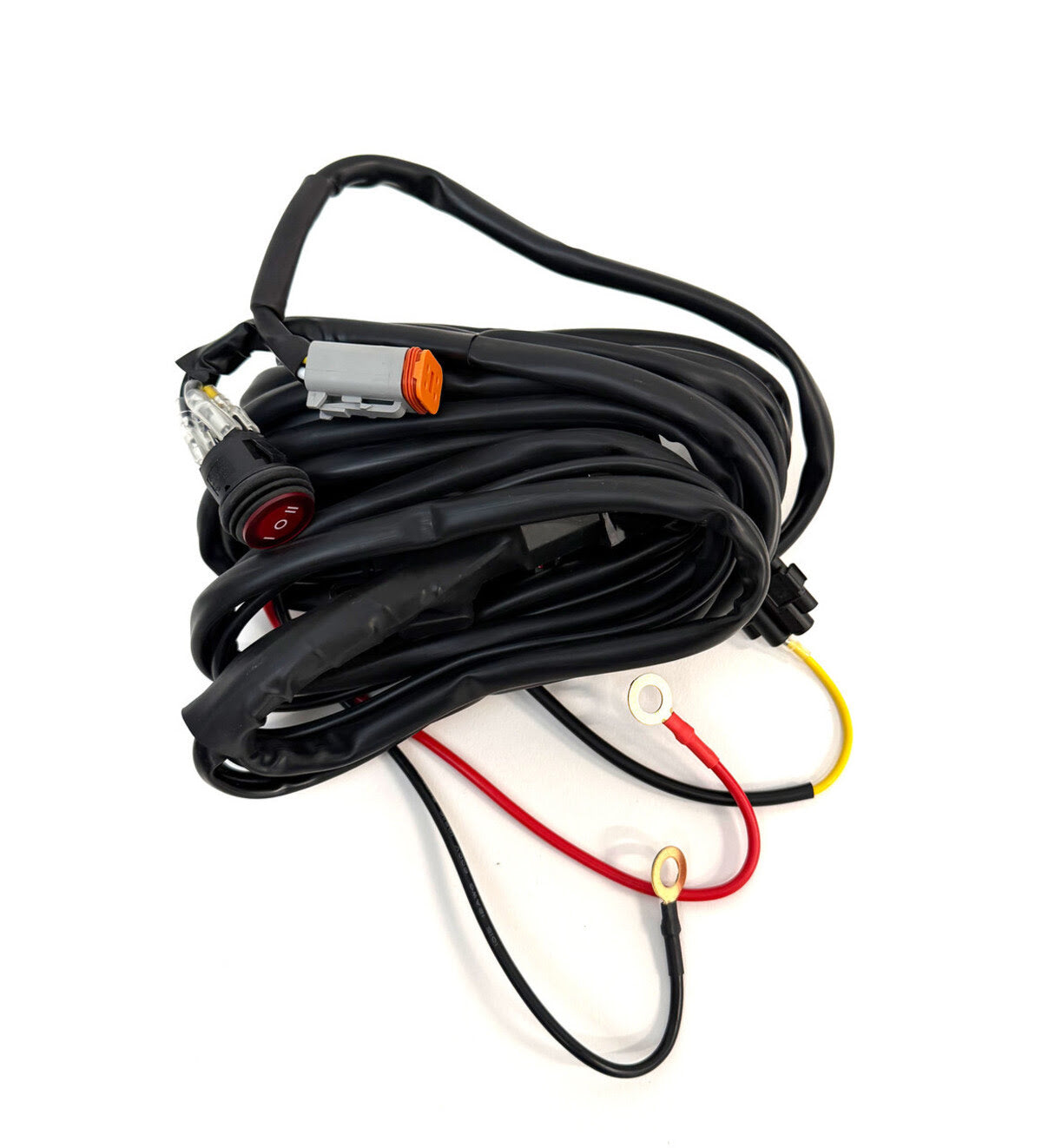

Baja Designs Squadron 2.0 4-Pin Deutsch On/Off 1-Light w/ Backlight Universal Harness - 150W Max

Baja Designs Squadron 2.0 4-Pin Deutsch On/Off 1-Light w/ Backlight Universal Harness - 150W Max

Versatile harness. 4-pin Deutsch-style single-light harness with 3 position toggle switch; supports backlight trigger, direct battery connection, and can support a maximum of 2 Squadron 2.0 Pros, or 4 Squadron 2.0 Sports (with appropriate splitter harnesses). 170 Watts max. Intended use: Single lead on-off harness, connected to battery, with backlight integration.

Specifications:

• Harness Type: Toggle On/Off/On

• Max Power: 170 Watts ~13 amps @13.5V

• Max Squadron 2.0 Sport: 1 or 4 w/splitter

• Max Squadron 2.0 Pro: 1 or 2 w/splitter

• Leads: 1

• Switch: 3/4" 3-position toggle

• Backlight integration: Yes, switch and trigger

• Battery to Relay Length: 24" (2 Ft.)

• Relay to Switch Length: 108" (9 Ft.)

• Light Branch Length: 96" (8 Ft.)


Installation Instgructions:

• FGXX_60-0058-INS_001.pdf
