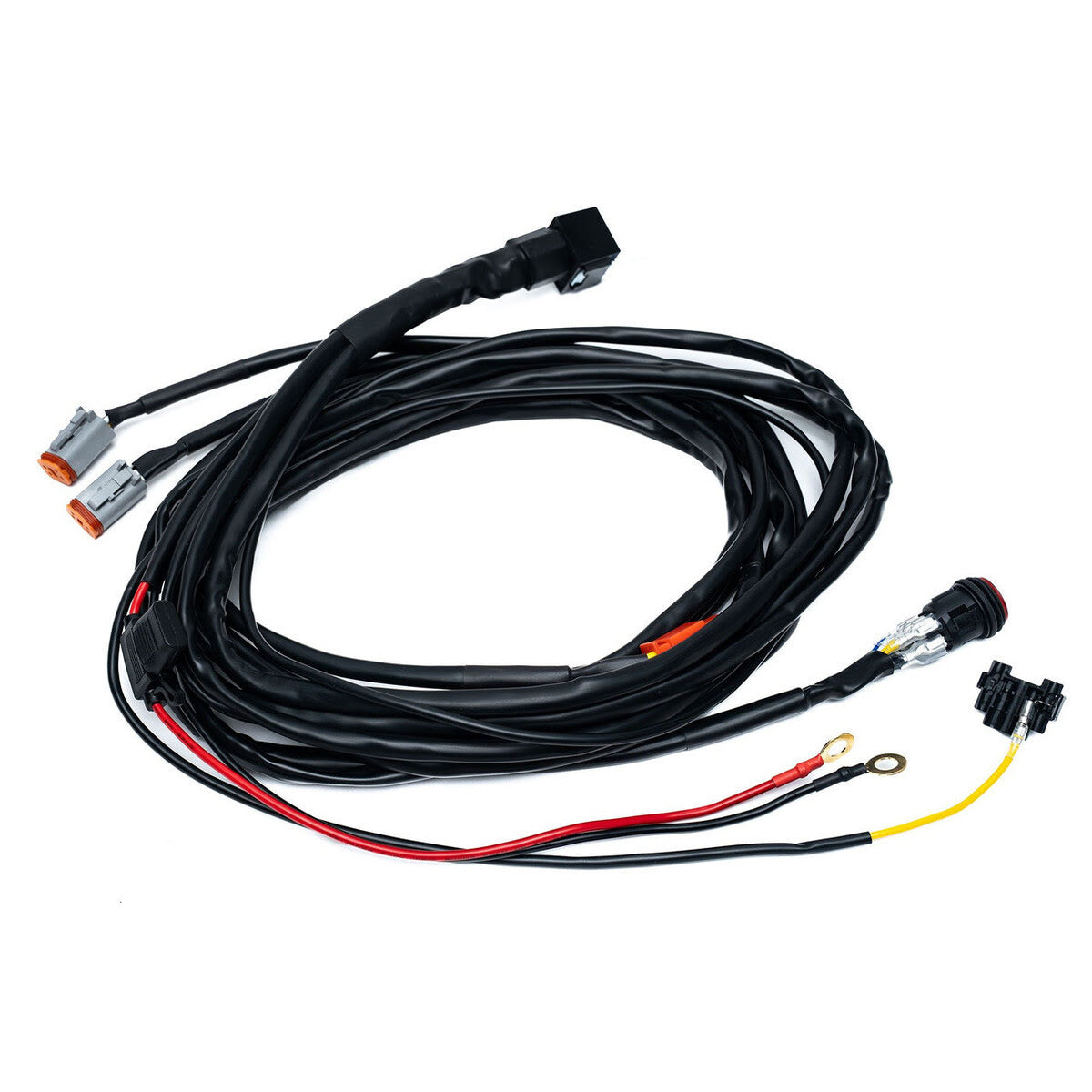

Baja Designs Squadron 2.0 4-Pin Deutsch 2-Light Universal Harness

Baja Designs Squadron 2.0 4-Pin Deutsch 2-Light Universal Harness

The swiss army knife of harnesses. 2 lead, 4-pin Deutsch-style 2-light harness with 3 position toggle switch; supports backlight, direct battery connection, and can support a maximum of 2 Squadron 2.0 Pros or 5 Squadron 2.0 Sports (with appropriate splitter harnesses) on each lead. Each connector is rated 170 Watts max. The entire harness is rated for 270 Watts max. Intended use: Dual lead on-off harness, connected to battery, with backlight integration.

Specifications:

• Max Power: 270 Watts (MAX Amount)~20 amps @ 13.5V

• 170 Watts per connector ~13 amps @13.5V

• Max Squadron 2.0 Sport: 2 to 8 w/ splitters

• Max Squadron 2.0 Pro: 2 to 4 w/ splitters

• Leads: 2

• Switch: 3/4" 3-Position Switch

• Backlight Integration: Yes, switch and trigger

• Battery to Relay Length: 24" (2 Ft.)

• Relay to Switch Length: 108" (9 Ft.)

• Light Branch Length: 96" (8 Ft.), 96" (8 Ft.)


Installation Instructions:

• FGXX_64-0055-INS_001.pdf
