ARB Single Motor Portable 12V Air Compressor

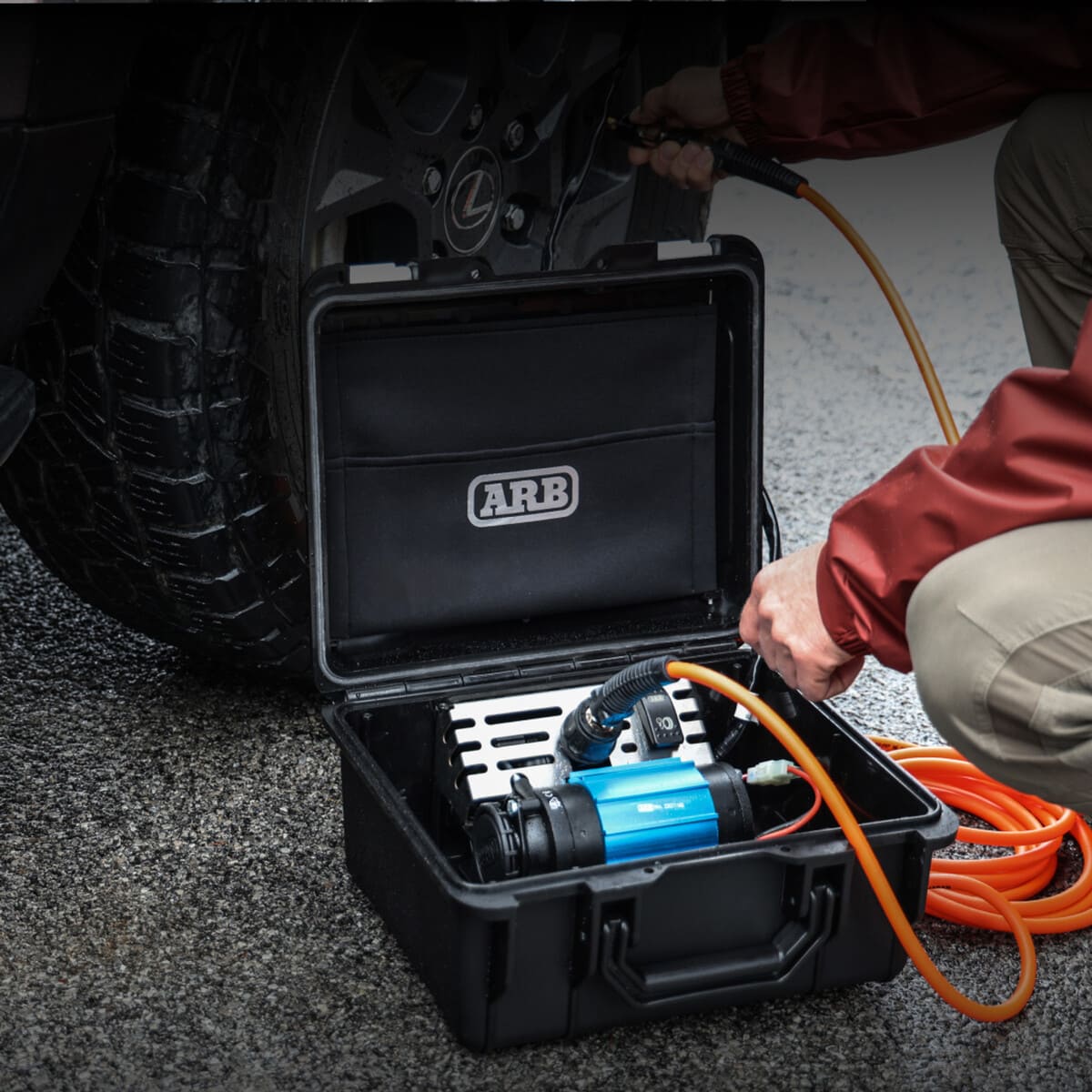

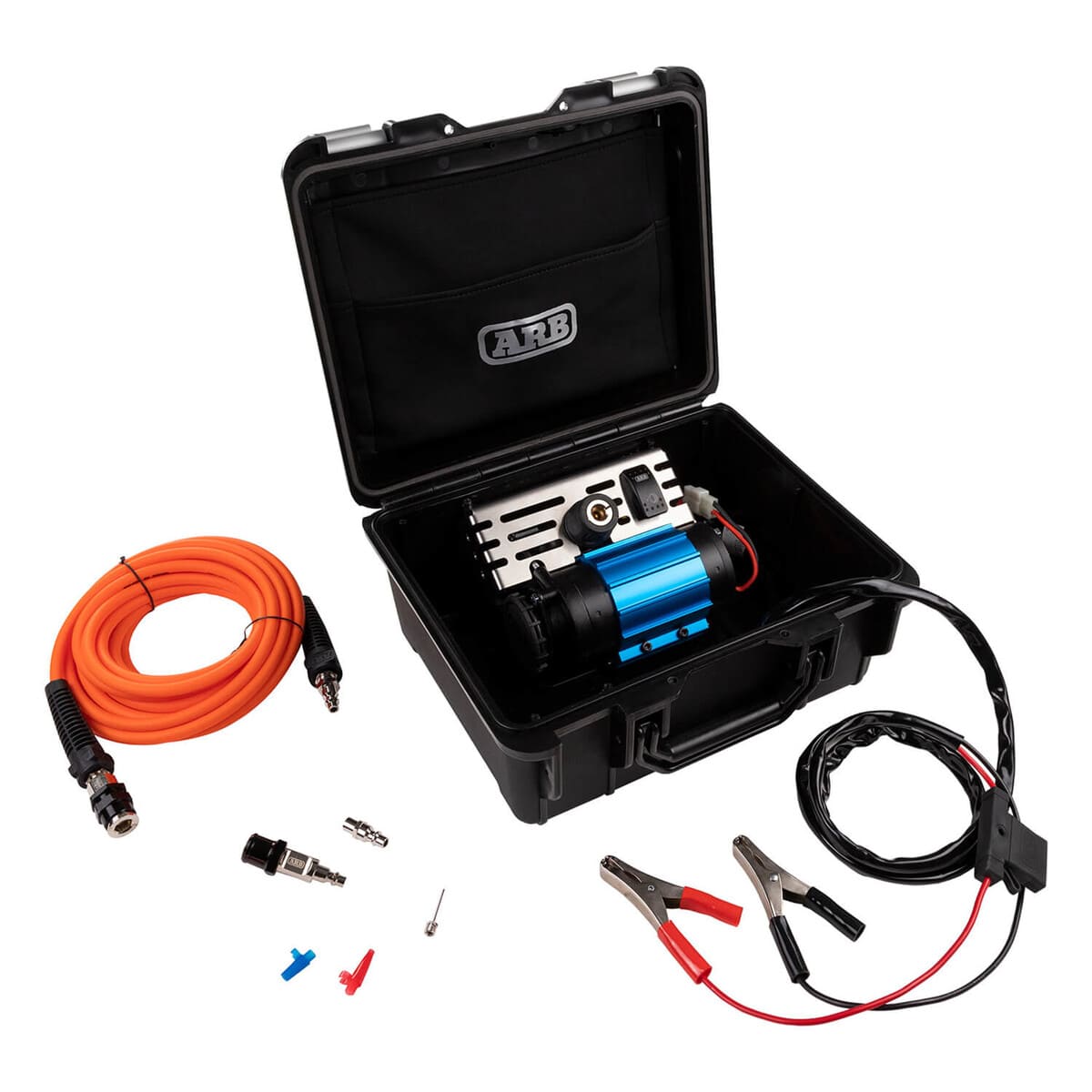

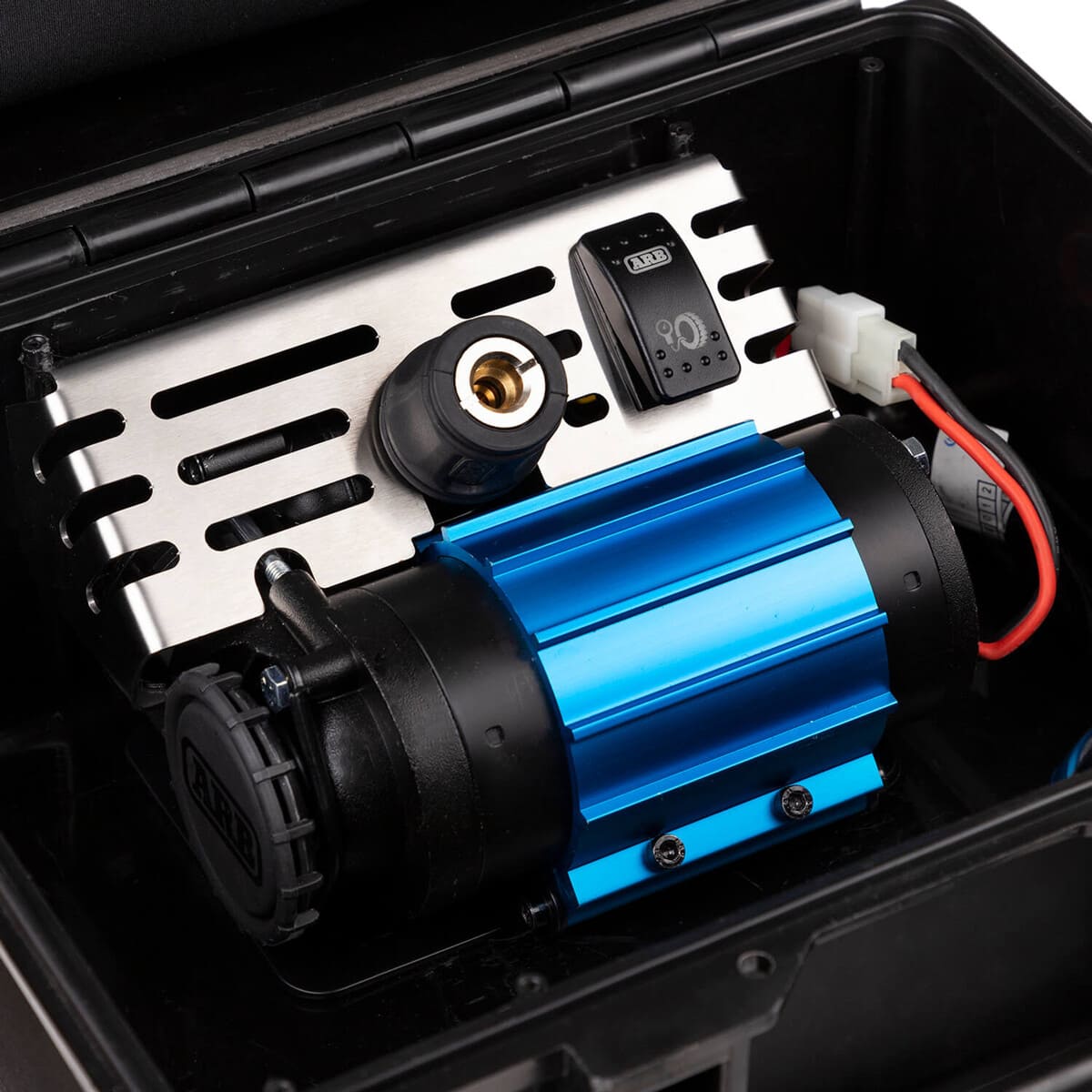

This compact, portable, 12V air compressor is designed to take with you on the go. Conveniently air up after a day on the trails or a weekend at the beach. The impact resistant weather-proof case, provides protection for the compressor in various conditions, making it more versatile and reliable for outdoor use. The stainless-steel heat shield covers the hot touch areas of the compressor making it safer for operation.
Air On-the-Go: When it comes to air, well, we can't live without it. ARB portable air compressors are an incredible resource for work and play; just ask the thousands of off-roaders around the world whom praise their reliability and performance. This hard-earned reputation stems from superior engineering and quality materials that stand the test of time.
Compare Options:
- Maximum Output (Twin Motor): Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line MAXI fuse provides professional circuit protection.
- High Output (Single Motor): With a class-leading flow rate, the single motor compressor has been designed for fast tire inflation and a range of other functions whether they be for work or play.
Features & Benefits:
- Built-in pressure switch with over pressure safety valve
- Motor is internally thermal protected against extreme temperature damage

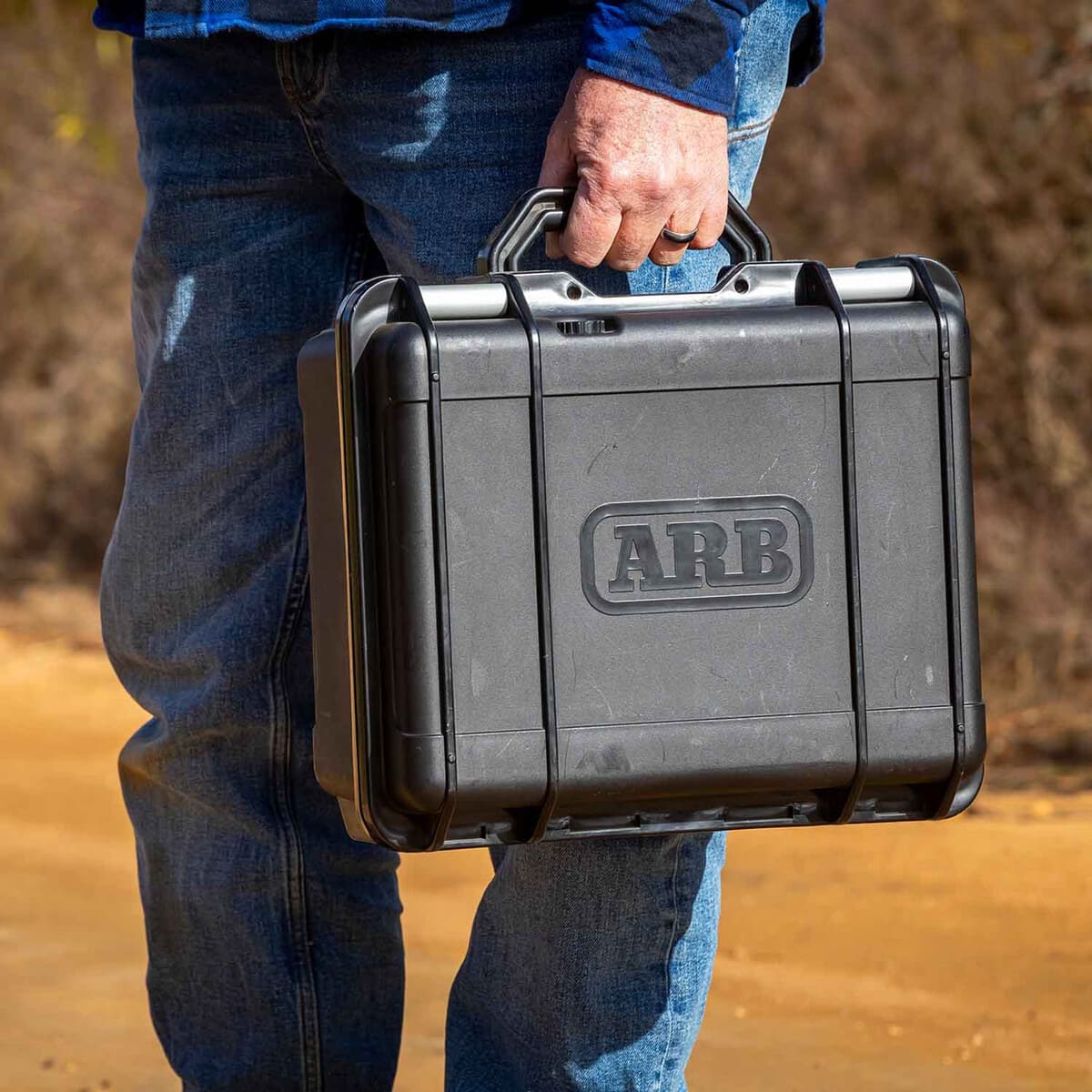

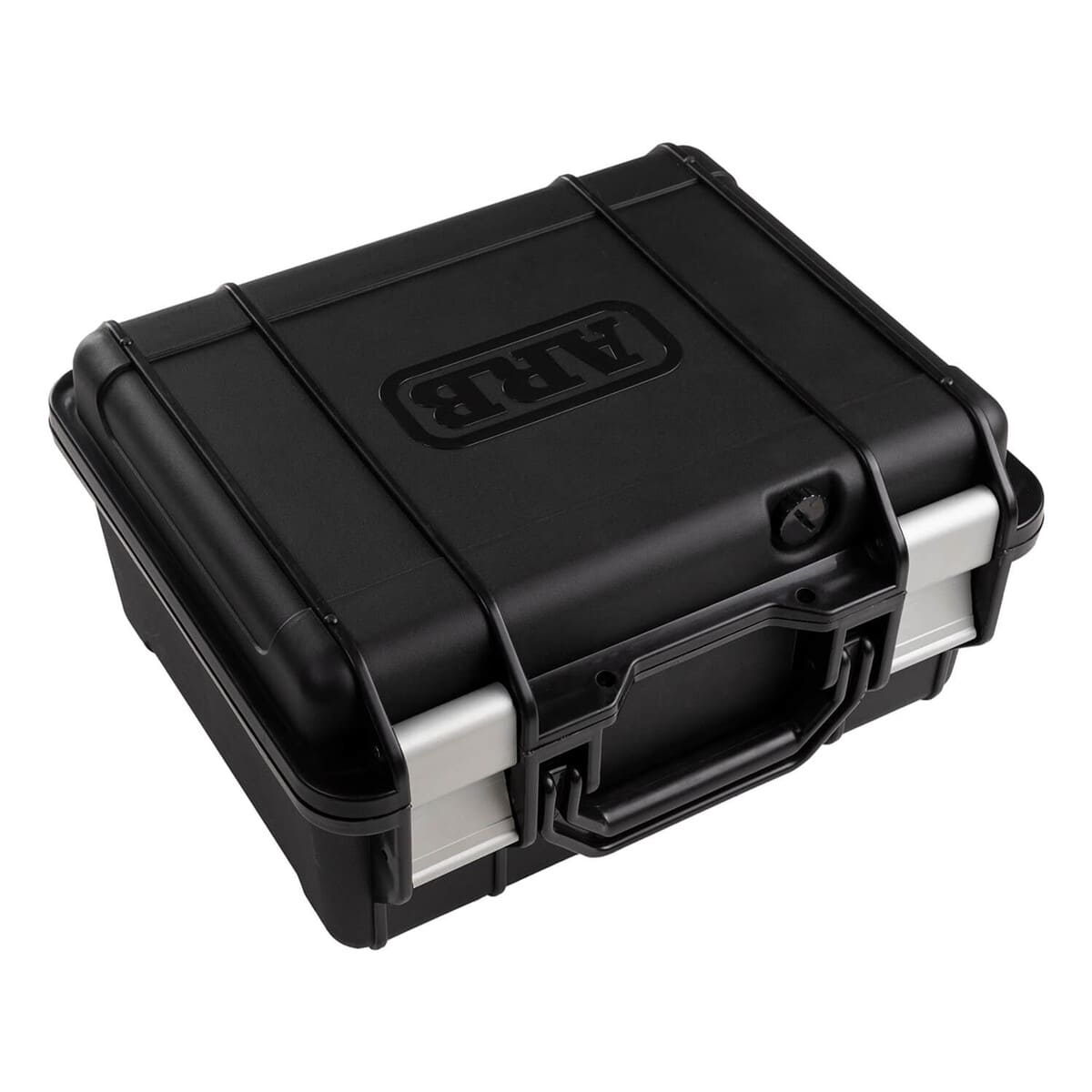

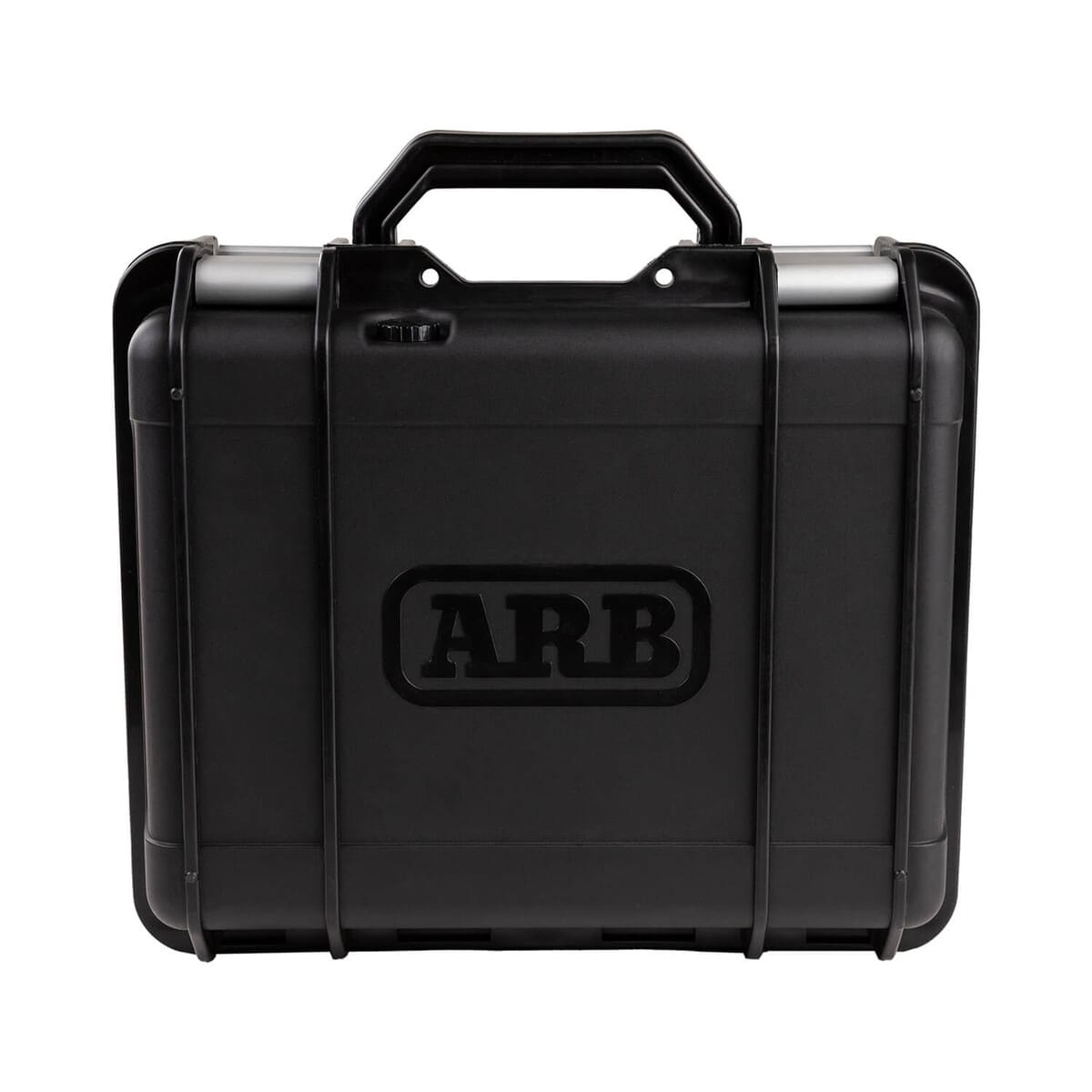

- Weather proof impact resistant polypropylene carry case
- Duty cycle is 50%
- Hard anodized cylinder bore for reduced friction
- Teflon impregnated carbon fiber piston seals

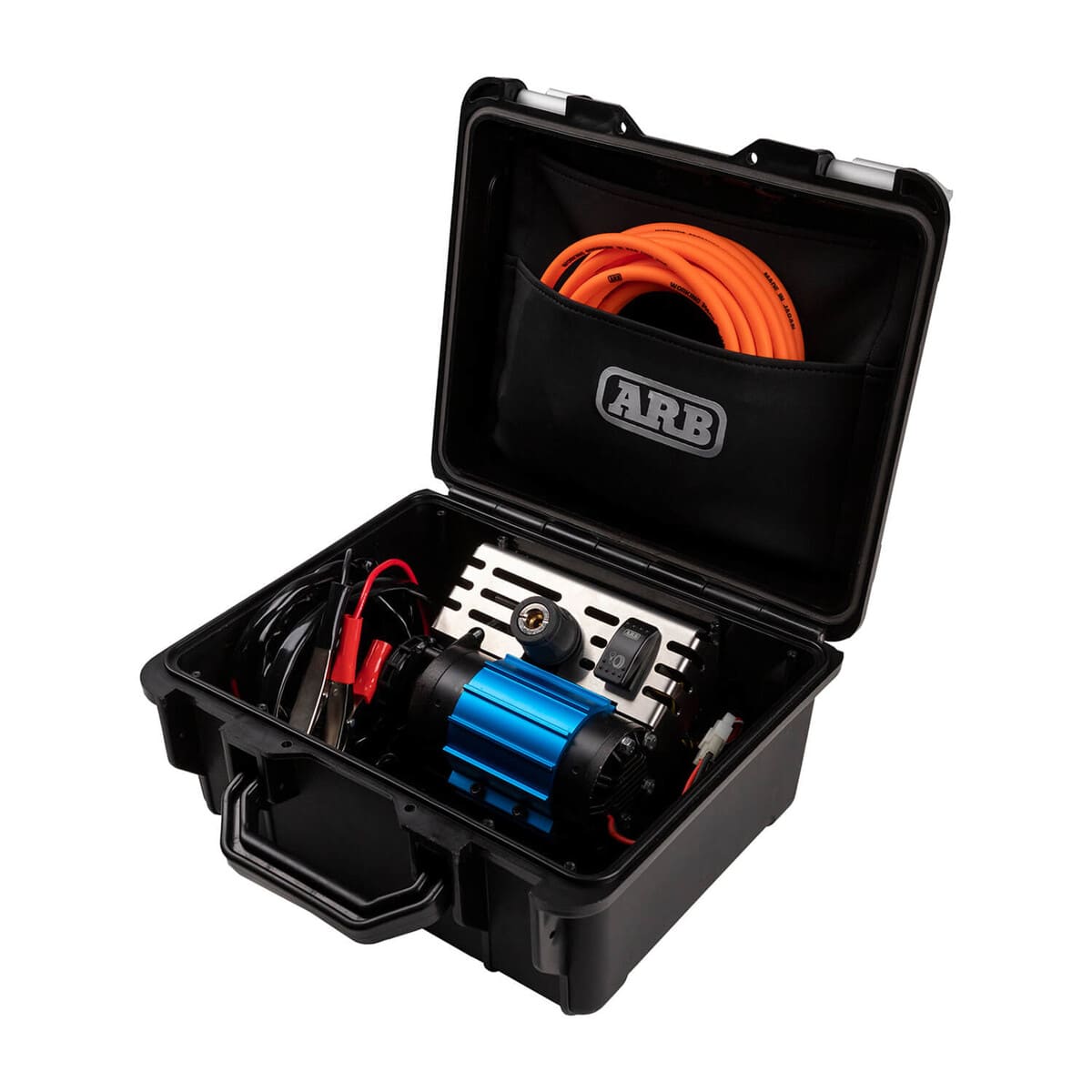

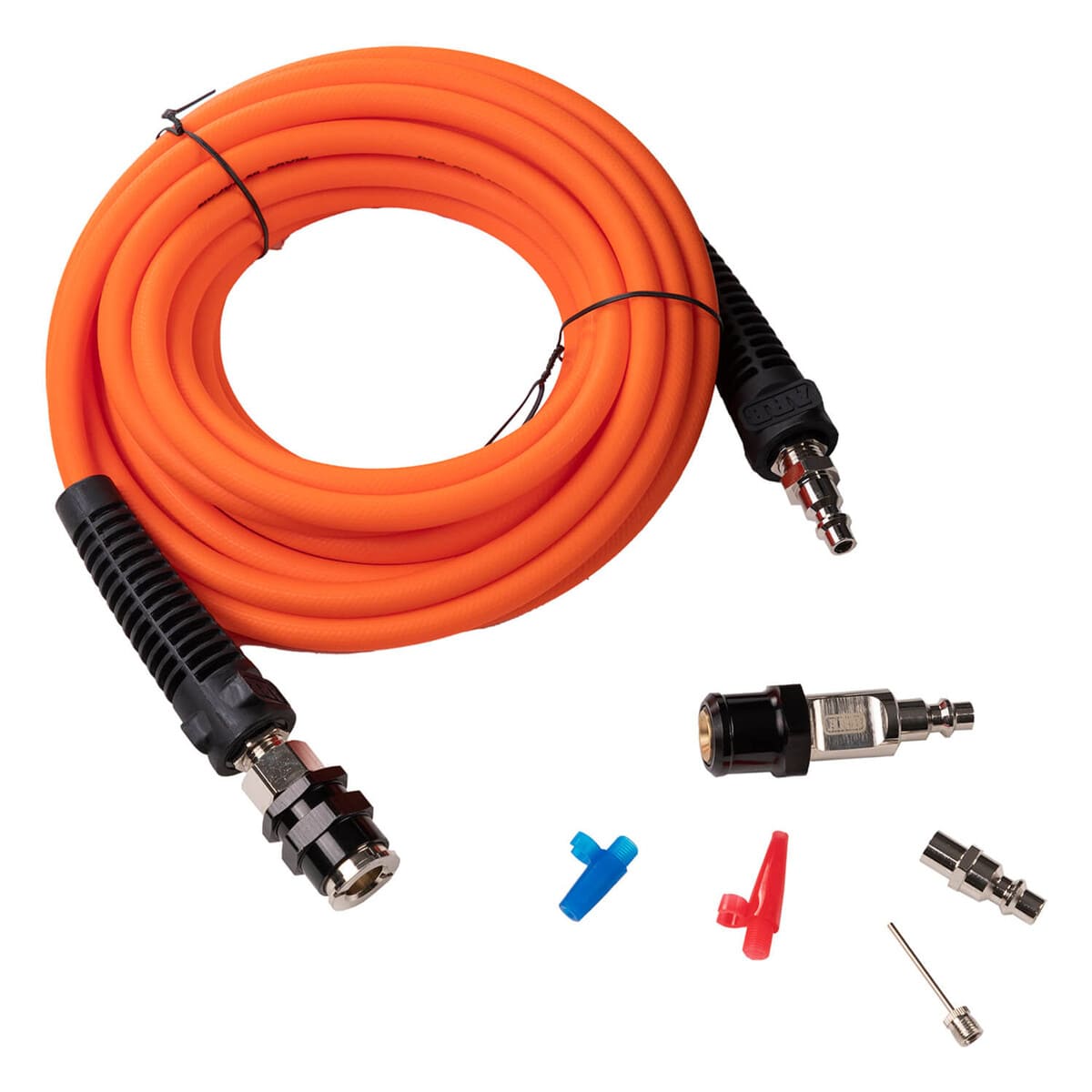

- Handy neoprene pocket to store air hose and accessories
Installation Instructions:
Specifications:
Volts | 12V | ||||
---|---|---|---|---|---|
Width | 12.1 in | ||||
Height | 7.2 in | ||||
Length | 14.0 in | ||||
Weight | 15.4 lb | ||||
Max Psi | 100 | ||||
Max Amps | 32 | ||||
IP Rating | IP55 | ||||
Duty Cycle | 50% 30/30 | ||||
Air Flow OPSI | 3.08CFM | ||||
Air Flow 29PSI | 2.34CFM | ||||
Design | Portable | ||||
Specifications | Air Locker Activation System (12V) | High Output 12V | High Output 24V | Maximum Performance 12V | Maximum Performance 24V |
Current Draw (No Load) | 5.5A | 14A | 7A | 28A | 14A |
Air Flow 0 KPA | 27.7L/m | 87.2L/m | 87.2L/m | 174.4L/m | 174.4L/m |
Air Flow 0 Psi | 0.98CFM | 3.08CFM | 3.08CFM | 6.16CFM | 6.16CFM |
Current Draw (Load) | 7.5A | 25A | 12.6A | 50A | 25A |
Air Flow 200 KPA | 19.7L/m | 66L/m | 66L/m | 132L/m | 132L/m |
Air Flow 29 Psi | 0.70CFM | 2.34CFM | 2.34CFM | 4.68CFM | 4.68CFM |
Duty Cycle | 35% | 50% | 50% | 100% | 100% |
Load Protection | No | Yes (In loom) | Yes (In loom) | Yes (In loom) | Yes (In loom) |
Air Locker Solenoid Manifold | Yes | Yes | Yes | No | No |
Thermally Protected Motor | No | Yes | Yes | Yes | Yes |
