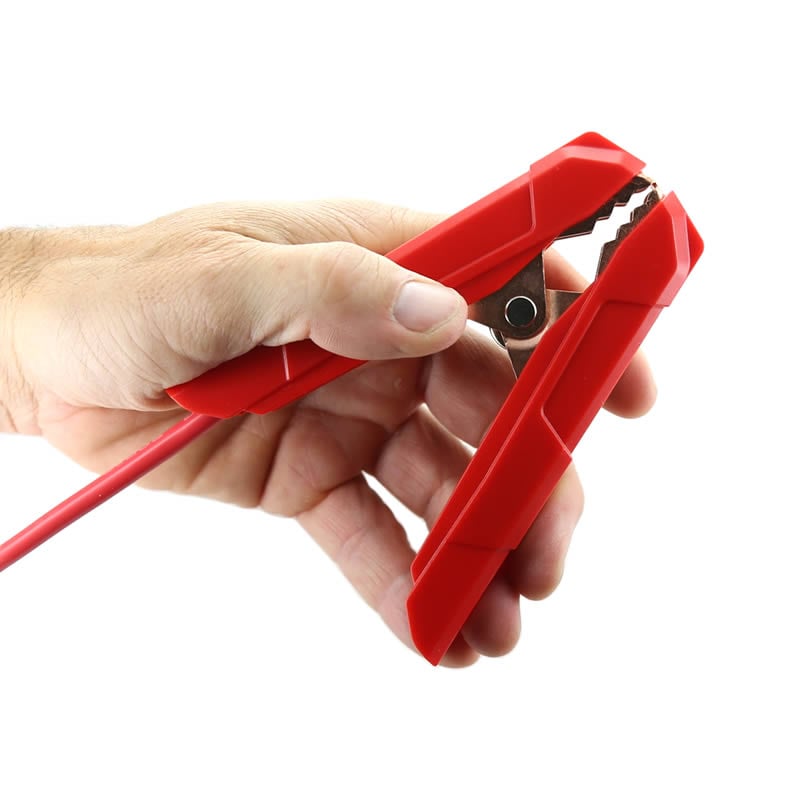

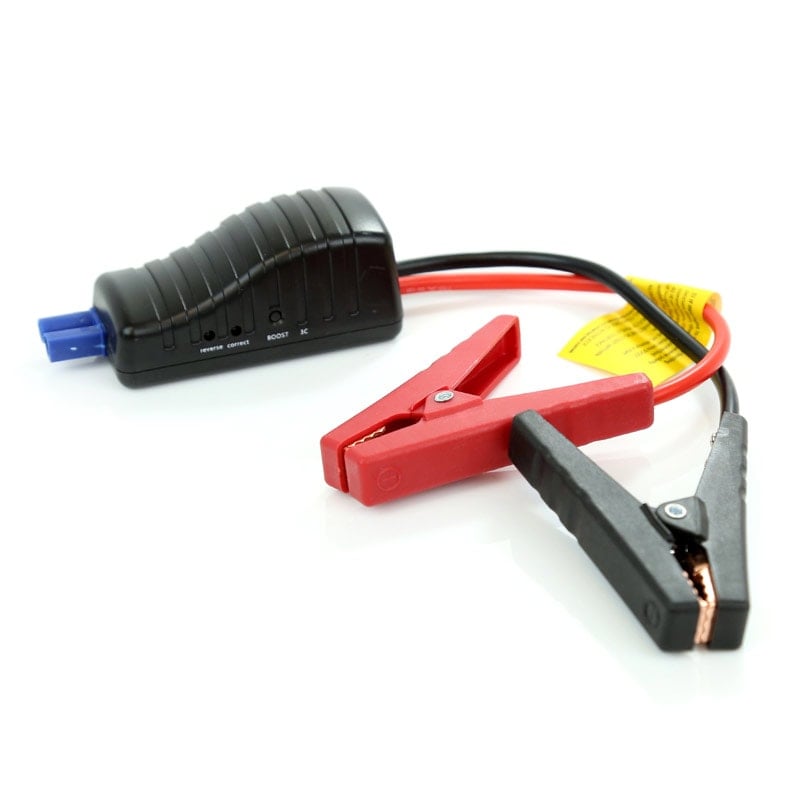

These are replacement mini clamps for the NEWER models of the MICRO-START XP-1 and XP-3. These SMART jump-start Clamps have additional safety features built-in for full protection. (Note: the clamps also have a stronger plastic clamp joint where previously it was a metal pin.)
![Reverse-Polarity Protection built into Clamps](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/reverse-polarity-protection-150x150.png)
1. REVERSE POLARITY PROTECTION
Protects from connecting the Smart Clamps in reverse polarity. The clamps will not allow User to Jump Start and will Notify User with RED LED Flashing.
![Short-Circuit Protection built into Clamps](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/short-circuit-protection-clamps-150x150.png)
2. SHORT CIRCUIT PROTECTION
If the Smart Clamps touch or are connected together accidentally the clamps will disconnect immediately and not allow Short-Circuit.
CAUTION
![Reverse-Current Protection built into Clamps](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/reverse-current-protection-clamps-150x150.png)
3. REVERSE CURRENT PROTECTION
If the clamps are left on the vehicle, the Reverse Current protection will not allow a Back-Charging into the MICRO-START. In any case we still suggest never leaving the unit connected to a vehicle more than 30 seconds after a Start.
![Over-Current Protection built into Clamps](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/over-current-protection-clamps-150x150.png)
4. OVER CURRENT PROTECTION
If the Current exceeds 600 amps the Smart Clamps will shut down automatically protecting the unit from damage.
![Over-Discharge Protection Clamps](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/over-discharge-protection-clamps-150x150.png)
5. OVER DISCHARGE PROTECTION
When the output voltage of the MICRO-START is less than 10 Volts the clamps will not allow jump starting or further amperage discharge from the clamps.
![Thermal Protection Clamps](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/thermal-protection-clamps-150x150.png)
6. THERMAL PROTECTION
Protection against over-heating of Clamps due to Over-Cranking of Vehicle which can generate high heat and damage unit. The Smart Clamps will sense high heat and shut off Clamps.
JUMPER CLAMPS TIP DIFFERENCE:
Please refer to the images below to see how the tips (that plug into jump port) differ between the Smart Clamps. The XP-10 clamps connector tip is curved. The Old XP-3 and XP-1 clamps tips are an EC5 connector.The New XP-3 and XP-1 have thermal protection and you can see the pin hole in its clamps connector tip.
![XP10 Harness Connector Tip](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/xp10-harness-tip.jpg)
XP-10 Only
![SPORT, XP5, Old XP1, Old XP3 Harness Connector Tip](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/sport-xp5-old-xp1-xp3-harness-tip.jpg)
SPORT, Older XP-3 & XP-1
![New XP1, New XP3 Harness Connector Tip](https://cdn.shopify.com/s/files/1/0755/5871/5697/files/new-xp1-xp3-harness-tip.jpg)
New XP-3 and XP-1
