Aftermarket Assassins '20-'24 Kawasaki KRX 1000 +25 HP Stage 2 Lock & Load Kit

Aftermarket Assassins '20-'24 Kawasaki KRX 1000 +25 HP Stage 2 Lock & Load Kit

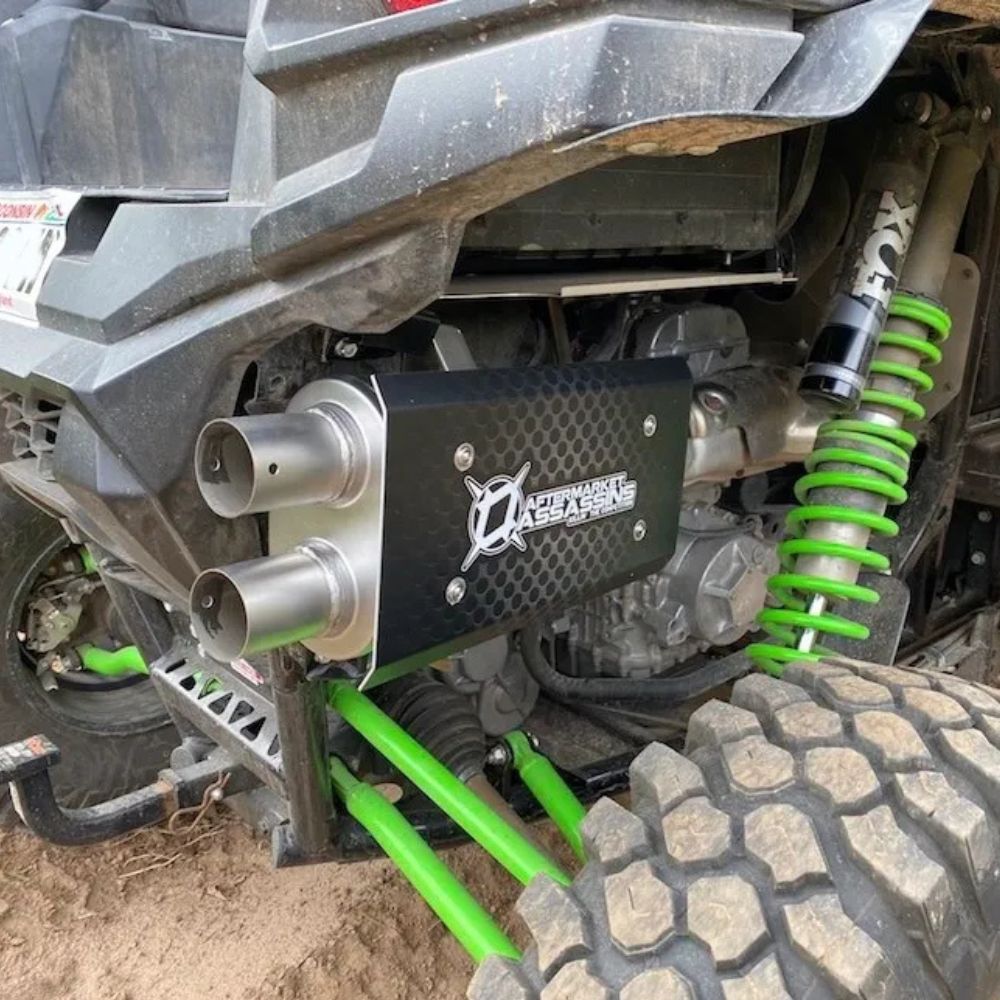

Lock and load your Kawasaki KRX 1000 and get ready for some serious kick!  The KRX 1000 is a great machine, but Kawasaki left a ton of room for improvement on the table.  This simple kit is the best way to wake up your KRX 1000 as it comes with our proven ECU tunes which are loaded via the DynoJet Power Vision 3 ECU tuner.  The tunes add some amazing horsepower from low end to high end RPM and really give your machine that "snap" you're looking for.  Our AA Stage 2 clutch kit compliments the tuning perfectly by more efficiently transferring power to the wheels and ridding yourself of the very lazy factory clutching setup. We finish the kit off with the AA KRX slip-on exhaust. This exhaust is just what your machine needs!  We set out to produce an exhaust that looks great, sounds great and has adjustable sound levels. For more information on the exhaust features and options please follow the link below.

Why AA tunes over others?  We have been tuning UTV's with CVT clutches for a long time, longer than almost anyone in our field going back to the 800 RZR.  Tuning a CVT vehicle properly is not an easy task as you have so many variables at one time.  We spend the time to wheel dyno(with actual UTV tires) correctly per modification, and have advanced ECU calibration and clutching knowledge to do so. Every change in horsepower can result in us changing clutching several times. We also develop most of our supporting mods so we know everything works correctly, and build parts to fit the vehicles needs.  Lastly and honestly the most important; we then back up our results with real world data logging on local trails and our facility on 110 acres.  It's this combination that truly makes the difference and why AA normally has a faster vehicle with the same or less rated tune horsepower.

Our Stage 2 KRX 1000 clutch kits pack a huge punch!  No matter the terrain, they hit hard and just keep pulling for days.  On the trail or at the race you'll notice wicked acceleration and instant clutch response when getting back into the throttle after hammering that corner.  In the dunes you'll see the same benefits, but also have much less bogging when climbing that big dune.  The machine will hold RPM so you can get where you need to go, and get there faster!  Going mudding?  Our mud setup will help turn those tires through the thick and deep with much better RPM and wheel speed that's key to climbing out of that hole. Are you a rock crawler?  Our smooth engagement and precise feel down low will give you the confidence to tackle any obstacle.  We have a huge amount of CVT knowledge, a great passion for the sport, and spent many hours testing different setups in the real world.  We know you'll be extremely pleased with the performance gain from our clutch kits.

The KRX 1000 has some clutching issues right out of the box because the OEM weighs are soft.  Being these vehicles are geared so low, the clutch constantly runs at full shift over 55 MPH.  Being at full shift for so long wears the weights away at the tip, and will groove them.  This makes the vehicle want to sit at full shift, and shift inconsistently.  Our weights go through two hardening processes and are through hardened for the most longevity possible. They have no bushing as it's not needed with the hardened weight, which also makes them last longer.  Not only that but they are fully adjustable for different tires/modifications and perform better because of how the mass is placed on the arm

Features:

• Big horsepower gains at +17-18rwhp, or +25hp at the crank. The KRX factory timing map is very de-tuned which allows us to easily wake things up
• Quicker throttle response and power delivery
• Throttle by wire tables are modified for better response, especially in high range.  Low range throttle mapping is a little better, but still left mild for good crawling.
• Full throttle/power in reverse (factory limits reverse throttle)
• AA's wicked timing curve built for 91-93 octane fuel
• A great fuel curve that gives much better low end (as well as all around) power as the factory map is very lean in key areas.
• Accelerator enrichment is optimized for better fueling and vehicle response when stabbing the throttle
• Seatbelt limiter disabled
• Speed limiter removed in low and high gears
• Rev limit at a safe 9800 RPM (Stock is 9500 RPM)
• Best peak power when tuned is 7000-7300 RPM at wide open throttle around 50 MPH in a full power run
• Very easy to use tuner that can also check and erase most trouble codes
• Easily data log 25 parameters with 1 push of a button and review on your windows computer later
• No mess of having to send in your ECU, and a safer way of programming your ECU (easily go back to stock tune)
• By design, our clutch weights have more tip weight mass, so they grip the belt harder and accelerate faster... yet still crawl even better than OEM.
• A must-have when changing tires, tuning your machine, or running paddles
• Cooler running belt temps from a more efficient power transfer which results in longer belt and clutch life
• Big acceleration gains an better power transfer to the rear wheels.
• Close to stock engagement which is very smooth (Higher engagement springs available if needed for racing)
• Our Recoil clutch weights are easily adjustable with simple magnets.

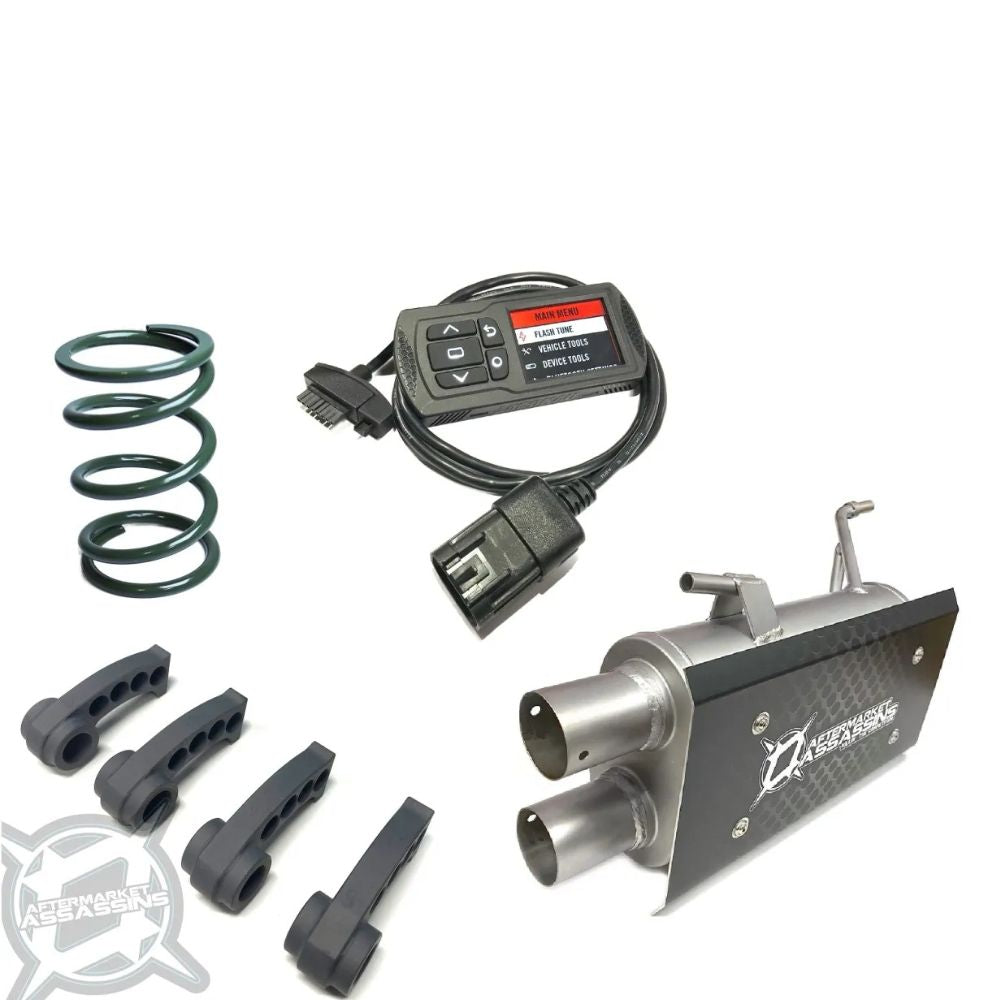

Kit Includes:

• AA custom tuned PV3 tuner
• Stage 2 Clutch Kit
• AA Stainless Slip-On Exhaust.

Fitment:

• Fits all 2020-24 KRX 1000 models only - 2025 models use a 3 arm clutch instead of 4 arm, for 2025 models, see that specific listing
