XTC Honda Talon 6 Switch Power Control System

XTC Honda Talon 6 Switch Power Control System - (Switches not Included)

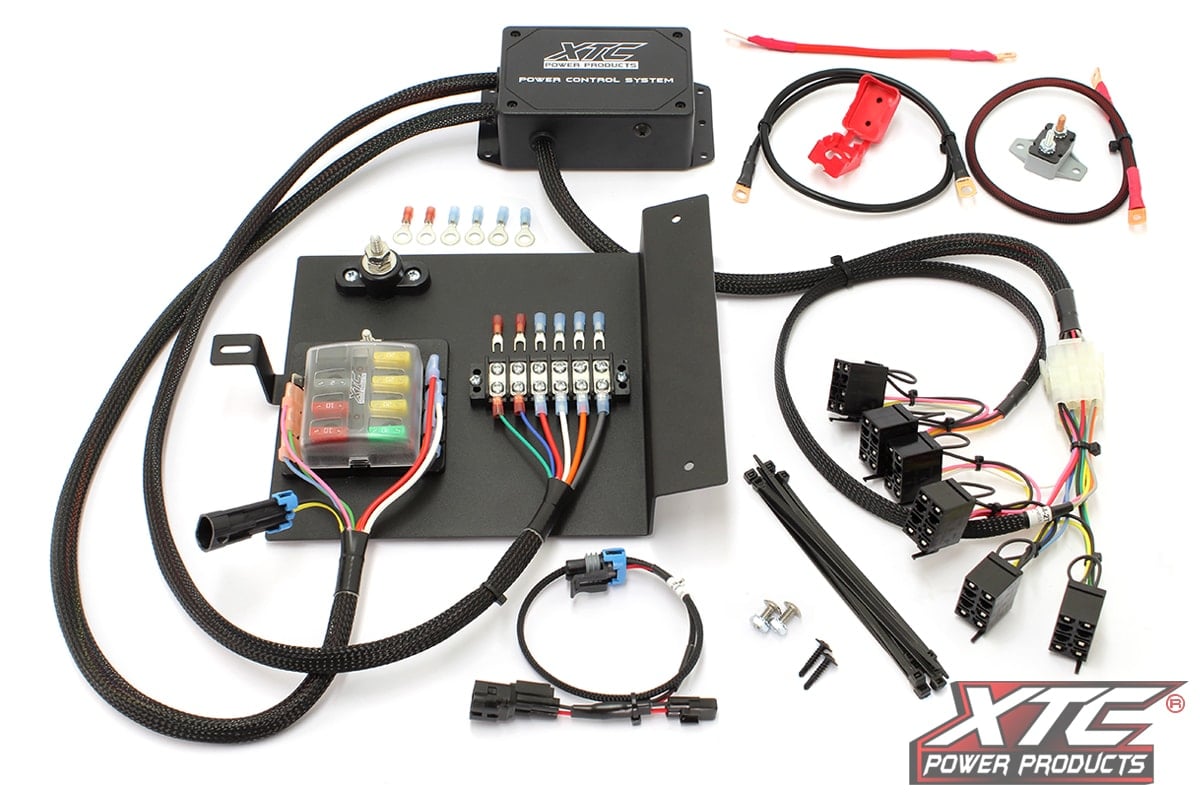

XTC Power Products Leads the way in UTV Wiring. Powering multiple accessories has become easier than ever with our Plug and Play PCS (Power Control System) for the Honda Talon. Unlike other switch systems available, the Power Control System’s designed with the installer in mind. Every PCS has a vehicle-specific power connector and rocker switch harness that fits the factory pre-cut rocker switch positions.

Power Delivered

The PCS includes 1 x 30 amp and 3 x 20 amp high current circuits on relays with Diode protection. The design reduces voltage spikes from field collapse, protecting LED lights and other sensitive accessories. There are also 2 x 10 amp direct wire circuits provided for low power accessories like rock lights or whip lights. Additionally included is a fuse block that protects the circuits and comes with an eight gauge power cable and fuses. Most UTV charging systems produce anywhere from 40-70 amps. Because of this, a 50 amp circuit breaker at the battery safely supplies power to the PCS. Installing a 100+ amp high power switch system is not practical in a UTV.

The Power Control Systems Barrier Strip

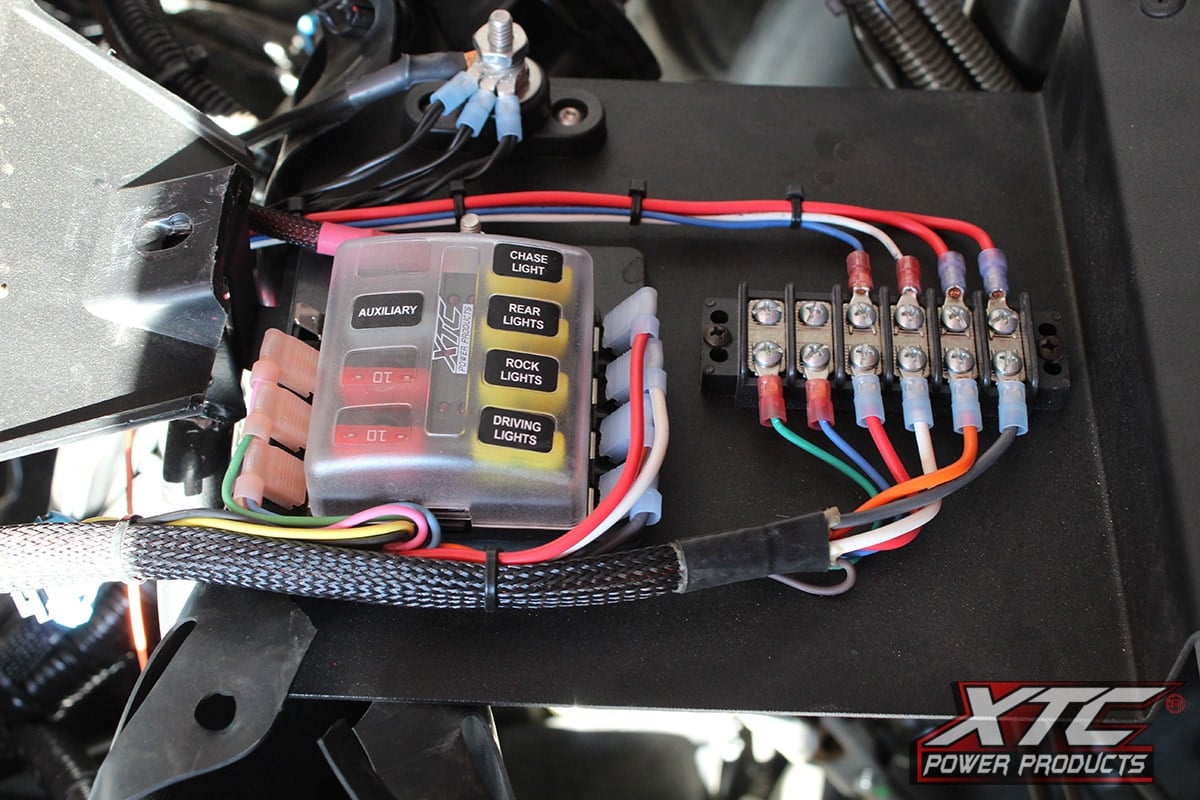

Pro wiring installers have been using barrier strips in off-road vehicle builds for years. Some good reasons would be aesthetics, along with ease of use when adding new connections and troubleshooting down the road. Each screw point on the barrier strip has a different colored wire that corresponds with the fuse box and switches harness wires. Therefore the 1st rocker switch would be the large 30 amp grey wire, and then so on and so forth.

Honda Talon Switch System Power Harness Configurations

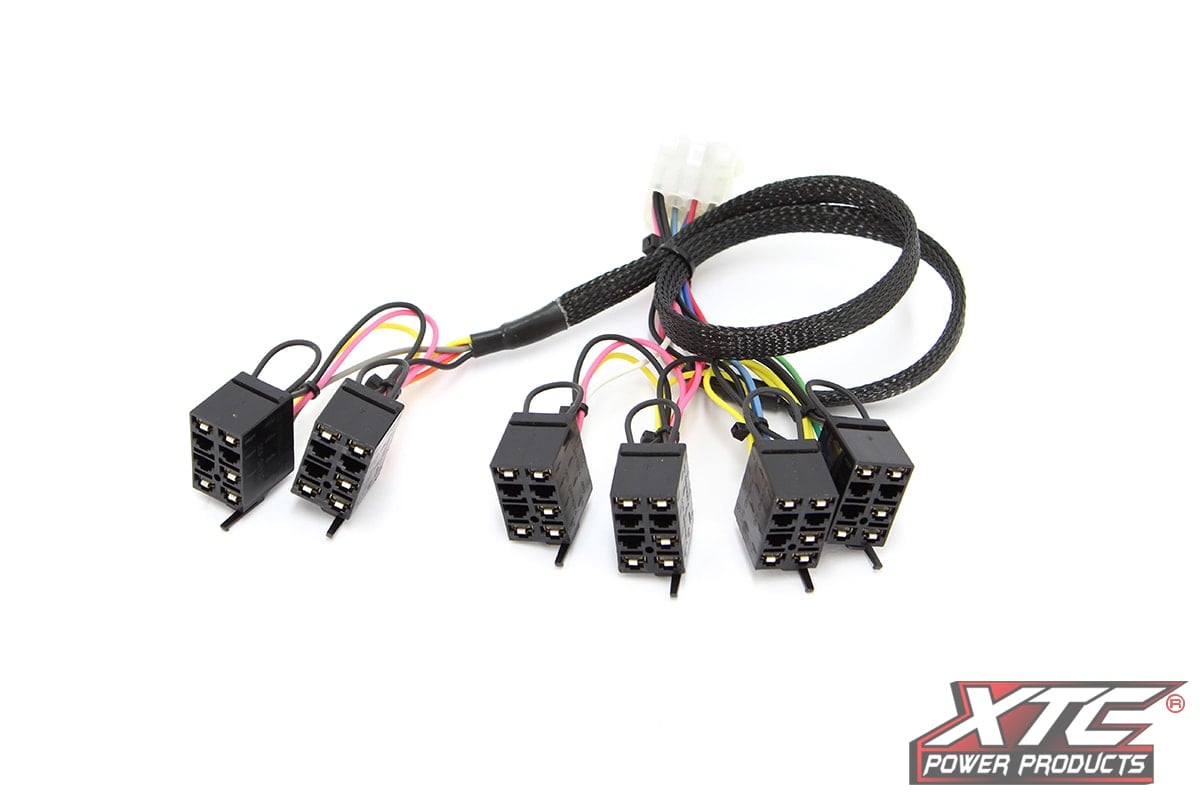

Designed for the Honda Talon, the PCS-64-HT-NS switch harness has 6 Rocker Switch Positions in a row that mounts in the center dash. Also, the rocker switches can be installed together in any custom way deemed fit by the installer as well. Moreover, a Molex connector links the switch harness to the main Power Control System.

Modular Power Connection

The PCS-64-HT-NS has a modular power connector at the fuse box that plugs in line with the vehicle's ignition power. Consequently, the lower LED (available on custom rocker switches) will only illuminate when the ignition key is turned on. The upper light only comes on when the rocker switch’s pressed. It should be noted that the wiring system will work with or without the vehicle’s ignition power on. XTC Power Products, made in America and Wired For Fun®!

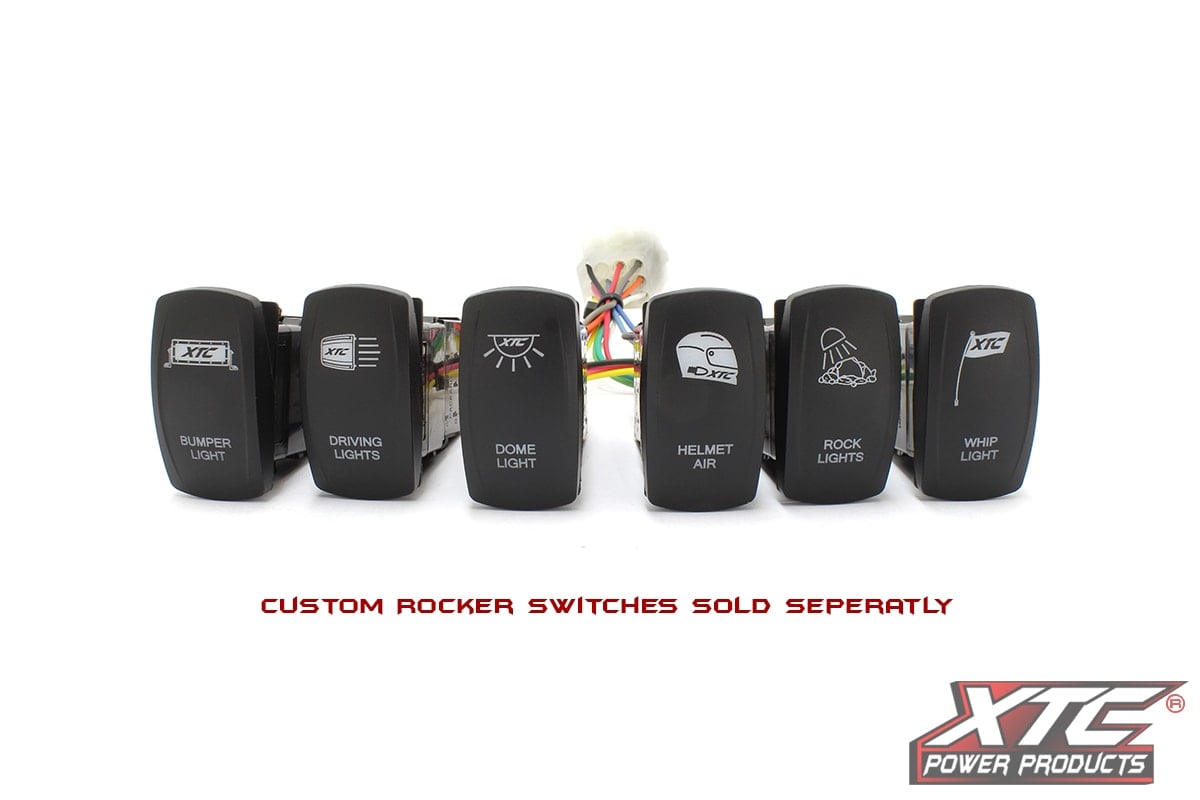

*LED-lit custom rocker switches sold separately.*

Features:

• Plug and Play Easy Install
• Fits 2019-2020 Honda Talon
• 1 x 30 AMP, 3 x 20 AMP High Power Relayed, and 2 x 10 AMP Direct Switch Circuits
• Fuse Block with Blown Fuse LED Indicator
• Each Switch on Individual Fuse
• 8GA Power Cable 50 AMP Main Circuit Breaker at Battery
• Barrier Strip for Clean Integration
• Bottom Row Lighting when upgraded switches used
• 6 Switch System, Switches Sold Separately
• Made in the USA!
