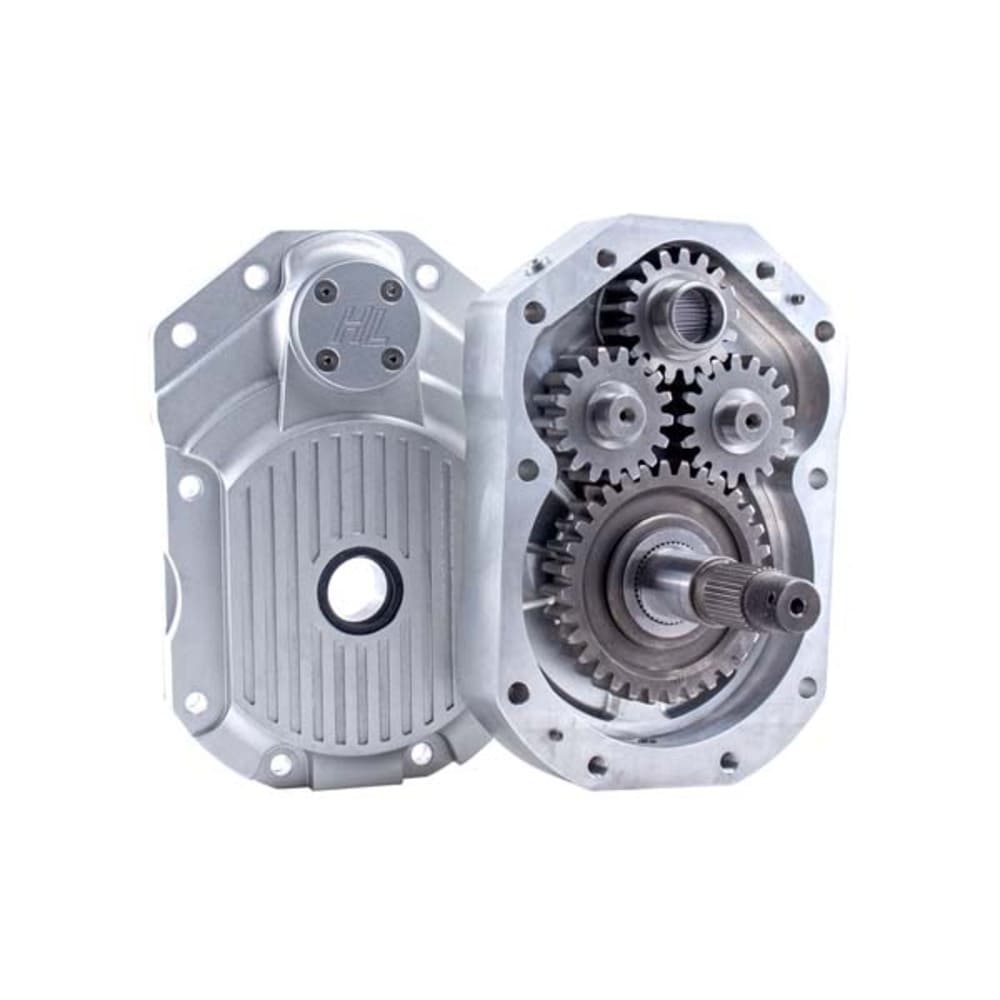

High Lifter Can-Am Maverick Sport/Defender/Commander Max 45% Dual Idler 6" Portal Gear Lift
SKU:
HL-PGL-645DI-C1DMC-1
High Lifter Can-Am Maverick Sport/Defender/Commander Max 45% Dual Idler 6" Portal Gear Lift
What does the 45% Dual Idler Gear Lift offer?
- High Lifter improved the portal design by adding a second idler gear in the gear box
- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
- You gain more reliable torque transfer
- If you run a 40” tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
- Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
- 45% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
- Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don’t have a need to run fast, a lower ratio performs better and give you the power you want!
Why is this 6” kit better than our competitor?
Forged Gear Boxes:
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Competitors use cast aluminum and billet aluminum boxes
- These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting:
- Customers asked for box venting and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design:
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals:
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate:
- These are the strongest backing plates on the market
- 5/16” steel plate with Bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
13” Rotor:
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Profile:
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
Fitment:
- 2022 Can-Am Commander MAX 1000R DPS
- 2022 Can-Am Commander MAX 1000R XT
- 2022 Can-Am Commander MAX 1000R XT-P
- 2022 Can-Am Maverick Sport MAX 1000R DPS
- 2022 Can-Am Defender MAX HD7
- 2022 Can-Am Defender MAX HD9
- 2022 Can-Am Defender MAX HD9 DPS
- 2022 Can-Am Defender MAX HD10 DPS
- 2022 Can-Am Defender MAX HD9 XT
- 2022 Can-Am Defender MAX HD10 XT
- 2022 Can-Am Defender MAX HD10 Lone Star
- 2022 Can-Am Defender MAX HD10 Limited
- 2022 Can-Am Defender MAX HD10 XMR
- 2023 Can-Am Commander MAX 1000R DPS
- 2023 Can-Am Commander MAX 1000R XT
- 2023 Can-Am Commander MAX 1000R XT-P
- 2023 Can-Am Defender MAX HD10 CAB XT Limited
- 2023 Can-Am Defender MAX HD10 Lone Star
- 2023 Can-Am Defender MAX HD10 Lone Star CAB
- 2023 Can-Am Defender MAX HD10 XMR
- 2023 Can-Am Defender MAX HD10 XMR w/Doors
- 2023 Can-Am Defender MAX HD10 XT
- 2023 Can-Am Defender MAX HD9
- 2023 Can-Am Defender MAX HD9 DPS
- 2023 Can-Am Maverick Sport MAX 1000R DPS
- 2023 Can-Am Defender Max HD10 DPS
- 2023 Can-Am Defender Max HD10 Limited
- 2023 Can-Am Defender MAX HD9 XT
- 2019 Can-Am Commander MAX 1000 LTD
- 2019 Can-Am Commander MAX 1000 XT
- 2019 Can-Am Maverick Sport 1000R MAX DPS
- 2020 Can-Am Commander MAX 1000 LTD
- 2020 Can-Am Commander MAX 1000 XT
- 2020 Can-Am Maverick Sport 1000R MAX DPS
- 2021 Can-Am Maverick Sport 1000R MAX DPS
- 2021 Can-Am Commander 1000 MAX XT
- 2021 Can-Am Commander 1000 MAX DPS
