HCR Suspension Can-Am Maverick X3 XRS 72" Duner OEM Replacement Suspension Kit

HCR Suspension Can-Am Maverick X3 XRS 72" Duner OEM Replacement Suspension Kit

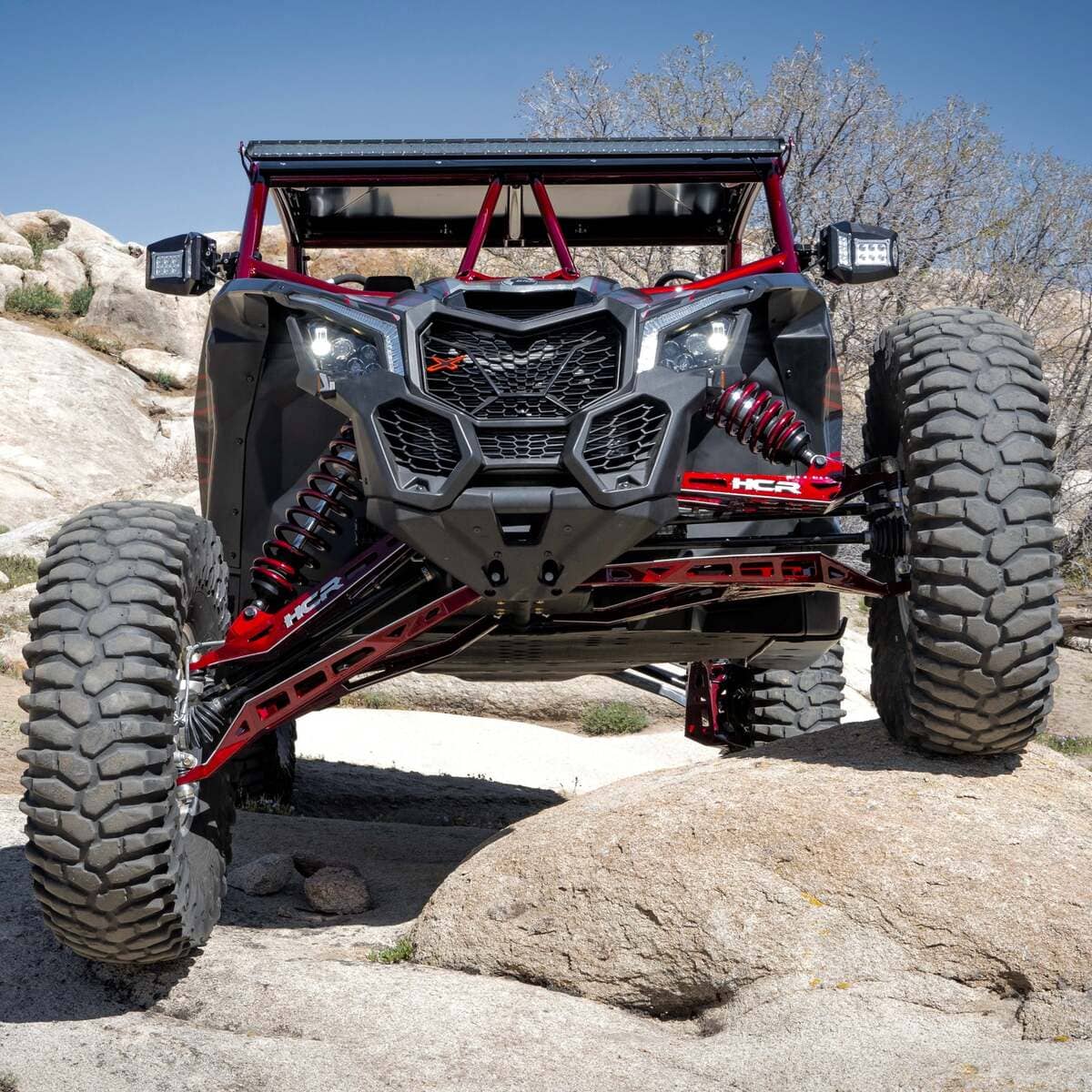

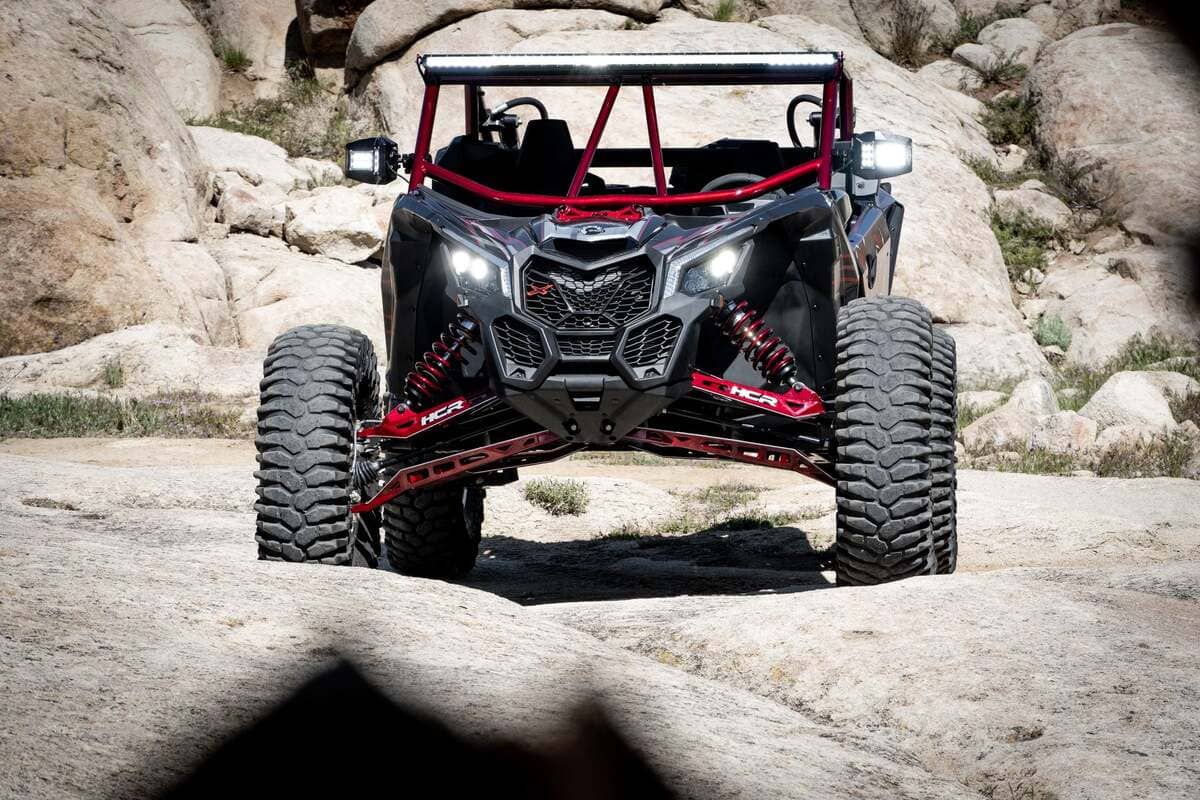

Add clearance, strength and appeal to your Can Am X3 with the HCR OEM Duner kit. This true boxed kit follows the HCR portfolio while adding to the aggressive stance of the X3.

Features:

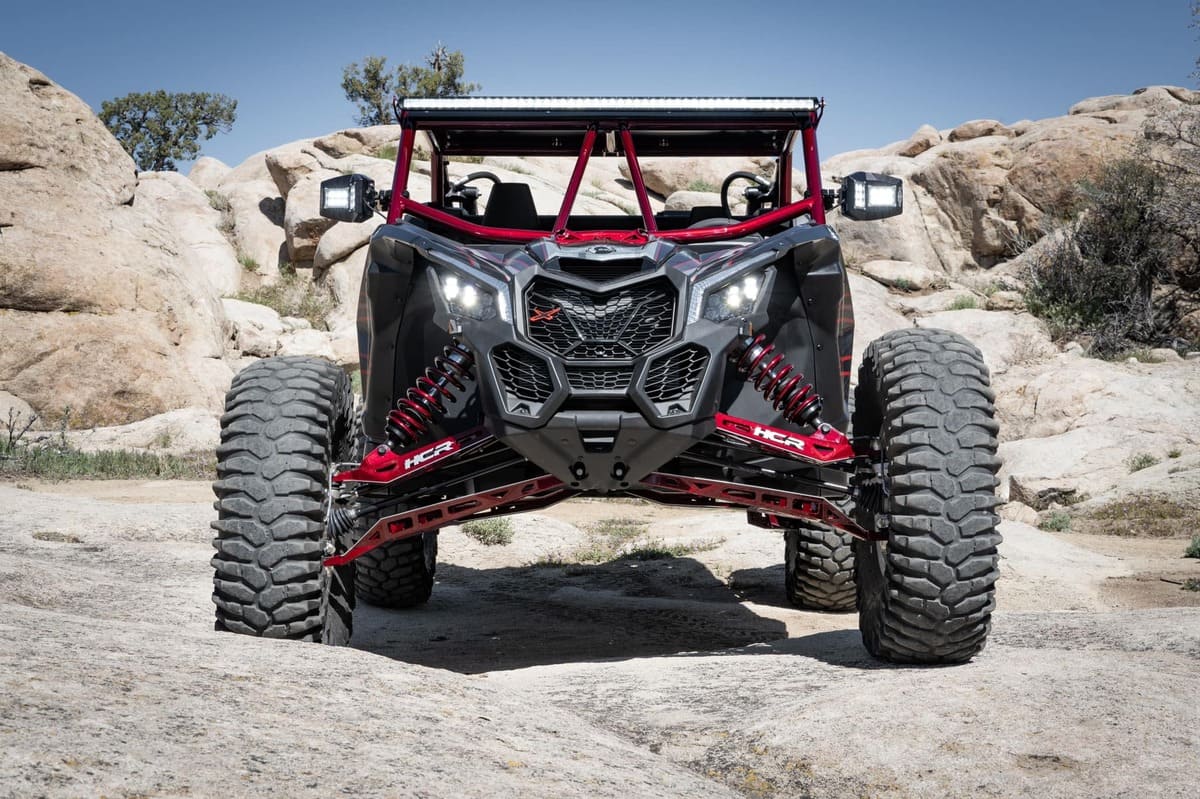

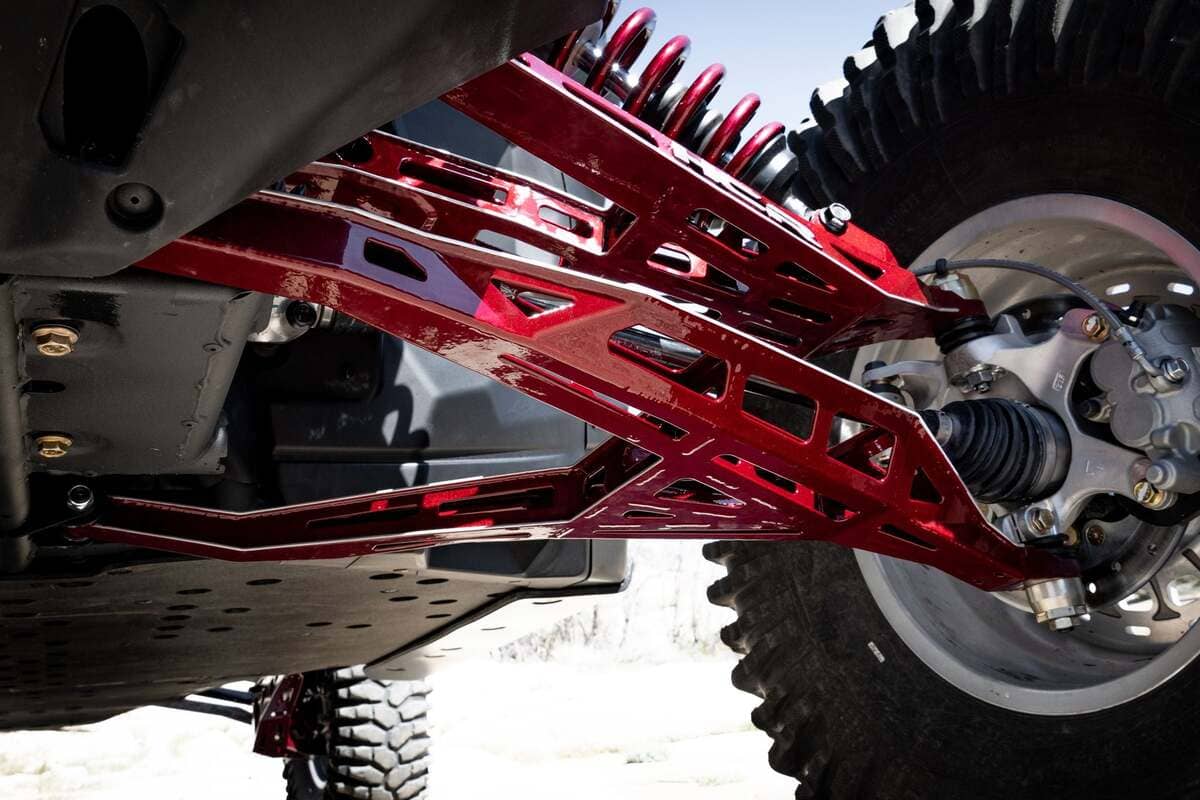

• 1.5" High clearance A-Arm design allows for added ground clearance under key components.
• Manufactured with HCR Elite Alloy; 30% stronger than 4130 Series Chromoly
• Delrin bushings included for increased strength to mounting points.

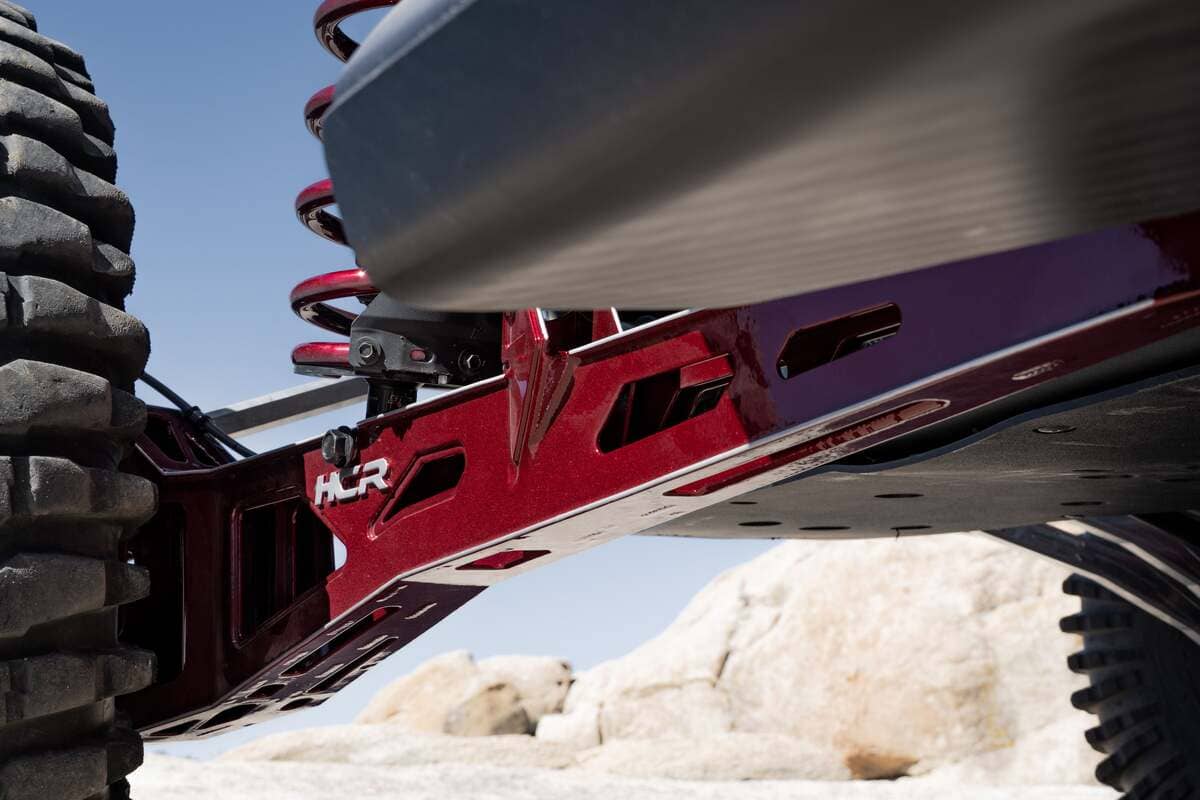

• Internal catacomb design allows for increased strength from hollow factory design.
• comparable weight to factory with added structure.

Kit Includes:

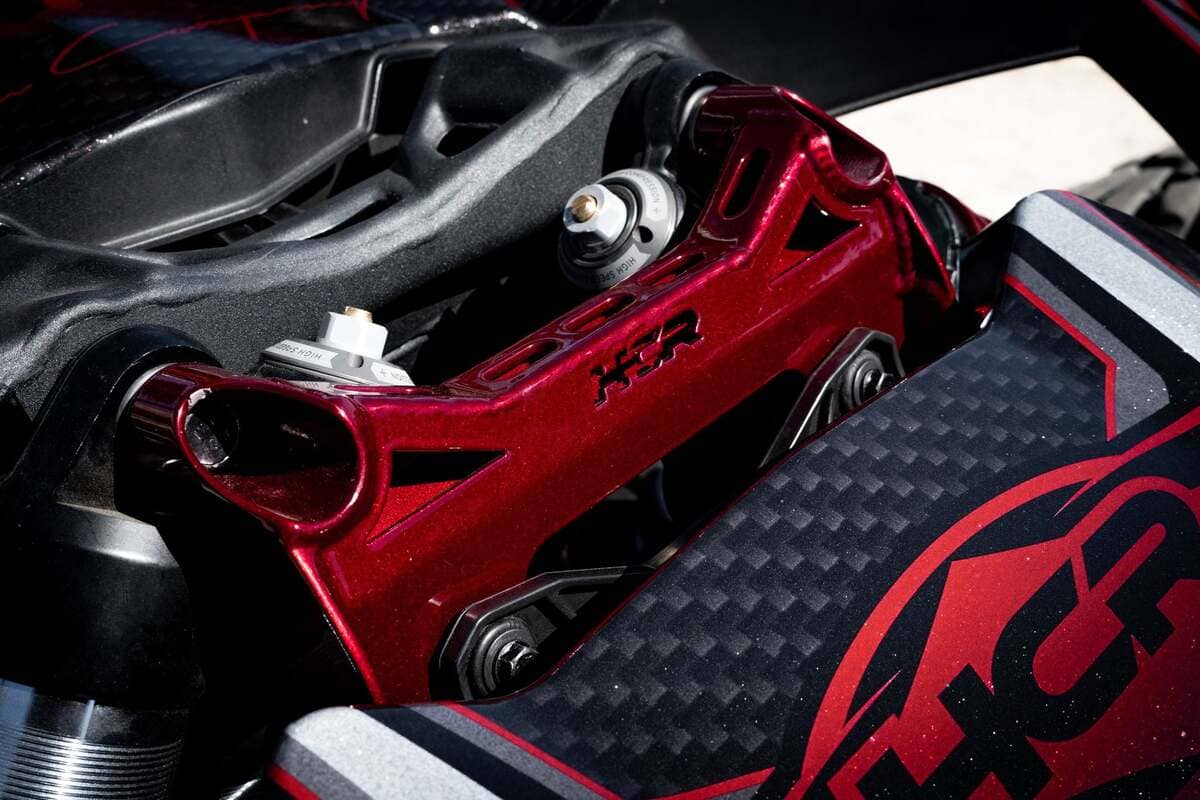

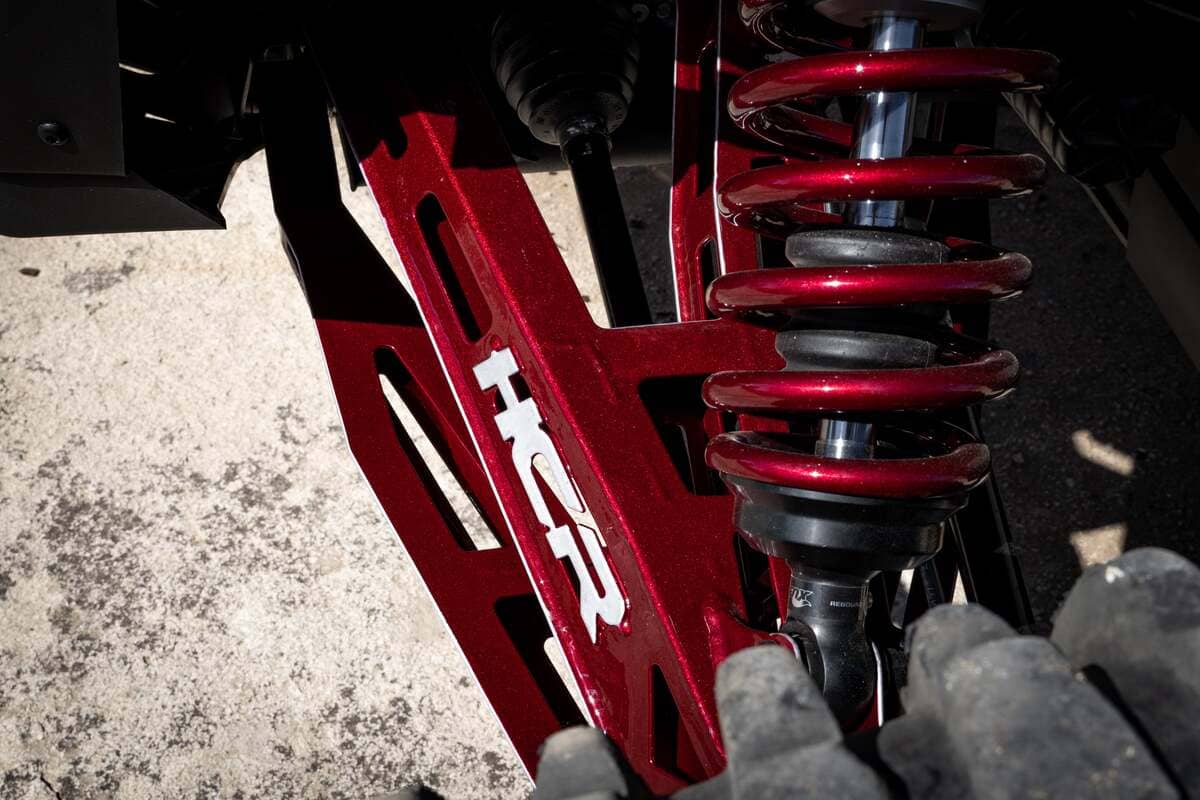

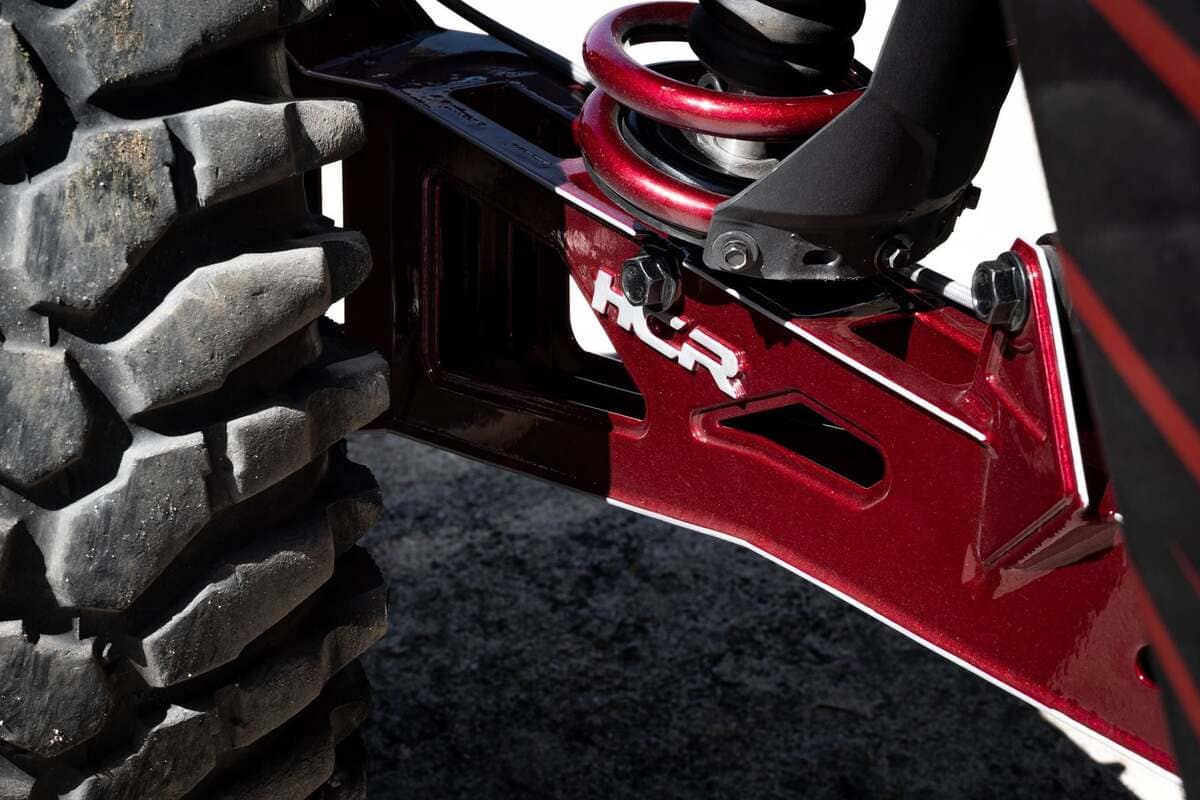

• 4 Front A-arms (2 upper, 2 lower)

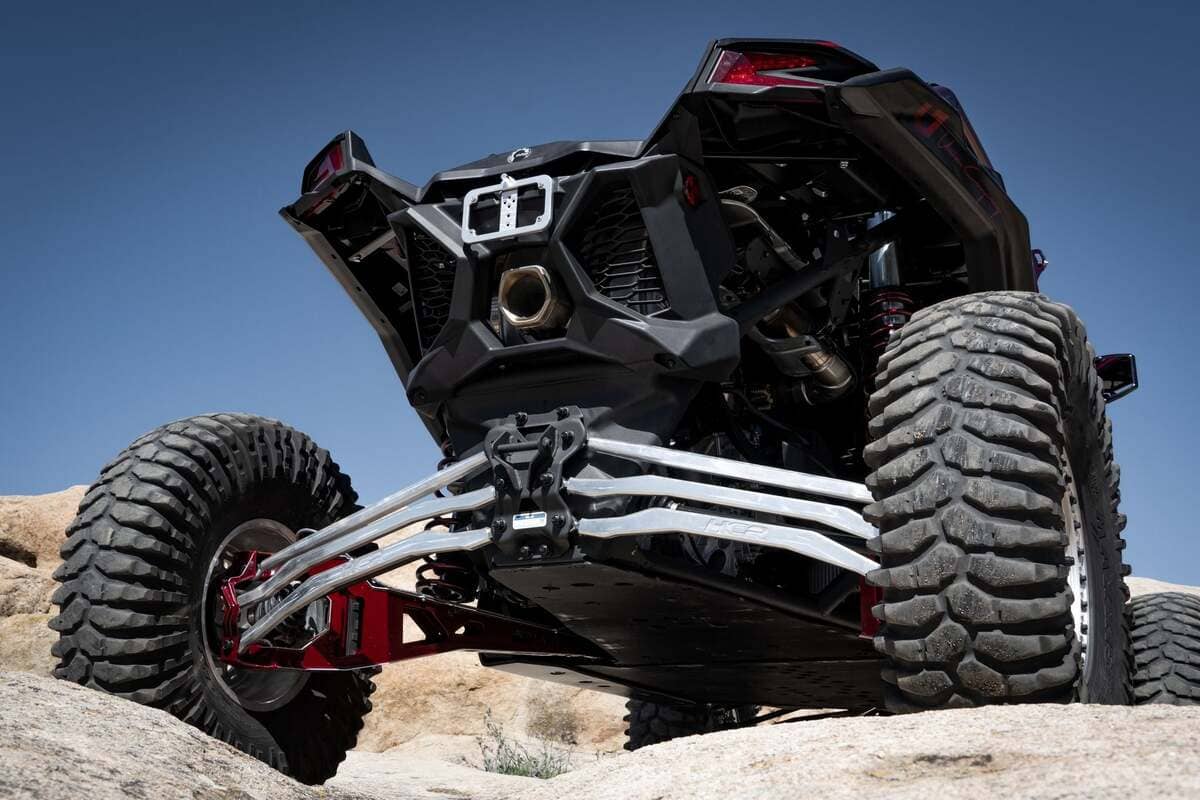

• 2 Rear Trailing Arms
• Delrin Bushings for replacement in the front A-arms, brake line mounting hardware, and shock bolts.

Fitment:

72" Models

• Can-Am Maverick X3 X RC Turbo R : 2018-2020
• Can-Am Maverick X3 X RC Turbo RR : 2020-2021
• Can-Am Maverick X3 X RS Turbo R : 2017-2020

• Can-Am Maverick X3 RS Turbo R : 2021

• Can-Am Maverick X3 X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 X MR Turbo R : 2018-2019

• Can-Am Maverick X3 X MR Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X RS Turbo : 2017-2020

• Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020

• Can-Am Maverick X3 MAX RS Turbo R : 2021

• Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021

• Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021

• Can-Am Maverick X3 RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 X RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022+

• Can-Am Maverick X3 X RC Turbo RR 72 : 2022+

• Can-Am Maverick X3 X MR Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022+

• Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+

Note:

• 14" WHEELS WILL NOT FIT
• Does not come with trailing arm radial bearings (Replace with Can-Am OEM hardware)
• Front sway bar link mounting hole are 10mm, newer models must drill hole to 12mm
• For this kit you will need to reuse or replace with OEM/aftermarket components: Ball joints in the front A-arms, Crush Sleeves and wear plates in the Front A-arms, Trailing arm Radial joints, mounting bolts and hardware otherwise not provided.
• While we try to keep product in stock, unfortunately we aren’t able to keep all products on the shelf at all times. Some products could have a lead time of 10 weeks or more. We do ask that if you are needing to order a product that is time sensitive that you call us and check stock/eta on that part before proceeding. We also have distributors that might have the part you are looking for in stock and we can point you in those directions.
• 2021 Smart shock Models will need an additional bracket
