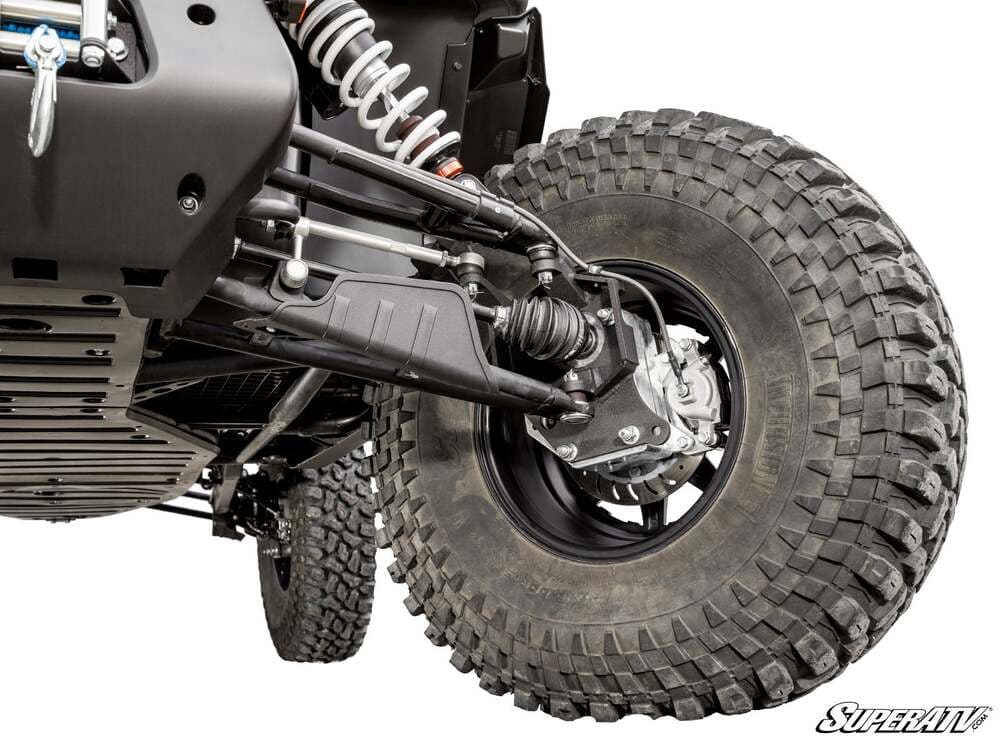

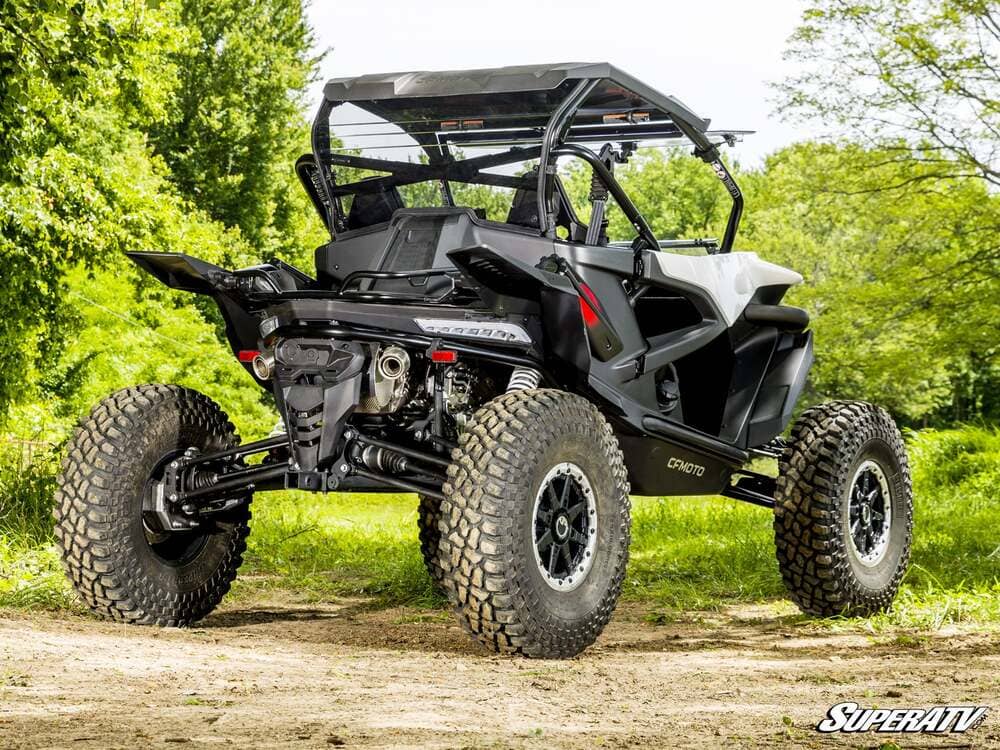

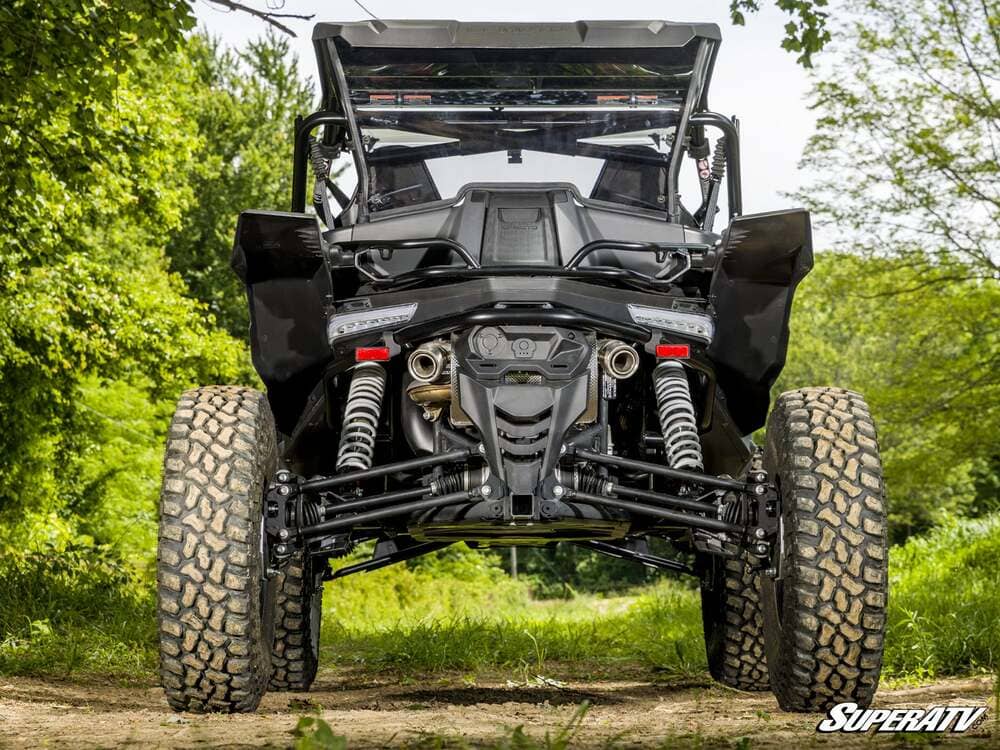

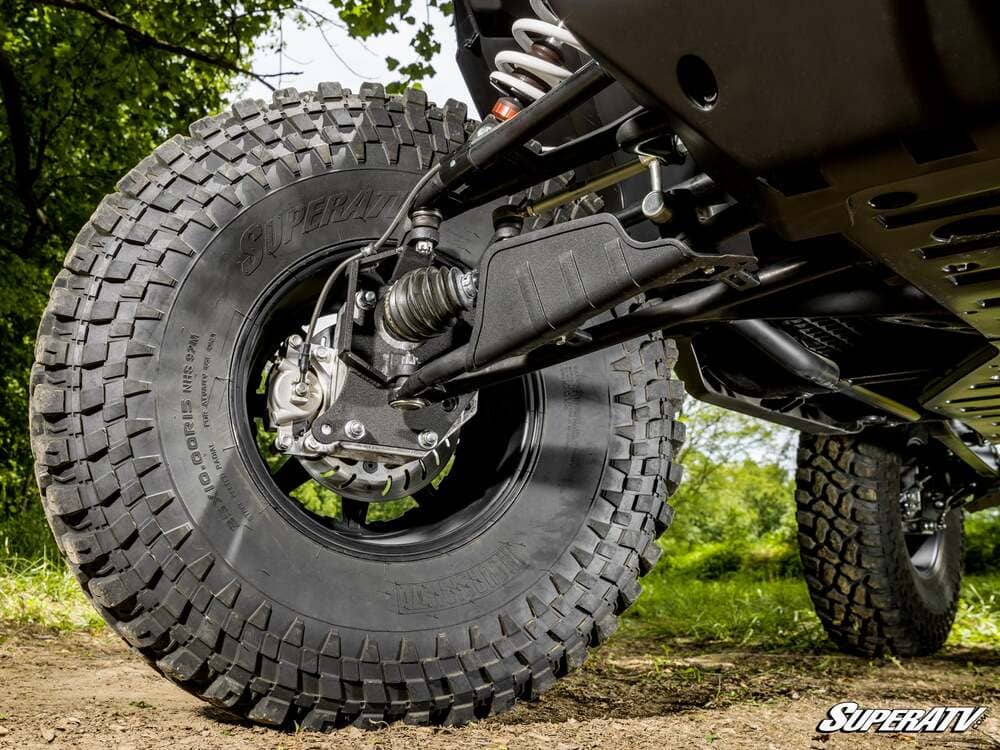

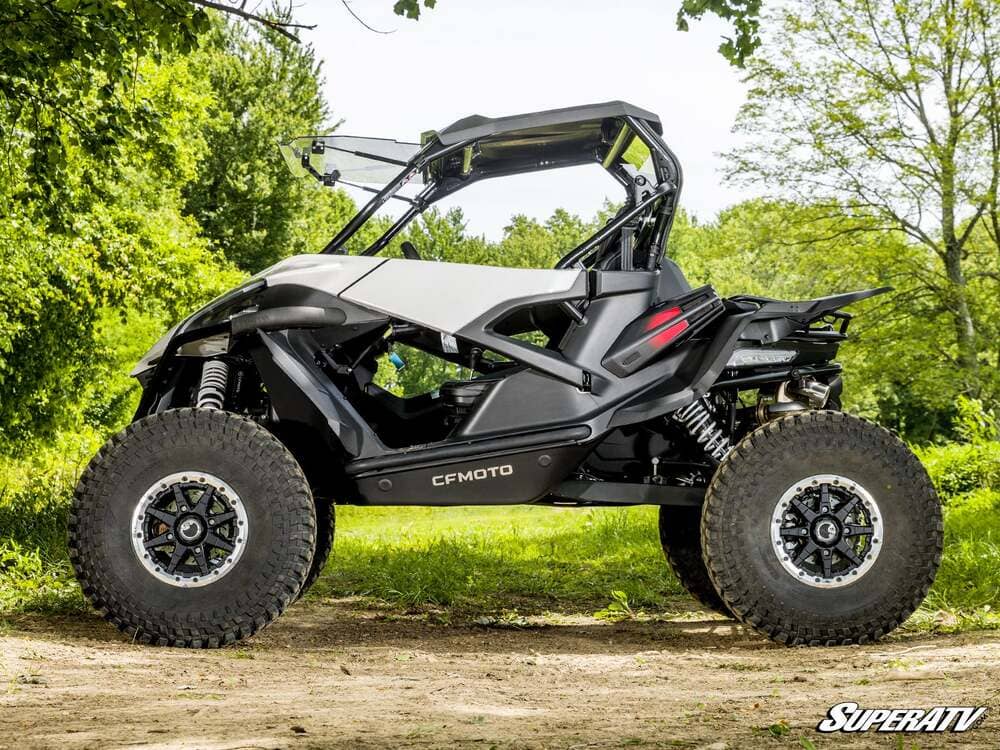

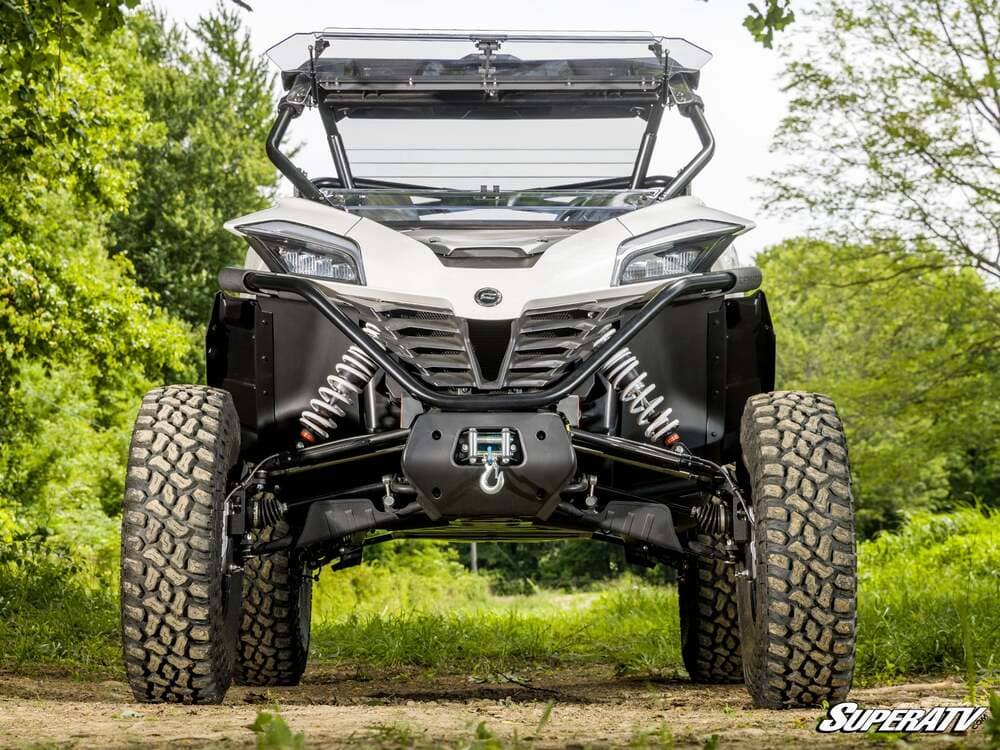

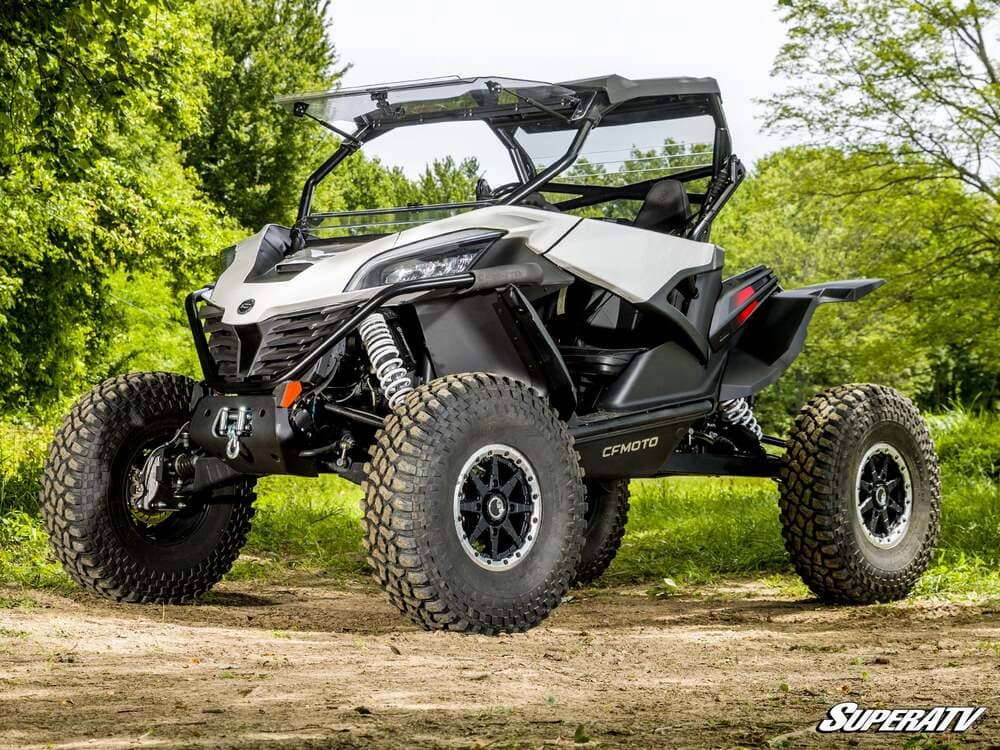

SuperATV CFMOTO ZForce 950 HO 4" Portal Gear Lift

SuperATV CFMOTO ZForce 950 HO 4" Portal Gear Lift

Get the power you need to dominate any terrain with our CFMOTO ZForce 950 HO 4” Portal Gear Lift. It enhances your side-by-side’s performance with an all-in-one gear reduction and 6” lift. We offer our portals with a 15% or 30% gear reduction. For maximum strength, upgrade from cast to billet aluminum!

Designed for All Types of Riding: With our CFMOTO ZForce 950 HO GDP Portals, you get better acceleration and extra torque on rough terrain. Choose a 15% gear reduction to get low end torque without sacrificing your top speed. Are you running large tires and riding through mud? A 30% gear reduction is perfect for you. GDP Portals give you the power to ride confidently on any terrain!

Minimize Stress on Your Drivetrain: With GDP Portals, your gear reduction goes into the wheel hub, not the transmission. This protects your axles, prop shaft, differential, and transmission. That means you’re getting more power without wearing vital parts down.

The Strength You Deserve: You like to ride rough, so you need a product that’s built to last. Our GDP Portals are made of cast or 6061 billet aluminum housing. Combine that with our 5/16” backing plates made from advanced steel alloy and you’re getting the best portals on the market.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings

Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

A Dedicated Customer Service Team: Need help figuring out which GDP Portal works best for you? We have a team that is devoted to helping you get what you need. Reach out so we can get you the perfect portals for your CFMOTO ZForce 950 HO!

Features:

• Available with billet or cast aluminum housing
• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• Increases width by 4” per side (8” total)
• 1.5” diameter 4340 hardened steel drive shaft
• No leak bearings and seals
• Universal hub fits all major bolt patterns
• Comes complete with all hardware, backing plates, brakes lines and instructions

CFMOTO UForce 1000 4” Portal Gear Lift Includes:

• (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
• (4) Universal hubs and stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (1) Front caliper adapter
• (1) Rear caliper adapter
• (6) Shims
• (1) Short left front brake line
• (1) Long right front brake line
• (2) Rear brake line extensions
• (1) Short left front parking brake
• (1) Long right front parking brake
• All required hardware, including recessed castle nut socket

Fitment:

• CFMOTO ZForce 950 HO EX : 2023+

Wheel Requirements:

• 14” or larger wheel required
• Wheels cannot exceed 5” backspacing
• Not compatible with dual beadlock wheels

Installation Instructions:

• Instructions - PGH-10-111-301
