RPM Powersports Kawasaki H2 4-Stage Oil Catch Can Kit

RPM Powersports Kawasaki H2 4-Stage Oil Catch Can Kit

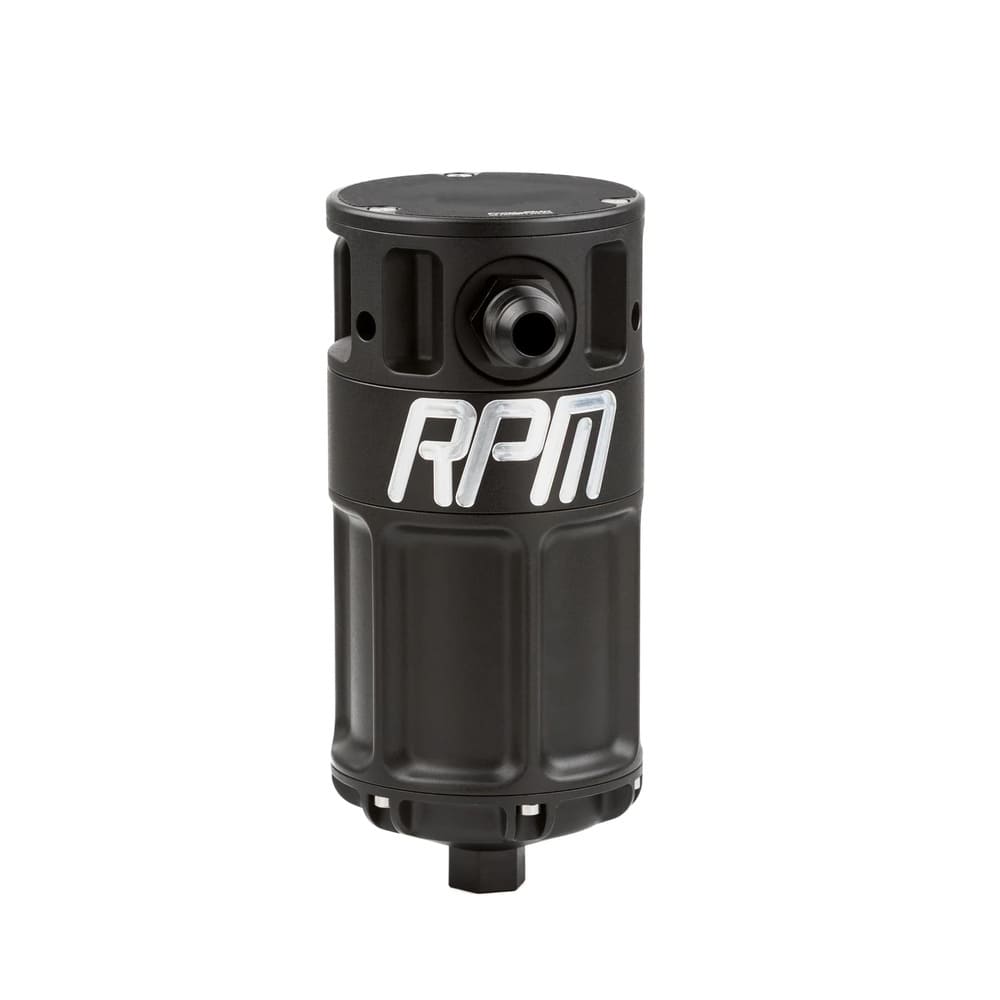

The RPM SxS 4-Stage Catch Can is the most advanced oil catch can ever built for serious side-by-side performance. Engineered from the ground up for the punishing conditions of modern UTVs, high boost, aggressive terrain, and E-85 applications, this catch can doesn’t just collect oil and water vapor it masters them. Our exclusive 4-stage separation system takes PCV fluid management to the next level. Built with the same rugged quality and attention to detail that made our previous dual-baffle catch cans best-sellers, but now with superior multi-stage performance and zero-compromise anti-slosh technology. This is the catch can done right & the one your UTV has been waiting for.

The result? Dramatically cleaner charge tubes, intercooler, and no more oily film building up on recirculated BOV's. With all of this you gain the reduced risk of detonation, better tuning consistency, and longer engine life.

• Stage 1 slows, cools, and condenses incoming fuel & oil vapors into droplets.
• Stages 2 & 3 use precision stainless steel baffle plates combined with anti-slosh mesh that acts as both a separator and a fluid reservoir, keeping liquid locked down even during the roughest rides.
• Stage 4 delivers final polishing through additional baffles and an internal breather filter, sending the cleanest possible air back to open ventilation, or back to the intake.

Features:

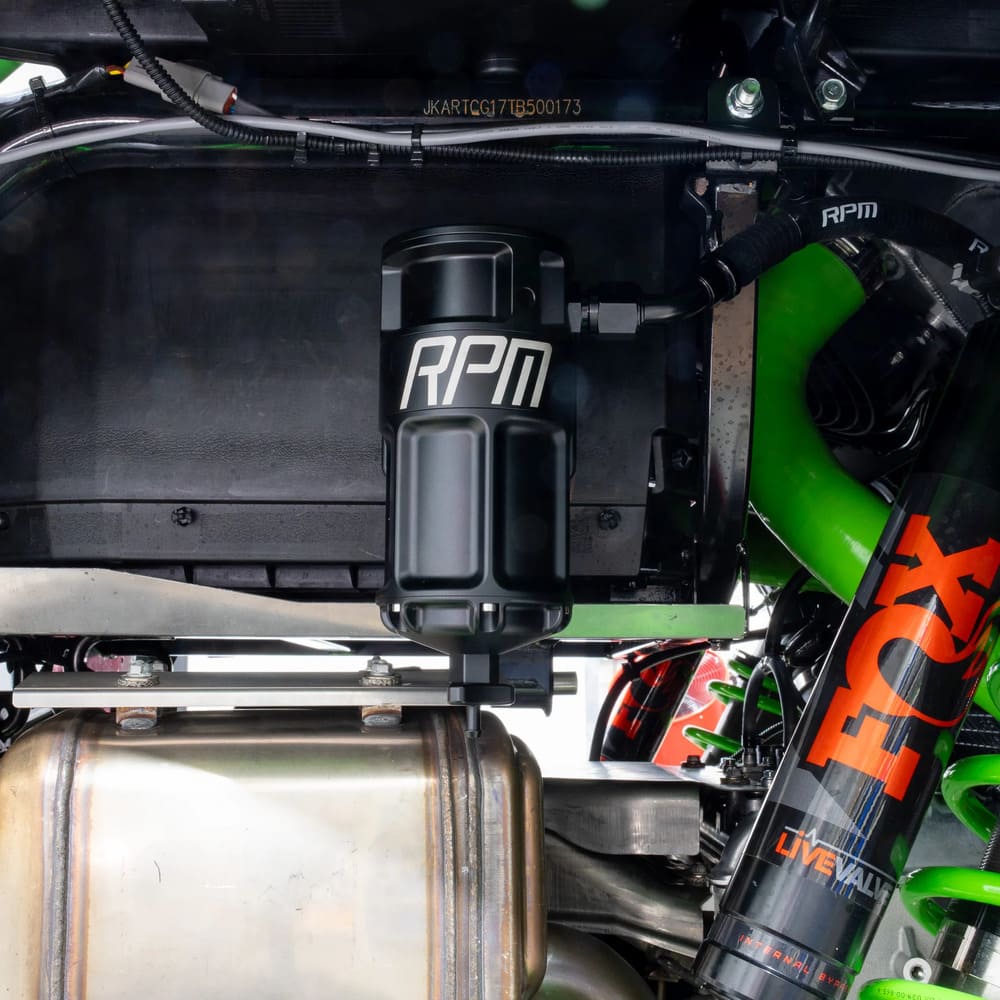

• Innovative Swivel Hirth Joint Mounting System: Unmatched flexibility for mounting in endless locations with perfect inlet orientation, no matter your build.
• Modular Design: Easily upgrade with our accessory options: panel mount kit, external breather filter, recirculatory top, or 5.5 oz extended housing.

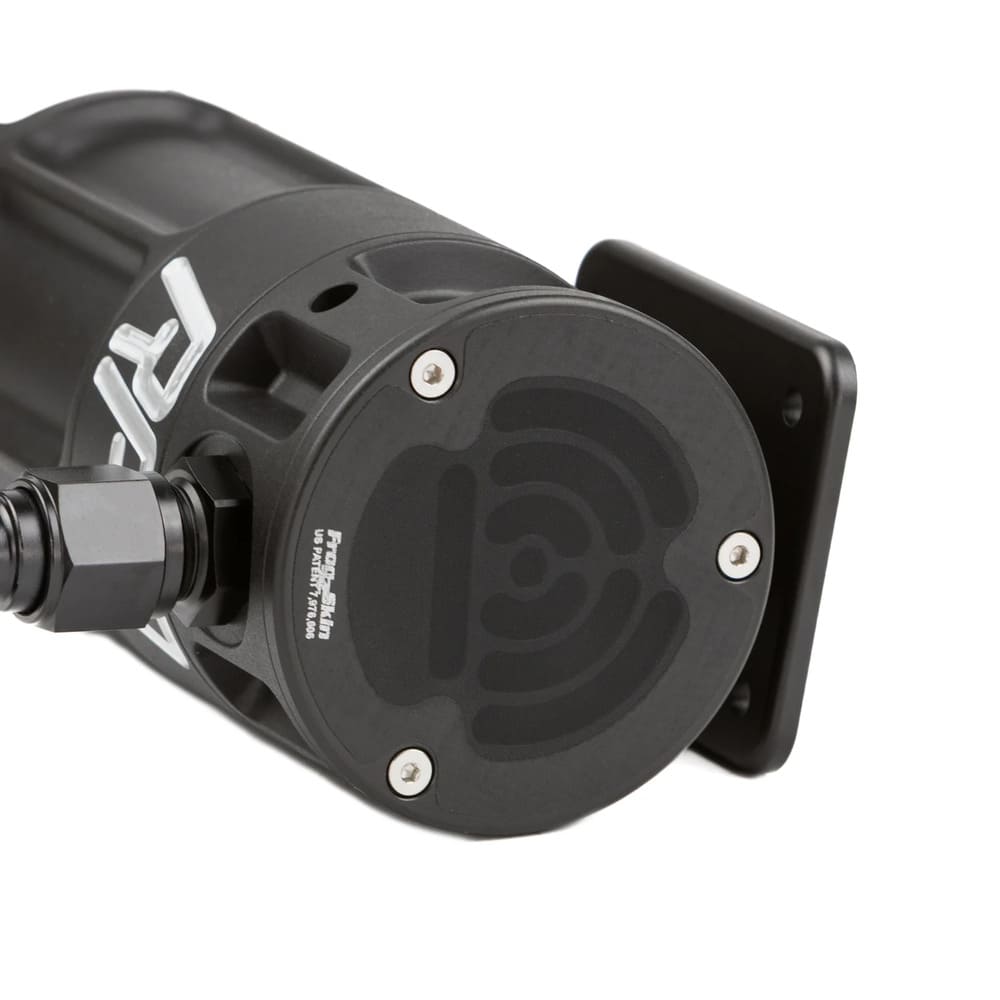

• Breathable Frogzskin Vented Top: Repels water and debris build up while allowing proper ventilation.

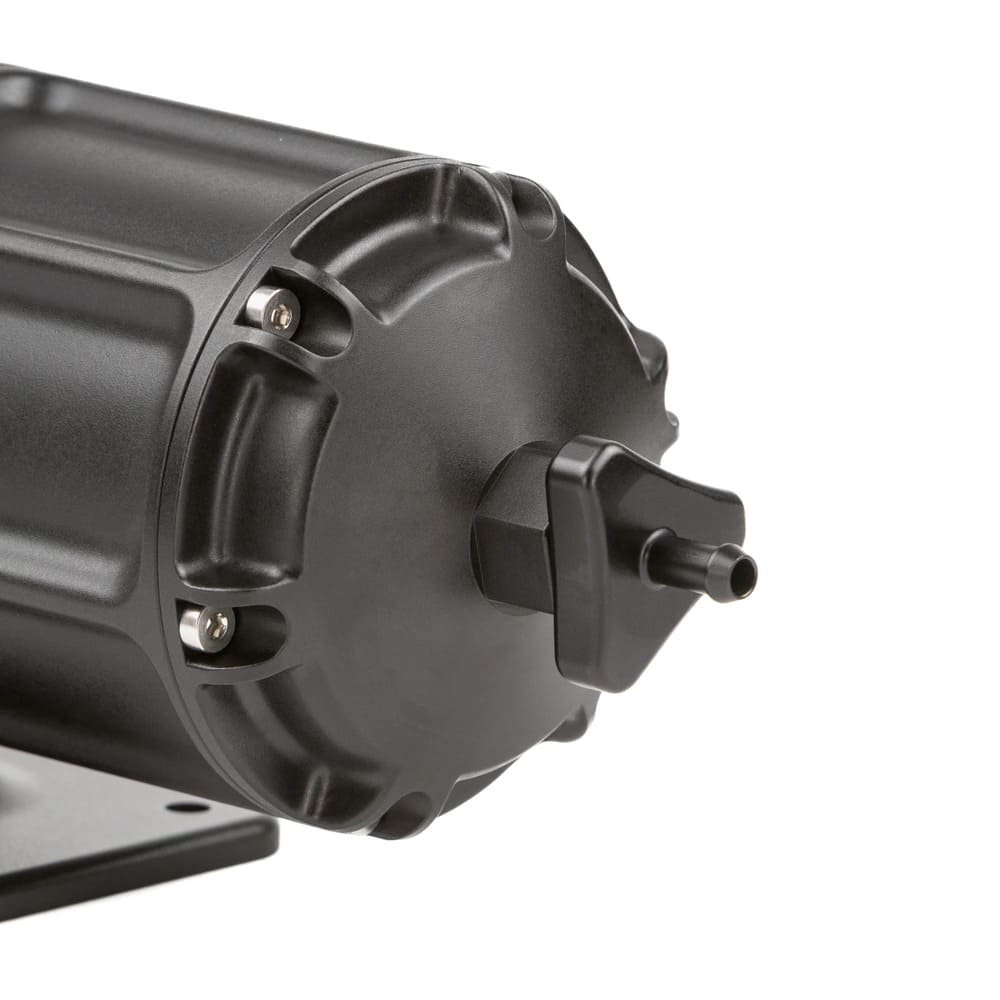

• Easy-Turn Dual-Seal Drain Valve: Mess free and leak proof draining with a simple 1.5 turn twist.
• Universal Clamp Mount: Fits 1.5" to 2.9" diameter tubes for true universal fitment across most SxS platforms.

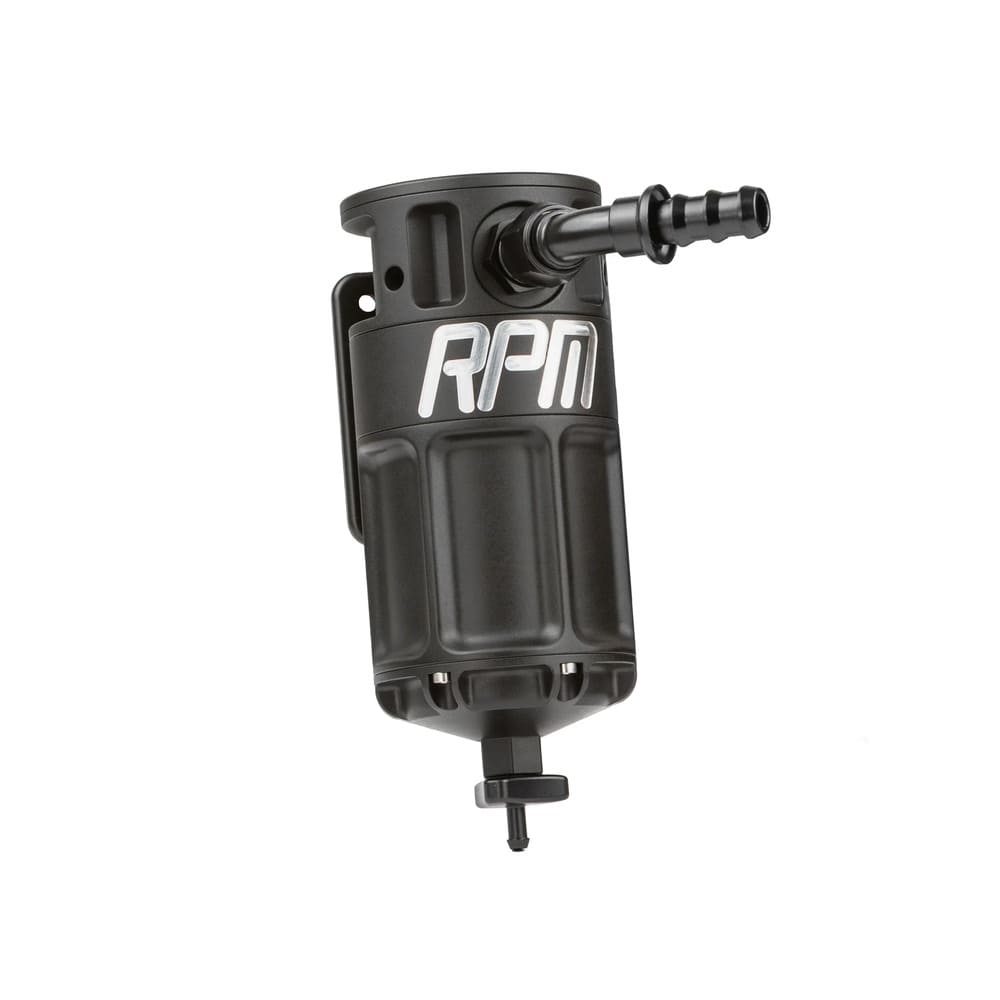

• -10 ORB Inlet: with included -10AN fitting and silicone hose for clean, professional plumbing.
• Recirculatory Ready: Supports closed loop PCV systems for emissions compliant or track setups.

Specifications:

• Universal tube mount
• External breather filter
• Recirculatory top
• 5.5 oz extended housing

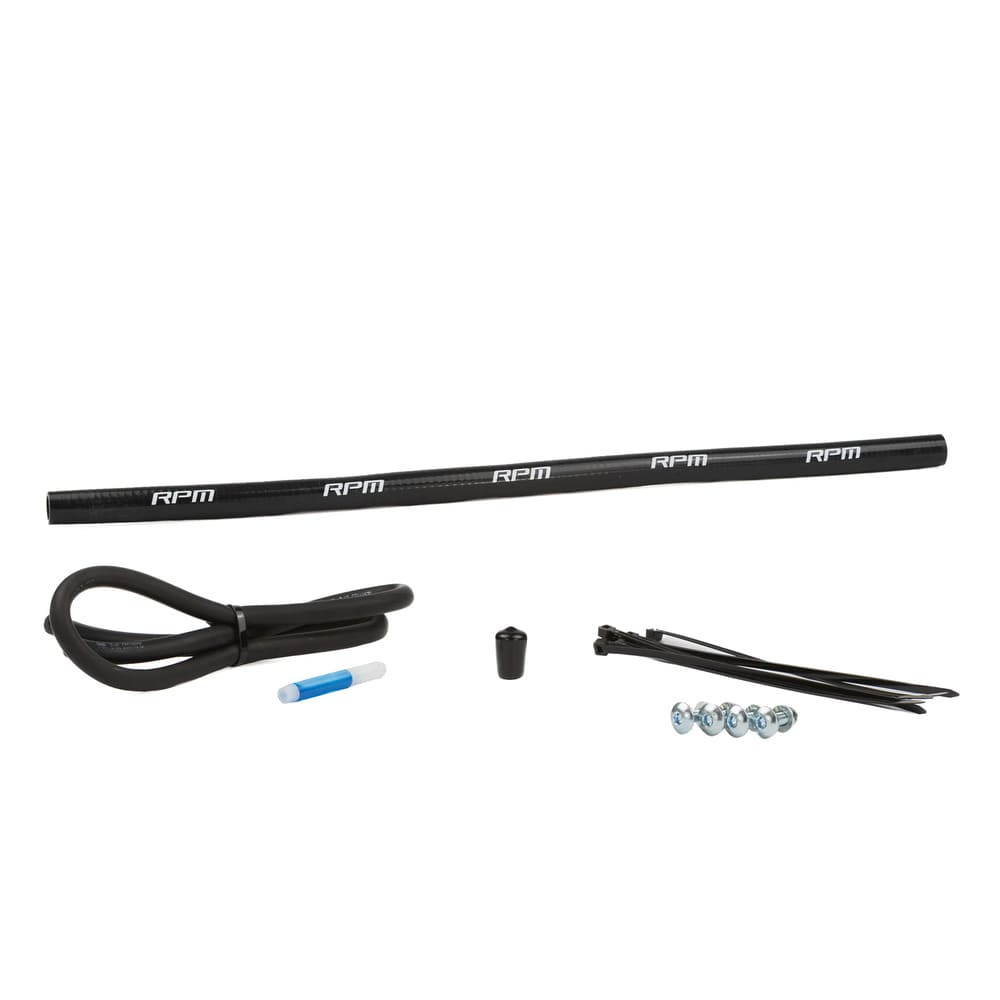

Kit Includes:

• 4-Stage Catch Can w/ Panel Mount Plate
• Plate Mounting Hardware
• -10AN Inlet Fitting
• Silicone Hose
• Cap for Intake Port

• Drain Hose
• Zip Ties
• Blue Thread Locker

Installation Instructions:

• Oil Catch Can Kit
