RLB Motorsports UTV Blinker Kit

RLB Motorsports UTV Blinker Kit

The PRO8 is an 8-button electronic programmable switch panel.

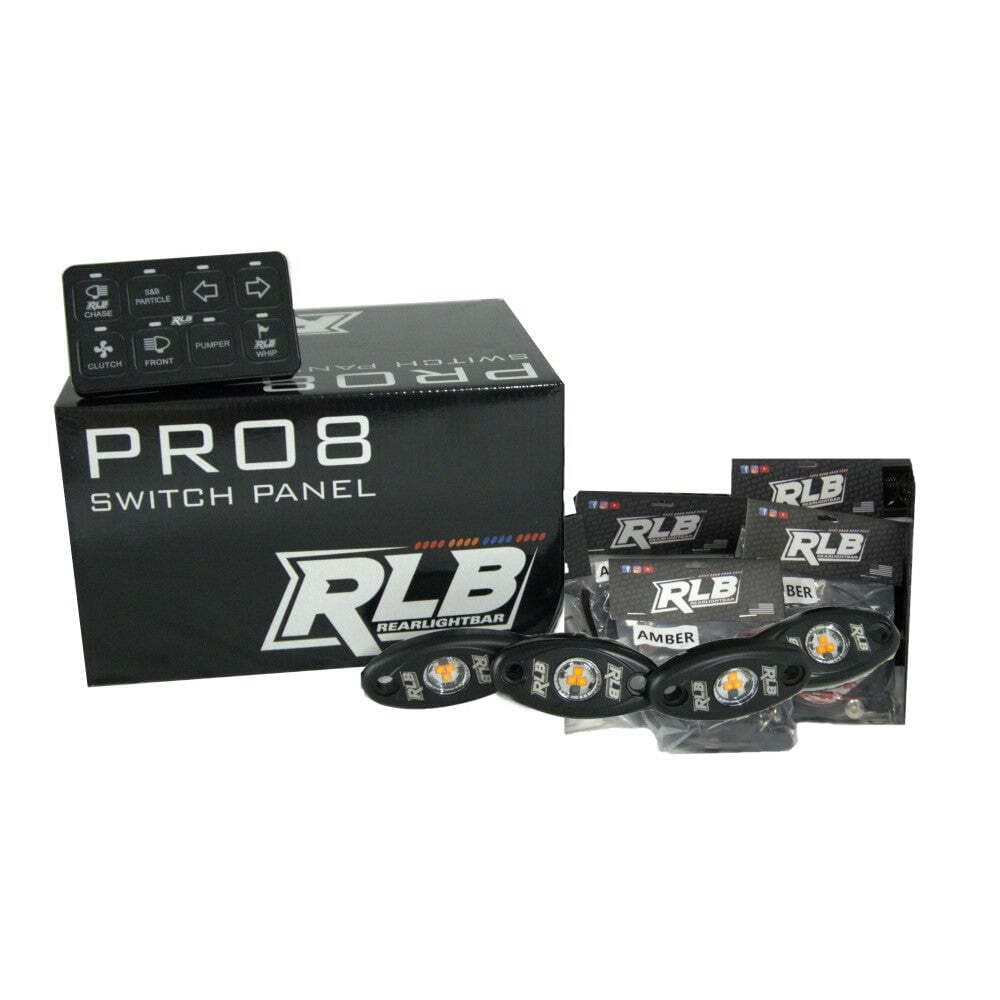

UTV BLINKER KIT INCLUDES

• (1) PRO8 KIT

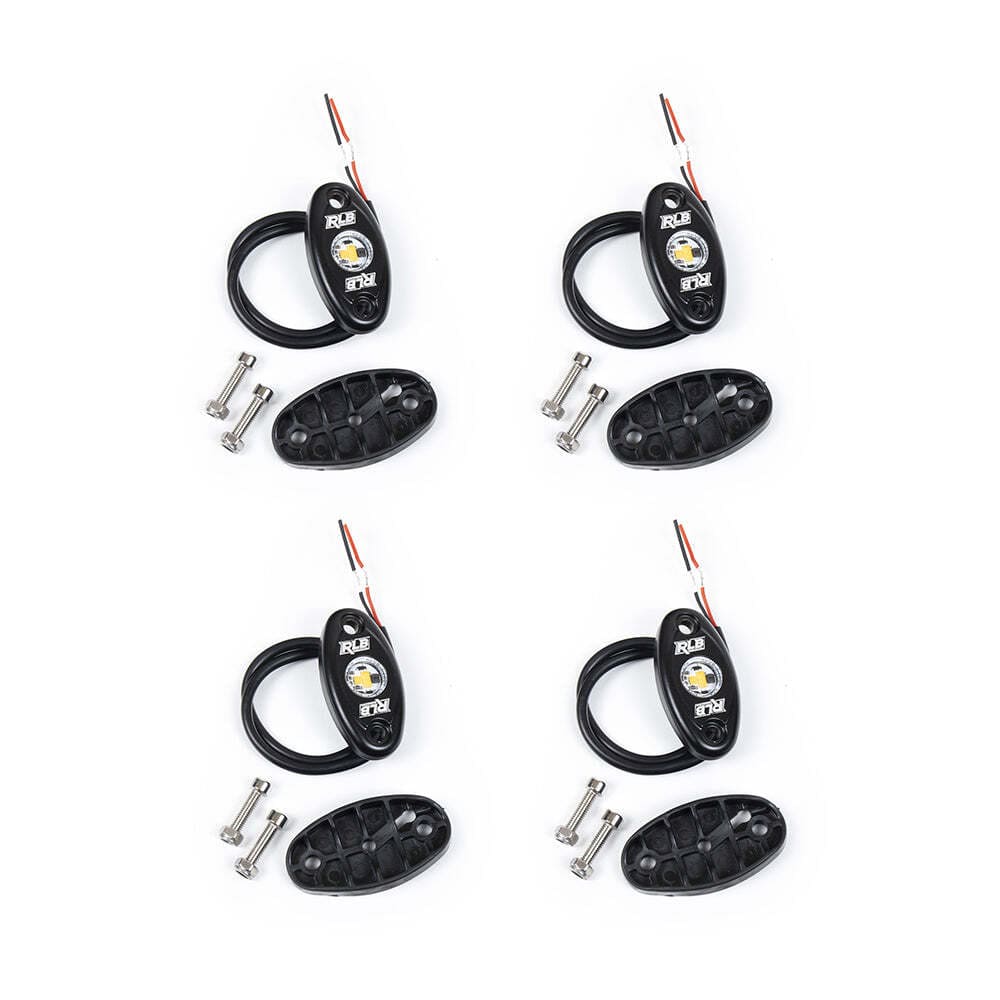

• (4) AMBER ROCK LIGHTS AS BLINKERS

Specifications:

• Led: Cree Led 50,000 Hour Life Expectancy
• Lens: Hard Coated Optic Poly-Carbonate
• Housing: Matte Black Die-Cast Aluminum, Uv-Treated
• IP Degree: IP68 Waterproof Housing
• Size: Approx 2.8″(72MM)*1.6″(40MM)*0.5″(12MM)
• 2.5″(64MM) Distance Between Mounting Holes
• Mounting: All Hardware Included for Surface or Tube Mount
• Beam: 120-Degree Angle, Flood
• Voltage: DC 9-32V
• Power: (3) 3 Watt Led = 9 Watt Total
• Weight: 300 Grams
• Operating Temps: -20~50 Degree Celsius

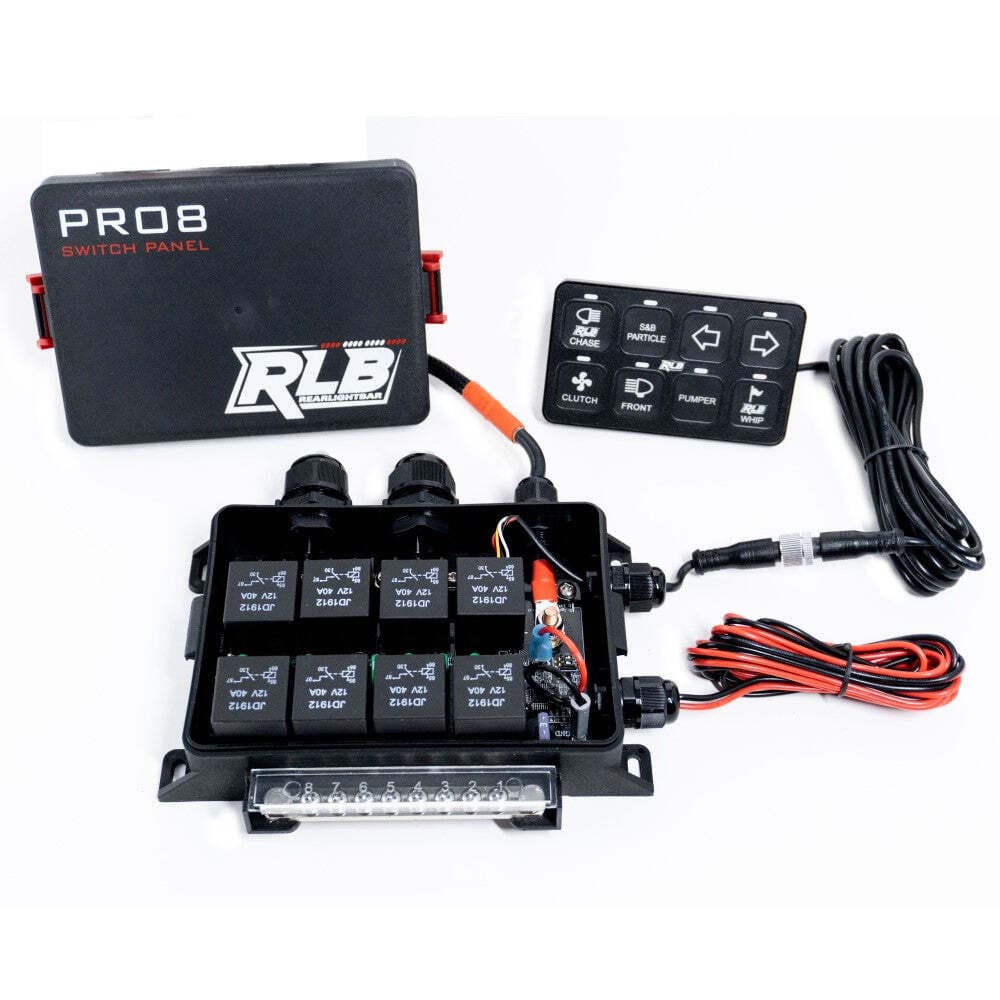

Power Module:

• Size: Length 8.27″, Width 6.3″, Height 2.24″
• Temp. Rating: Automotive -40c – 125c
• Waterproof and Dust Rating: Ip66
• Amp Rating: 100a Max
• Each Switch Output: 30a Max
• Low Voltage Cutoff
• Ignition Control

Switch Panel:

• Size: Length 4.57″, Width 2.72″, Height 0.47″
• Housing: Anodized Aluminum
• Switch Membrane and Sticker Legend: Polycarbonate
• Temp. Rating: -30c – 85c
• Waterproof and Dust Rating: 1p66
• Backlight Colors: White, Blue, Green, Red
• Switch Functions: on/off, Flash, Strobe, Momentary, Blinker

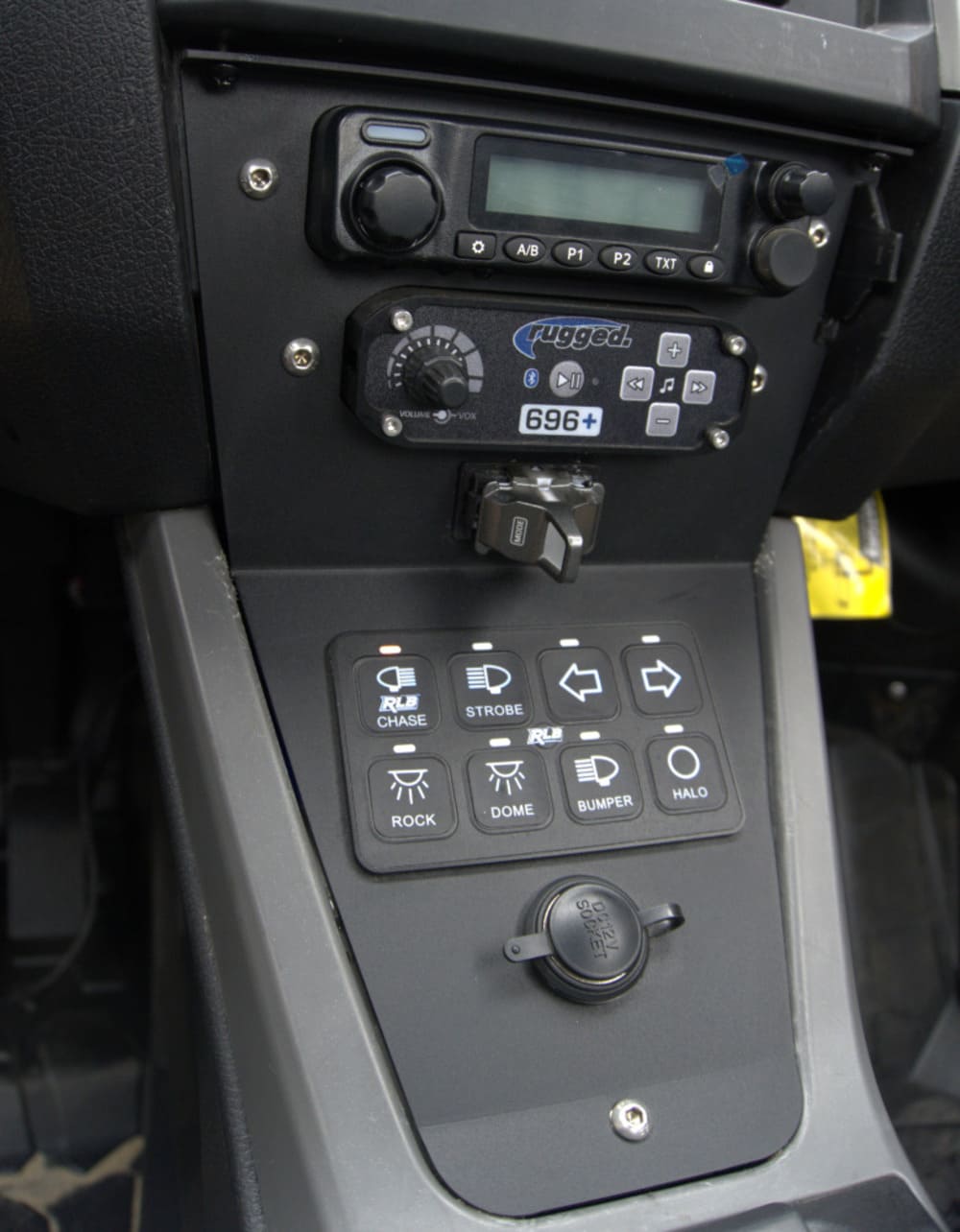

• Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount

Switches Can Be Programmed for:

• Blinker
• On/off or Momentary
• Flash or Strobe, With User-selectable Strobe Patterns and One-touch Activation
• Memory Function
• Master Memory on/off Function
• Waterproof Polycarbonate Overlay Faceplate

All Systems Include:

• Sticker Legend
• Eight User-selectable Programmable Switches
• Eight 30a Circuits
• Waterproof Power Module
• 100% Serviceable, the Universal Relays and Fuses  Are Replaceable; Not Solid State
• 4 Backlight Color Options; White, Blue, Green, and Red
• Two Installation Options: Direct to Battery or Ignition Activated
• 4 Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
• Low Voltage Cut-off Protection
• Overvoltage Protection
• Completely Serviceable Fuse/relay Power Module
